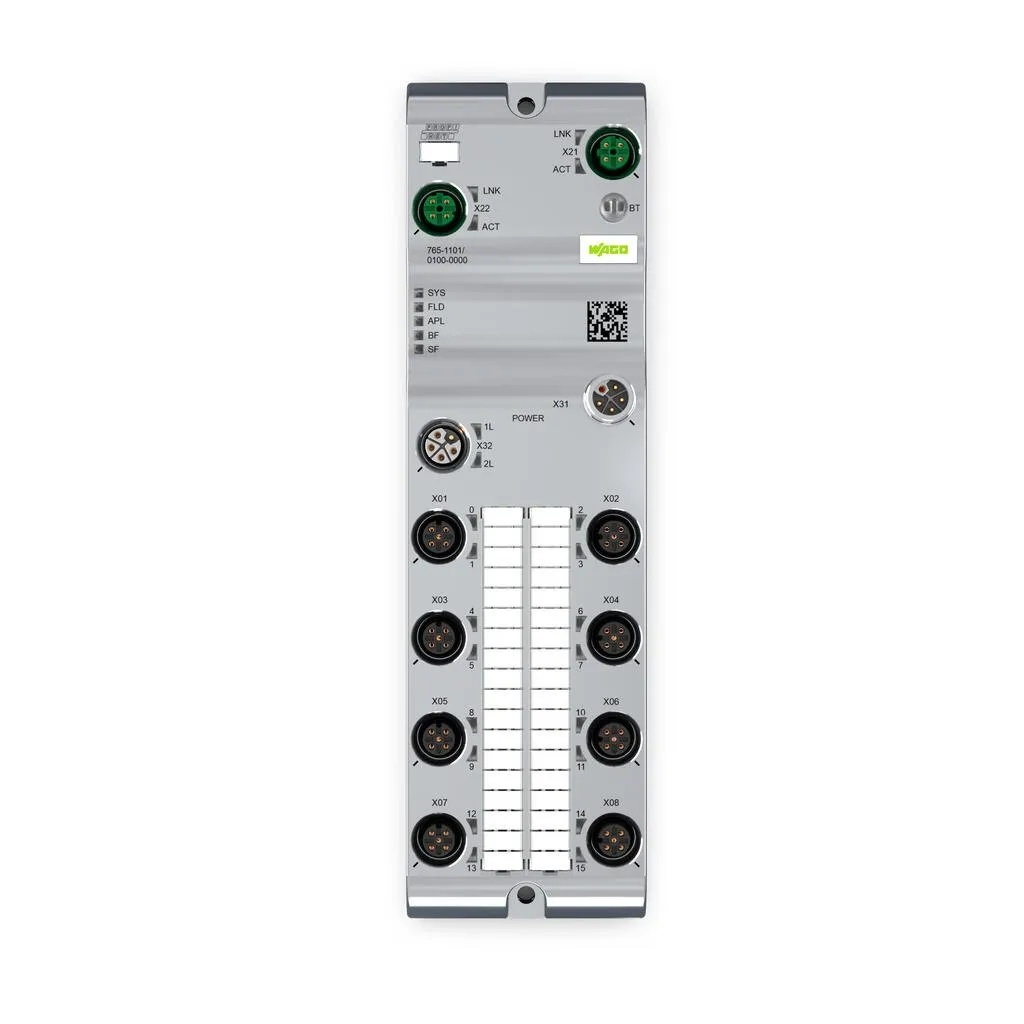

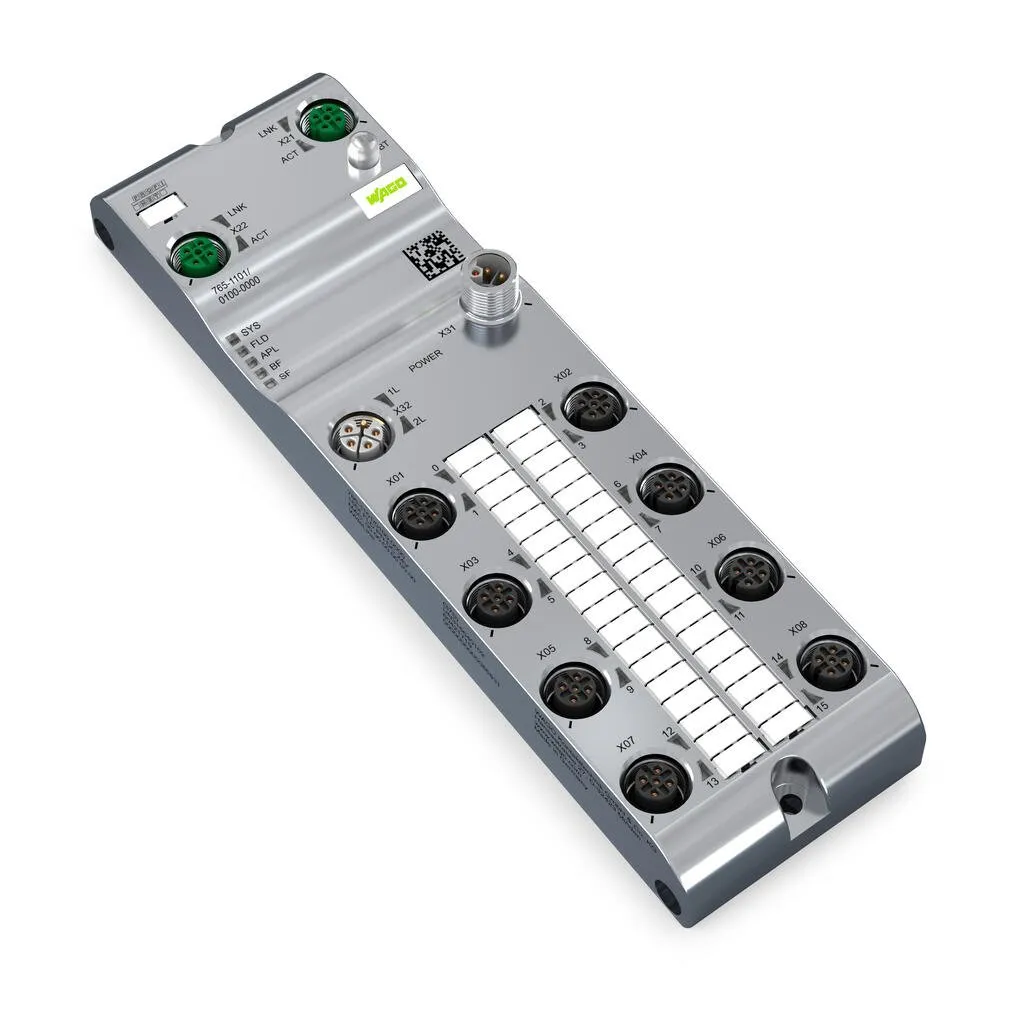

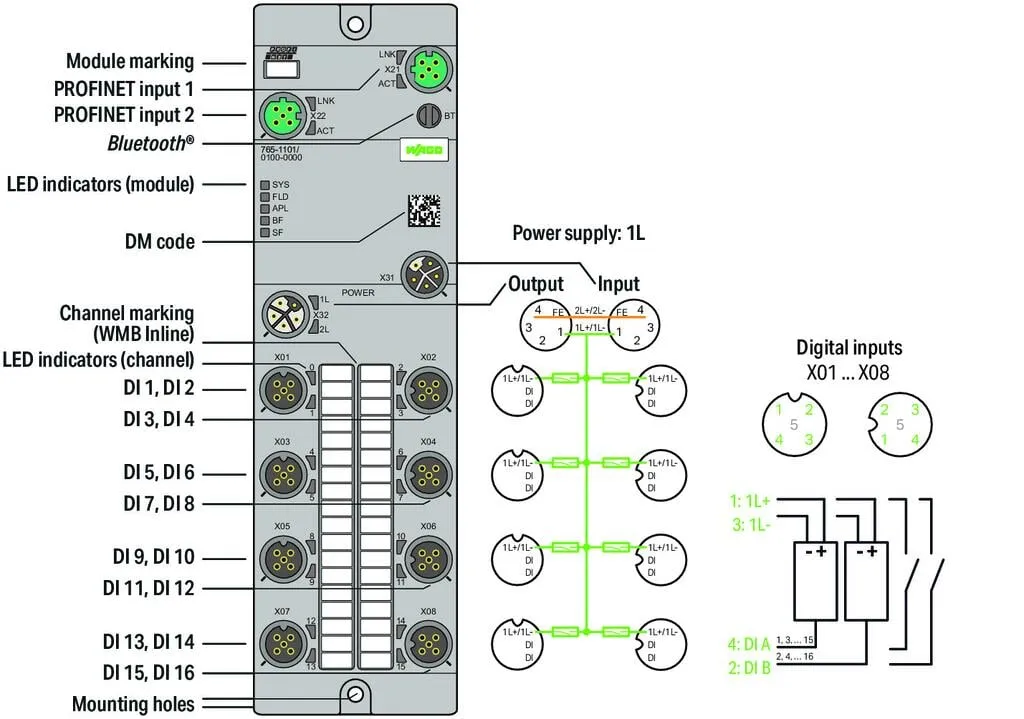

Wago 765-1101/100-000
Application:Decentralized processing of digital signals The device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent or received by a higher-le…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Application:Decentralized processing of digital signals The device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent or received by a higher-level controller. The device offers 16 digital inputs.
Specification
Technical data - Fieldbus
| Communications | PROFINET, PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
|---|---|
| Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole |
| Interface standard | 10BASE-T/100BASE-TX; potential-free |
| Autonegotiation; autocrossover | yes |
| PROFINET IO features | PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
Technical data - Device functions
| Parameter | Input filter, Temperature |
|---|---|
| Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
| Device functions | Bluetooth®, OPC UA server |
| Visualization | Android/iOS app, Web server |
Technical data - Digital inputs/outputs
| Number of digital inputs | 16 |
|---|---|
| Connection technology: I/O | 8 x A-coded M12; 5-pole |
| Signal type (voltage) | 24 VDC |
| Sensor current (per channel) max. | 2 A |
| Input characteristic | High-side switching |
| Input filter | 0.2 … 20 ms |
| Input characteristic | Type 3, per IEC 61131-2 |
Technical data - Supply (module)
| Connection technology: supply | 2 x L-coded M12; 5-pole |
|---|---|
| Supply voltage | 24 VDC (18 … 31.2 V); 1L/2L |
| Current consumption (max.) | 16000 mA |
| Current consumption (note) | per supply line; overload- and short-circuit-protected |
| Reverse voltage protection | Yes |
Physical data
| Width | 60 mm / 2.362 inches |
|---|---|
| Height | 30 mm / 1.181 inches |
| Depth | 210 mm / 8.268 inches |
Material data
| Weight | 610 g |
|---|---|
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP67 |
| Protection class | III per EN 61140, IEC 61140, VDE 0140-1 |
| Pollution degree | 3 (EN 60664-1) |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143948005 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
