Wago 759-302/000-923

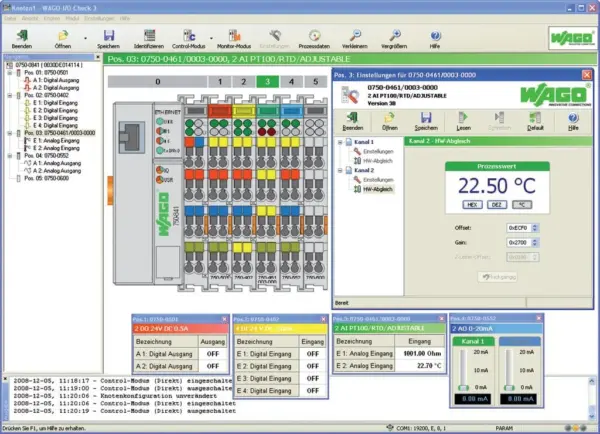

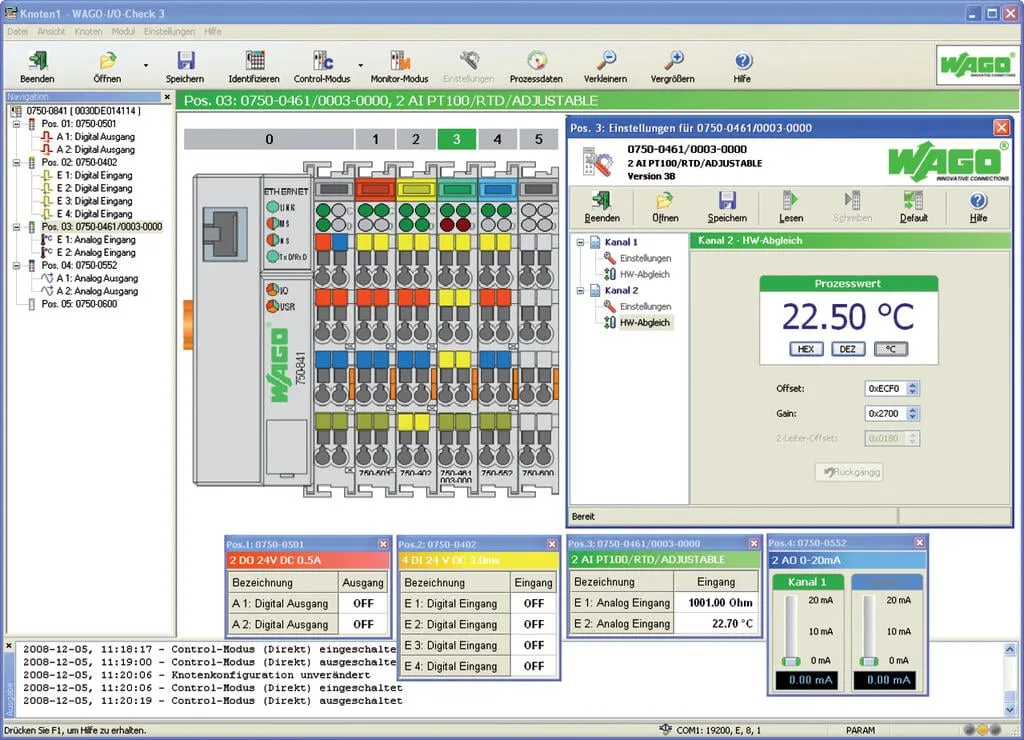

WAGO-I/O-CHECK is an easy-to-use Windows application for operating and displaying a WAGO I/O System 750’s node without connecting to a fieldbus system.The software reads the configuration from the node and displays it graphically on the screen. This graphic can be printed together with a configuration list as documentation.With WAGO-I/O-CHECK, it is possible to display and specify the process data of the I/O modules. The field wiring, including all sensors and actuators, can thus be checked before startup.For some types of interface, Pt100 and thermocouple modules, application-specific settings can be made, such as the baud rate or sensor types.The coupler must be connected to a free serial or USB port of the PC using the communication cable supplied in the set with the system to enable communication between WAGO‐I/O‐CHECK and the node.
