Wago 757-144
M12 sensor/actuator box, 4-way4-pole (1 signal per contact)M23 connector (12‑pole)Green LED operating indicatorYellow LED status indicatorincl. markers (10 pcs)incl. M12 protective caps (2 pcs)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M12 sensor/actuator box, 4-way4-pole (1 signal per contact)M23 connector (12‑pole)Green LED operating indicatorYellow LED status indicatorincl. markers (10 pcs)incl. M12 protective caps (2 pcs)
Specification
Technical data
| Contact resistance (max.) | 0.01 Ω |
|---|---|
| Supply voltage | 10 … 30 VDC; Rated voltage: 32 V ~ rms |
| Current carrying capacity (signal connections) | 2 A |
| Current carrying capacity (supply connections) | 9 A |
| Rated value of electrical isolation | 500 V |
| Functionally separated potential groups | Kontakt/Kontakt |
| Insulation resistance | >109 Ω |
| Signal characteristics | PNP |
| Indicators | LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status |

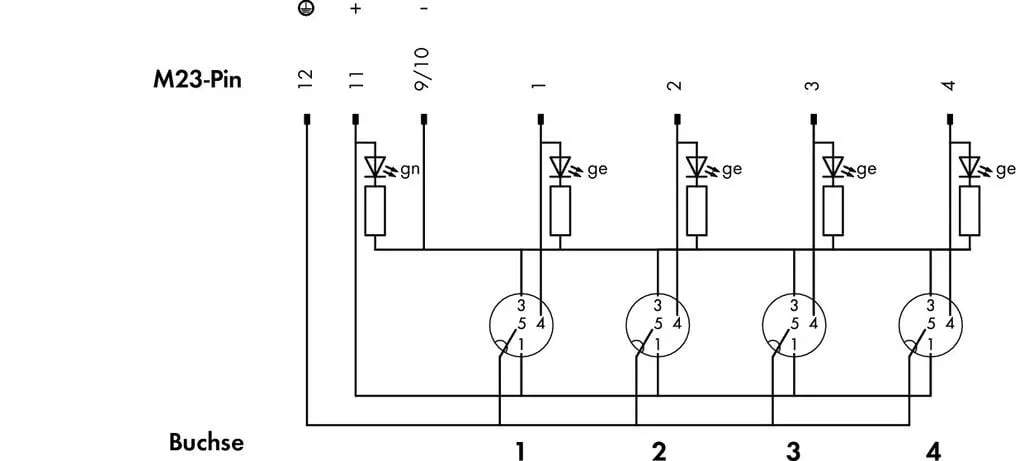

Connection data
| Connection technology: I/O | 4 x M12 socket; 4-pole; incl. ground |
|---|---|
| Connection technology: trunk cable | 1 x M23 plug; 12-pole |

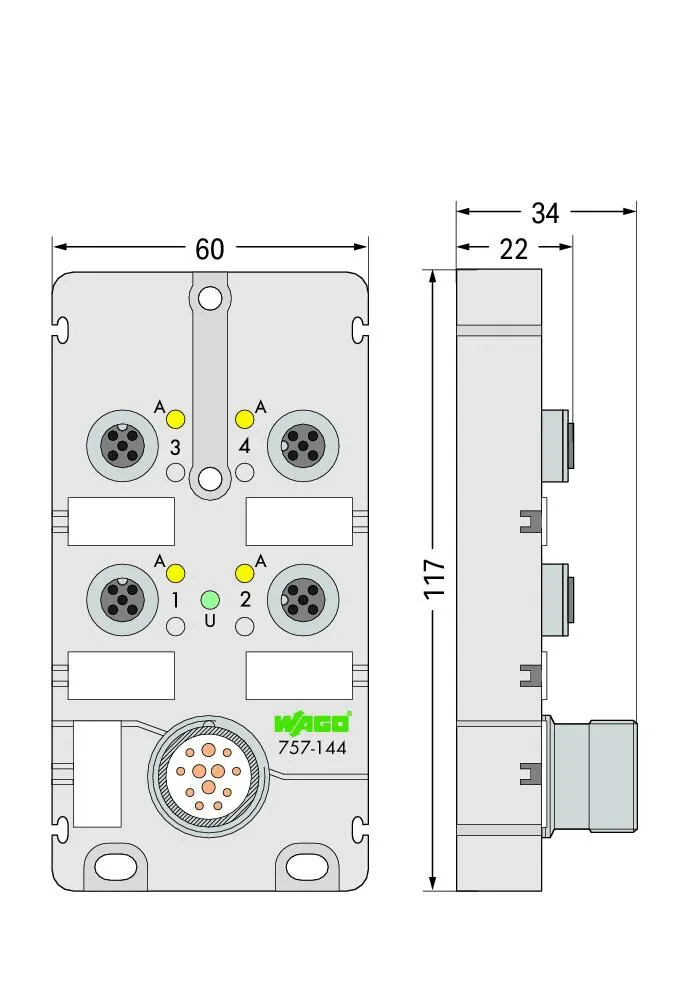

Physical data
| Width | 60 mm / 2.362 inches |
|---|---|
| Height | 34 mm / 1.339 inches |
| Depth | 117 mm / 4.606 inches |
Mechanical data
| Mounting type | Screw mounting |
|---|---|
| Weight | 180 g |
Material data
| Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
|---|---|
| Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
| Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) |
Environmental requirements
| Ambient temperature (operation) | -25 … +80 °C |
|---|---|
| Protection type | IP67 |
| Note on protection type | Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps |
| Pollution degree | 3 per VDE 0110 |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| Product Group | 23 (I/O passive and accessories) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821054276 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-01-11 |
| eCl@ss 9.0 | 27-44-01-08 |
| ETIM 9.0 | EC003558 |
| ETIM 10.0 | EC003558 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 521501e5-8661-4271-b133-1d4e44b9c5eb |
| SCIP notification number (Belgium) | d653339a-4fc0-43cf-893b-026271c83bb0 |
| SCIP notification number (Bulgaria) | 8ec1ffac-62f2-4a1b-8c77-5f363fae5116 |
| SCIP notification number (Czech Republic) | 8f24dcab-1033-4cc8-9549-0d88953303f3 |
| SCIP notification number (Denmark) | d05f88a0-7aa0-41e5-aaa0-ce353d67a4dc |
| SCIP notification number (Finland) | cd5396d0-edd9-4970-8b5f-2dffd401f5e9 |
| SCIP notification number (France) | 8c09236d-ab56-4ee9-b370-2c71656f19c7 |
| SCIP notification number (Germany) | 86280620-d899-4ecf-8182-64746ce88cb0 |
| SCIP notification number (Hungary) | bd5cb75e-5491-42bc-9021-84a4ecdc24cd |
| SCIP notification number (Italy) | 2314b654-a074-425f-8339-cd264c407b73 |
| SCIP notification number (Netherlands) | 0275b422-8480-490a-b9e5-3b735b5a211e |
| SCIP notification number (Poland) | 96dd22a6-4a63-45a8-9ede-0e84fada3ed1 |
| SCIP notification number (Romania) | 5fd93b5e-57ef-42e1-af16-d849e9cb589d |
| SCIP notification number (Sweden) | 909f1829-ca5f-4157-a5b9-77ac9bc26d3a |
