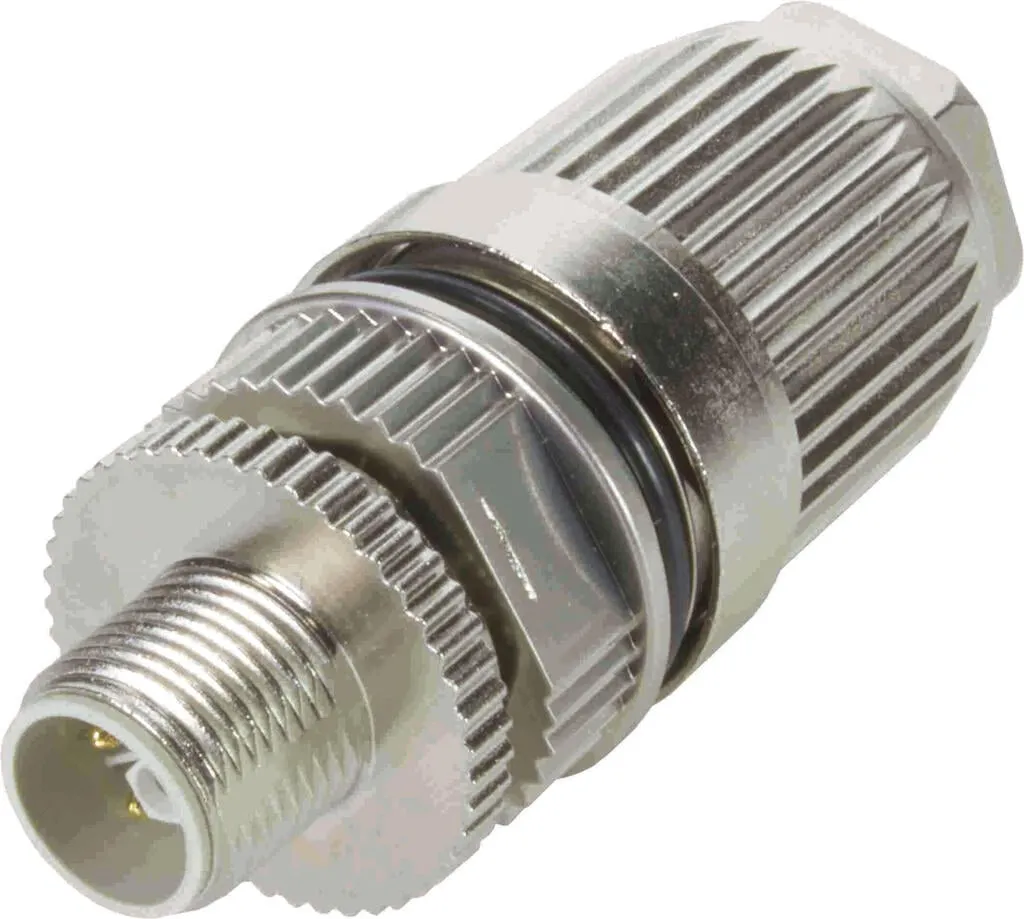

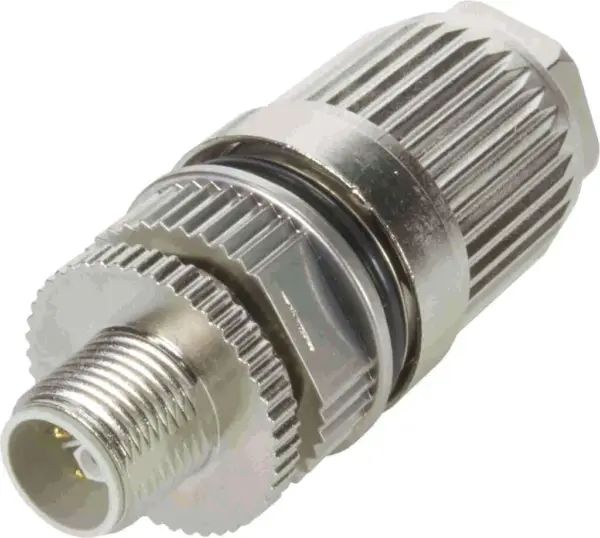

Wago 756-9701/050-000
Fitted pluggable connector; 5-pole, shielded; M12 plug, straight; IDC technology 756-9701/050-000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fitted pluggable connector; 5-pole, shielded; M12 plug, straight; IDC technology 756-9701/050-000
Specification
Technical data
| Connection type | M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | L-coded |
| Rated impulse withstand voltage | 1.5 kV |
| Contact resistance | 10 mΩ |
| Insulation resistance | >108 Ω |
Connection data
| Connection type | Pin penetration technology |
|---|---|
| Solid conductor | 0.75 … 1.5 mm² / 18 … 16 AWG |
Mechanical data
| Housing material | Zinc die casting |
|---|---|
| Tightening torque | 0.6 Nm |
| Weight | 84.7 g |
Environmental requirements
| Ambient temperature (operation) | -40 … +85 °C |
|---|---|
| Protection type | IP65 |
| Note on protection type | IP67 when mated; per IEC 60529 |
| Pollution degree | 3 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | RO |
| GTIN | 4066966072228 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121413 |
|---|---|
| ETIM 9.0 | EC002584 |
| ETIM 10.0 | EC002584 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
