Wago 756-6101/040-015
Sensor/Actuator cable; M8 socket; straight; 4-pole; Length: 1.5 m 756-6101/040-015
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sensor/Actuator cable; M8 socket; straight; 4-pole; Length: 1.5 m 756-6101/040-015
Specification
Technical data - General information
| Operating voltage | 300 VDC |
|---|---|
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -40 … +80 °C |
| Ambient (operating) temperature (dynamic) | -20 … +60 °C |
Technical data - Cable
| Cable length | 1.5 m |
|---|---|
| Sheathed cable color | black |
Technical data - Connector

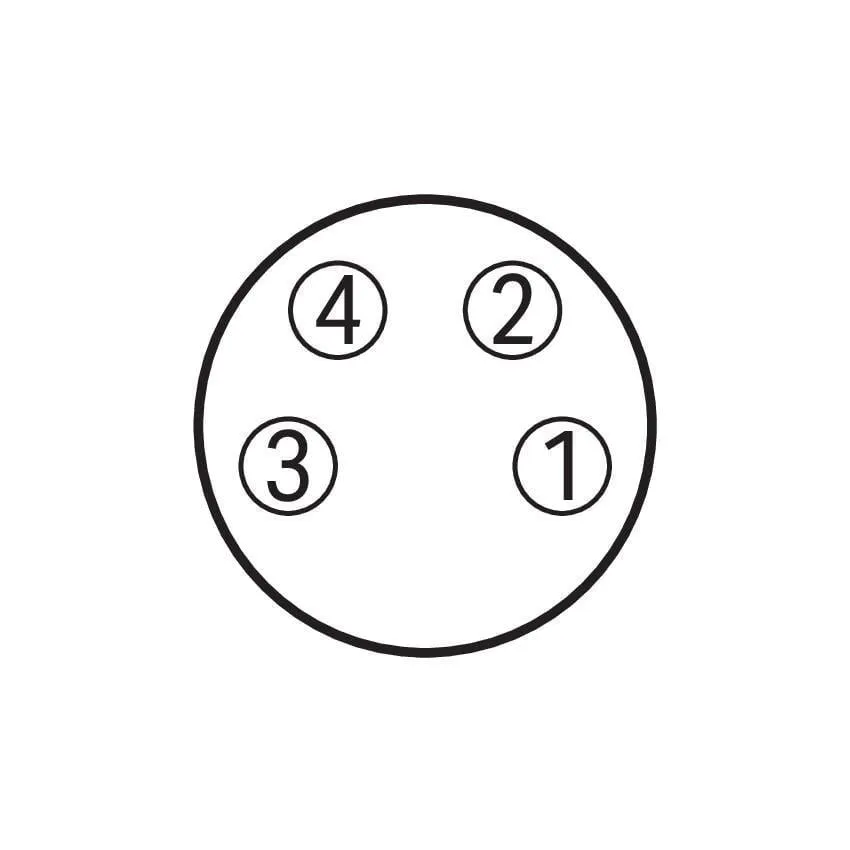

| Connection type | M8 socket - free end |
|---|---|

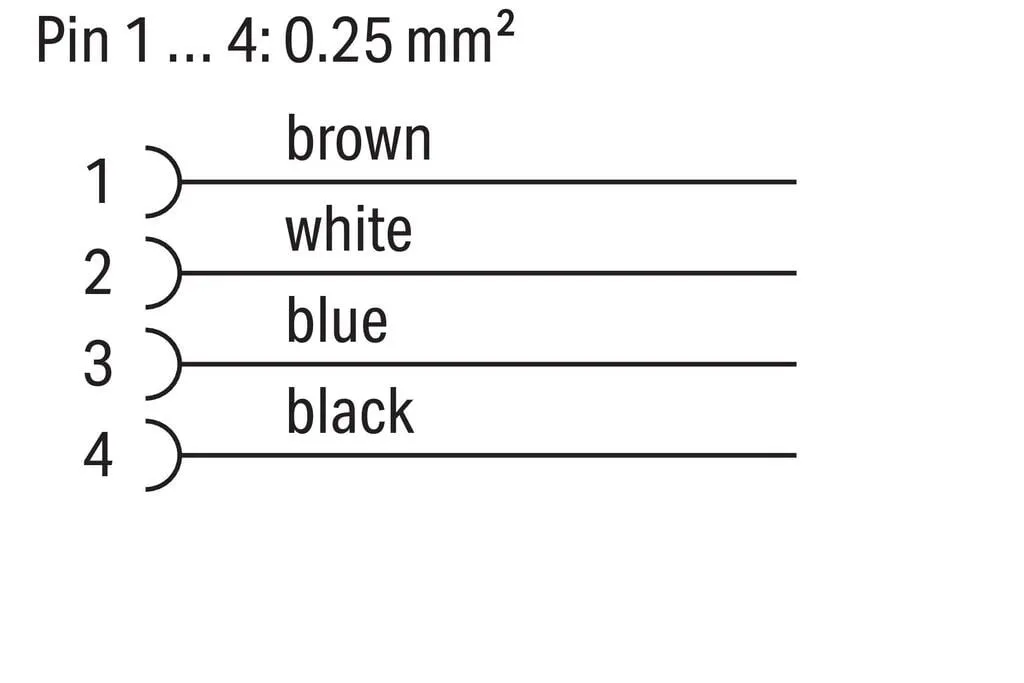

| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | unpacked |
| GTIN | 4066966503999 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
