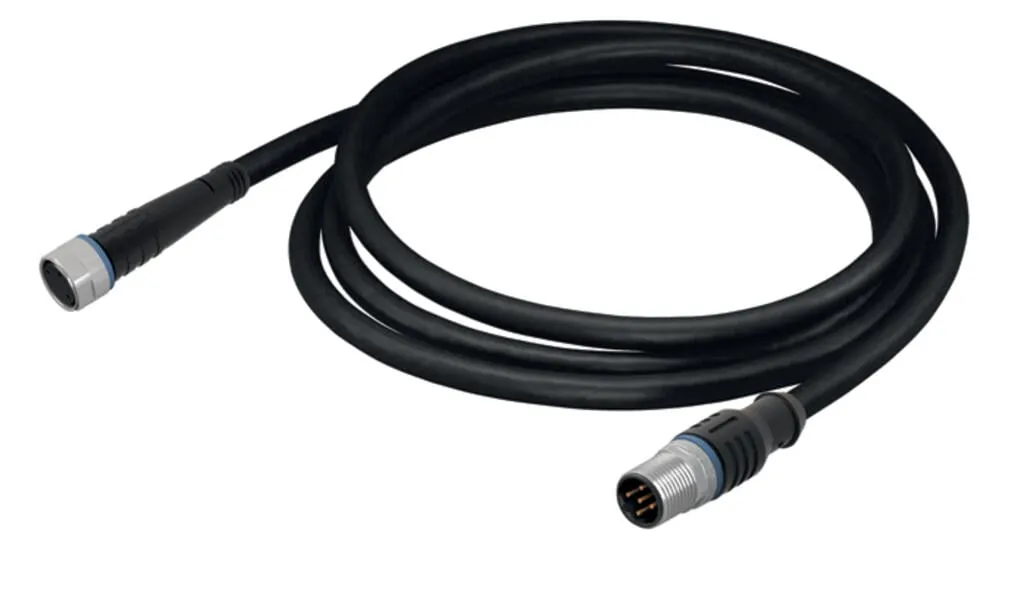

Wago 756-5507/040-010
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M8 socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975933 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6f88415c-e75d-482d-b094-f928a038006a |
| SCIP notification number (Belgium) | 5df28cd2-73a2-4a46-8470-32c9c124f46b |
| SCIP notification number (Bulgaria) | ca9b36fb-fcb3-4bbb-bc0b-f43cceb210dd |
| SCIP notification number (Czech Republic) | 93d40bea-6b40-4a79-8c5d-69fdb6f5cd5e |
| SCIP notification number (Denmark) | 77042ee7-9962-45c5-95d0-036c90e2812c |
| SCIP notification number (Finland) | d968288e-c97b-46fc-98aa-8f19e60928b7 |
| SCIP notification number (France) | c9fdc16e-f992-4388-b721-49426a9408f0 |
| SCIP notification number (Germany) | 6217b292-2b60-42ad-bd6e-6fe9b5695361 |
| SCIP notification number (Hungary) | a35afd53-0b84-4067-a53d-7a8d93470395 |
| SCIP notification number (Italy) | a6a156e0-2338-43ab-9739-1a59bef95fb9 |
| SCIP notification number (Netherlands) | aebe724f-5423-4689-ab94-ae57f37a811a |
| SCIP notification number (Poland) | ef4f998e-e220-47d5-84a9-0ab7d6c2ace4 |
| SCIP notification number (Romania) | 0e8ce2c3-a515-473c-b517-9dbf9558ba03 |
| SCIP notification number (Sweden) | 9ca147f5-b280-4511-bd58-c14969161ac3 |
