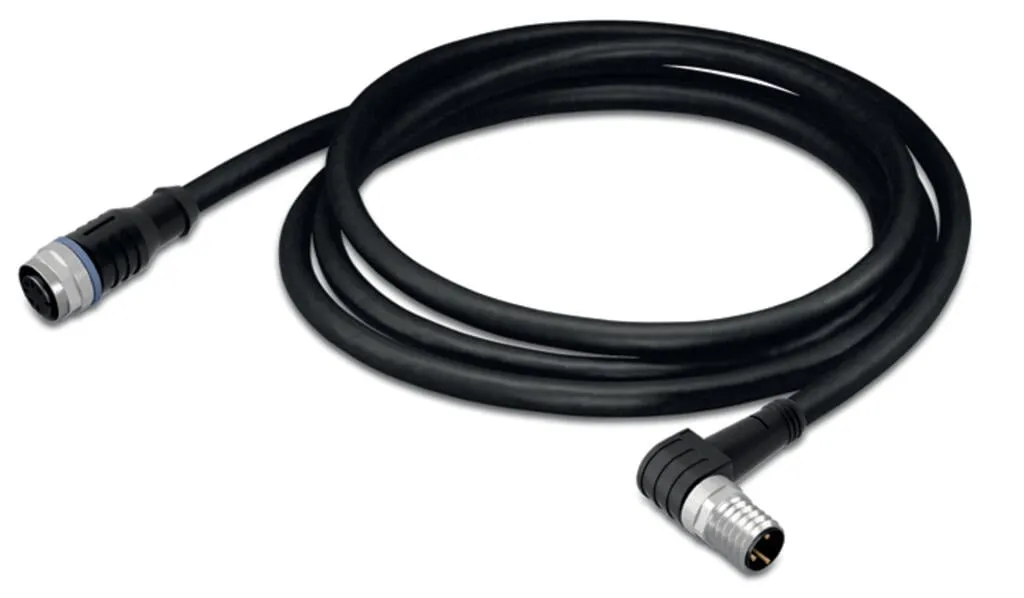

Wago 756-5502/030-020
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

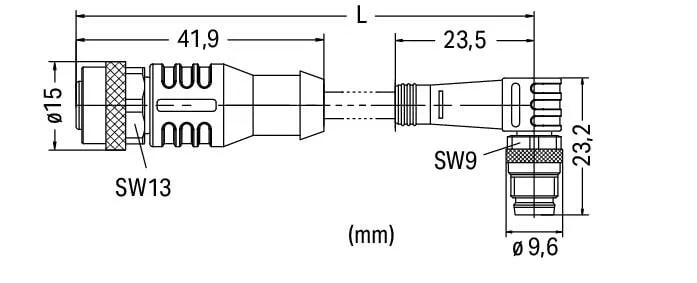

Technical data - Connector
| Connection type | M12 Socket - M8 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918974783 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ec6c7f28-1b8f-4c9e-8b16-fab76c89feb0 |
| SCIP notification number (Belgium) | 64e13a38-932a-41a9-a1a0-acf6583c5980 |
| SCIP notification number (Bulgaria) | 609f9141-7b64-4b93-9ff6-5227fc48b698 |
| SCIP notification number (Czech Republic) | 5267d745-9043-4284-b5d7-7cd64f54901d |
| SCIP notification number (Denmark) | a3e5b8f4-e175-47db-8e08-7d34206e6b97 |
| SCIP notification number (Finland) | 2235907c-488f-4165-8b2f-81e2a30dd60f |
| SCIP notification number (France) | 3b2a94f4-f2b6-456c-8caa-c2dcaa6276c8 |
| SCIP notification number (Germany) | 156d2eca-d61a-4680-862b-fff7b0eab768 |
| SCIP notification number (Hungary) | 199e6009-9afb-4f49-916f-7ae7c80e1579 |
| SCIP notification number (Italy) | 77b7bb60-b0d9-47a5-be4f-326bd44c0cfe |
| SCIP notification number (Netherlands) | 7e67c74b-ccea-455f-8a1b-6f2295cd69a1 |
| SCIP notification number (Poland) | bb598152-662d-4674-a272-402fdc9555f0 |
| SCIP notification number (Romania) | 2e0d1cce-2cf1-4e1b-ba0d-73f60368a666 |
| SCIP notification number (Sweden) | 72652901-1fbd-48c0-b346-6d89cb0acea7 |
