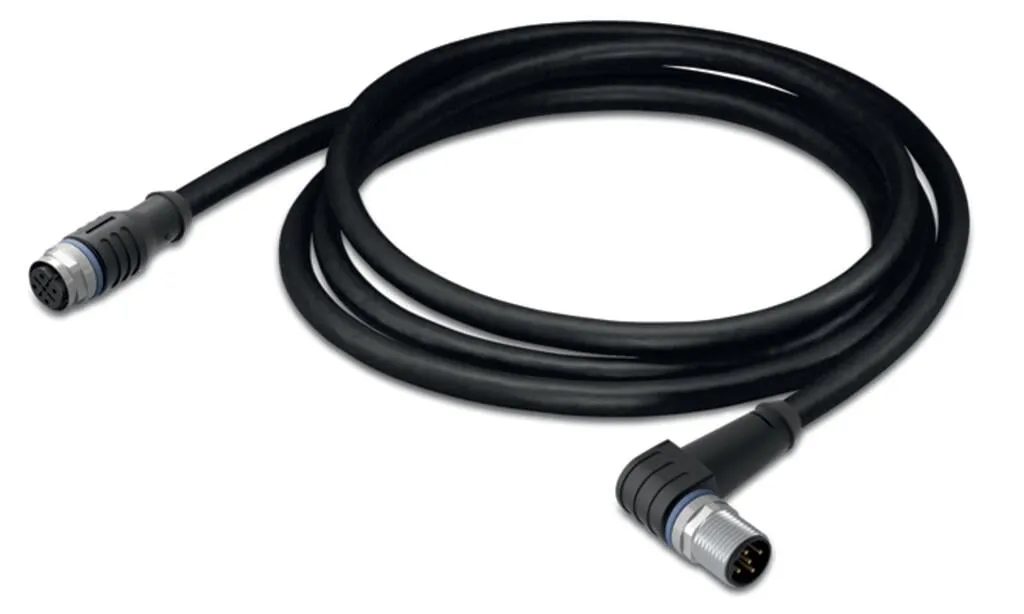

Wago 756-5402/060-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | ≥1.6 x 1010 Ω/km |
| Contact resistance | 10 mΩ |
| Conductor resistance | < 57 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | Fixed: >4xØ; Flexible: >7.5xØ |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 10 |
| Travel speed (max.) | 4 |
| Travel path (horizontal) max. | 15 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | Li9YC11Y-HF 5x0.34 mm² |
| Overall shield | Tinned copper braid, optical coverage approx. 80 % |
| Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

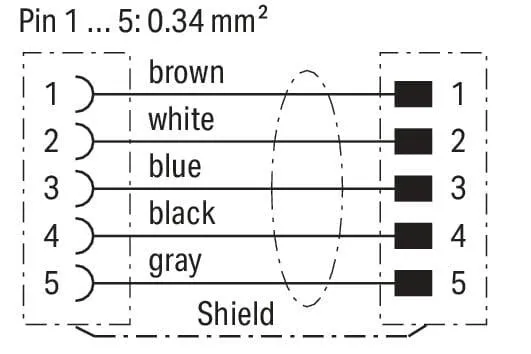

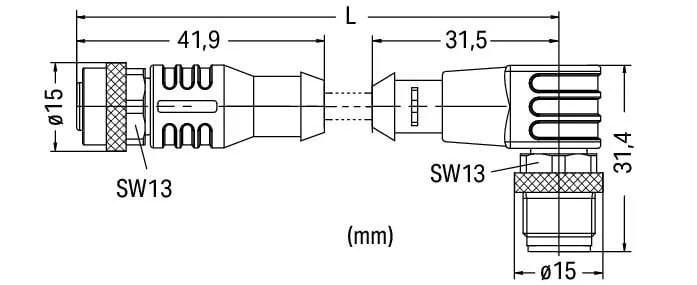

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454724627 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | f9126812-219b-40ce-9feb-1eb0fef1ec99 |
| SCIP notification number (Belgium) | 0b2b1dd8-8b5a-43cd-8974-5e813a5bc0a0 |
| SCIP notification number (Bulgaria) | 8e7cbf88-45a6-47aa-89d5-85d3b7eeeef1 |
| SCIP notification number (Czech Republic) | 26a7cf26-604e-43d9-b0a3-7616a63f7166 |
| SCIP notification number (Denmark) | 578b35aa-e356-4cf1-95a3-fd5bfa946b36 |
| SCIP notification number (Finland) | a6b17390-b758-4e72-b56f-6535271a8bd8 |
| SCIP notification number (France) | af49d0d3-a1a1-42ed-ad8d-62a8be157995 |
| SCIP notification number (Germany) | 789d62b8-a49b-4be0-b5b0-1733fdfb5ebd |
| SCIP notification number (Hungary) | bce40d08-2ad3-43f1-8e7d-53453258c5e4 |
| SCIP notification number (Italy) | 34cb2b7f-38c1-4ac6-9c84-2ae0fe2b38a7 |
| SCIP notification number (Netherlands) | 38286d40-56ba-4766-8cb0-9e1da25c4e2c |
| SCIP notification number (Poland) | a3ba031e-de8b-4213-b78c-c7206f91de74 |
| SCIP notification number (Romania) | 241ce713-4875-4352-b6e2-8ce91a2667cd |
| SCIP notification number (Sweden) | 08979635-299d-4e09-aacc-e460a6360936 |
