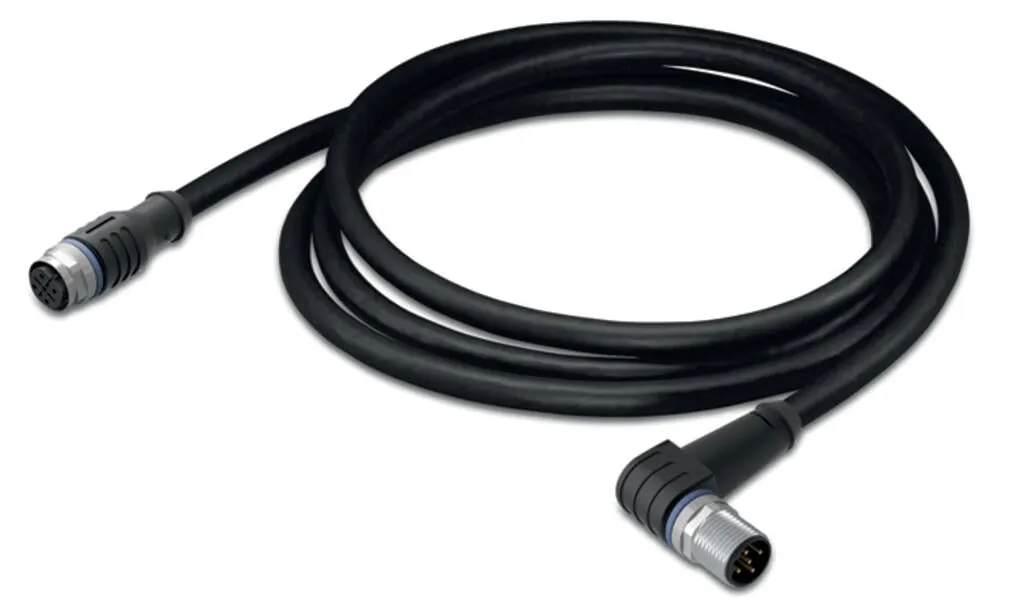

Wago 756-5402/030-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

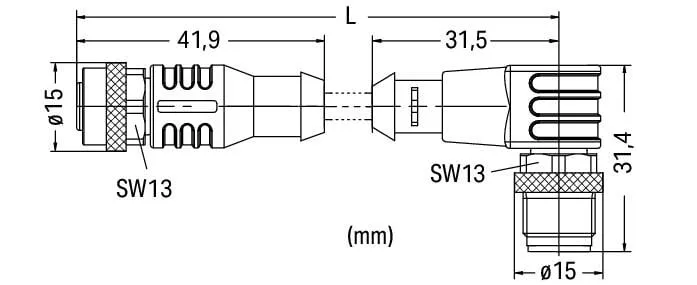

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975070 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 972b1f95-496f-4d2f-888a-3b4fc248f5d8 |
| SCIP notification number (Belgium) | ba9ef89f-8e6d-46d6-b8b0-b03351ad16dc |
| SCIP notification number (Bulgaria) | 536ead48-4892-40ec-a70c-7c27d8ee8349 |
| SCIP notification number (Czech Republic) | c90ad82b-5e4a-4c8d-b7fe-aadba024abe3 |
| SCIP notification number (Denmark) | f6bf5a3b-2939-4da5-9e01-e34b7dbd36aa |
| SCIP notification number (Finland) | 0900f9c8-d818-4512-811b-653a389ee3f6 |
| SCIP notification number (France) | d4e84bd6-78cc-4f81-9b2f-295269684943 |
| SCIP notification number (Germany) | 2179953e-472b-459c-8427-69d45fb77e4b |
| SCIP notification number (Hungary) | 53f947ab-c75b-48c3-bb22-71496e90dc35 |
| SCIP notification number (Italy) | 5b5dde18-d984-42d9-9562-0324547ca9c6 |
| SCIP notification number (Netherlands) | db920468-8910-4960-b9ba-bf9ea0c88d49 |
| SCIP notification number (Poland) | 4a126fbc-ee3e-4f0a-9f63-6b79388f03d1 |
| SCIP notification number (Romania) | 358eb905-09f3-4fa6-bb39-89b7e9ac4bef |
