Wago 756-3206/140-100

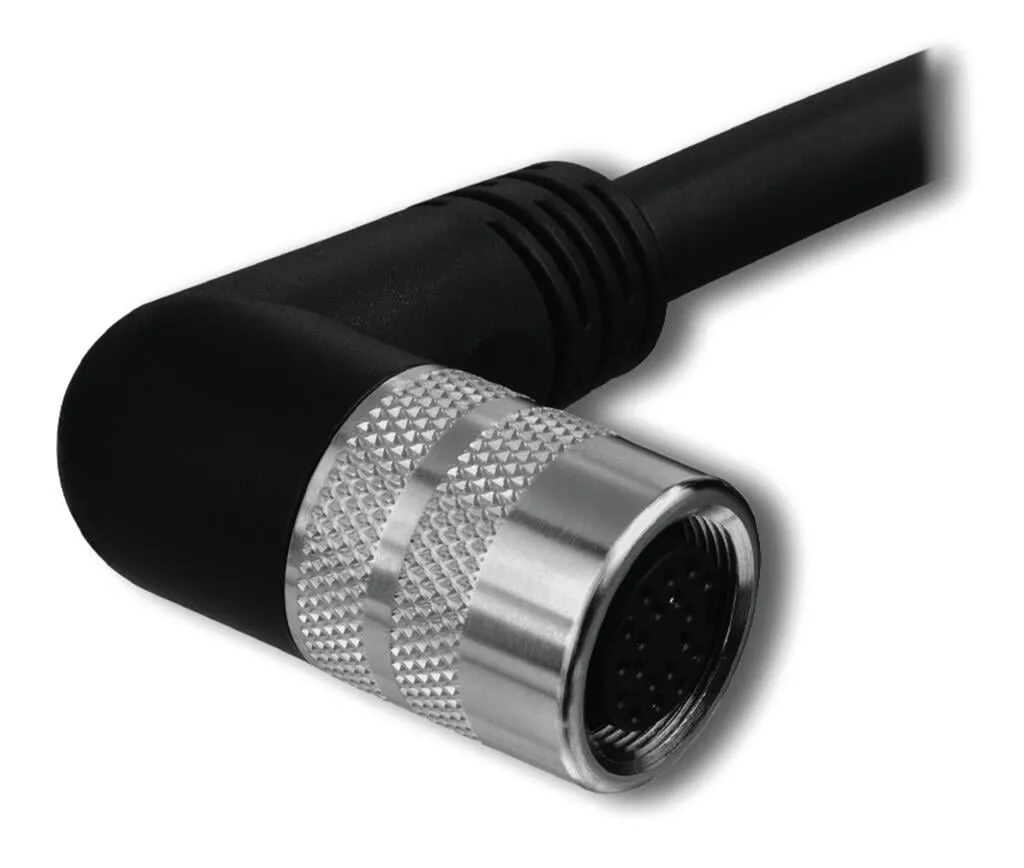

M16 cable; M16 socket; angled; 14-pole; Length: 10 m 756-3206/140-100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M16 cable; M16 socket; angled; 14-pole; Length: 10 m 756-3206/140-100
Specification
Technical data
| Connection type | M16 socket - free end |
|---|---|
| Pole number | 14 |
| Cable connection direction to mating direction | 90 ° |
| Cable length | 10 m |
| Operating voltage | 150 V |
| Operating current | 4 A |
| Operating current | 6 mm² 0,75 A |
| Rated impulse withstand voltage | 1.2 kV |
Mechanical data
| Bending cycles | 2 Mio. |
|---|---|
| Drag chain capability | yes |
| Weight | 971 g |
| Color | black |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -30 … +90 °C |
|---|---|
| Ambient (operating) temperature (static) | -40 … +90 °C |
| Protection type | IP67 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | unpacked |
| Country of origin | DE |
| GTIN | 4066966515404 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
