Wago 753-513/000-001
This digital output module transmits control signals from the automation device to the connected actuators.The internal system voltage triggers the relay.The NO contacts are electrically isolated.The…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

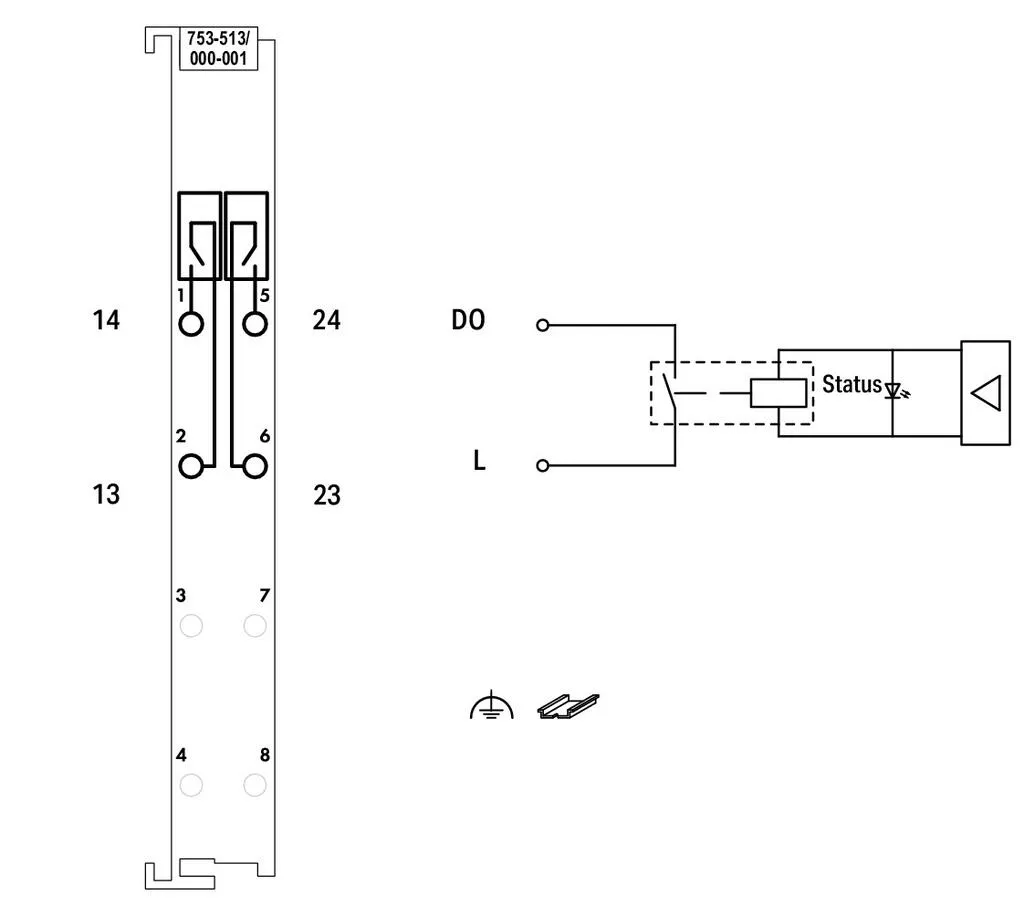

This digital output module transmits control signals from the automation device to the connected actuators.The internal system voltage triggers the relay.The NO contacts are electrically isolated.The state of the relay is indicated by a LED.
Specification
Notes

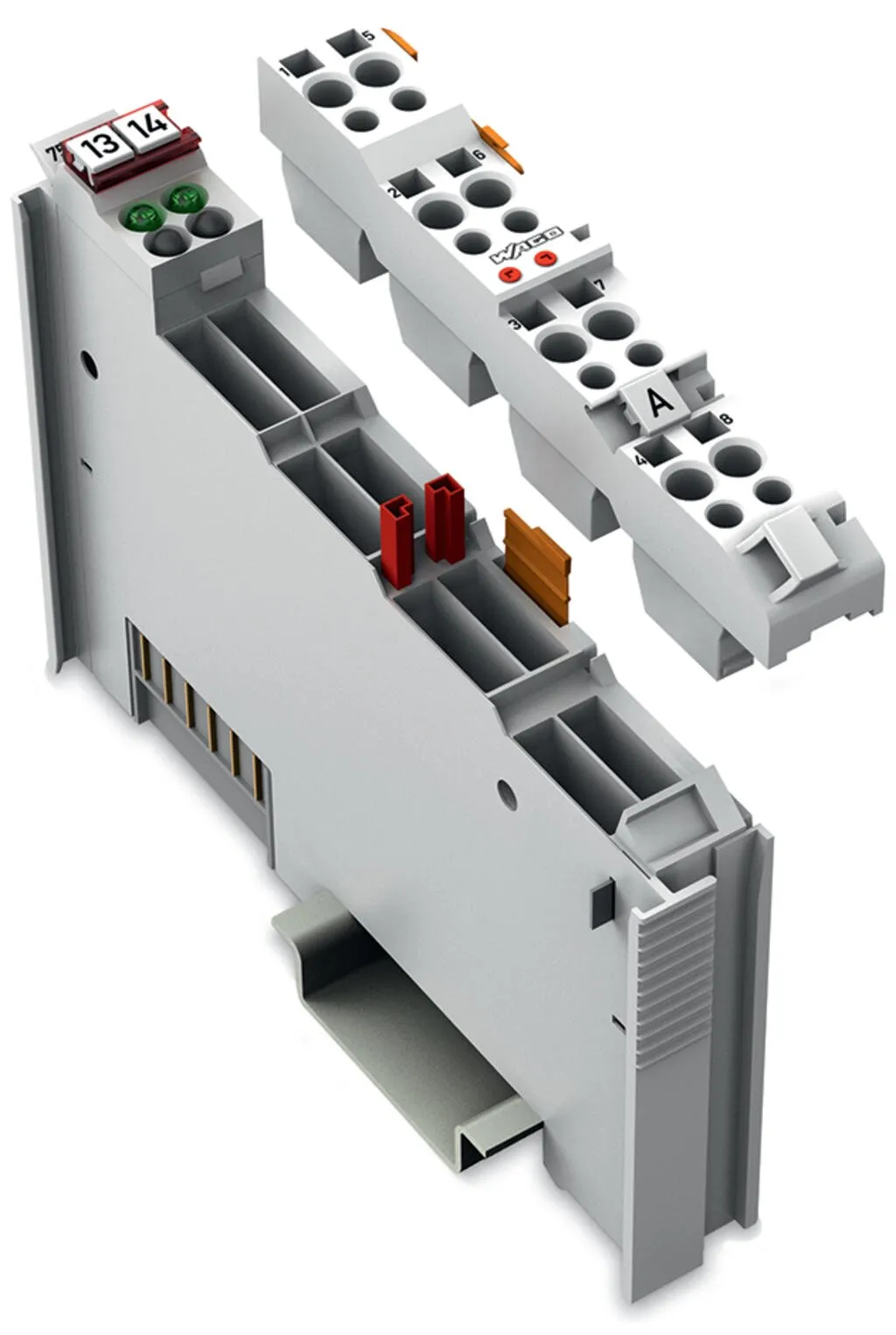

| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital outputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Actuator connection | 2 x (1-wire) |
| Output circuit design | 2 make contacts, Relay |
| Output characteristic | potential-free |
| Pull-in time (max.) | 10 ms |
| Drop-out time (max.) | 10 ms |
| Bounce time (typ.) | 1.2 ms |
| Switching frequency (max.) | 0.5 Hz; Nominal load |
| Switching voltage (max.) | 250 VAC, 30 VDC |
| Switching current (max.) | 2 A |
| Switching voltage (min.) | 5 V |
| Switching current (min.) | 10 mA |
| Switching power | 500 VA / 60 W; cos ϕ max. = 0.4; L/R max. = 7 ms |
| Electrical switching operations (min.) (at max. resistive load) | 300 x 10³ switching operations |
| Mechanical switching operations (min.) (at max. resistive load) | 20 x 10⁶ switching operations |
| Output data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 100 mA |
| Isolation | 1500 V (system/field) |

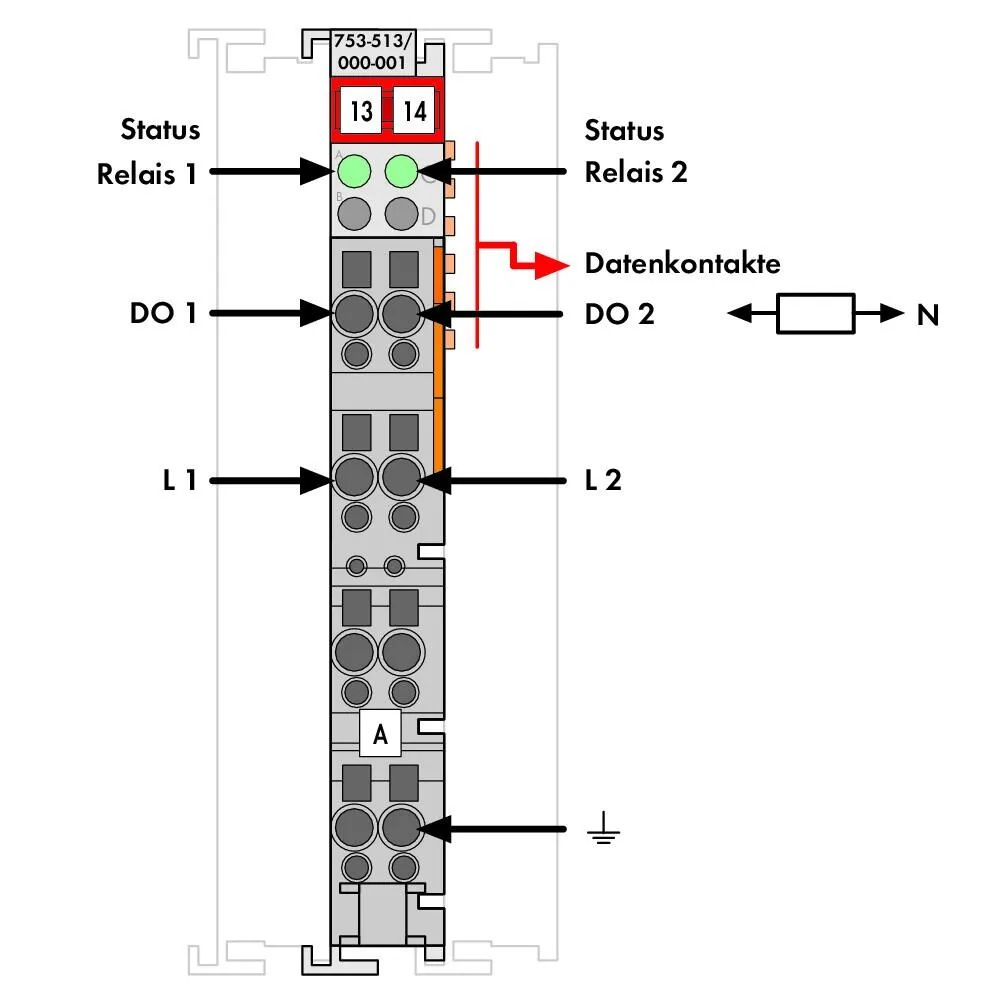

| Indicators | LED (A, C) green: Status relay 1, relay 2 |
Connection data
| Connection technology: I/O | 4 x CAGE CLAMP® (outputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Output |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 1.003 MJ |
| Weight | 42.7 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821867524 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
