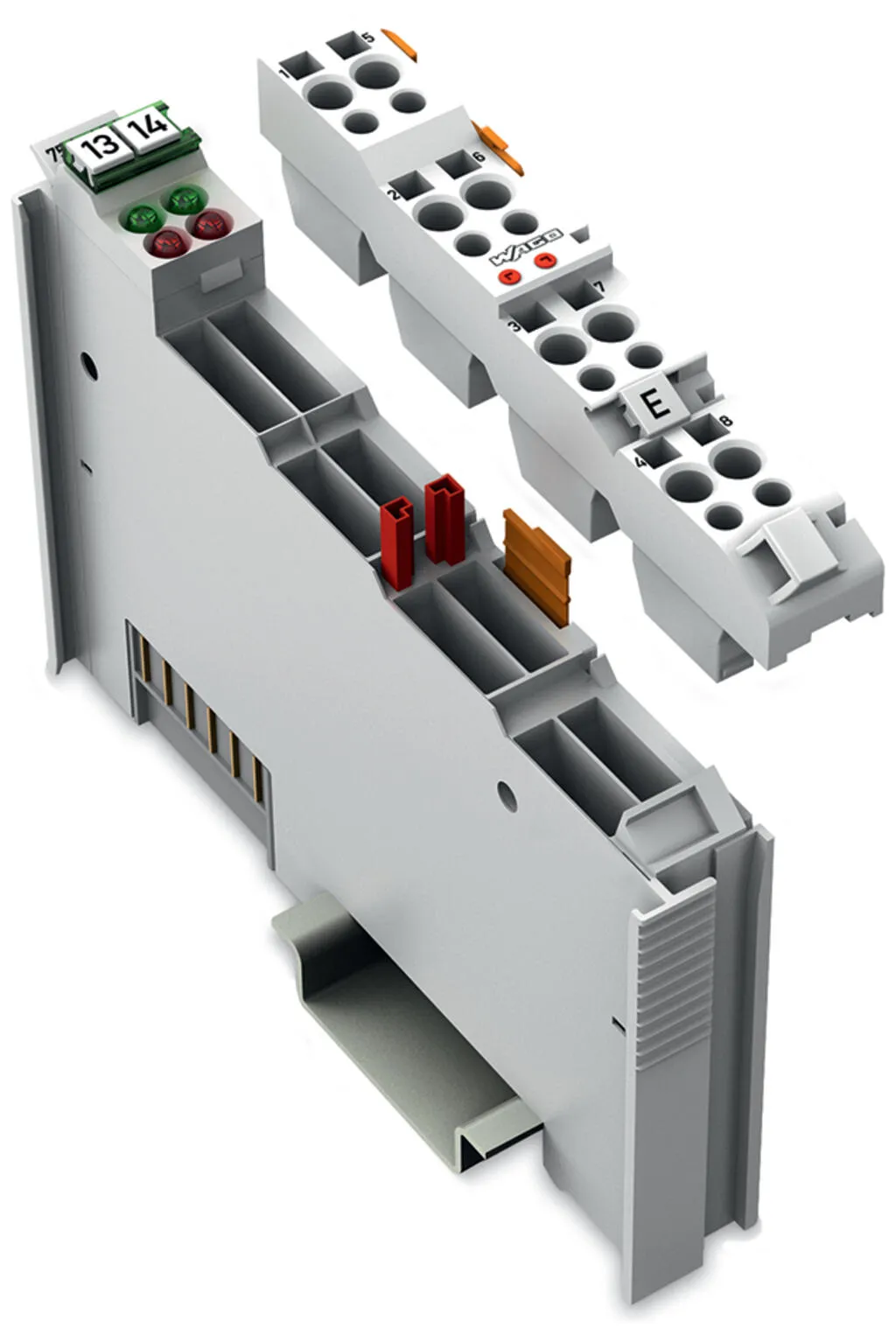

Wago 753-492
This analog input module processes differential signals ranging from 4 to 20 mA.The input signal of each channel is electrically isolated and is transmitted with a resolution of 13 bits.The system sup…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

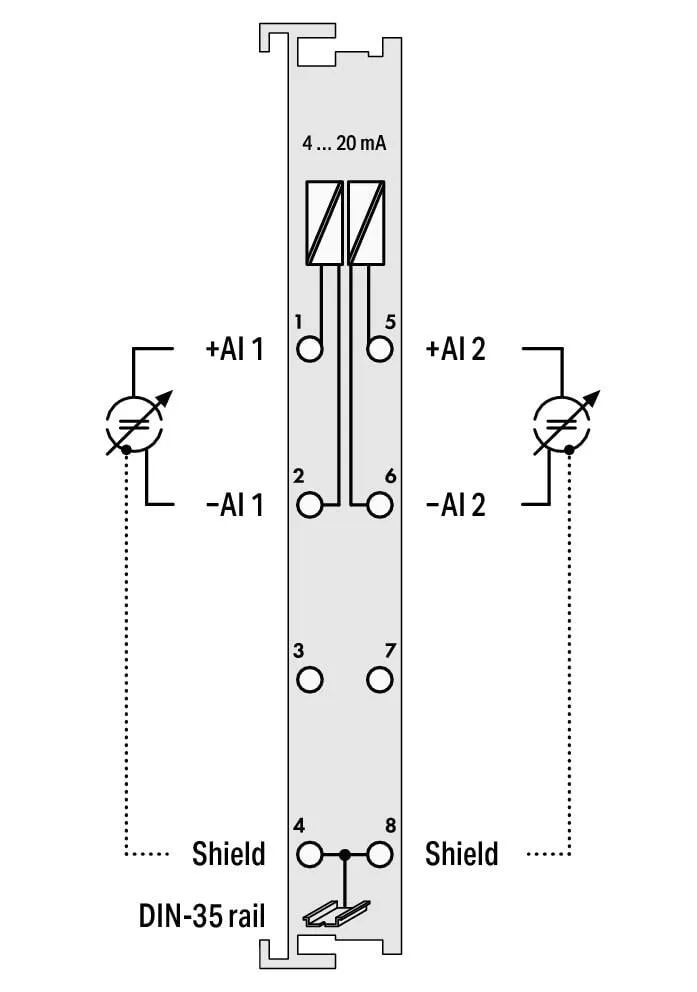

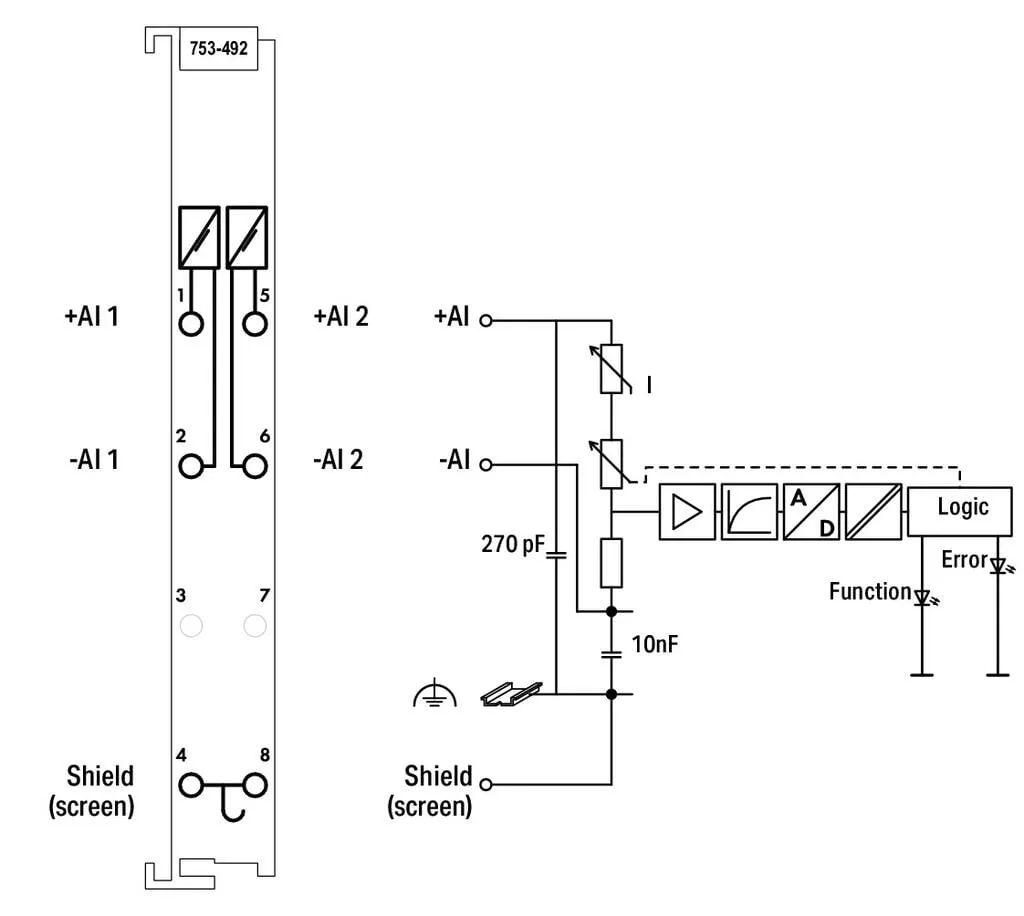

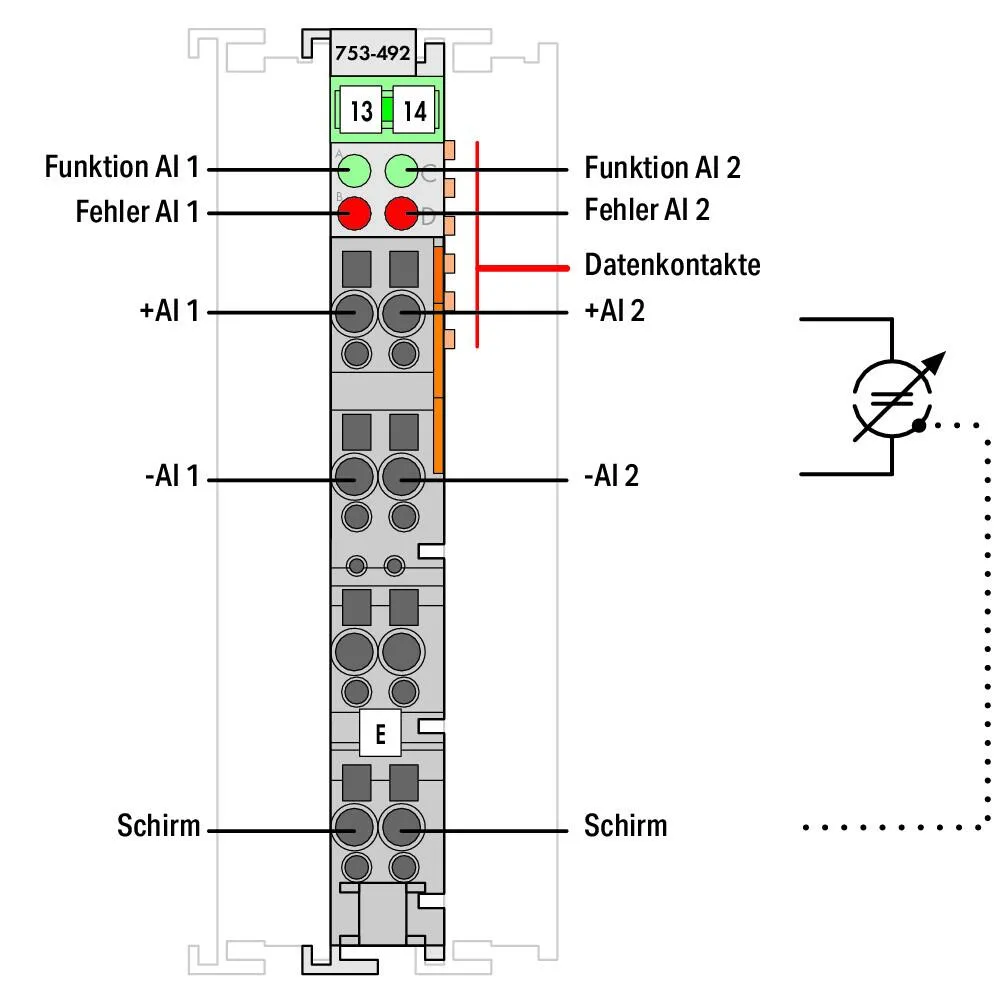

This analog input module processes differential signals ranging from 4 to 20 mA.The input signal of each channel is electrically isolated and is transmitted with a resolution of 13 bits.The system supply powers the module.The shield directly connects to the DIN-rail.Measured value acquisition: Time synchronous within the moduleMeasurement range overflow/underflow: Status byte and LEDConversion method: SAR (Successive Approximation Register)Operating mode: Continuously sampling (default)Protection: Non-linear limiting
