Wago 753-461/003-000
This analog input module directly connects to Pt or Ni resistance sensors.Two- or three-wire sensors can be connected.The module automatically linearizes the entire temperature range. A sensor error (…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

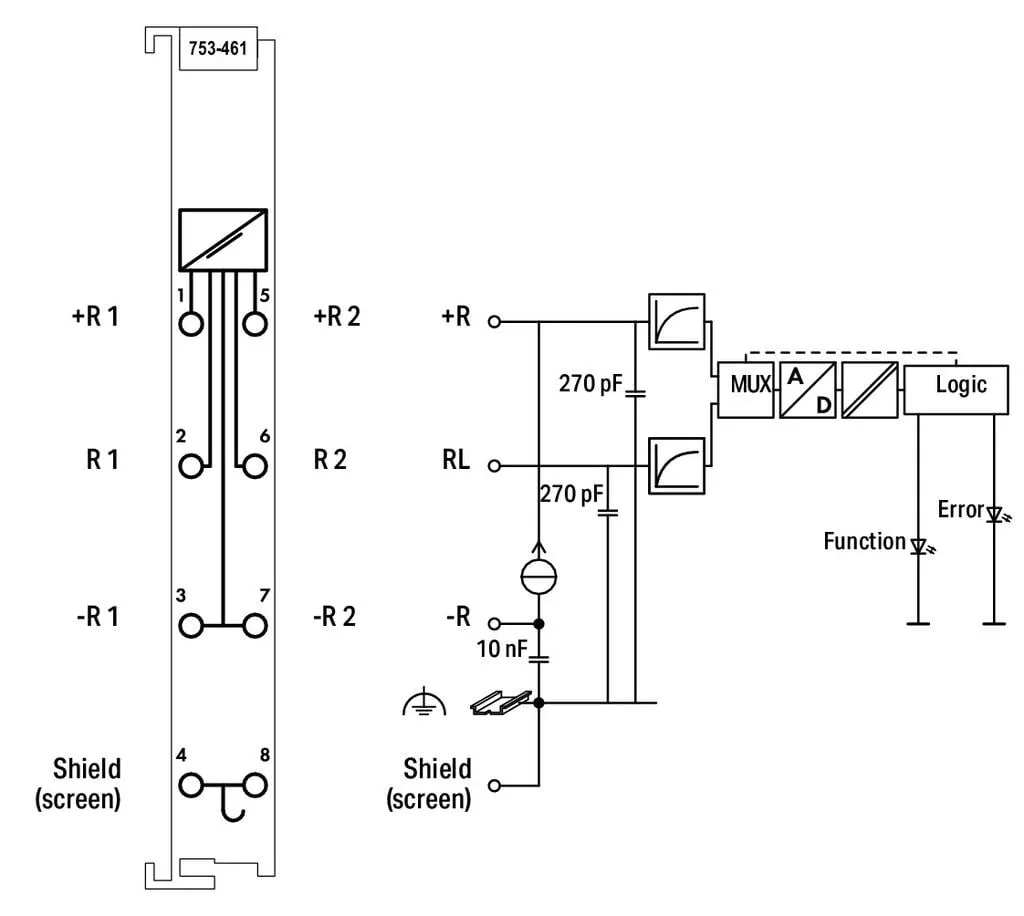

This analog input module directly connects to Pt or Ni resistance sensors.Two- or three-wire sensors can be connected.The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED.A green LED indicates readiness for operation and error-free communication with the coupler.The shield directly connects to the DIN-rail.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of analog inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Resistance measurement |
| Signal type (configurable) | yes |

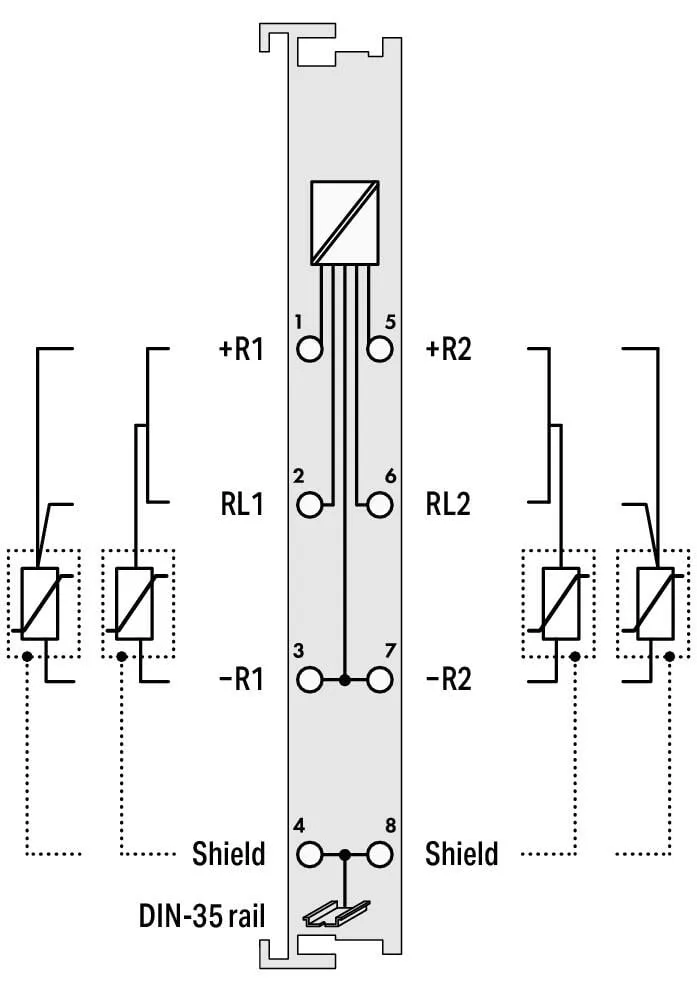

| Sensor connection | 2 x (2-wire, 3-wire) |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Resolution (over entire range) | 0.1 °C |
| Conversion time (typ.) | 320 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.2 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Measuring current (typ.) | 0.5 mA |
| Response time (max.) | 4 s |
| Sensor types | Pt100; Configurable: Pt, Ni, Ohm |
| Temperature range | −200 °C … +850 °C (Pt), −60 °C … +250 °C (Ni) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 80 mA |
| Isolation | 500 V system/field |

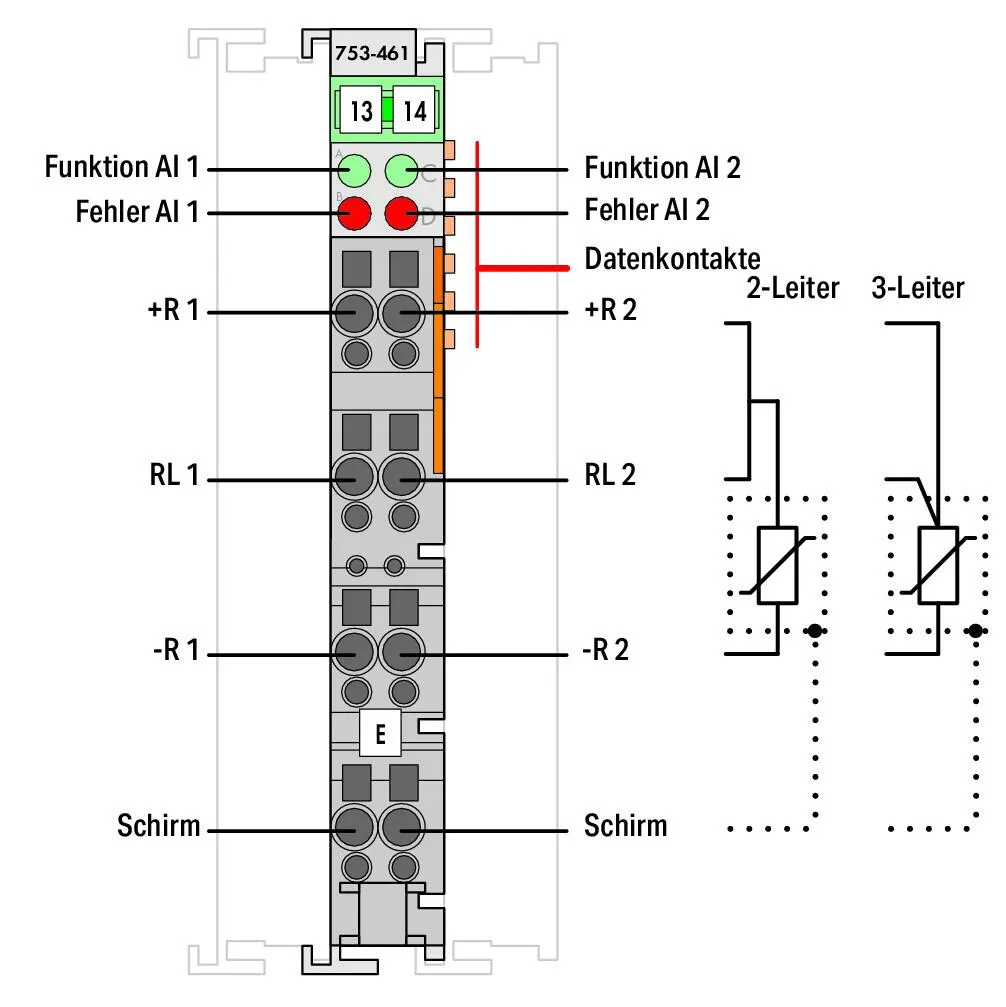

| Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | Pluggable |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.653 MJ |
| Weight | 41.8 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454487287 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101506 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I, 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 4c7cfb34-29e1-4ce4-a715-87a310c2e06c |
| SCIP notification number (Belgium) | ae37a8a0-da6c-46c1-b088-2cc1c84c2efc |
| SCIP notification number (Bulgaria) | c761011c-c067-46a9-afb1-835c52e29aae |
| SCIP notification number (Czech Republic) | 776c2f16-cda9-410f-8f67-f5983d890bef |
| SCIP notification number (Denmark) | 403dbf2c-a678-45f3-ac63-7e382509a2ab |
| SCIP notification number (Finland) | a40ec127-e479-447f-a01e-c96688105dde |
| SCIP notification number (France) | a143879a-a5fa-4585-95e5-fb7ff53787cf |
| SCIP notification number (Germany) | bc1a9034-3aa6-4020-bf54-d95fd6efe5cc |
| SCIP notification number (Hungary) | 6a871bc0-d7ab-4b1a-a394-7cf11057e831 |
| SCIP notification number (Italy) | 1059086c-f8ce-4ea5-98fc-086b4939a93f |
| SCIP notification number (Netherlands) | 586ddfc3-1897-46a1-b858-0089a8348c39 |
| SCIP notification number (Poland) | 451420bd-2196-4bcb-a17a-e1af295ae21f |
| SCIP notification number (Romania) | affa2684-5c3d-4069-94cd-73d48f8a370f |
| SCIP notification number (Sweden) | 891d3a69-8fa7-49a8-b47f-296137c6e887 |
