Wago 753-457
This analog input module processes standard ±10 V signals.The input signal is electrically isolated and is transmitted with a resolution of 12 bits.The internal system supply powers the module.The inp…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

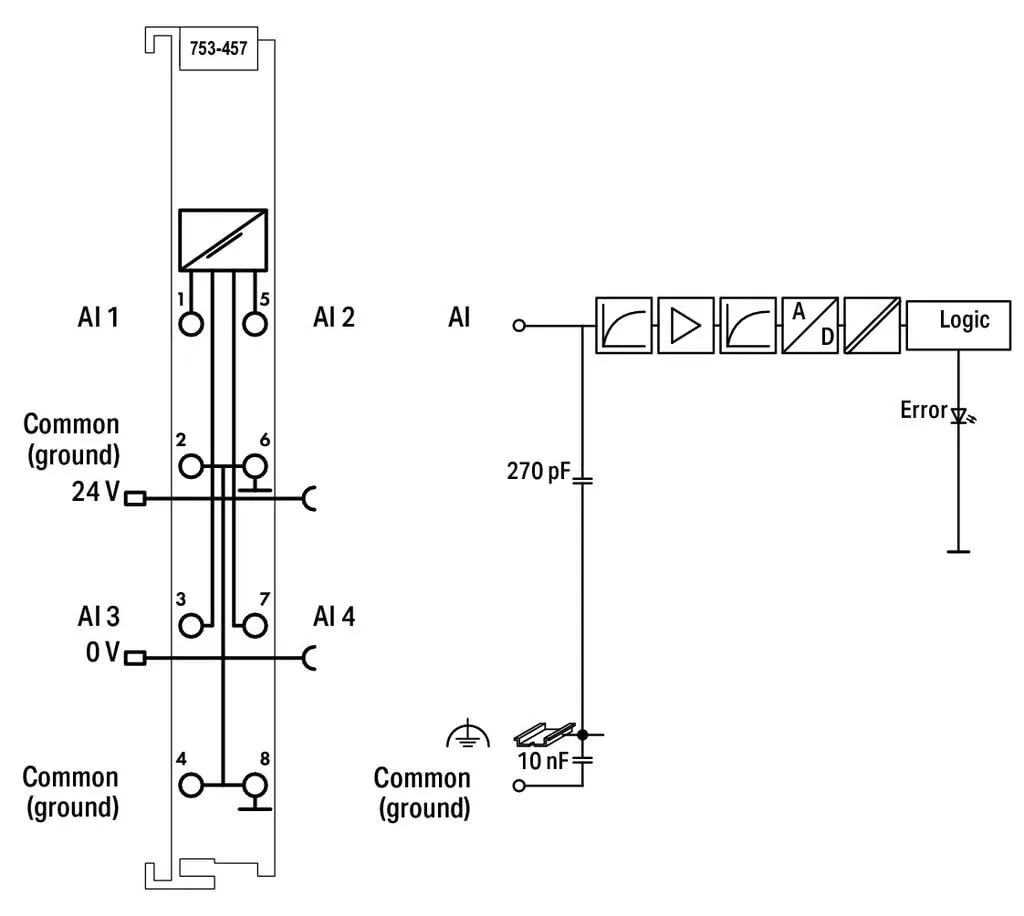

This analog input module processes standard ±10 V signals.The input signal is electrically isolated and is transmitted with a resolution of 12 bits.The internal system supply powers the module.The input channels of the module have a common ground potential.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of analog inputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Voltage |
| Signal type (voltage) | -10 … +10 VDC |

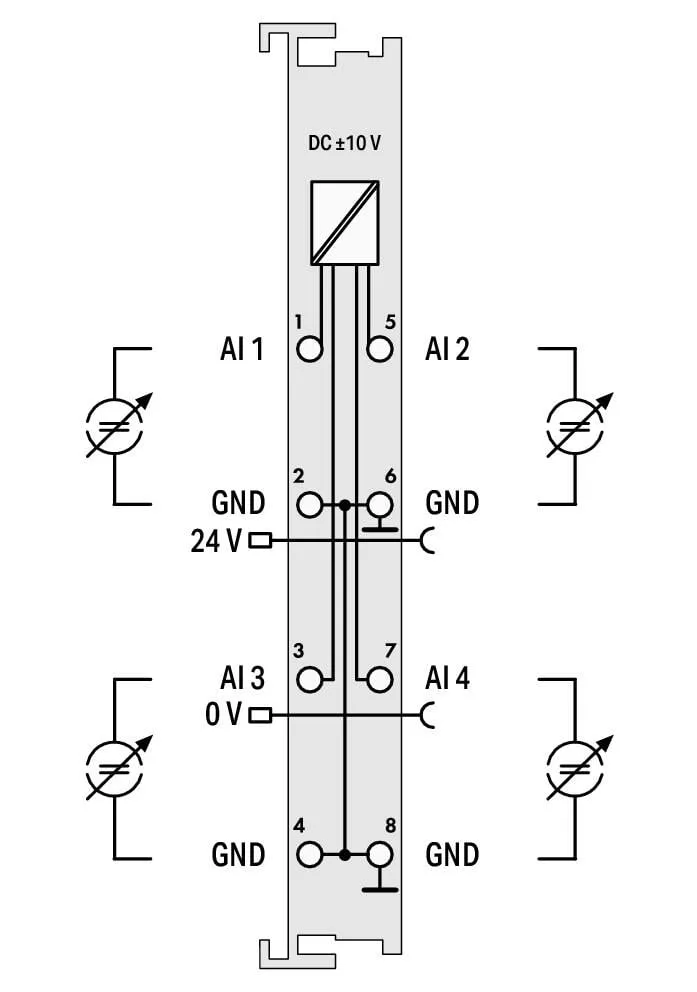

| Sensor connection | 4 x (2-wire) |
| Input voltage (max.) | ±40 V |
| Signal characteristics | Single-ended |
| Resolution [bit] | 12 Bit |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Internal resistance | 100 kΩ |
| Conversion time (typ.) | 10 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 65 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

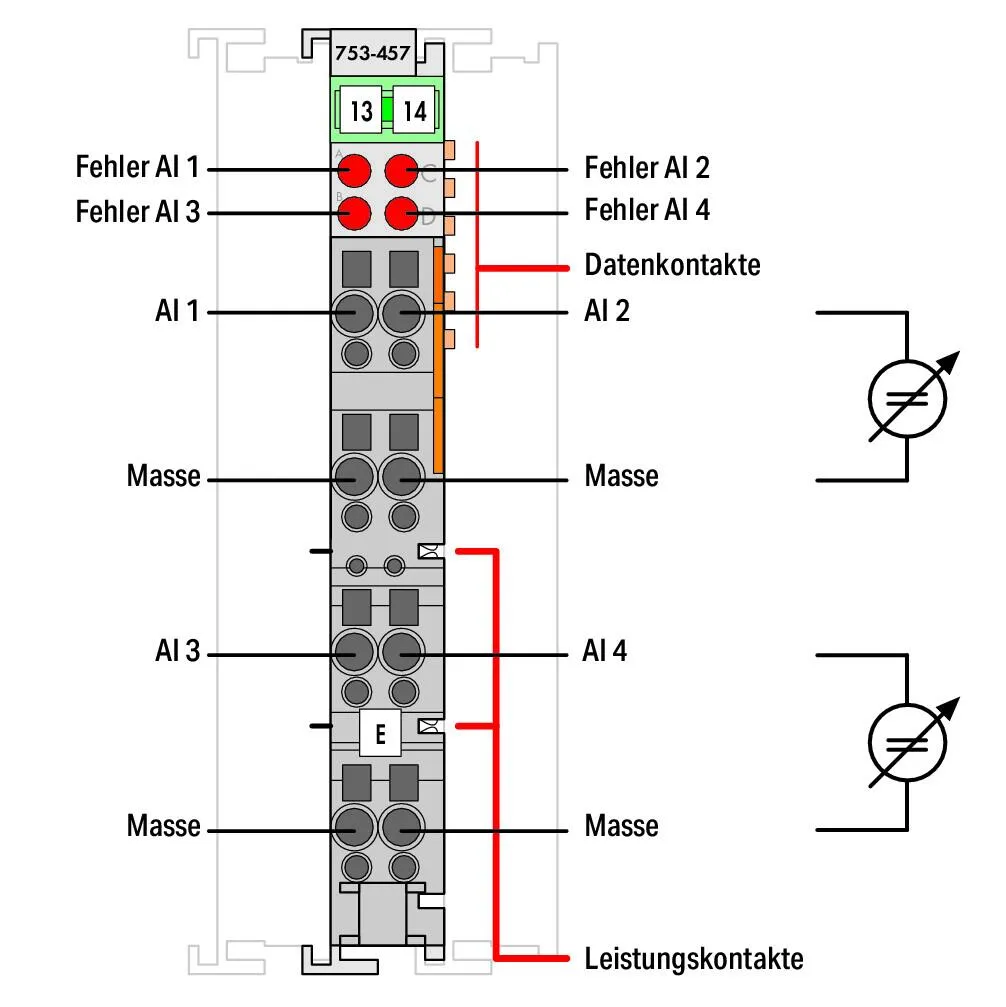

| Indicators | LED (A-D) red: Error AI 1 … AI 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | Pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.192 MJ |
| Weight | 42 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454536015 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101602 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 0be96e9a-fb94-4438-8068-983d2873e2d3 |
| SCIP notification number (Belgium) | 4766c3f2-5338-4086-9ed6-c7588af434a9 |
| SCIP notification number (Bulgaria) | 8fb4c9a8-e798-4e76-b42d-b9083d19a14b |
| SCIP notification number (Czech Republic) | 6694a993-1661-4094-ac4c-06005f9e9275 |
| SCIP notification number (Denmark) | 9ff7aed8-6985-4009-9eef-804f1454a2a8 |
| SCIP notification number (Finland) | 45cd1d15-2534-46dd-bdb2-e9cf2cd8ea96 |
| SCIP notification number (France) | db8f1634-5f7f-4fa7-b1e5-fdb0e9afc59f |
| SCIP notification number (Germany) | 2696bb25-409e-4fb4-8a56-30b0a5025b34 |
| SCIP notification number (Hungary) | 0ebed33c-84d9-4e01-94e4-b807e9804e9e |
| SCIP notification number (Italy) | 483f81fb-f3e3-4786-aedf-fd0896d1212c |
| SCIP notification number (Netherlands) | 46b691d4-33a3-4143-9615-a13fb312d833 |
| SCIP notification number (Poland) | 3908f453-d0d8-4ca4-a347-f5caa1a49f25 |
| SCIP notification number (Romania) | 127a322a-efb7-434c-aa77-e8381b6e96e5 |
| SCIP notification number (Sweden) | 7e4ec8a3-e650-4950-ae0e-01819d7e6249 |
