Wago 753-454
This analog input module processes standard 4–20 mA signals.The input signal is electrically isolated and is transmitted with a resolution of 12 bits.The internal system supply powers the module.The i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

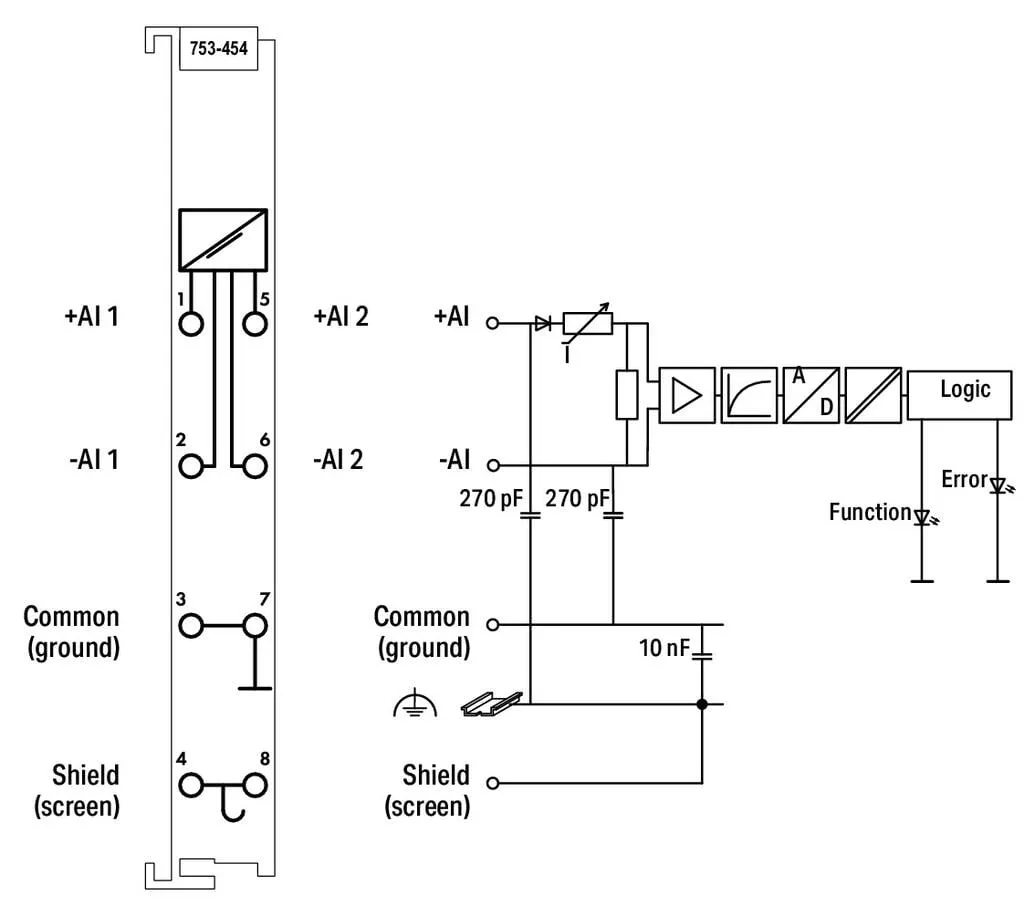

This analog input module processes standard 4–20 mA signals.The input signal is electrically isolated and is transmitted with a resolution of 12 bits.The internal system supply powers the module.The input channels of the module are differential inputs.The shield directly connects to the DIN-rail.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of analog inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Current |
| Signal type (current) | 4 … 20 mADC |

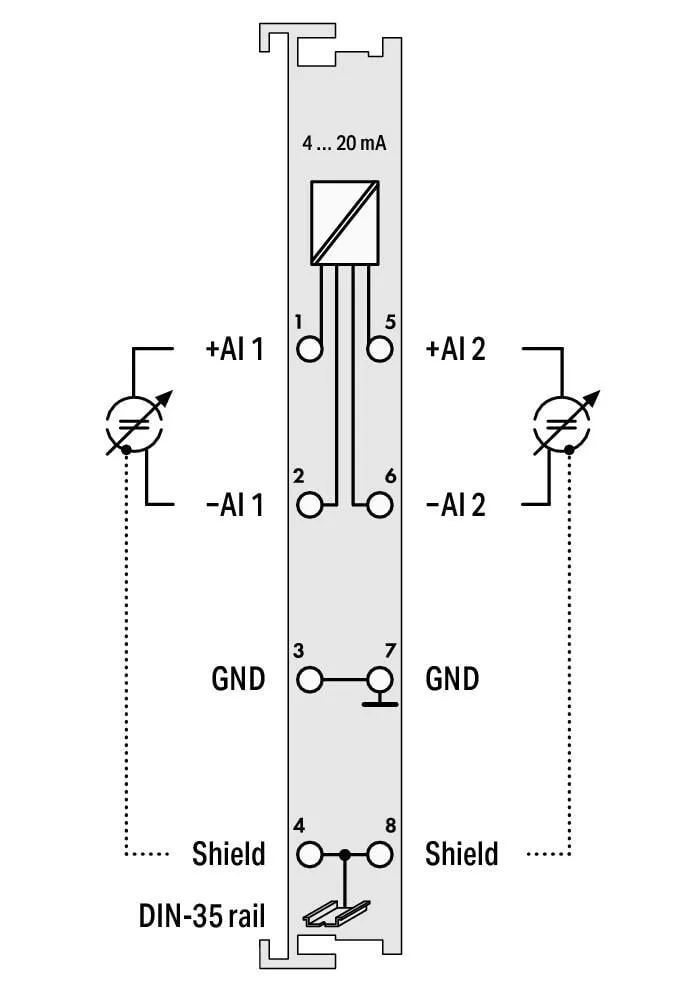

| Sensor connection | 2 x (2-wire) |
| Input voltage (max.) | 35 V |
| Signal characteristics | Differential |
| Resolution [bit] | 12 Bit |
| Input resistance (max.) | 220 Ω |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Conversion time (typ.) | 2 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.2 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 70 mA |
| Isolation | 500 V system/field |

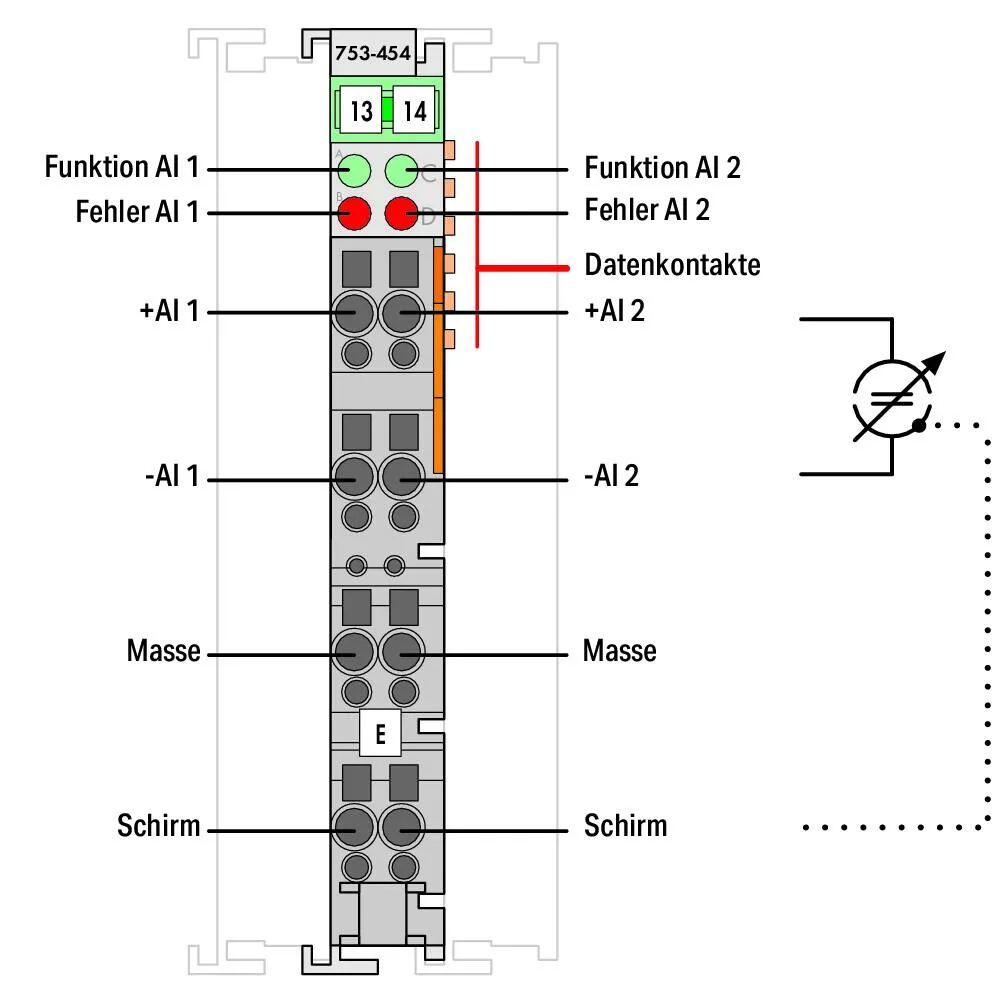

| Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | Pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.653 MJ |
| Weight | 41.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454483289 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101507 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I, 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 1dd115f6-b93f-4aa8-affc-ed6213dfdb93 |
| SCIP notification number (Belgium) | a30d7254-1db5-41eb-9078-eb8f4912594a |
| SCIP notification number (Bulgaria) | 097cdde1-e3da-4f61-ae3f-43615ab4e932 |
| SCIP notification number (Czech Republic) | c095a4fb-f2cf-4544-9d4a-6bbab02d854d |
| SCIP notification number (Denmark) | 3362c376-3cf6-4de6-980c-d0ee70571437 |
| SCIP notification number (Finland) | 5e9c1728-fc83-48d2-8b95-81ef1eb8eedf |
| SCIP notification number (France) | c79a8688-ee7a-41b3-ba51-1c086245eb52 |
| SCIP notification number (Germany) | 8e235c76-5209-4e54-b2e9-0a682f1ed2c0 |
| SCIP notification number (Hungary) | 3a07a6b8-f2d6-4f45-b19b-9d0d2b8a750b |
| SCIP notification number (Italy) | c0a5e625-cea5-41b4-947e-d4ba0efd9866 |
| SCIP notification number (Netherlands) | 6dce534d-a10a-4059-891e-880684158bee |
| SCIP notification number (Poland) | deaab251-53d0-4765-916d-10547a5bd051 |
| SCIP notification number (Romania) | 54e97ff2-5e24-46f3-b93d-681afea9243a |
| SCIP notification number (Sweden) | c9e5faac-a8b7-4686-8a95-dcf8df4f664b |
