Wago 753-422
This digital input module receives control signals from field devices (e.g., sensors).The module extends input signals to at least 10 ms. Only signals ≥ 1 ms will be acquired. Input signals > 10 m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

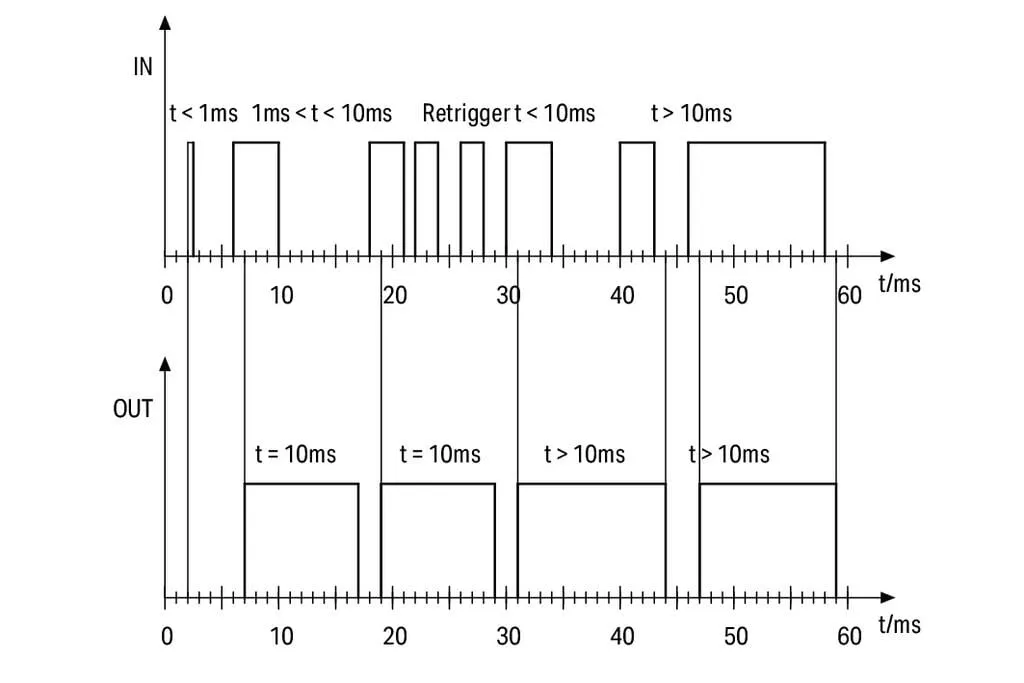

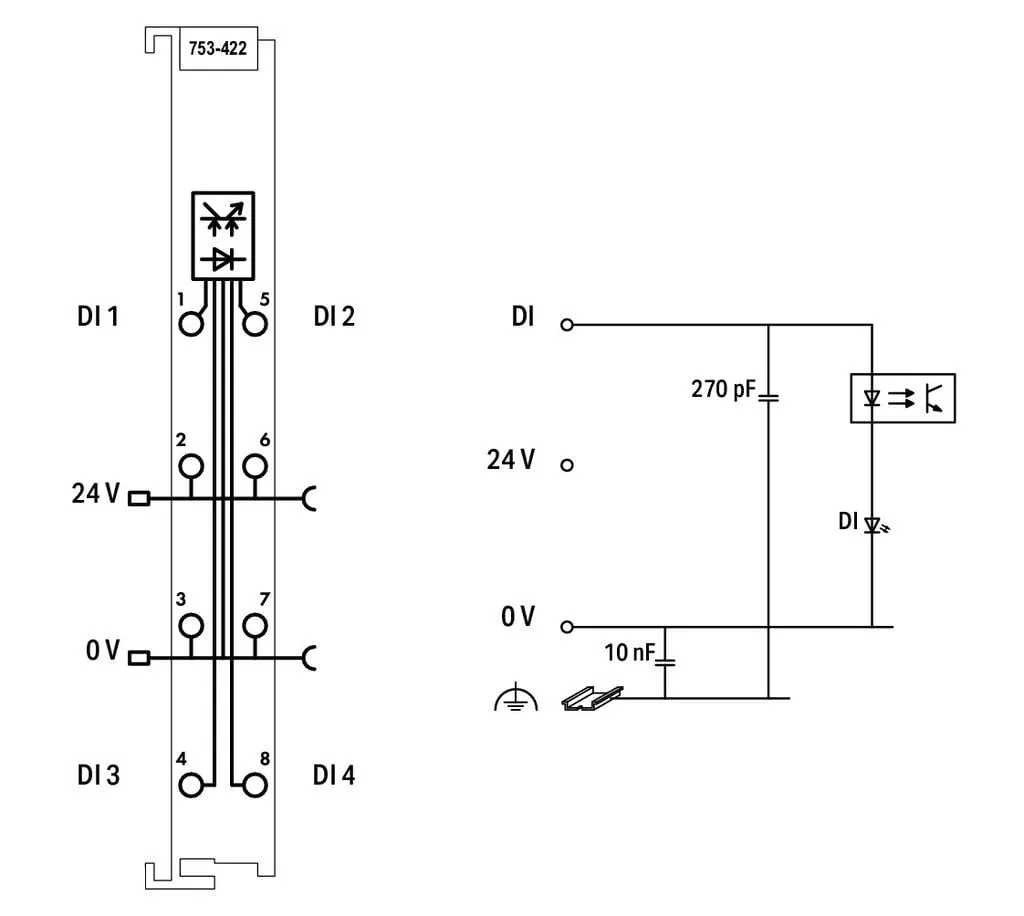

This digital input module receives control signals from field devices (e.g., sensors).The module extends input signals to at least 10 ms. Only signals ≥ 1 ms will be acquired. Input signals > 10 ms will not be extended (without fall delay).Field and system levels are electrically isolated.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital inputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

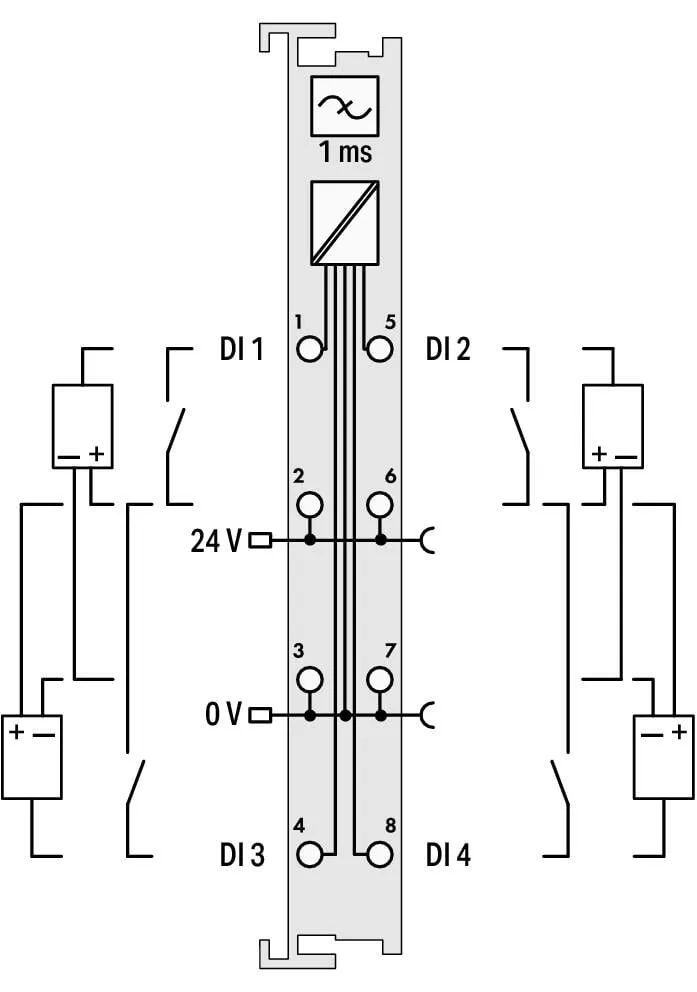

| Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. |
| Input characteristic | high-side switching |
| Input filter | 1 ms |
| Input current per channel for signal (1) typ. | 4 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Signal frequency (max.) | 80 Hz |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 4 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 9 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

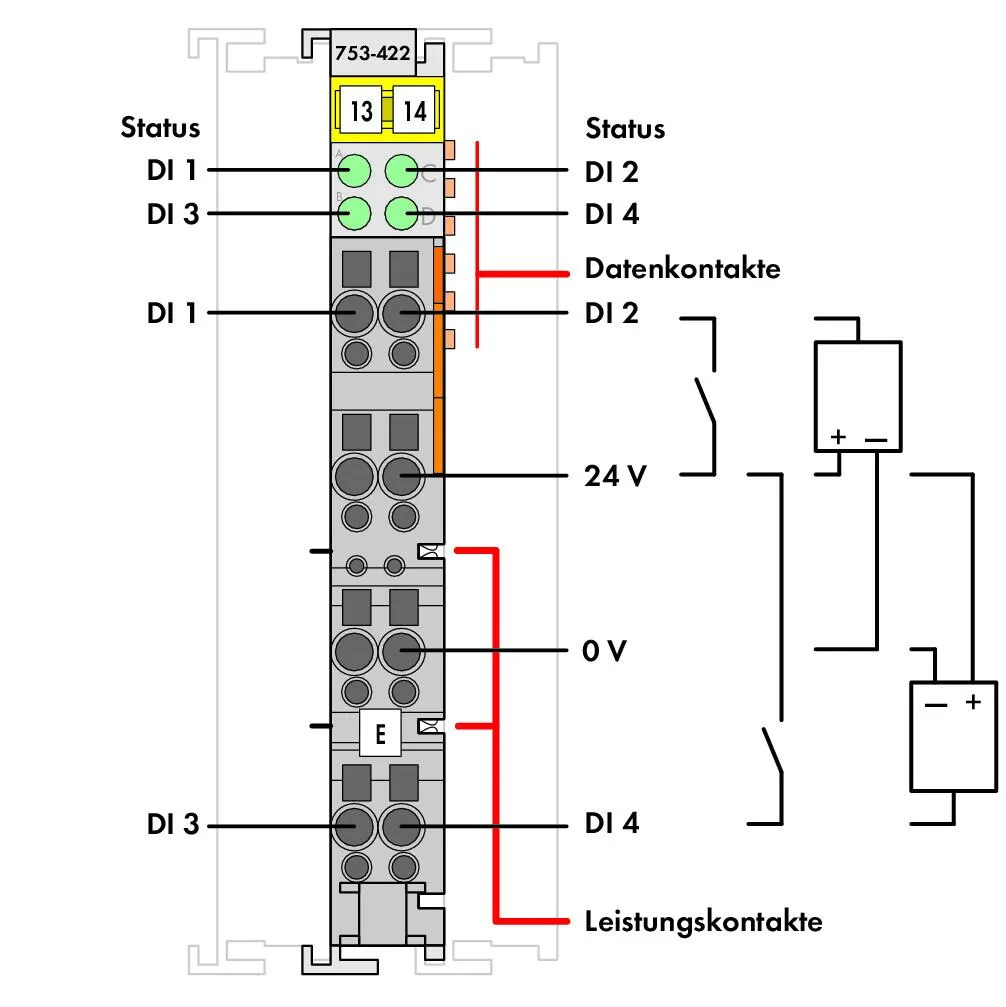

| Indicators | LED (A-D) green: Status DI 1 … DI 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.655 MJ |
| Weight | 38.8 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454805302 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 9a057210-7eef-43c7-9580-a3fbedb36a41 |
| SCIP notification number (Belgium) | 1d216e10-32e0-4cca-836f-73573c6c8fda |
| SCIP notification number (Bulgaria) | d6a94c74-de6d-40f9-b1b1-7acee10239d6 |
| SCIP notification number (Czech Republic) | 93e0b560-424e-475d-b5c7-72c03a4ca89b |
| SCIP notification number (Denmark) | d6f51685-358a-424f-8122-90eaa280f6eb |
| SCIP notification number (Finland) | ddb2bb3f-c3b3-4e19-9793-3e796423541f |
| SCIP notification number (France) | 15bf8094-10fa-4d1f-b939-6fd0615b5933 |
| SCIP notification number (Germany) | a69642f8-53e6-4d50-8f81-e99c02c01c01 |
| SCIP notification number (Hungary) | e727925a-6b73-406f-9a61-5a7aef60d867 |
| SCIP notification number (Italy) | 19045710-a70e-4b55-ac45-950792d74c4d |
| SCIP notification number (Netherlands) | 194a4839-7956-4a3b-850b-169a752c8674 |
| SCIP notification number (Poland) | 94d65ae8-8d1d-4eb1-b28e-920a61a34ff1 |
| SCIP notification number (Romania) | 0b65ceff-e5b3-4d00-b32b-ed6ff28c1c94 |
| SCIP notification number (Sweden) | 73e9a632-91de-48da-8c48-a7407653af5f |
