Wago 753-408

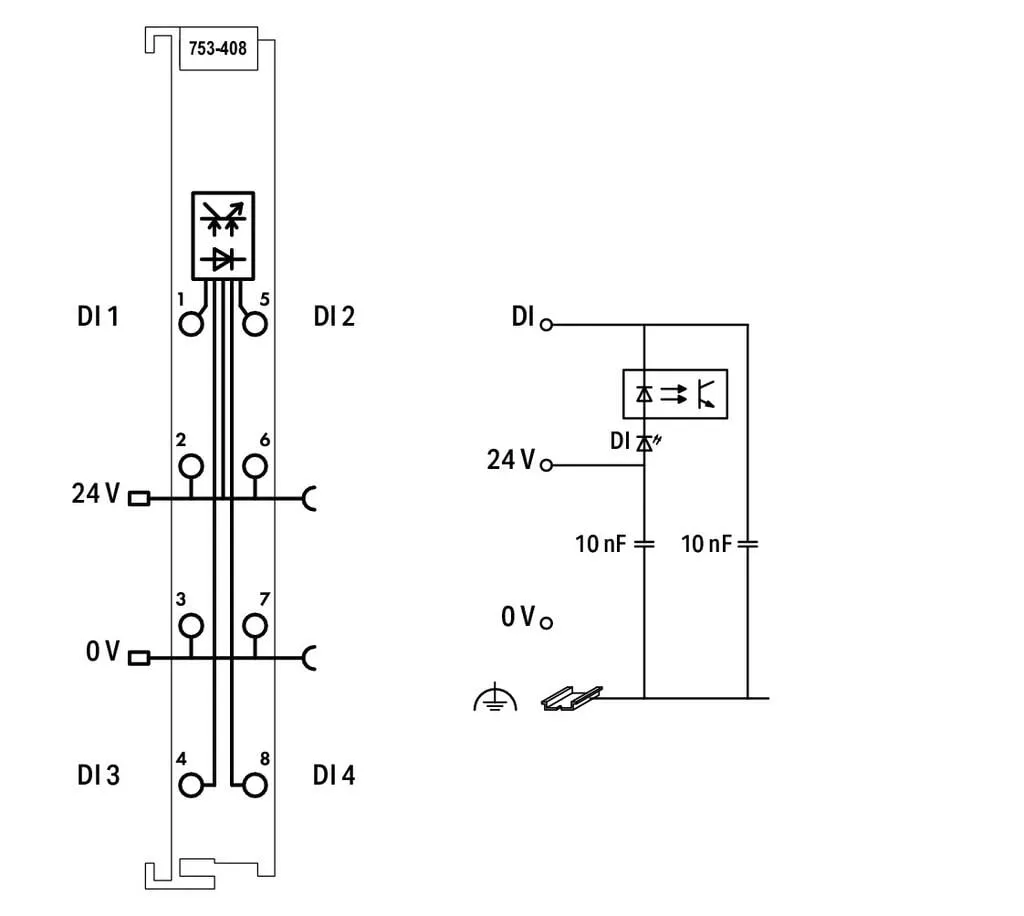

This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital inputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

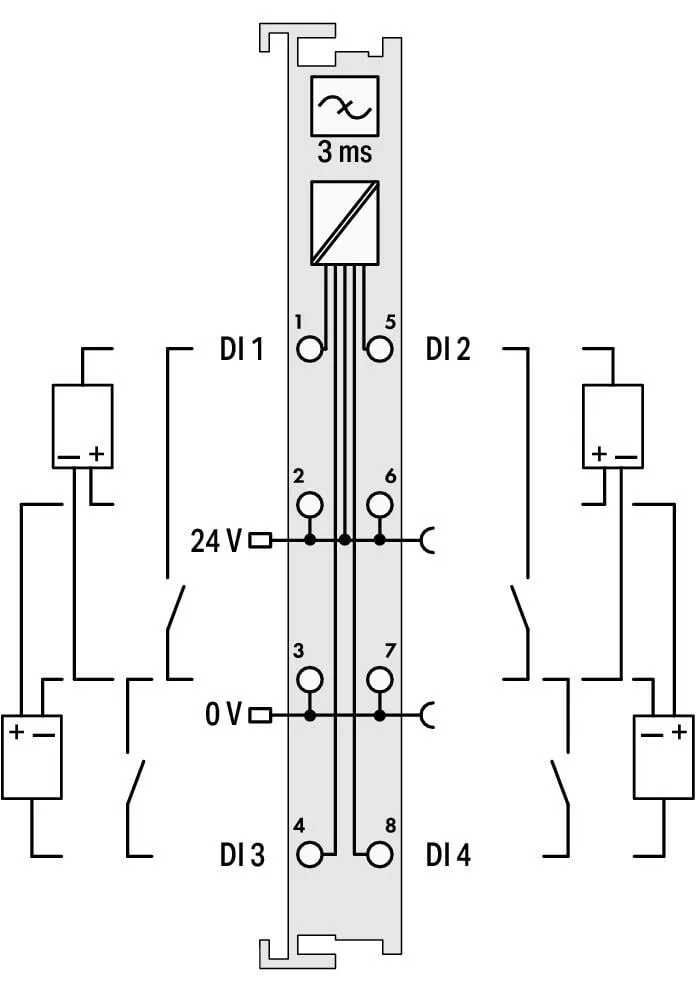

| Sensor connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. |
| Input characteristic | low-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (0) typ. | 7 mA |
| Voltage range for signal (0) | (UV - 5 V) … UV DC |
| Voltage range for signal (1) | −3 VDC … (UV - 15 V) |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 4 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 5 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

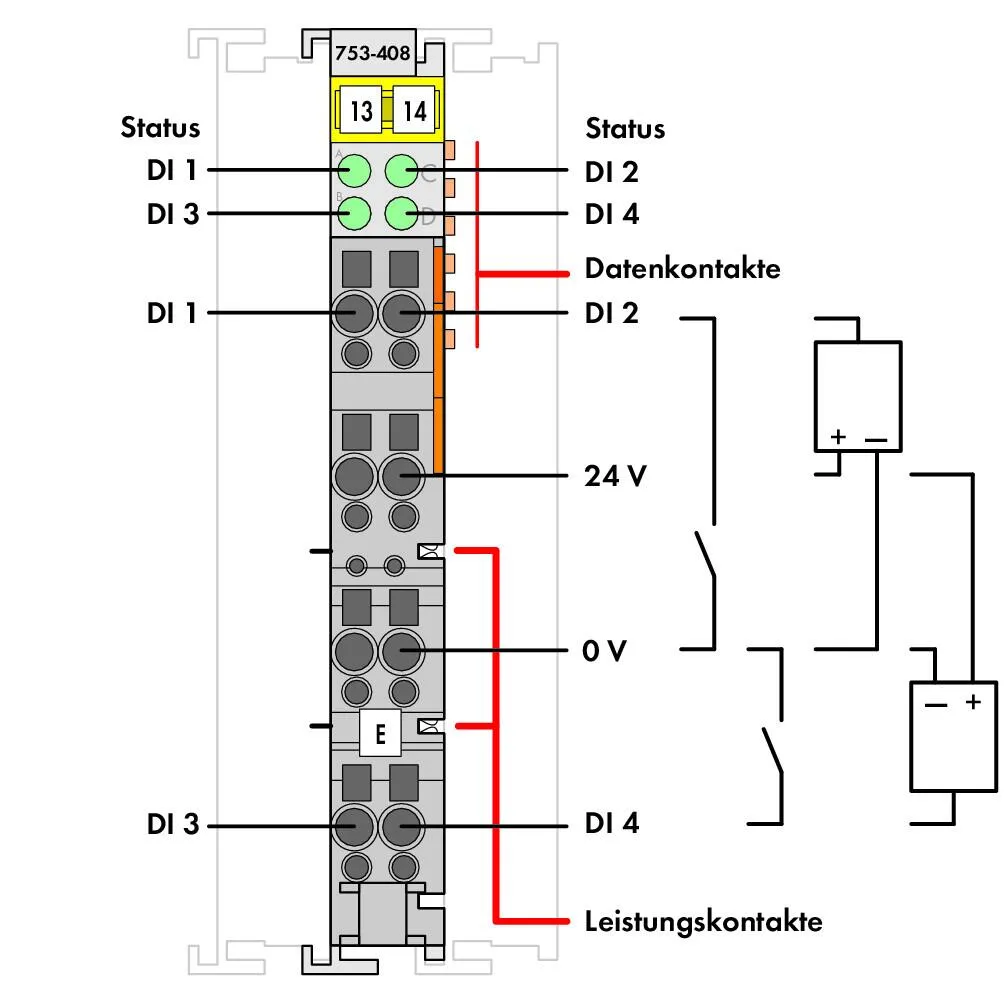

| Indicators | LED (A-D) green: Status DI 1 … DI 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.24 MJ |
| Weight | 40.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454551995 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 65495a05-a649-4515-b80e-2c19fb69965c |
| SCIP notification number (Belgium) | 395f363e-c4c1-4872-9fde-bdf5d039283a |
| SCIP notification number (Bulgaria) | 25e6dd7e-bb41-4d90-82d8-c2871ecb38c8 |
| SCIP notification number (Czech Republic) | d2e437d5-cb84-49cd-b822-079678b886be |
| SCIP notification number (Denmark) | f2304a6d-4c7e-4c26-a769-6144bb22556e |
| SCIP notification number (Finland) | 09d23fbc-0316-4f8f-a059-bb20cdf72772 |
| SCIP notification number (France) | e2887e4b-6cd4-4ddb-a48c-97c1403f60a9 |
| SCIP notification number (Germany) | 0cb2df86-d613-4384-bc73-f272fa154911 |
| SCIP notification number (Hungary) | 5d5fcc8c-e881-40a4-b5c0-b98842bd4f95 |
| SCIP notification number (Italy) | 13c93b8b-8d01-4490-8293-77b135d82540 |
| SCIP notification number (Netherlands) | d30a97ba-13d2-45b4-994f-8fa0aa0fdec3 |
| SCIP notification number (Poland) | b4c5f9b9-7fa4-4a25-b6ff-b108192574aa |
| SCIP notification number (Romania) | 4c78bc8c-506a-4c7f-a4be-ab9b18524e2e |
| SCIP notification number (Sweden) | cca9f8d9-6bea-416d-a6fd-ed530911bb8d |
