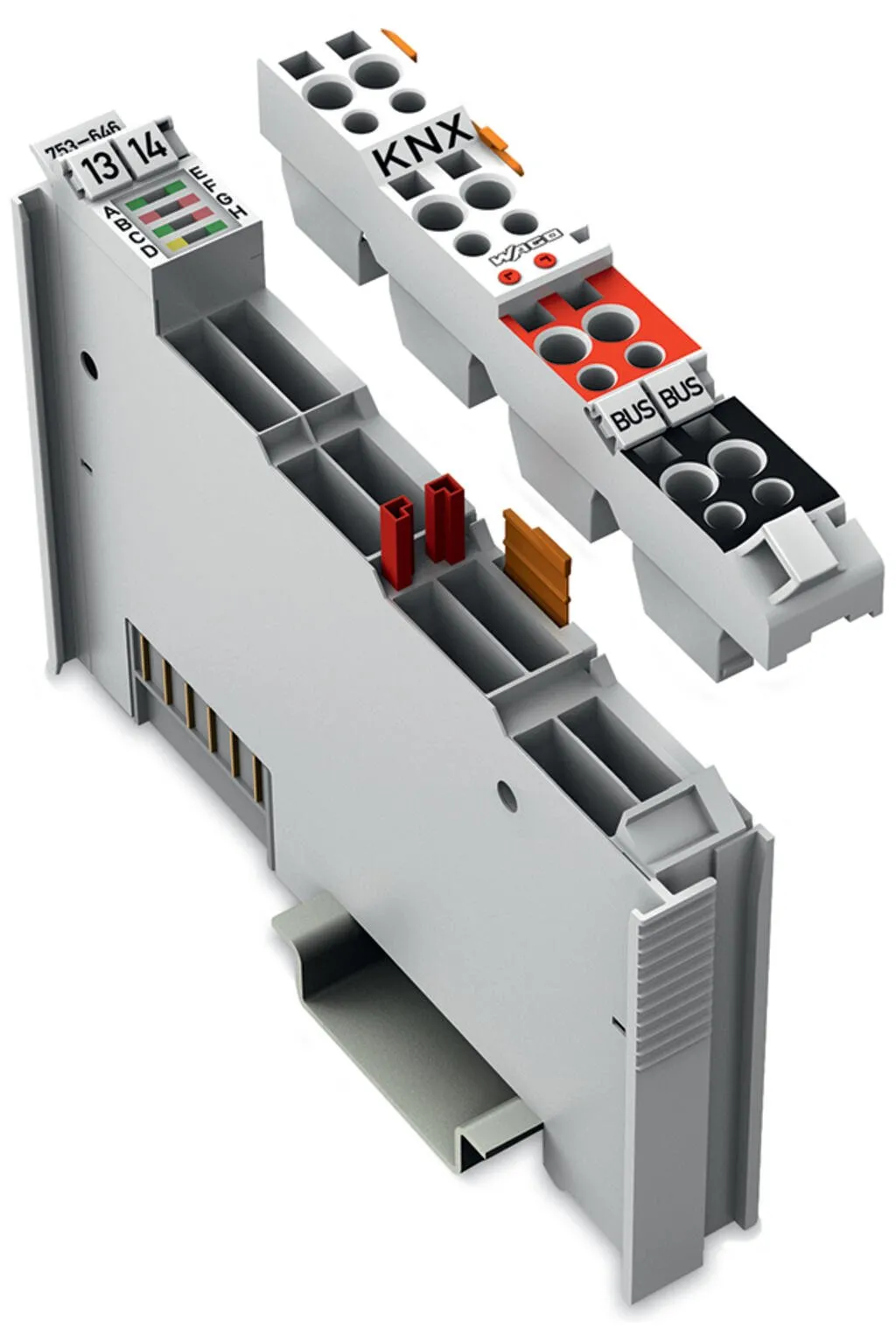

Wago 753-1646
The 753-1646 KNX TP Secure Interface I/O module provides connectivity to a KNX/EIB/TP1 network. The module is compatible with the 753-646 KNX/EIB/TP Interface. However, the 753-1646 KNX TP Secure Inte…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The 753-1646 KNX TP Secure Interface I/O module provides connectivity to a KNX/EIB/TP1 network. The module is compatible with the 753-646 KNX/EIB/TP Interface. However, the 753-1646 KNX TP Secure Interface does not support router or transparent modes.In a KNX network, the module functions as a standard KNX device.The KNX module supports up to 1,000 freely configurable communication objects with any DPTs, 2,000 group addresses and 2,000 associations. In the ETS, data point types (DPT) up to 14 bytes long can be assigned to each KNX communication object.When operating as a KNX secure device, encrypted communication (KNX Data Secure) is possible for all KNX communication objects.The application is programmed via CODESYS 3.x. ETS 6 is supported.WAGO’s 753 Series Pluggable Connector with internally bridged contacts (3/7 and 4/8) is included with the delivery.An external KNX power supply is required to operate the KNX module.
Specification
Technical data
| Communications | KNX/TP1-256, S-Mode, KNX Data Secure |
|---|---|
| Device-specific | Number of communication objects: 1000; Number of group addresses: 2000; Number of associations: 2000; Supported ETS versions: from ETS 6 onwards |
| Current consumption, typ. | 7.5 mA (KNX) |
| Transmission rate | 9.6 kBd (KNX) |
| Data width | 24 bytes |
| Supply voltage | KNX: via KNX power supply unit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 65 mA |
| Isolation | 3.51 kV (rms) |

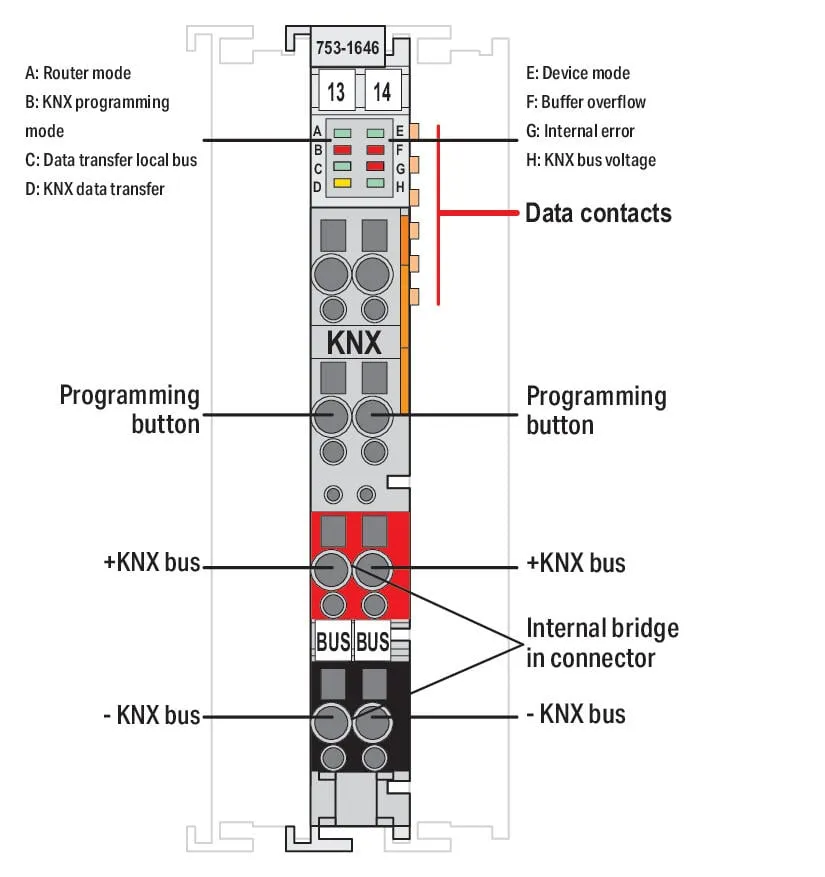

| Indicators | 8 x LED |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |

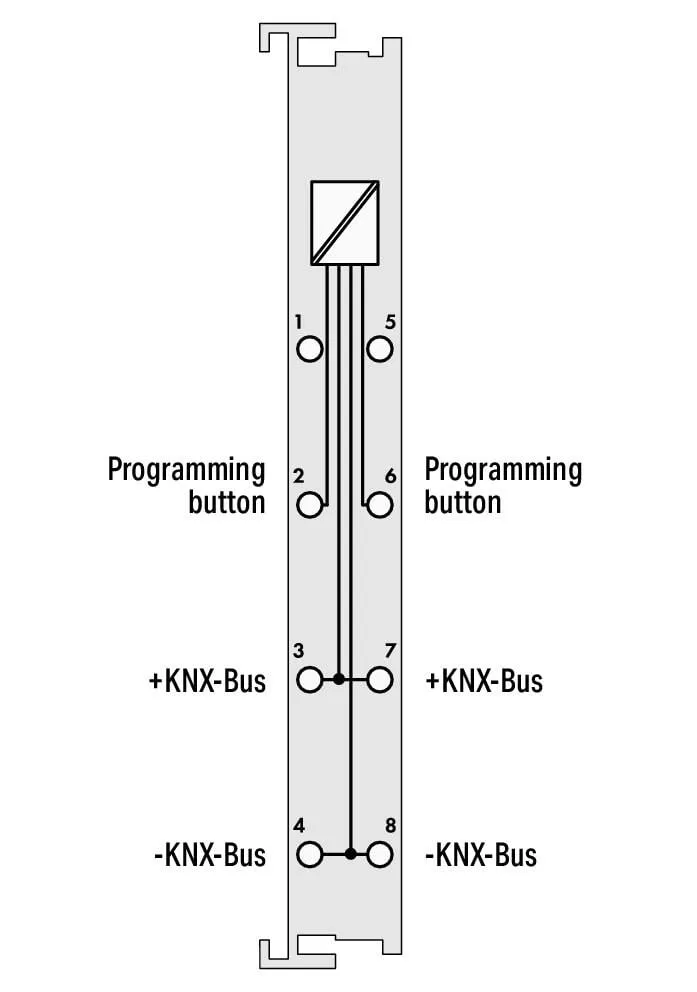

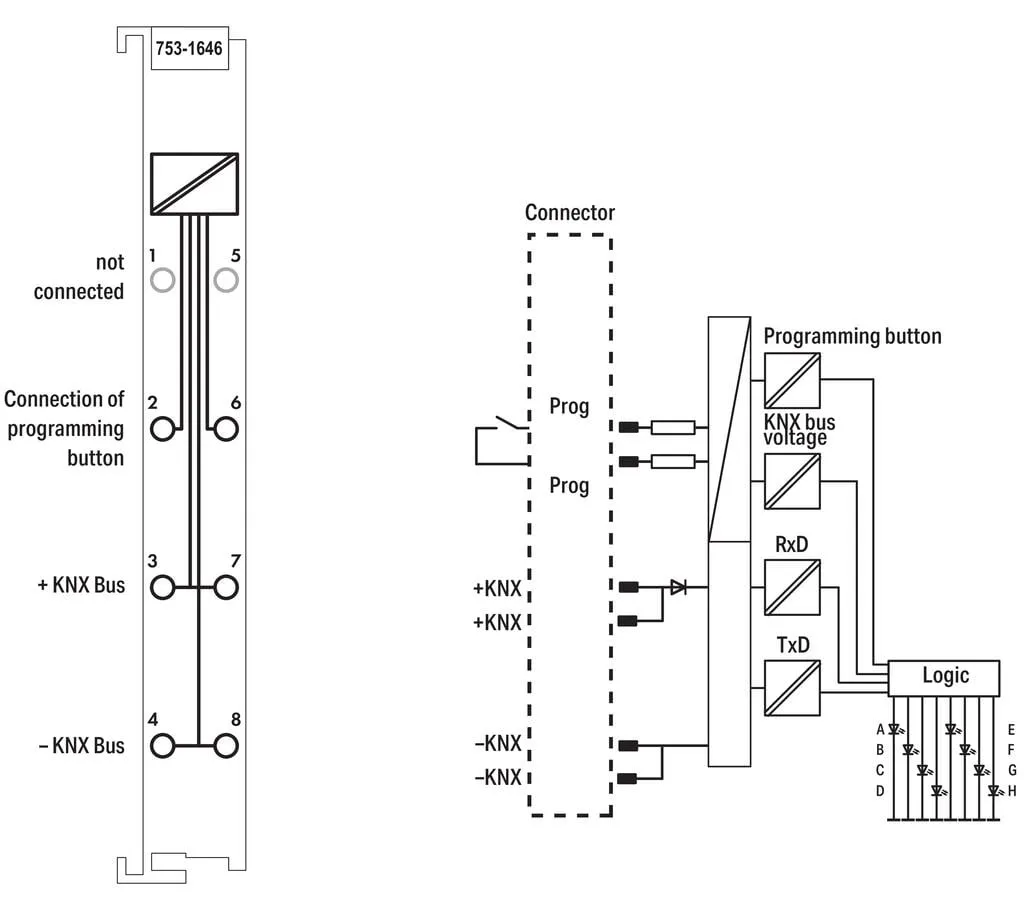

| Connection point (other) designation | Programming button connection; bridge 2/6 |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.827 MJ |
| Weight | 52.2 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966699210 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121334 |
|---|---|
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
