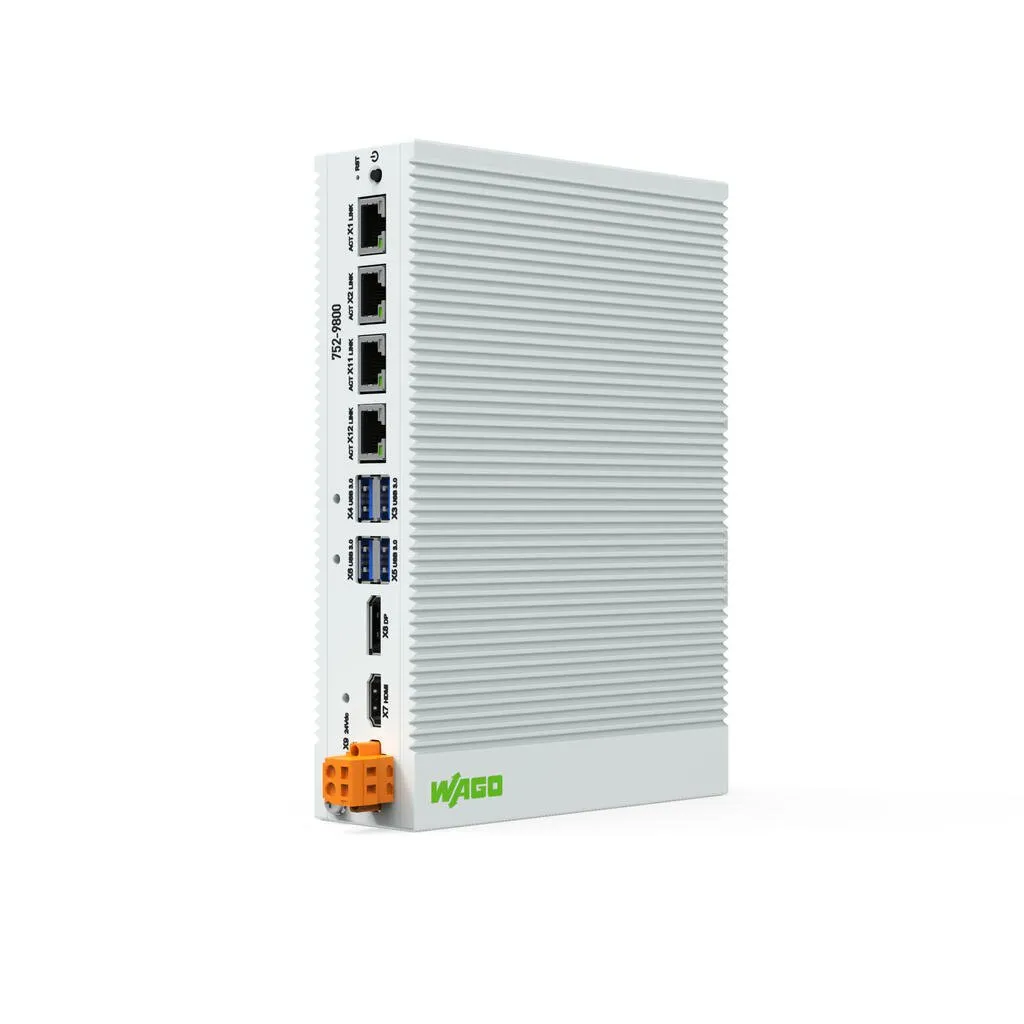

Wago 752-9800
4 x ETHERNET interface for connecting to field devices and IT networks4 x USB interface for optional connection of a USB stick, mouse or keyboardHDMI and display port interfaces for connecting a displ…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
4 x ETHERNET interface for connecting to field devices and IT networks4 x USB interface for optional connection of a USB stick, mouse or keyboardHDMI and display port interfaces for connecting a display
Specification
Technical data
| ETHERNET protocols | DHCP, DNS, HTTP, HTTPS, SSH, SCP, SFTP |
|---|---|
| Visualization | Web server |
| Functionality | Industrial IoT-GatewaySichere und verschlüsselte Cloud-ConnectivityEDGE Funktionalität möglichGerätemanagement und Applicationsmanagement über IoT und EDGE TechnologienIndustrial IoT-GatewayPerformante EDGE FunktionalitätAI und Machine Learning Modelle on the EDGEErweiterung um KI-Beschleuniger |
| Operating system | Debian Linux; optional ctrlX OS pending |
| Processor | Intel® i7-7600U 2.8 GHz (max. 3.90 GHz) |
| Security | TPM2.0-Chip, UEFI Secure Boot |
| Main memory (RAM) | 16 GB; DDR.4 2133 MHz SODIMM |
| Internal memory (flash) | 256 GB; SATA 2.5“ SSD |
| Indicators | 3 x LED |
| Supply voltage | 24 VDC (10 … 36 V); with reverse voltage protection |
| Input current (typ.) at nominal load (24Â V) | 2292 mA |
| Input current (max.) (24 V) | 3967 mA |
| Operating power | 55 W (typ.); 95.2 W (max.) |
Connection data

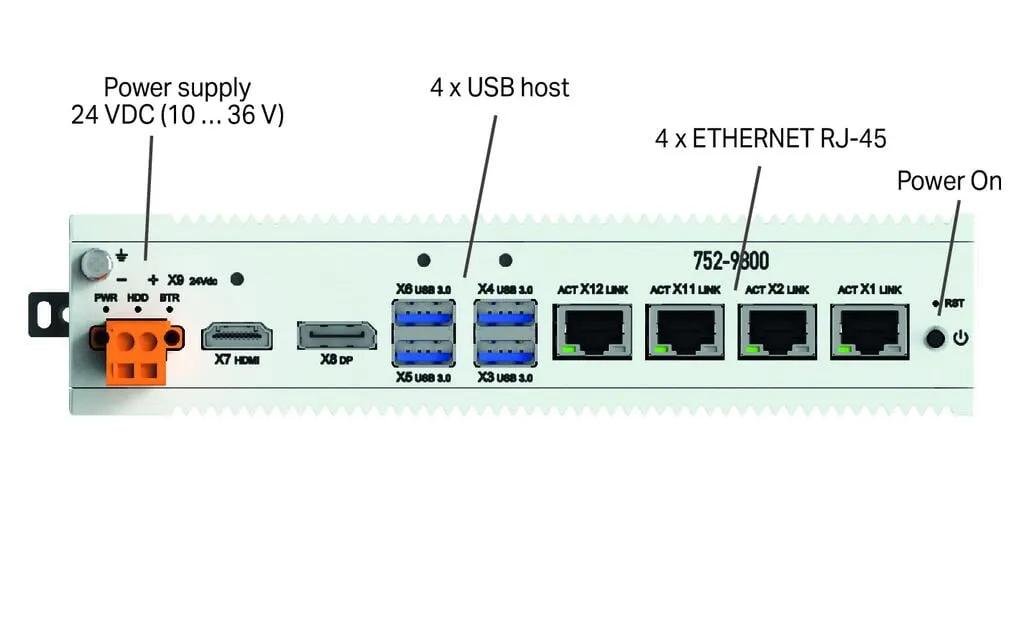

| Connection technology: communication/fieldbus | 4 x RJ-45 Socket, 1 Gbit/s; 4 x USB 3.0 (type A) |
|---|---|
| Interfaces (ETHERNET) | 4 × RJ-45 sockets, X1: 1 Gbit/s (HW01/02: Intel I219-LM), X2, X11, X12: 1 Gbit/s (HW01: Intel I210; HW02: Realtek RTL8119I); Connection via twisted pair SF/UTP cables, 100 Ohm, Category 5e, patch or crossover, max. length 100 m |
| Interfaces (USB) | 4 x USB 3.0 (type A) socket; 480 Mbit/s, connection cables max. 3 m long, current consumption max. 2 × 500 mA |
| Interfaces (display) | 1 × DisplayPort 1.2, 4096 x 2304 @60 Hz; 1 x HDMI v1.4, 1920 x 1080p @60Hz |
| Memory expansion | 1 x mPCIe slot and SATA 2.5“ SSD |
| SIM card type | Nano-SIM |
| Connection technology: supply | 1 x Female Connector (231-302/107-000); CAGE CLAMP®; 2-pole |
| Cable length (max.) | 3 m (Connection cable (max.) to power supply) |
| Connection type | Power supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 45 mm / 1.772 inches |
|---|---|
| Height | 200 mm / 7.874 inches |
| Depth | 140 mm / 5.512 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Housing material | Aluminum, powder-coated |
|---|---|
| Weight | 1810 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +60 °C (At 5 … 85 % RH (with 0.7 m/s airflow)) |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP40 |
| Note on protection type | Protection type with expansion housing: IP20 |
| Protection class | III |
| Pollution degree | 2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Relative humidity | 10 … 95 % (without condensation; RH at 40 °C) |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | TW |
| GTIN | 4066966169584 |
| Customs tariff number | 84715000000 |
Product Classification
| UNSPSC | 43211506 |
|---|---|
| ETIM 9.0 | EC001413 |
| ETIM 10.0 | EC001413 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | e5619850-1cbe-492c-bbc4-428f321ad01a |
| SCIP notification number (Belgium) | 66496cea-60a7-405e-a08b-a7153038cd93 |
| SCIP notification number (Bulgaria) | b6add4ff-55dc-4230-91b5-740b93aeb46a |
| SCIP notification number (Czech Republic) | 27cdd446-79fd-4712-a9dd-a87d930a9da7 |
| SCIP notification number (Denmark) | a0885acc-f4ca-47f4-9e7b-857cb01ecc5b |
| SCIP notification number (Finland) | f0fbd085-482b-4d36-ac20-155740e4efb7 |
| SCIP notification number (France) | ebf60908-3015-410a-80d8-6795e2e7b222 |
| SCIP notification number (Germany) | ef3ea377-dd02-41c1-a178-528961a6c223 |
| SCIP notification number (Hungary) | 809e3f0d-1d41-48f2-8469-ad9b202b14d0 |
| SCIP notification number (Italy) | 218888b6-96db-40a7-abc1-2261e39e45ba |
| SCIP notification number (Netherlands) | e79db017-4981-422b-8adf-f5fc0c8e9702 |
| SCIP notification number (Poland) | f4e6752b-911f-4216-a016-d2e2da7aaeaf |
| SCIP notification number (Romania) | cff8b2c4-e5d5-4092-8122-d0548b109fbb |
| SCIP notification number (Sweden) | 876d1bd4-34e3-4c26-a61f-7ebe95481b66 |
