Wago 750-972

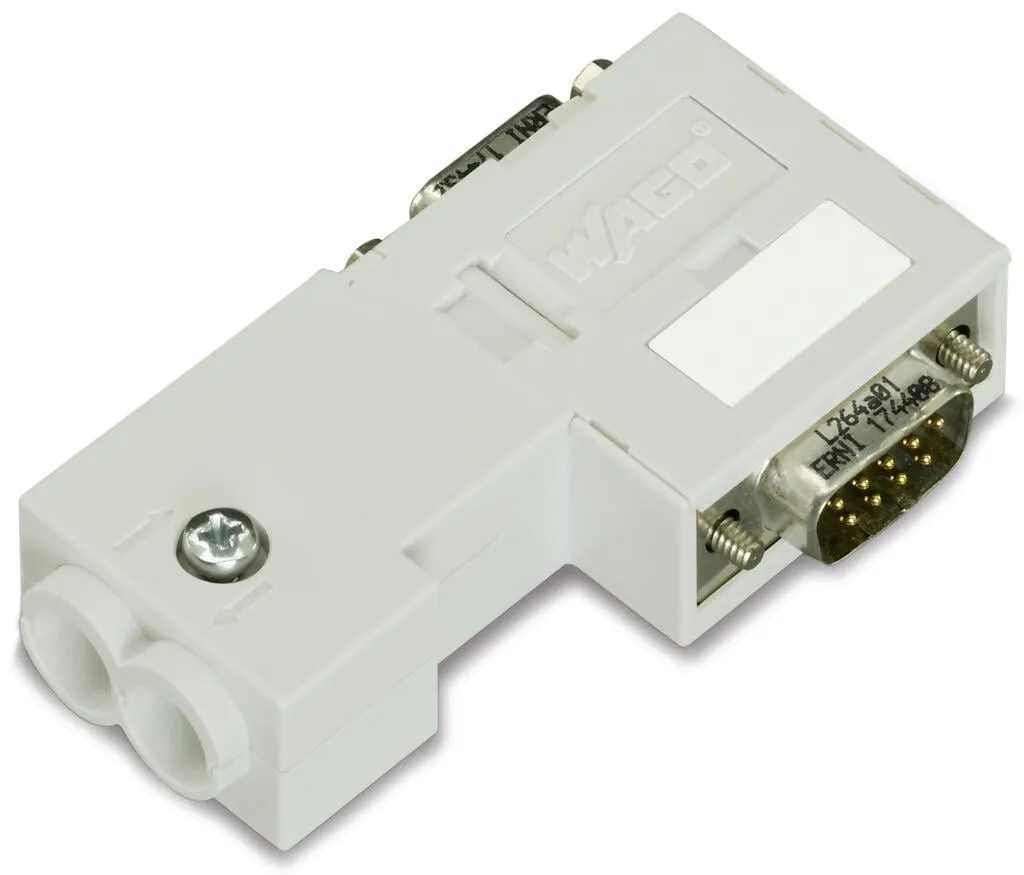

This fieldbus connector links a PROFIBUS device to a PROFIBUS line.The fieldbus connector has the following features:Compact design Perfectly connects to an S7 PLCNo losable partsProgramming interface…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

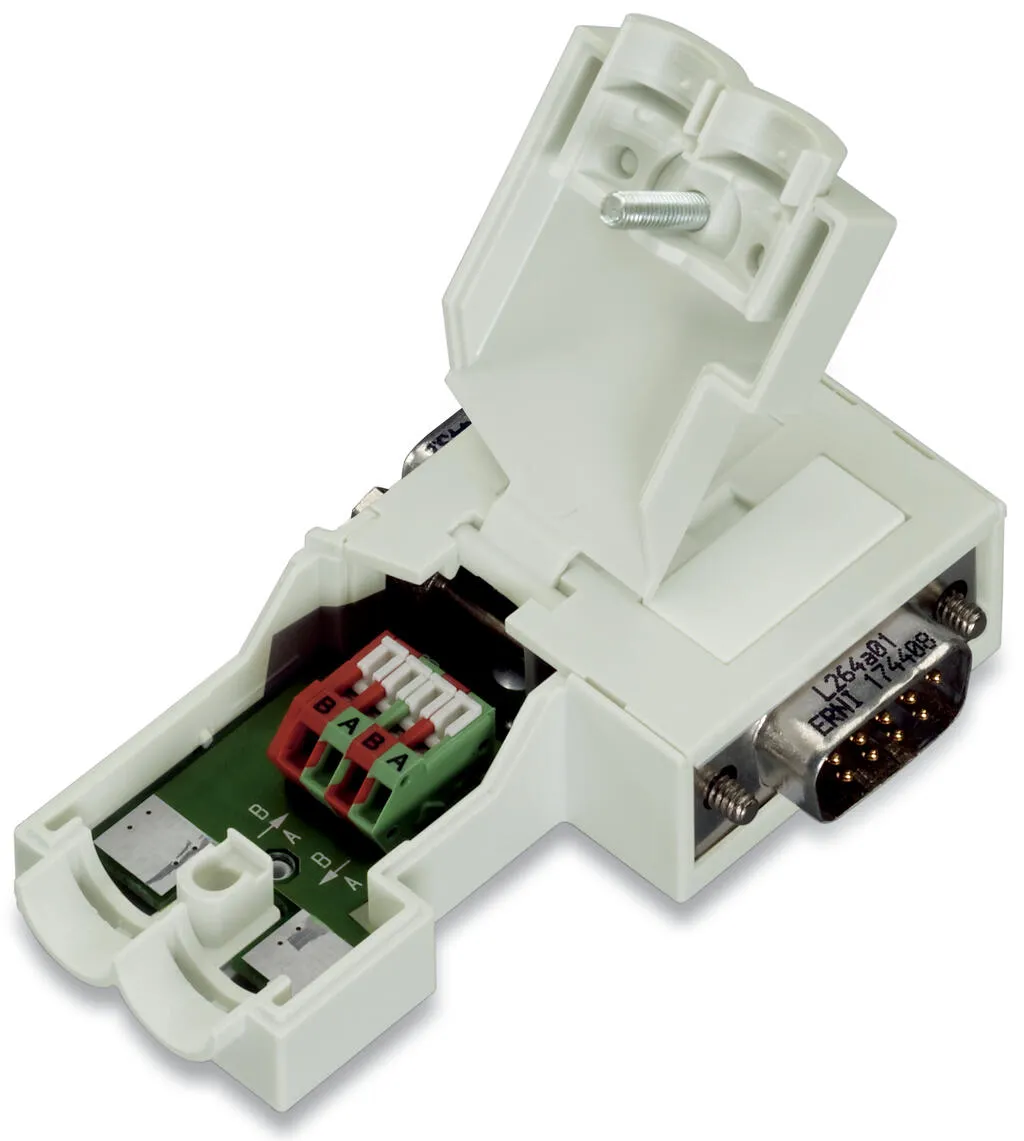

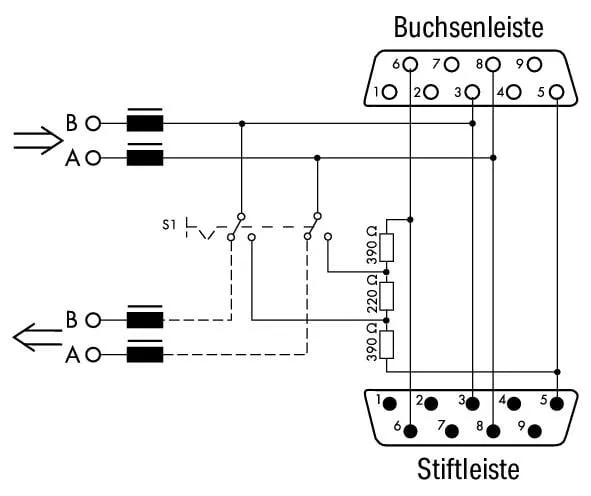

This fieldbus connector links a PROFIBUS device to a PROFIBUS line.The fieldbus connector has the following features:Compact design Perfectly connects to an S7 PLCNo losable partsProgramming interfaceTwo horizontal cable entries for both input and outputFast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open positionExternally operable switch to activate or deactivate the network terminating resistorFor the first and last station on the bus, the switch must be set to “ON” (Terminating resistor activated, outgoing bus line disconnected) Switch setting to “OFF” for downstream bus stations (Terminating resistor deactivated)
Specification
Technical data
| Connection type | D-sub 9 plug |
|---|---|
| Pole number | 9 |
| Communication/fieldbus | PROFIBUS |
| Transmission rate | 12 Mbit/s (per PROFIBUS specification) |
| Supply voltage | 4.75 … 5.25 VDC |
| Input current | 5 mA |
Connection data
| Connection type | CAGE CLAMP® terminal strip with locking slide (218 Series) |
|---|---|
| Solid conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |

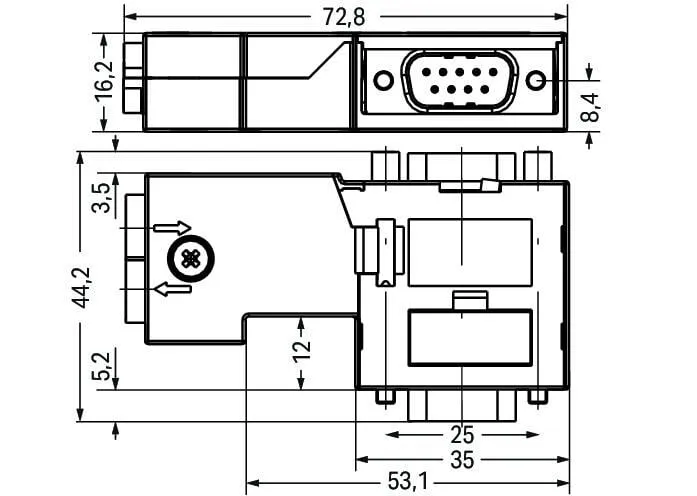

Physical data
| Width | 44.2 mm / 1.741 inches |
|---|---|
| Height | 16.2 mm / 0.638 inches |
| Depth | 72.8 mm / 2.866 inches |
Mechanical data
| Connectable sheathed cable diameter | 8.5 mm |
|---|---|
| Cable glands (number) | 2 |
| Housing material | PC-V0 |
| Weight | 30 g |
| Color | light gray |
Environmental requirements
| Ambient temperature (operation) | 0 … +60 °C |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Relative humidity (without condensation) | 95 % |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454633882 |
| Customs tariff number | 85366990990 |
| End of Sale | 2025-06-18 |
| End of Production | 2025-06-19 |
| End of Delivery | 2025-06-20 |
| End of Service and Repair | 2026-06-16 |
| Support period for security updates | 2030-07-20 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
