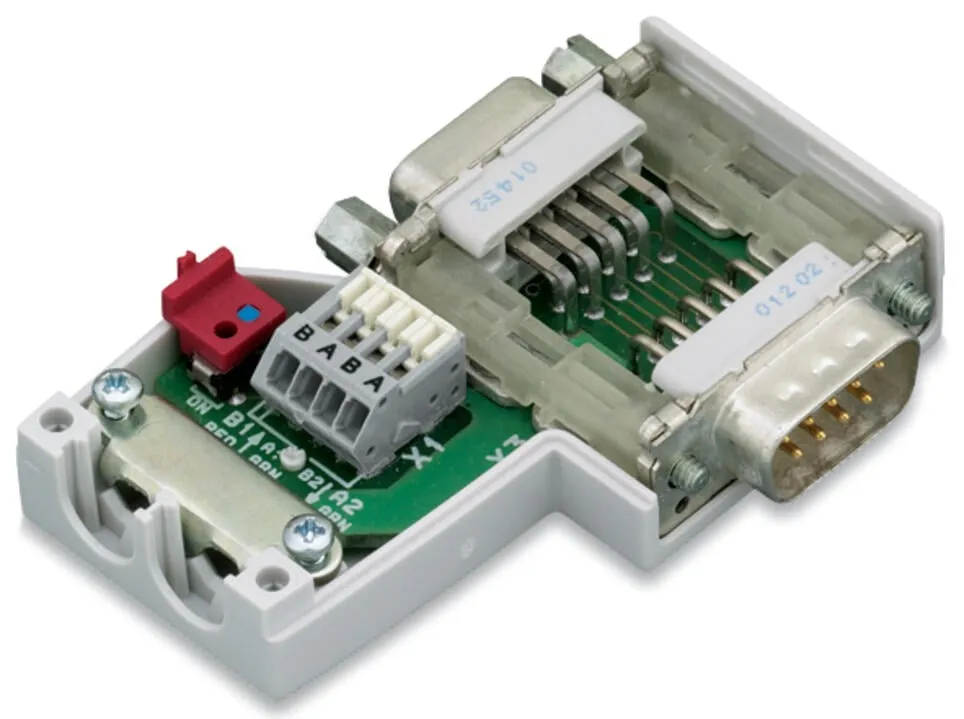

Wago 750-970
This fieldbus connector links a PROFIBUS device to a PROFIBUS line.The fieldbus connector has the following features:Two horizontal cable entries for both input and outputFast and maintenance-free CAG…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This fieldbus connector links a PROFIBUS device to a PROFIBUS line.The fieldbus connector has the following features:Two horizontal cable entries for both input and outputFast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open positionExternally operable switch to activate or deactivate the network terminating resistorPG interfaceFor the first and last station on the bus, the switch must be set to “ON” (Terminating resistor activated) Switch setting to “OFF” for downstream bus stations (Terminating resistor deactivated)
Specification
Technical data
| Connection type | D-sub 9 plug |
|---|---|
| Communication/fieldbus | PROFIBUS |
| Transmission rate | 12 Mbit/s (per PROFIBUS specification) |
Connection data
| Connection type | CAGE CLAMP® terminal strip with locking slide (218 Series) |
|---|---|
| Solid conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Depth | 65 mm / 2.56 inches |
|---|
Mechanical data
| Connectable sheathed cable diameter | 4.5 … 8 mm |
|---|---|
| Weight | 42 g |
| Color | light gray |
Environmental requirements
| Ambient temperature (operation) | 0 … +60 °C |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Relative humidity (without condensation) | 95 % |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454345075 |
| Customs tariff number | 85366990990 |
| End of Sale | 2025-06-18 |
| End of Production | 2025-06-19 |
| End of Delivery | 2025-06-20 |
| End of Service and Repair | 2026-06-16 |
| Support period for security updates | 2030-07-20 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
