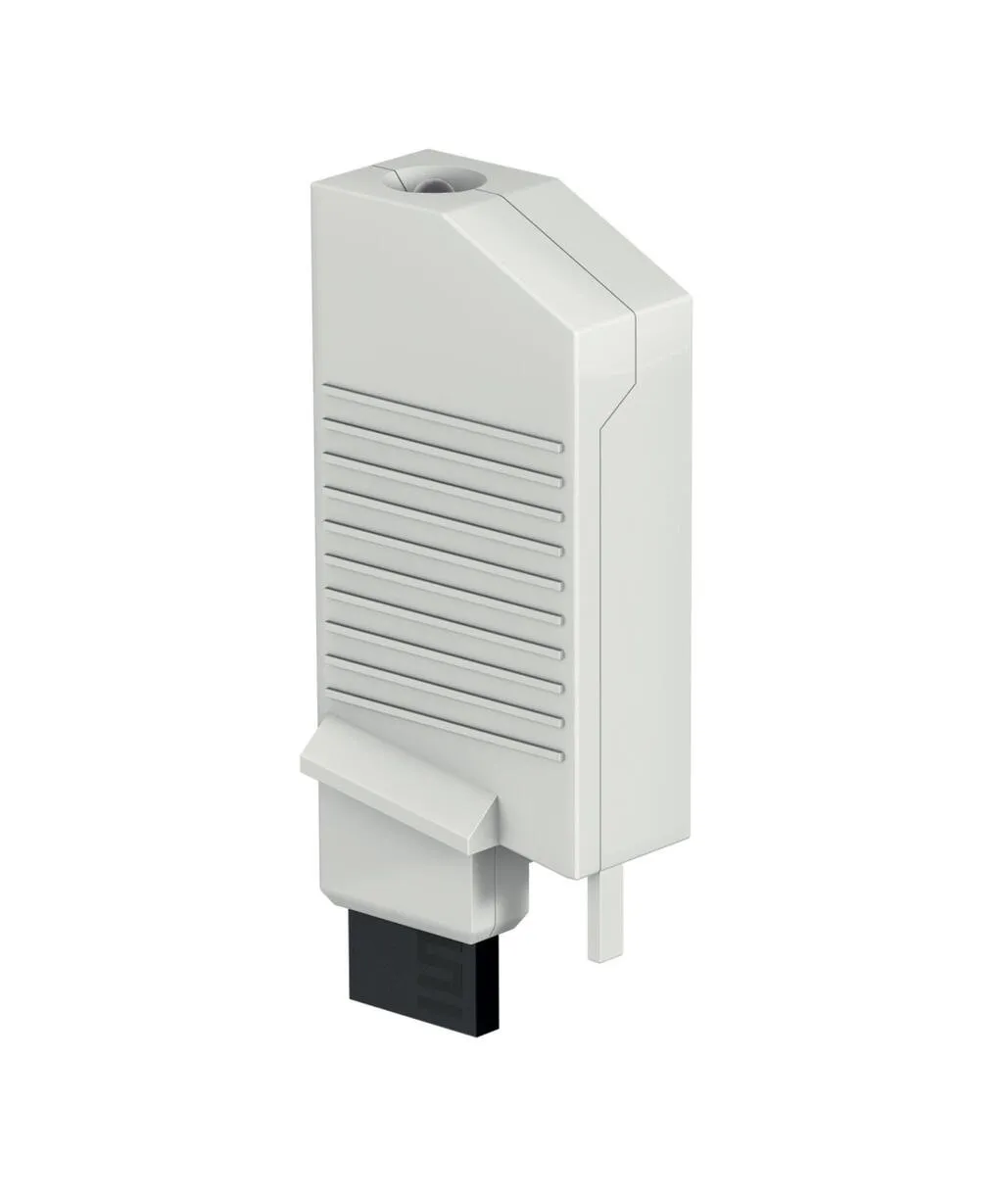

Wago 750-921
Bluetooth® Adapter in Connection with 750 Series The Bluetooth® Adapter wirelessly connects a notebook computer with Bluetooth® functionality to the service interface of the coupler/controller. It als…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Bluetooth® Adapter in Connection with 750 Series The Bluetooth® Adapter wirelessly connects a notebook computer with Bluetooth® functionality to the service interface of the coupler/controller. It also provides an active connection to a programmable fieldbus controller.As a cable substitute, the Bluetooth® Adapter allows communication between two fieldbus controllers, as well as between fieldbus couplers/controllers via WAGO software tools (e.g., WAGO-I/O-CHECK, WAGO-I/O-PRO).Configurable coexistence properties ensure trouble-free operation in the presence of other radio systems. Bluetooth® Adapter in Connection with 857 SeriesThe Bluetooth® wirelessly connects a notebook computer with Bluetooth® functionality to the service interface of a configurable 857 Series Module.As a cable substitute, the Bluetooth® Adapter allows communication between Modules and WAGO software tool (WAGOframe) or configuration APP for Android-based end devices. If required, adapter configuration may be performed via AT commands.The adapter is supplied via both service interface and power supply of coupler/controller or Module.
Specification
Notes
| Note | The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual. |
|---|
Technical data
| Device specification | Master or Slave |
|---|---|
| Security encryption | 128-bit encryption |
| Radio technology | Bluetooth® 2.1, Bluetooth® 2.1 |
| Frequency band | ISM band, 2402 … 2483 MHz |
| Security authentication | PIN code or configurable access list |
| Supported profiles | Serial Port Profile (SPP) |
| Communication type | Peer-to-peer connection |
| Coexistence | Frequency Hopping Spread Spectrum (FHSS), Adaptive Frequency Hopping (AFH), Adaptive transmission power with configurable upper limit, configurable channel blacklist, supports coexistence optimized inquiry (transmission time ≤ 0.1 s; transmission cycle ≥ 2.9 s) |
| Transmission range | 20 m in open space (Class 2) |
| Antenna | integrated |
| Receiver sensitivity | -82 dBm |
| Configuration options | AT commands (e.g., via HyperTerminal) |
| Current consumption (5 V system supply) | 60 mA |
| Indicators | Operating mode |
Physical data
| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 50 mm / 1.969 inches |
| Depth | 19 mm / 0.748 inches |
Material data
| Color | light gray |
|---|---|
| Weight | 16.6 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -20 … +60 °C |
|---|---|
| Protection type | IP20 |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918368100 |
| Customs tariff number | 84733080000 |
| End of Sale | 2024-02-01 |
| End of Production | 2024-04-01 |
| End of Delivery | 2024-08-01 |
| End of Service and Repair | 2026-08-01 |
| Support period for security updates | 2029-09-01 |
Product Classification
| UNSPSC | 43221715 |
|---|---|
| eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC000817 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
