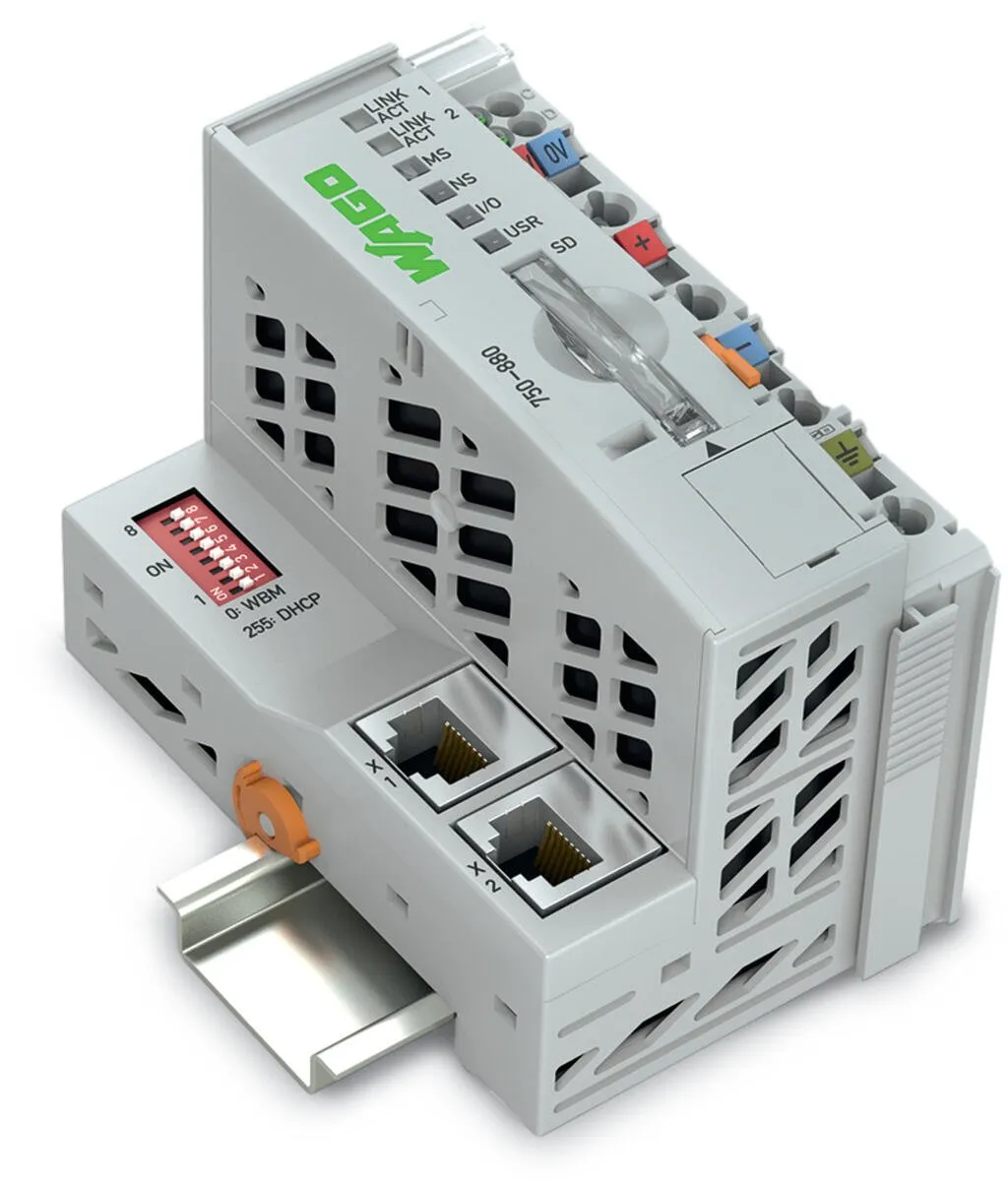

Wago 750-880
Note:For this item, a successor is available: Modbus TCP 750-890EtherNet/IPTM 750-893The ETHERNET Controller can be used as a programmable controller within ETHERNET networks in conjunction with the W…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Note:For this item, a successor is available: Modbus TCP 750-890EtherNet/IPTM 750-893The ETHERNET Controller can be used as a programmable controller within ETHERNET networks in conjunction with the WAGO I/O System. The controller supports all digital, analog and specialty modules found within the 750/753 Series, and is suitable for data rates of 10/100 Mbit/s.Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X). The DIP switch configures the last byte of the IP address and may be used for IP address assignment.The controller supports both MODBUS/TCP and EtherNet/IP for use in industrial environments. It also supports a wide variety of standard ETHERNET protocols for easy integration into IT environments (e.g., HTTP, BootP, DHCP, DNS, SNTP, SNMP, FTP). For use in telecontrol applications; the 750-880/025-001 and -002 Controllers support the IEC 60870-5-101/-103-104, IEC 61850-7, and IEC 61400-25 communication protocols.An integrated Webserver provides user configuration options, while displaying the controller’s status information.The IEC 61131-3 programmable controller is multitasking-capable and features a capacitor-backed RTC. A data memory of 1 MB is available.The 750-880 Controller is equipped with a removable memory card slot. A memory card can be used to transfer device parameters or files (e.g., boot files) from one controller to another. The card can be accessed via FTP and used as an additional drive.
Specification
Technical data
| Communications | EtherNet/IPTM, EtherNet/IPTM, Modbus (TCP, UDP), ETHERNET |
|---|---|
| ETHERNET protocols | HTTP, BootP, DHCP, DNS, SNTP, FTP, SNMP |
| Visualization | Web-Visu |
| CPU | 32 bits |
| Programming languages per IEC 61131-3 | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Programming environment | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Configuration options | WAGO-I/O-CHECK, Web-Based Management |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Transmission performance | Class D per EN 50173 |
| Program memory | 1024 KB |
| Data memory | 1024 KB |
| Non-volatile software memory | 32 kbyte |
| Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
| Memory card slot | Push-push mechanism; Cover lid (sealable) |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 1020 words/1020 words |

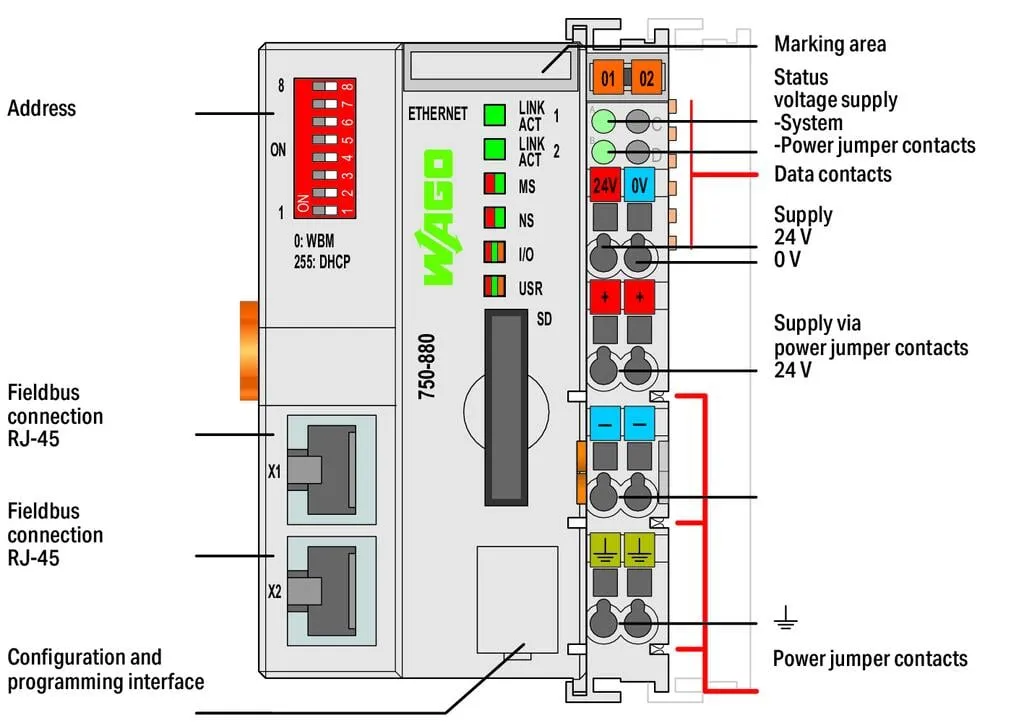

| Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply |

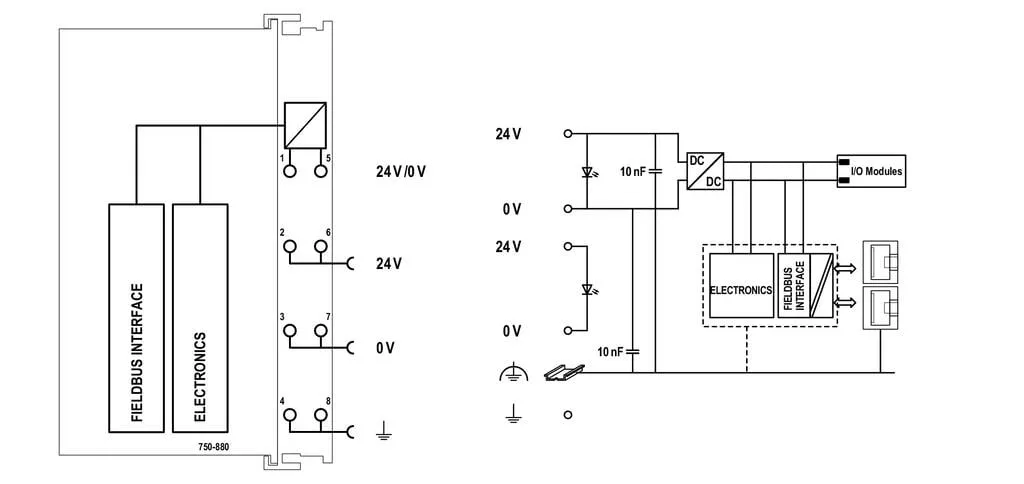

| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Input current (typ.) at nominal load (24 V) | 500 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
| Current consumption (5 V system supply) | 450 mA |
| Total current (system supply) | 1,700 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10 A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |
Connection data
| Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45 |
|---|---|
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connection type | System/field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
Physical data
| Width | 61.5 mm / 2.421 inches |
|---|---|
| Height | 71.9 mm / 2.831 inches |
| Depth | 100 mm / 3.937 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 2.983 MJ |
| Weight | 161.9 g |
| Conformity marking | CE |
Environmental requirements
| Mounting type | DIN-35 rail |
|---|---|
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| GTIN | 4050821134053 |
| End of Sale | 2019-12-15 |
| End of Production | 2019-12-20 |
| End of Delivery | 2019-12-30 |
| End of Service and Repair | 2021-12-14 |
| Support period for security updates | 2025-01-30 |
Product Classification
| UNSPSC | 43201404 |
|---|---|
| eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 12060-00-3, 1303-86-2, 1317-36-8, 25550-51-0, 693-98-1, 7439-92-1, 79-94-7, 80-43-3 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methylimidazole, 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide, Lead titanium oxide (PbTiO3), Peroxide, bis(1-methyl-1-phenylethyl) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 2cb1e1f5-30a4-4aa4-b43e-0256427d9dea |
| SCIP notification number (Belgium) | adb3edf3-e63f-439b-a86e-14ac100891fa |
| SCIP notification number (Bulgaria) | 7548571d-d7ec-43a7-a1e9-0574080601c4 |
| SCIP notification number (Czech Republic) | baef3f7e-59b5-4602-b179-bc293a631565 |
| SCIP notification number (Denmark) | 567c099d-53bc-42da-8226-b0b0b055b7e3 |
| SCIP notification number (Finland) | 09b78942-e512-4ac1-9753-cc2dc901bdb4 |
| SCIP notification number (France) | 4c77de68-e6ea-4667-aa62-3625a6c15773 |
| SCIP notification number (Germany) | 05a7d98c-5518-4d9f-a732-d836005b0a0c |
| SCIP notification number (Hungary) | f3a86e0a-c4d3-4c8a-8dfd-38289752a35e |
| SCIP notification number (Italy) | 081b813e-7391-41eb-9ae6-e2155a2b6791 |
| SCIP notification number (Netherlands) | 554efbeb-f756-43e6-bd3e-4202b0e43cdf |
| SCIP notification number (Poland) | 5f59abf8-35b6-48f9-9717-23e1e0fefcc4 |
| SCIP notification number (Romania) | cd5e7358-0e1d-4be8-afba-30b84534e1b7 |
| SCIP notification number (Sweden) | 15f0b96f-565c-499d-9e60-8392e93322dc |
