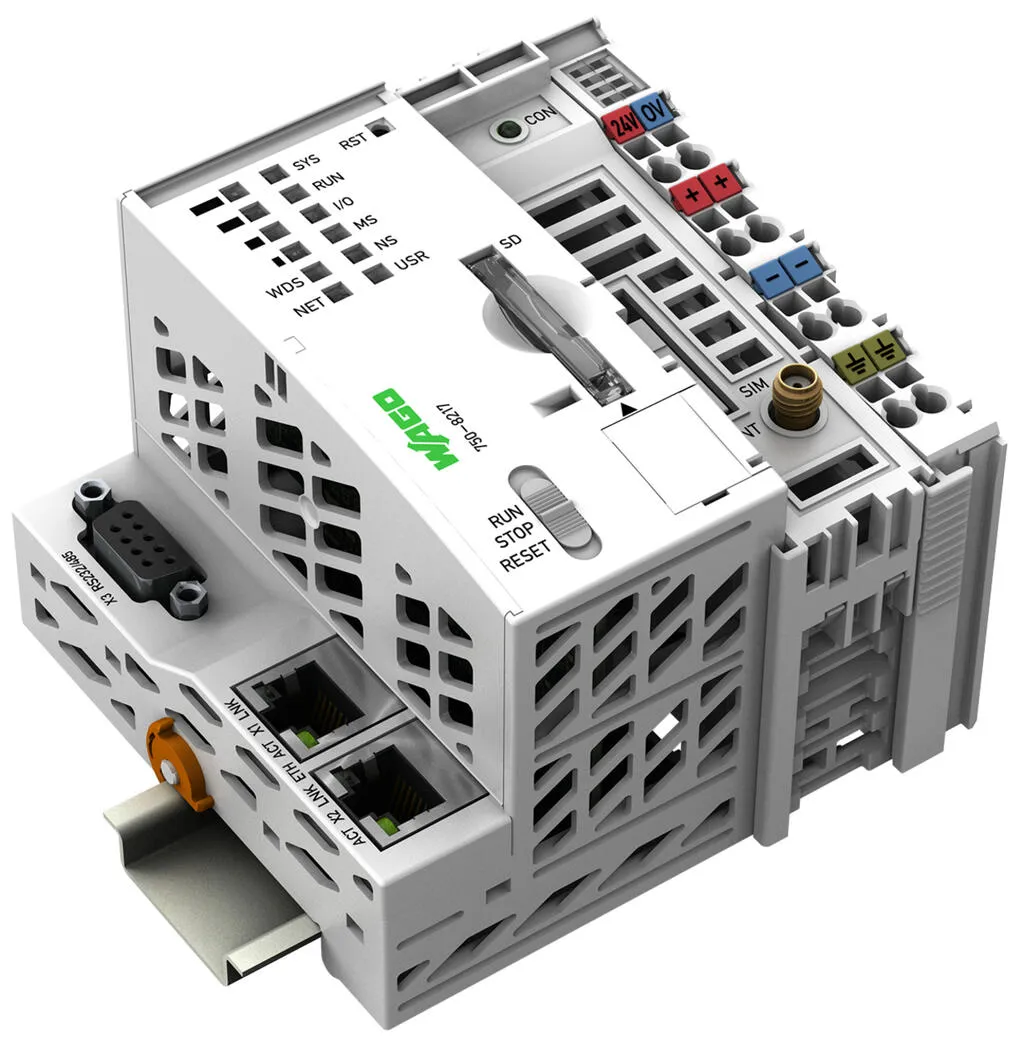

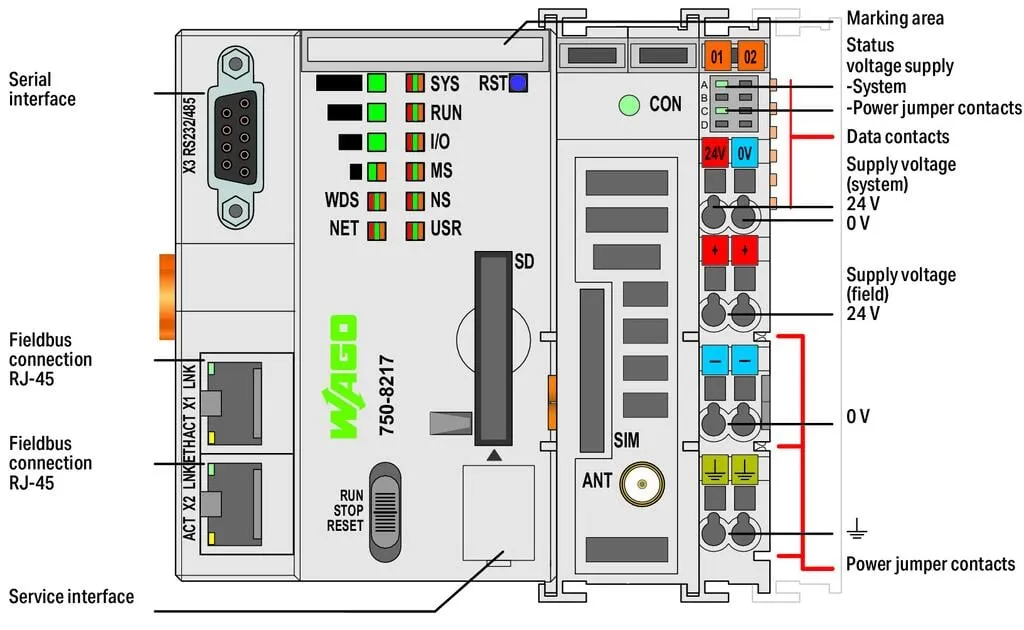

Wago 750-8217/025-000
The PFC200 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The PFC200 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.Two ETHERNET interfaces and an integrated switch enable line topology wiring.The integrated cellular modem provides a wireless connection to the Internet and includes a radio license for EU countries. Other countries upon request. An integrated Webserver provides user configuration options, while displaying PFC200 status information. Besides standard machinery and equipment control, as well as building automation, typical applications for the PFC200 include decentralized data logging for the process industry. Advantages:Programming per IEC 61131-3Programmable with CODESYS V3.5 from Firmware Release 24, WAGO-I/O-PRO V2.3 or e!COCKPIT up to Firmware Release 22Direct connection of WAGO’s I/O modules2 x ETHERNET (configurable), RS-232/485Linux operating system with PREEMPT_RT patchConfiguration via CODESYS or Web-Based Management interfaceMaintenance-free
Specification
Notes

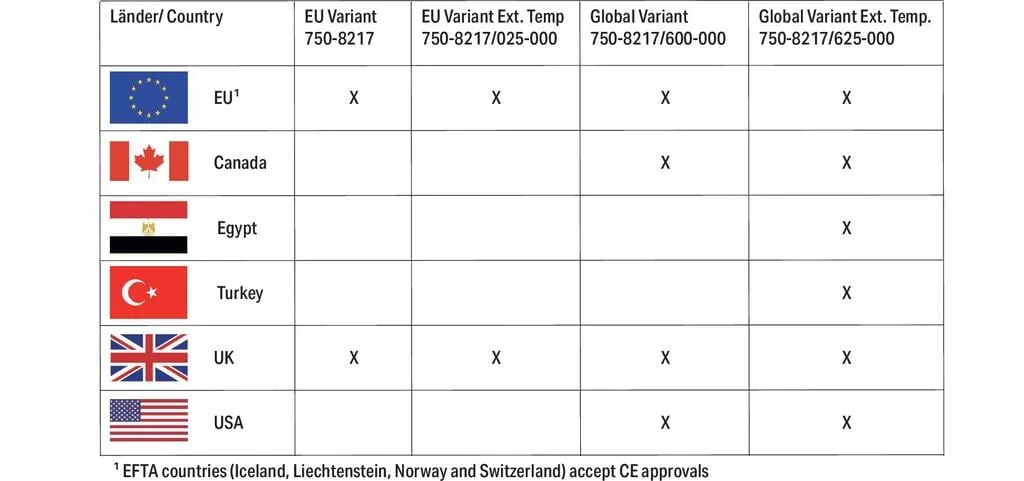

| Note | Country approvals: All EU countries(approvals for other countries upon request) |
|---|
Technical data

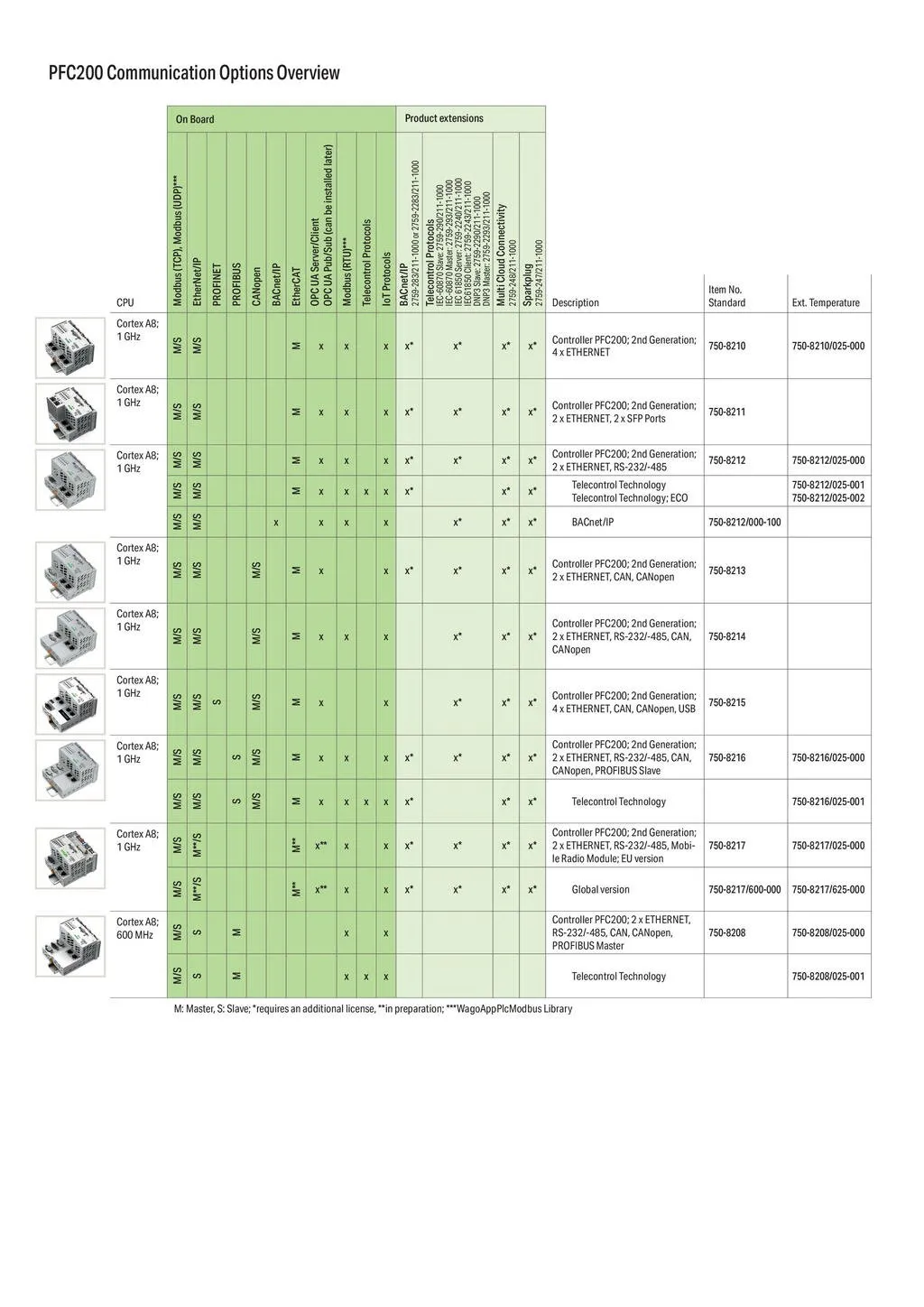

| Communications | Modbus (TCP, UDP), ETHERNET, EtherNet/IPTM Adapter (slave), library for e!RUNTIME, Modbus RTU, RS-232 serial interface, RS-485 interface, MQTT, BACnet/IP, requires an additional license, EtherCAT® Master (requires an additional license), Telecontrol protocols, requires an additional license |
|---|---|
| ETHERNET protocols | DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH |
| Telecontrol protocols | IEC 60870 (additional license as slave or master), IEC 61850 (additional license as Client or Server), DNP3 (additional license as Slave or Master) |
| Visualization | Web-Visu |
| Operating system | Real-time Linux (with PREEMPT_RT patch) |
| CPU | Cortex A8; 1 GHz |
| Programming languages per IEC 61131-3 | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Programming environment | CODESYS V3.5, e!COCKPIT (based on CODESYS V3) |
| Configuration options | CODESYS V3, CODESYS Library, e!COCKPIT, WAGO-I/O-CHECK, Web-Based Management, e!RUNTIME library, CODESYS Library |
| Security encryption | OpenVPN, IPsec, firewall |
| Services | SMS (bidirectional), GPRS connection to Internet |
| Radio technology | GSM/UMTS/LTE |
| Frequency band | GSM dual band (B3; B8); E-UTRA bands (B1; B3; B5; B7; B8; B20; B38; B40; B41) |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 512 MB |
| Internal memory (flash) | 4096 MB |
| Non-volatile hardware memory | 128 kbyte |
| Program memory | 32 MB |
| Data memory | 128 MB |
| Non-volatile software memory | 128. kbyte |
| Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
| Memory card slot | Push-push mechanism; Cover lid (sealable) |
| SIM card type | Mini-SIM; Temperature range: −20 … +85 °C |
| SIM card slot | Push-push mechanism |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (internal) max. | 1000 words/1000 words |
| Input and output process image (Modbus®) max. | CODESYS V3: 32000 words/32000 words |
| Drift – system clock (25 °C) | 20 ppm |
| RTC backup time (25 °C) | 30 Tage |
| Indicators | LED (SYS, RUN, I/O, MS, NS, USR, S1 … S4, WDS, NET) red/green/orange: system status, program, local data bus, status programmable by user (can be used via CODESYS library), signal strength S1 … S4, data service status; LED (CON, A, B) green: mobile network status, system power supply status, field supply status |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Input current (typ.) at nominal load (24 V) | 550 mA |
| Total current (system supply) | 700 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10 A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |

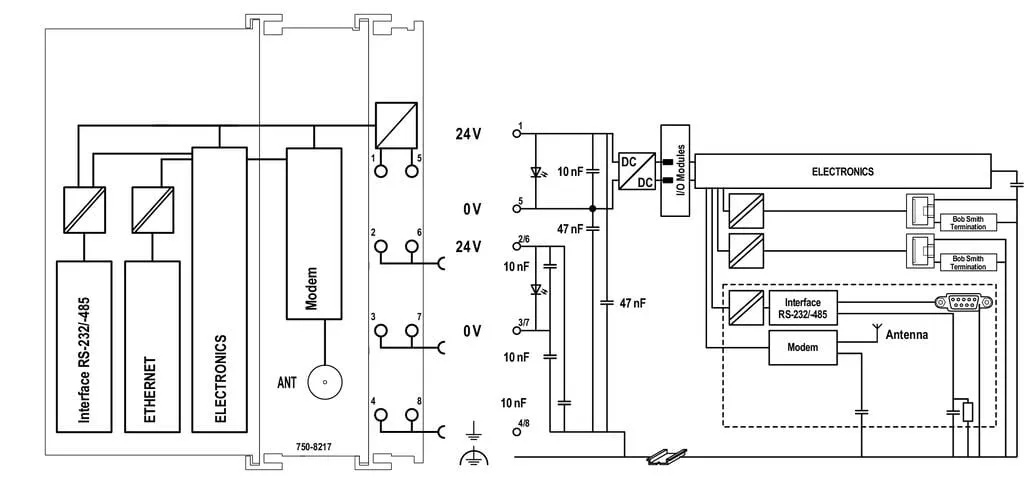

Connection data
| Connection technology: communication/fieldbus | Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket |
|---|---|
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | System/field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: antenna | 1 x SMA socket |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
Physical data
| Width | 102.5 mm / 4.035 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 71.9 mm / 2.831 inches |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 3.125 MJ |
| Weight | 302.4 g |
| Conformity marking | CE |
Environmental requirements
| Mounting type | DIN-35 rail |
|---|---|
| Ambient temperature (operation) | -20 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143984331 |
| Customs tariff number | 85371091990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC000236 |
| ETIM 10.0 | EC000236 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 693-98-1, 7439-92-1, 79-94-7, 1303-86-2, 1317-36-8, 693-98-1, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methylimidazole, Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts, 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methylimidazole, Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II, 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 1e50a845-9ed3-4676-b3a9-b3292578a8bb |
