Wago 750-666/000-104

This module (Item No. 750-666/000-104) features four power outputs (O1 … O4) and four clock-sensitive inputs (I1 … I4), enabling a functionally safe connection between fail-safe digital inputs and out…

Request for Quote

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year
  • Free 30-Day returns

Description

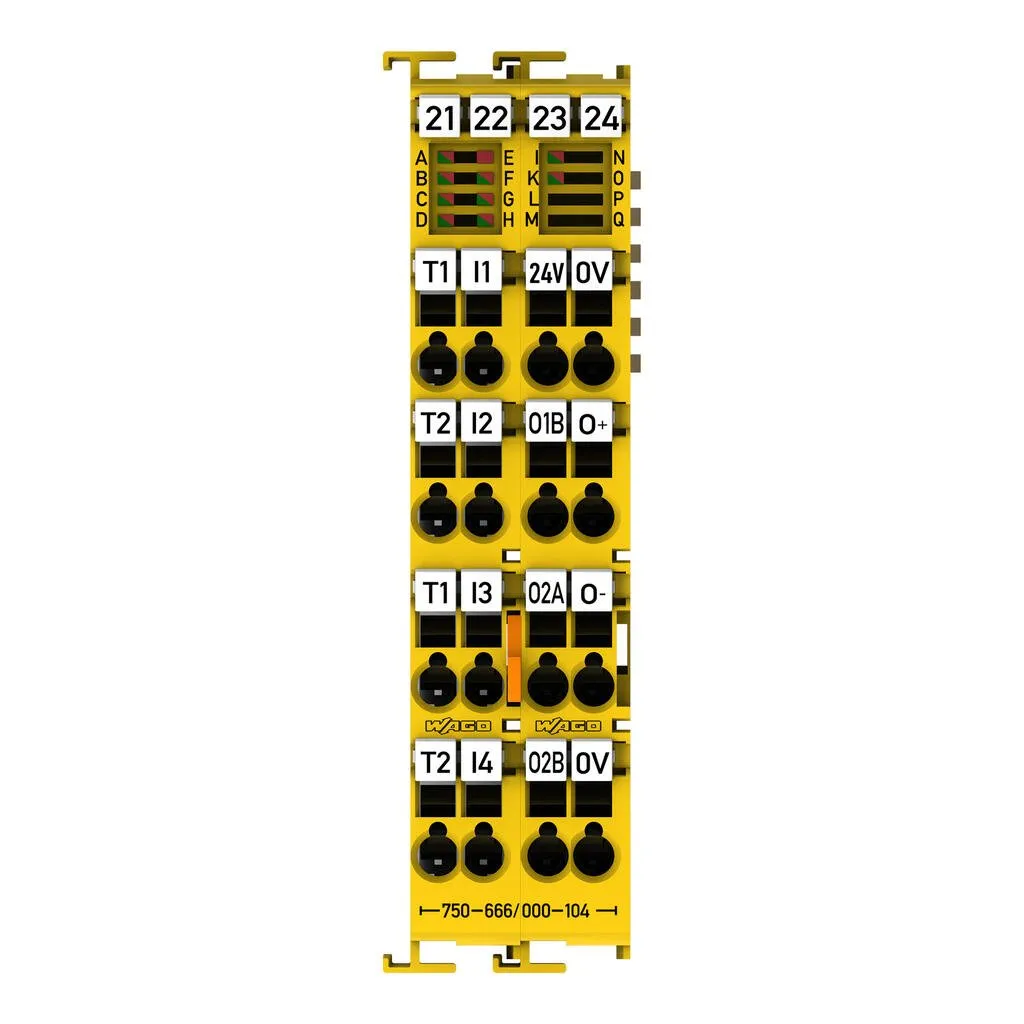

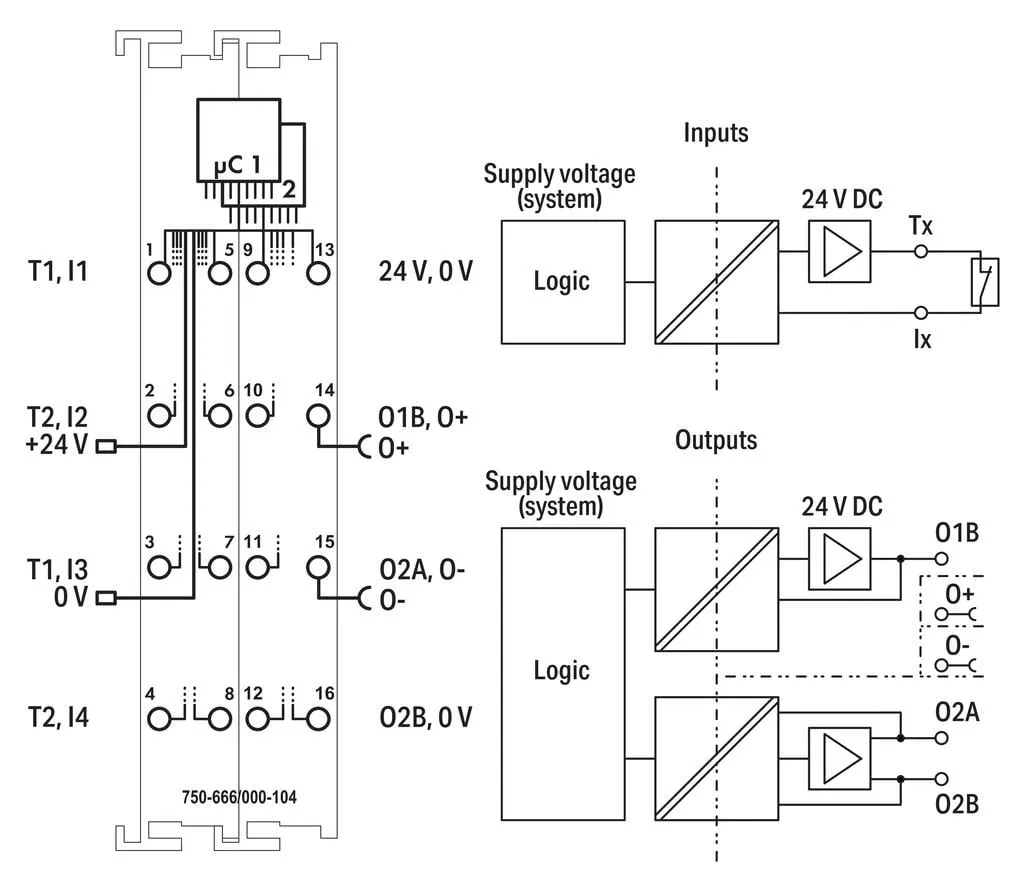

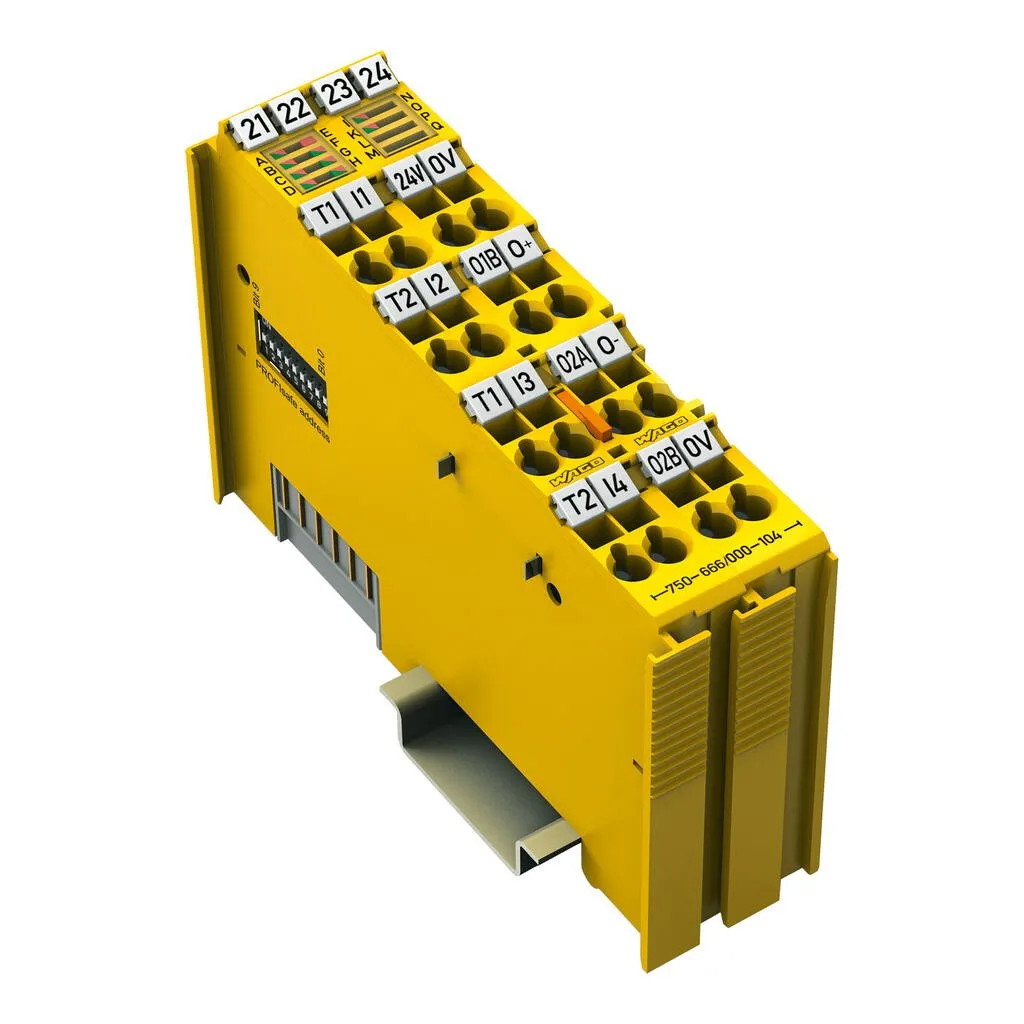

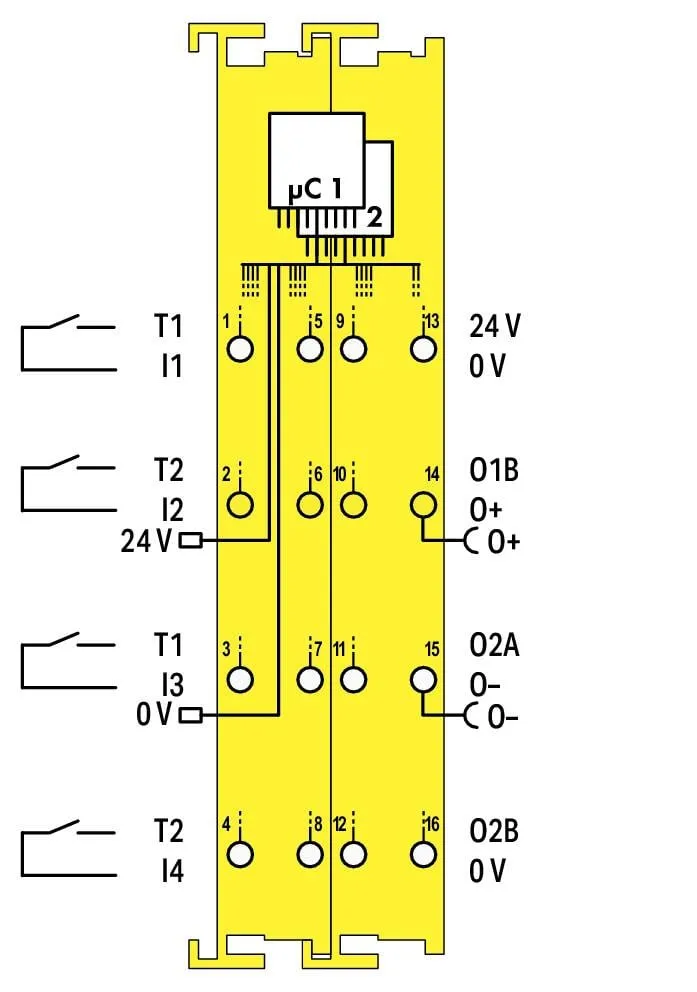

This module (Item No. 750-666/000-104) features four power outputs (O1 … O4) and four clock-sensitive inputs (I1 … I4), enabling a functionally safe connection between fail-safe digital inputs and outputs. Thus, the module can automatically control its fail-safe digital outputs, allowing safety-related applications up to SIL 3 / PL e to be implemented without a safety controller. The module has 30 virtual inputs and 30 virtual outputs, making it possible to receive additional virtual output values from a controller and to link this information to the fail-safe digital inputs. The internal logic is configured using the WAGO Safety Editor (SEDI). The sensors can be supplied directly with 24 V, or fed by two differently clocked outputs (T1 … T2). The inputs connect potential-free, emergency-off switches with contacts, safety interlock switches, mode selectors, as well as both safety sensors and semiconductor outputs (e.g., light barriers, PLC outputs). The power outputs switch both DC13 resistive and inductive loads. Power output O1 can be operated in high-side switching mode, while power output O2 can be used in high-side or low-side switching mode. Both power outputs are single-channel. The module monitors short circuits, cross circuits and 24 V power supply from separate sources. Monitoring and other safety-relevant parameters—such as operating modes, test pulse deactivation, discrepancy times, and filter times—can be configured using WAGO-I/O-CHECK. The configuration tool can be conveniently integrated into engineering systems supporting both CC2 and CC3 tool calling interfaces (TCI). The PROFIsafe address can be set using the DIP switch located on the side of the module, or via WAGO-I/O-CHECK. The module can be operated without a secure controller and is fieldbus-independent, but also supports the PROFIsafe protocol V2.6 (PROFINET®). Field and system levels are electrically isolated. Individual safety modules can be arranged in any combination when configuring the fieldbus node. If, for example, the cable length of the 24 V supply is greater than 3 m, a WAGO Filter Module or an appropriate external filter must be used for the 24 V power supply to protect the module against surge and burst (per IEC 61000-6-7 and marine applications). Additional information can be found in the product manual (available in German and English). This module (Item No. 750-666/000-104) has been evaluated by UL in accordance with UL/CSA 61010-1, UL/CSA 61010-2-201, and UL 121201, CSA-C22.2 No. 213 standards. The functional safety evaluation was performed by TÜV Rheinland in compliance with the specified standards.

Specification

General technical data

ProtocolsFail-safe communication via PROFIsafe V2.6 (PROFINET®); Non-fail-safe communication (PROFINET®; with functional limitations)
Configuration optionsDevice address adjustable via DIP switch, WAGO Safety Editor 75x, or engineering software for the safety controller; Parameters adjustable via WAGO Safety Editor 75x or engineering software for the safety controller

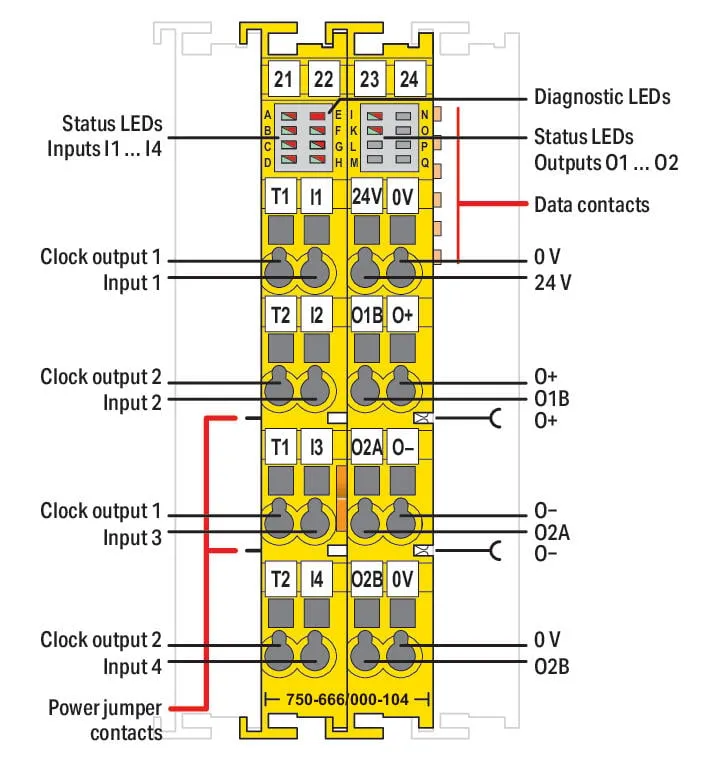

IndicatorsLEDs (A-D), green/red: Status/error I1 … I4; LED (E), red: Module error; LED (F), red/green: Local bus communication; LED (G), red/green: Protocol status; LED (H), red/green: Parameterization; LED (I, K), red/green: Status/error O1 … O2
Device specificationGSD specification: V2.4
Number of F I/O modules per node (fieldbus coupler/controller)See information in the manual about the respective fieldbus coupler/controller
Device-specificChannel-granular passivation: available; Safe logic: Up to 12 functions configurable; 30 virtual inputs and outputs via process image
Total number of channels (module)6
Pluggable connectorfixed

Digital Inputs

Number of digital inputs4
Signal typeDigital
Signal type (voltage)24 VDC
Sensor connection4 x (Fail-safe input with test pulse)
Input characteristicclock sensitive
Input characteristicType 1 per IEC 61131
Voltage range for signal (0)−3 … +5 VDC
Voltage range for signal (1)15 … 30 VDC
Input current per channel for signal (1) typ.3 mA
Signal frequency (max.)50 Hz
Input filter0 … 200 ms (parameterizable in steps)
Response timesSee product manual
Minimum signal duration= input filter time + test pulse duration + 2 ms

Digital Clock Outputs

Clock outputs2
Signal typeDigital
Signal type (voltage)24 VDC
Output current per channel0.1 A
Test pulse duration (clock outputs)Parameterizable between 0.5 ms and 200 ms in steps
Connection requirement (permissible cable length)200 m
Connection requirement (permissible cable type)Shielded or unshielded
Output protection (clock outputs)Short circuit and overload protection

Digital outputs

Number of digital outputs2
Signal typeDigital
Signal type (voltage)24 VDC
Output characteristicParameterizable test pulses
Output characteristics10 ADC
Output current (per channel)Resistive loads and general use: 10 ADC; Pilot duty and DC13: 2 ADC derating 1) per IEC 61010-1: 10 ADC ≤ 40 °C, linearly decreasing to 6 ADC at 55 °C derating 1) per UL 61010-1: 10 ADC ≤ 40 °C, 6 ADC ≤ 55 °C 1) Temperature derating is unnecessary if a power-loss-free I/O module is connected to the right side of the F I/O Module (Item No. 750-666/000-104). See the product manual for a list of the I/O modules that can be used for this.
Output current (module)10 A
Output residual current at signal “0”< 1.0 mA
Output protectionProtected and short-circuit-proof per IEC 61131-2; Breaking capacity of the output protection: 1000 ADC If the power-supplying network provides a short-circuit current greater than the breaking capacity, a short circuit at the output may lead to the destruction of the F I/O module.Limitation of the inductive switching voltage: See product manual
Response threshold (output protection) min.10.8 ADC
Response threshold (output protection) max.15.6 ADC
Parallel connection of outputsNot possible
Controlling an IEC 61131‑2-compatible inputPossible; see product manual
Response times (max.) (outputs)See product manual
Switching frequency (max.)0.1 Hz; Capacitive load (with active discharge switched on)
Switching frequency (max.) (2)0.1 Hz; Inductive load DC 13 (50 W) per IEC 60947-5-1, see product manual
Switching frequency (max.) (3)50 Hz; Resistive load
Capacitive load for each channel10,000 μF
Connection requirement (permissible cable length) (2)200 m
Connection requirement (permissible cable type) (2)Shielded or unshielded
Read-back time1 … 500 ms (parameterizable in steps)
Test pulse duration (digital outputs)0 … 500 ms; test pulse duration is adaptively adjusted to the actuator and corresponds to the read-back time at most.
Response threshold (output monitoring)min.13.5 VDC (O1); Differential voltage between connections O2A and O2B: 4.0 … 6.0 V
Response threshold (output monitoring) max.16.0 VDC (O1)

Technical data

Supply voltage (system)5 VDC; via data contacts
Current consumption (5 V system supply)120 mA
Overvoltage categoryII
Supply voltage (field)24 VDC, SELV/PELV (-25 … +30 %); For digital inputs; Power outputs: SELV/PELV 24 VDC (–25 … +20 %) for inductive loads (“Pilot Duty” / DC13); SELV/PELV 24 VDC (–25 … +30 %) for other applications; Current consumption from power outputs: 3 mA + load current
Current consumption, field supply (module with no external load)30 mA
Isolation (peak value)500 V output channel – output channel, system voltage, input channel
Number of incoming power jumper contacts2
Number of outgoing power jumper contacts2
Current carrying capacity (power jumper contacts)10 A

Functional Safety

Achievable safety classesLogic: Cat. 4/PL e per ISO 13849; SIL 3 per IEC 61508 / EN 62061Digital inputs and outputs (without clock outputs): Single-channel: Cat. 2/PL d per ISO 13849-1; SIL 2 per IEC 61508 / EN 62061; Dual-channel: Cat. 4/PL e per ISO 13849-1; SIL 3 per IEC 61508 / EN 62061
Safety standardsIEC 61508-1 … -7; EN ISO 13849-1; EN 62061
Interface types according to ZVEI (inputs)Drain; A, C0, C1, C2, C3
Interface types per ZVEI CB24I (outputs)Source; C0, C1, C2, C3, D0, D1, D2, D3

Connection data

Connection technology: I/O16 x CAGE CLAMP®
Connectable conductor materialsCopper
Connection typeInputs/outputs
Solid conductor0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 14 AWG
Strip length8 … 9 mm / 0.31 … 0.35 inches

Physical data

Width24 mm / 0.945 inches
Height100 mm / 3.937 inches
Depth67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail60.6 mm / 2.386 inches

Mechanical data

Mounting typeDIN-35 rail
Pluggable connectorfixed

Material data

Housing materialPolycarbonate; polyamide 6.6
Fire load1.91 MJ
Weight96.6 g
Conformity markingCE; UKCA

Environmental requirements

Ambient temperature (operation)0 … +55 °C
Ambient temperature (storage)-40 … +85 °C
Protection typeIP20
Protection classIII
Pollution degree2 per IEC 61131-2
Operating altitude0 … 2000 m / 0 … 6562 ft
Mounting positionHorizontal left, horizontal right, horizontal top, vertical top and vertical bottom
Relative humidity (without condensation)95 %
Vibration resistance4g per IEC 60068-2-6
Shock resistance15g per IEC 60068-2-27
EMC immunity to interferenceper EN 61000-6-2, marine applications, EN 61000-6-7 (FS)
EMC emission of interferenceper EN 61000-6-4, marine applications, EN 61000-6-3
Exposure to pollutantsper IEC 60068-2-42 and IEC 60068-2-43
Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %10 ppm
Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %25 ppm

Commercial data

PU (SPU)1 pcs
Packaging typeBox
Country of originDE
GTIN4066966509441
Customs tariff number85371098990

Product Classification

UNSPSC32151705
ETIM 9.0EC001599
ETIM 10.0EC001599
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c), 7(a), 7(c)-I, 7(c)-II
