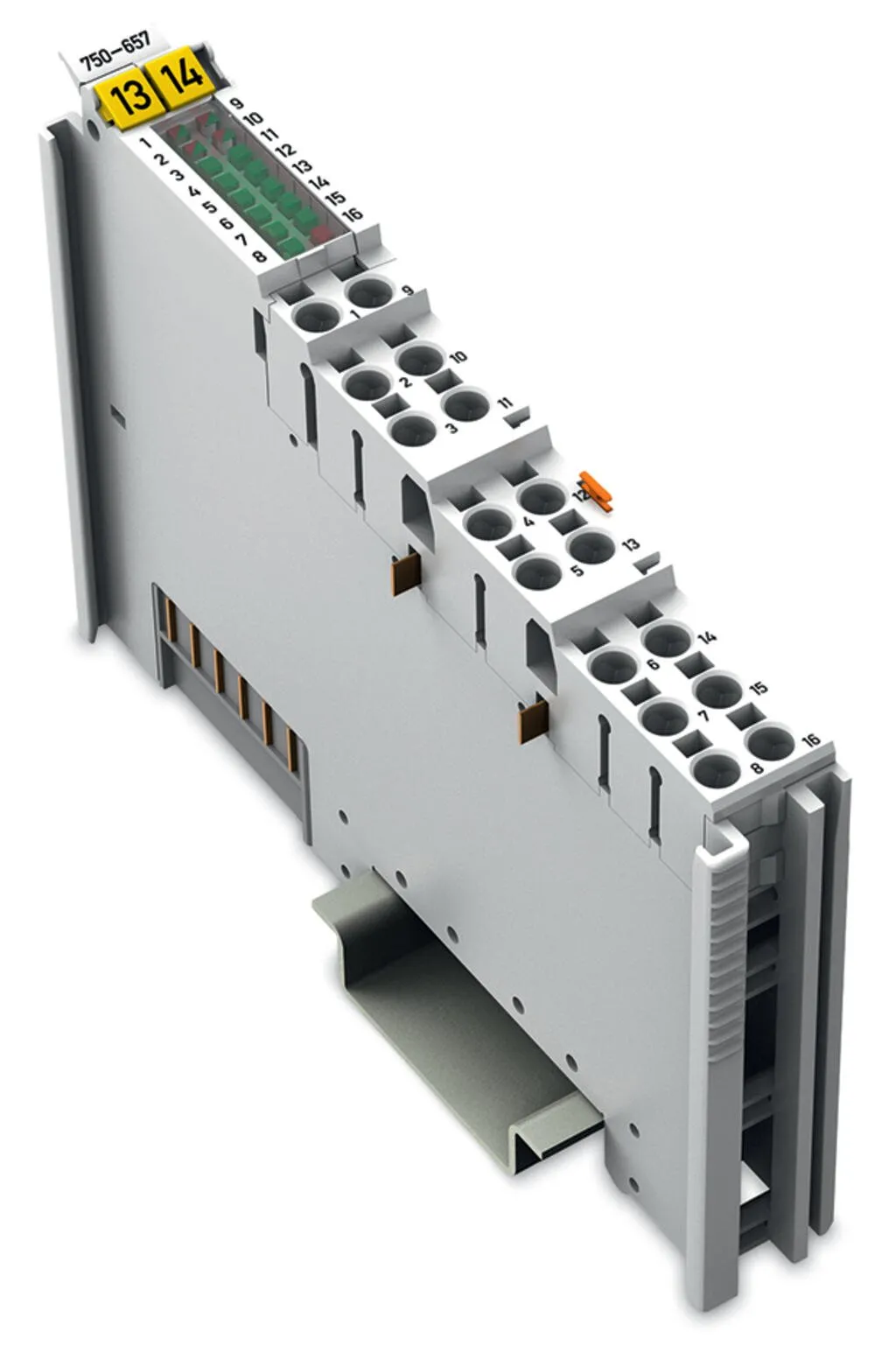

Wago 750-657
Increasingly complex products, manufacturing flexibility and high demands on quality assurance require intelligent, configurable and programmable sensors. To fulfill these demands, IO-Link streamlines…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

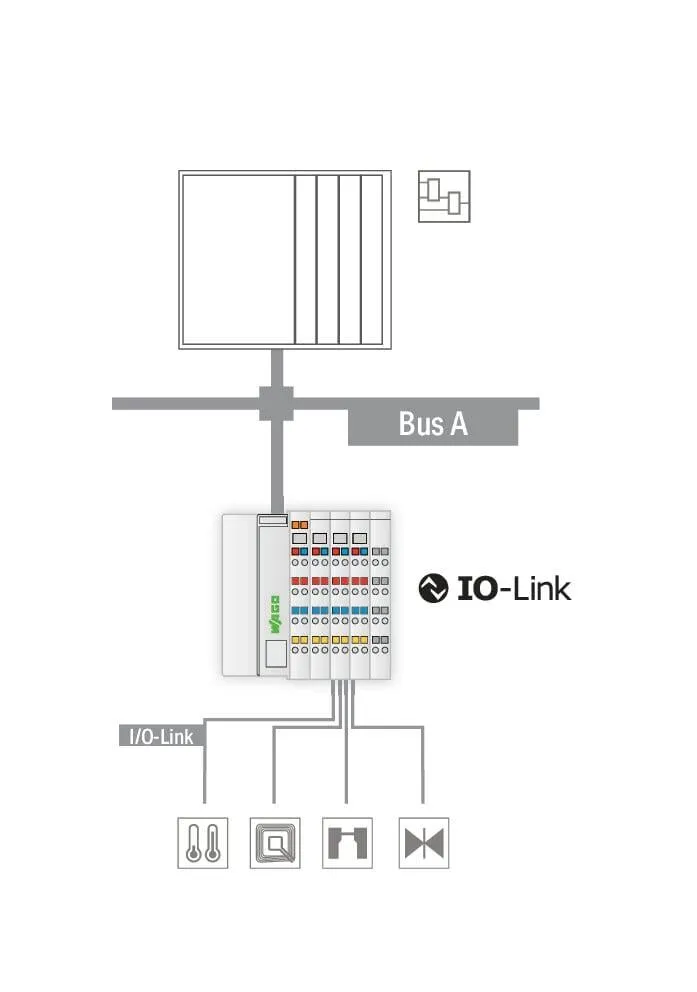

Increasingly complex products, manufacturing flexibility and high demands on quality assurance require intelligent, configurable and programmable sensors. To fulfill these demands, IO-Link streamlines the varying interfaces required to connect to a control system and tooling. A 3-wire connection can communicate process data (as single bits, bytes and data blocks for input and output data). It also communicates acyclic data (for identification, configuration, parameterization and diagnostics) with up to 230.4 kBaud to both sensors and actuators.The functions and performance data are defined in device description files for master and devices; these are easy to customize via WAGO-I/O-CHECK. If a device must be replaced, the configuration and parameterization can be automatically restored without maintenance personnel.Project design, installation and operation are simplified!Four different IO-Link devices or standard digital sensors/actuators can simultaneously connect to the WAGO 750-657 IO-Link Master. At just 12 mm (0.47 inch) wide, the module has three connections for each of the four channels.
Specification
Technical data
| Topology | Number of IO-Link ports: 4 |
|---|---|
| Transmission modes | 4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3) |
| Data width | 4–24 bytes, configurable |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 40 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 50 mA |
| Isolation | 500 V system/field |

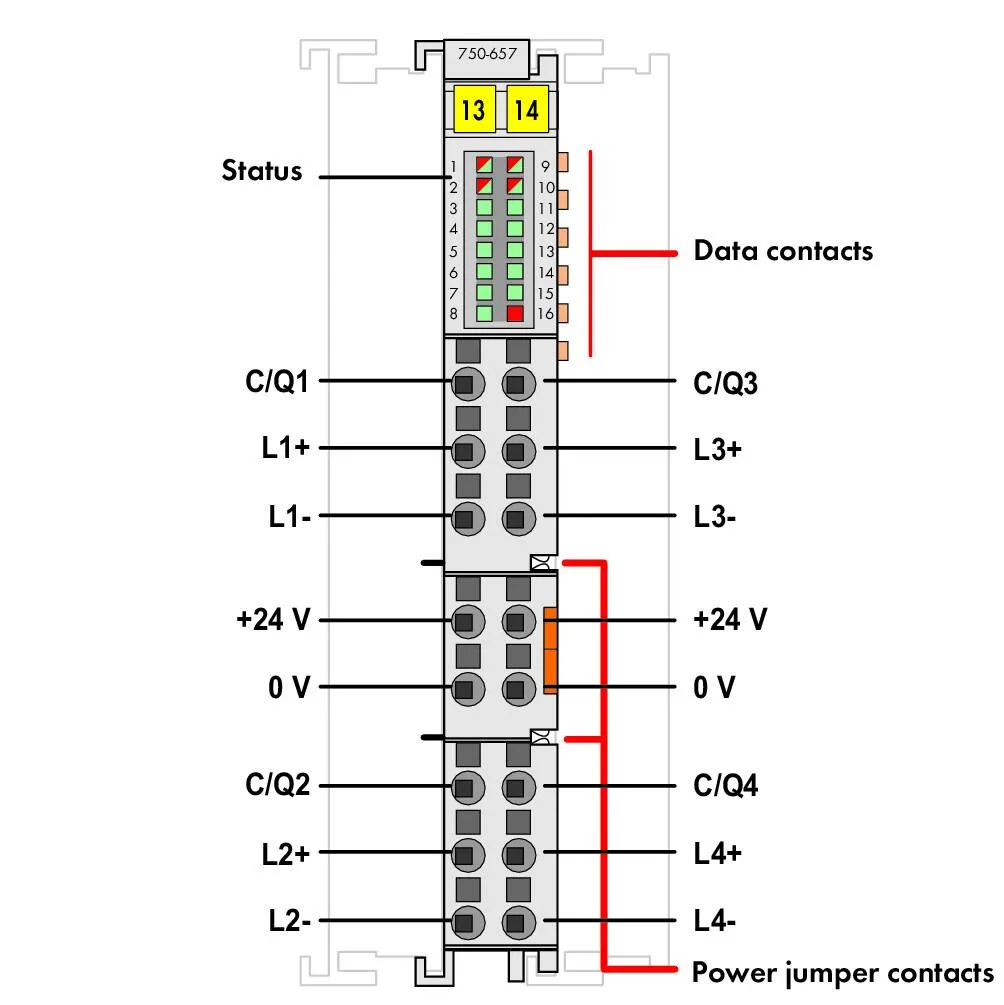

| Indicators | LED (1, 2, 9, 10) red/green: operating status C/Q 1 … C/Q 4; LED (8) green: operating status IO-Link master; LED (16) red: group error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |

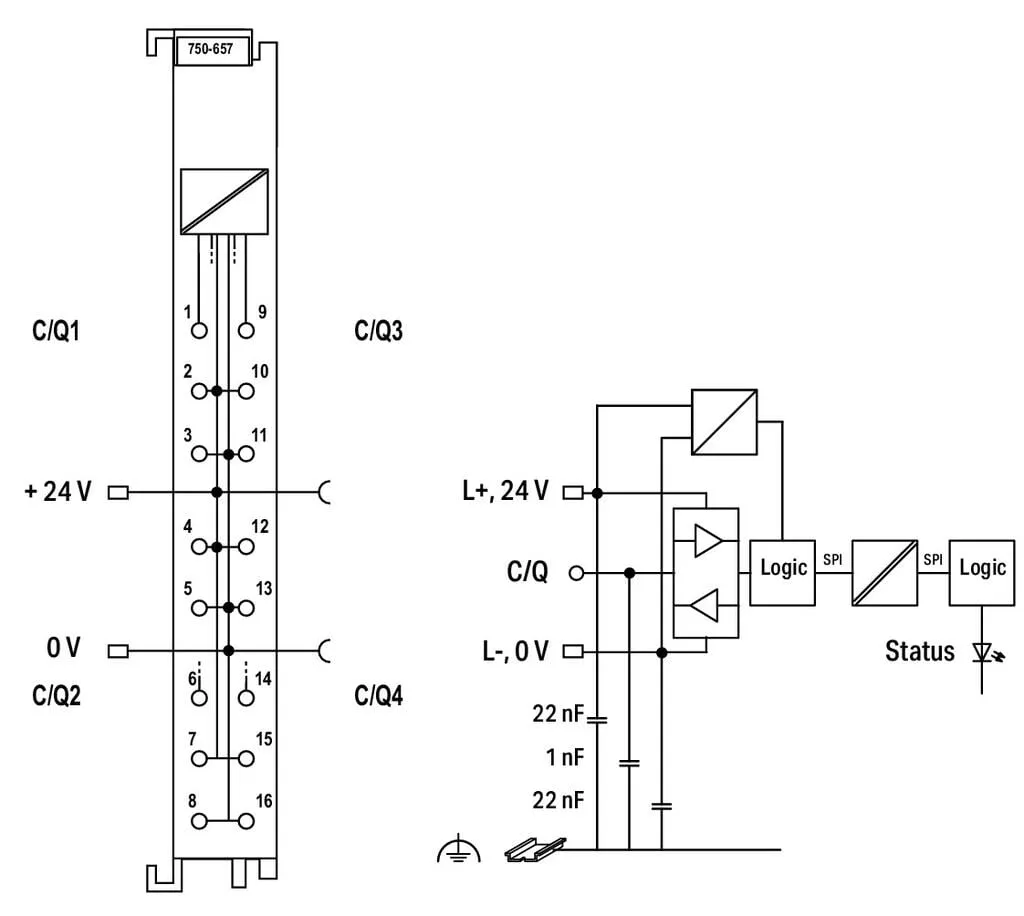

Connection data

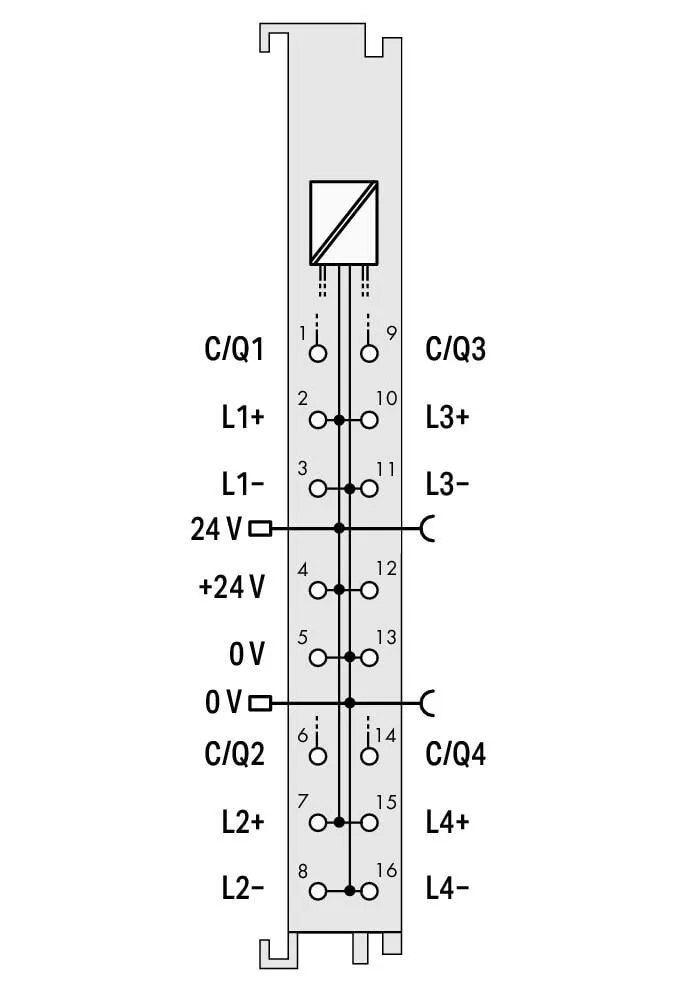

| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection requirement (permissible cable length) | 20 m |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.625 MJ |
| Weight | 49.6 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, EN 61131-2 |
| EMC emission of interference | per EN 61000-6-4, EN 61131-2 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454989330 |
| Customs tariff number | 85389099990 |
| End of Sale | 2023-06-30 |
| End of Production | 2023-12-31 |
| End of Delivery | 2024-03-01 |
| End of Service and Repair | 2026-03-01 |
| Support period for security updates | 2029-03-31 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-05 |
| eCl@ss 9.0 | 27-24-26-05 |
| ETIM 9.0 | EC001601 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 6c781b87-021e-4446-a85e-2e4e7f568cda |
| SCIP notification number (Belgium) | 24693d0d-4d13-4c9f-a2b7-26b17625640d |
| SCIP notification number (Bulgaria) | 26741315-2d60-4e6b-acde-dd1f51c6844f |
| SCIP notification number (Czech Republic) | d857c101-3687-4f6a-aea0-47edf367fa6c |
| SCIP notification number (Denmark) | 27796915-d29b-4b6f-8f96-761adc16f981 |
| SCIP notification number (Finland) | ea18bc28-d025-406f-a077-5ebbc2ca3287 |
| SCIP notification number (France) | b016b33e-9a9e-44e5-a56d-5ae098ebb464 |
| SCIP notification number (Germany) | 49d65735-8bb6-4640-918a-f11148fb0ee7 |
| SCIP notification number (Hungary) | a3954213-7f9c-44b0-b62e-8ade40adbbdc |
| SCIP notification number (Italy) | eb1cf1f0-d590-4c1e-93b9-417e9d87a84b |
| SCIP notification number (Netherlands) | 9b97d7ad-2cf1-4720-b7bf-dd1d9db1afb1 |
| SCIP notification number (Poland) | 4e208c06-0cae-4277-ad92-4243941212e9 |
| SCIP notification number (Romania) | bdca249d-5222-4140-bf1f-af060323c340 |
| SCIP notification number (Sweden) | ecea7f67-cb59-4dd9-8420-79365dd6c946 |
