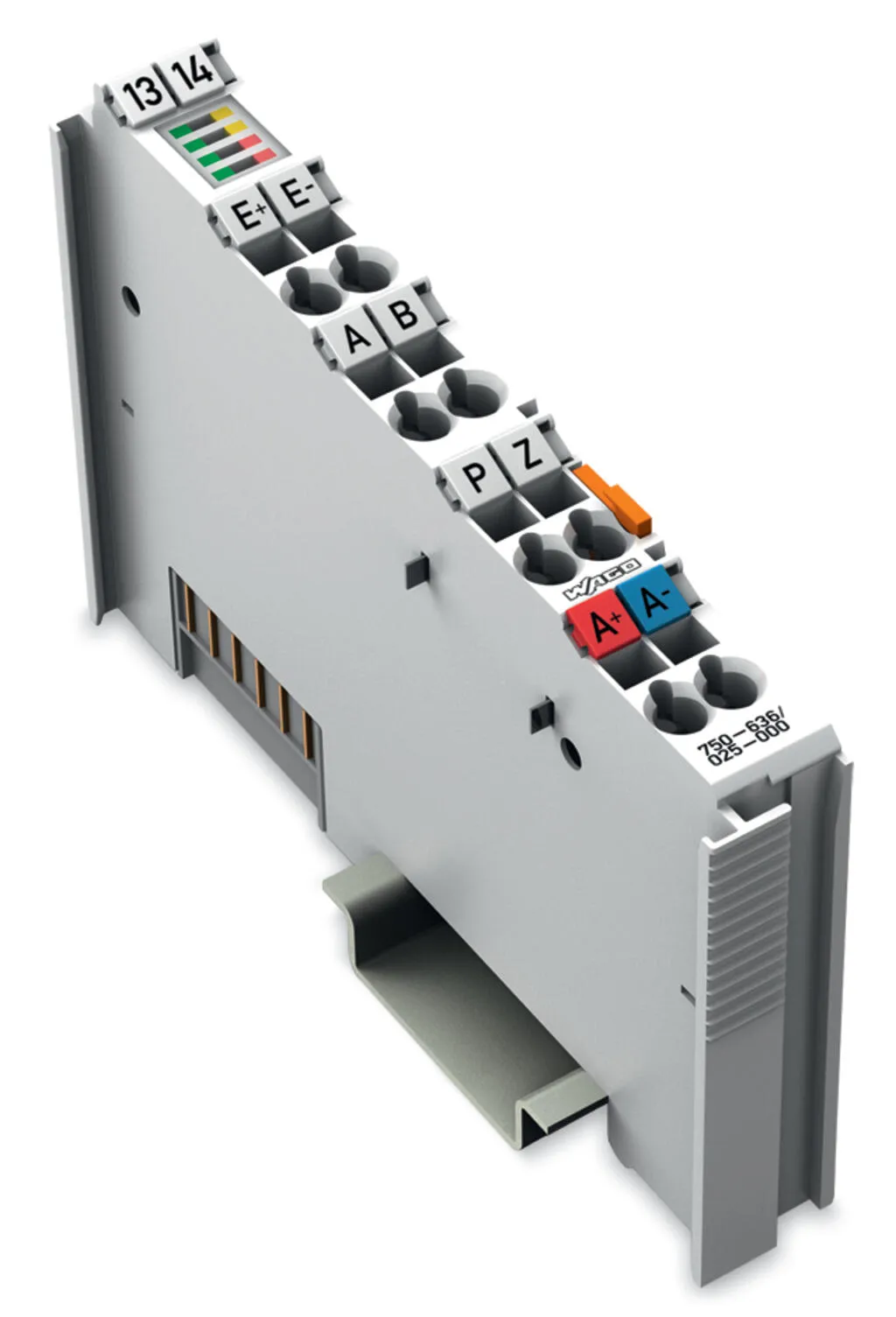

Wago 750-636/025-000
This module is a single‐channel, intelligent positioning controller for 24 VDC motors up to 5 A with incremental position feedback.Three 24 V inputs record the limit switches and a preset signal. An i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

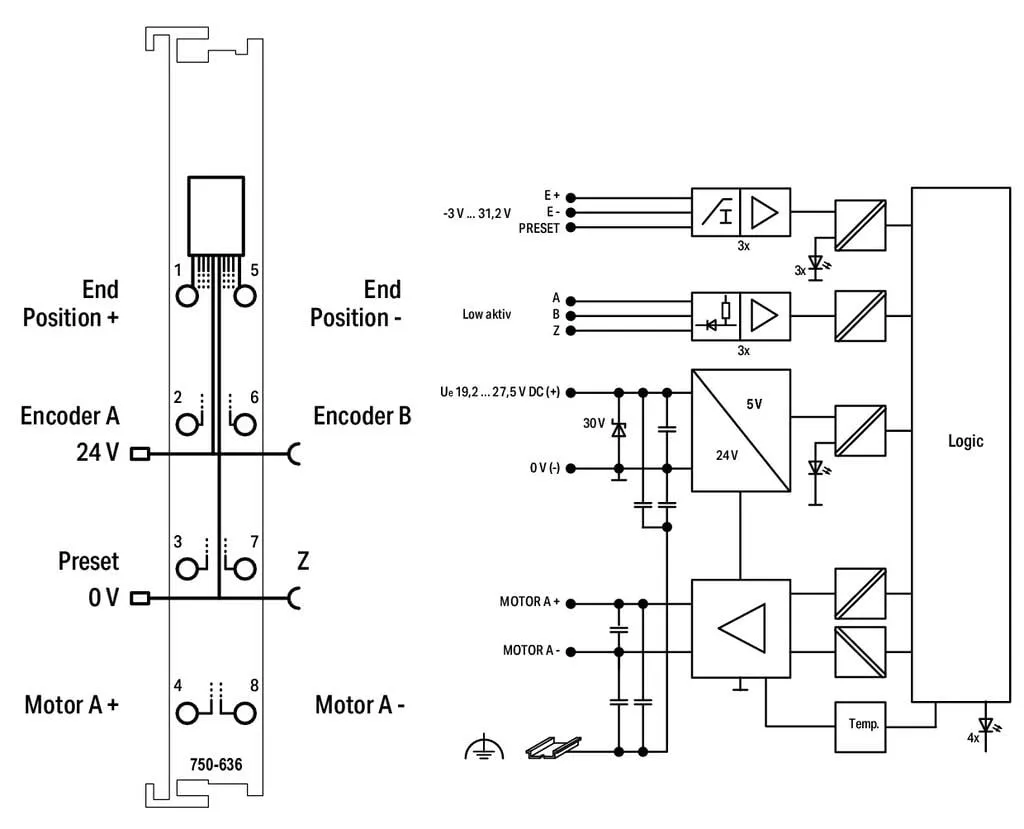

This module is a single‐channel, intelligent positioning controller for 24 VDC motors up to 5 A with incremental position feedback.Three 24 V inputs record the limit switches and a preset signal. An incremental encoder interface evaluates signals from the position sensor and determines the actual value.Where required, positioning optimizes the initial switching position as a function of direction, taking into account compensation for gearing backlash.Bidirectional control of the DC motor is implemented via a short-circuit-proof, temperature-monitored H-bridge. Both switched operation and soft start/stop or current reduction are possible via PWM control. The field-side 24 V supply voltage from the power contacts, which is monitored for undervoltage/overvoltage events, is looped through to adjacent modules.The module can also be used as:a dedicated incremental encoder or as a switch and power controller (PWM).
Specification
Technical data
| Number of digital inputs | 3 |
|---|---|
| Number of outputs | 1 (A+; A-; H-bridge output) |
| Encoder connection | A, B, zero low-side switching; 5 … 24 VDC / open collector |
| Motor connection | A+, A-, H-bridge output; short-circuit-protected |
| Quadrature decoder | 1x, 2x, 4x evaluation |
| Input characteristic | high-side switching |
| Input characteristic | Type 1 |
| Input current at specific input voltage | -3.2 mA at 0.3 V |
| Input current at specific input voltage (2) | 0 mA bei 5 V |
| Input current (typ.) | 2.7 mA at 24 V |
| Output current (max.) (motor) | 5 A (15 A / 500 ms), short-circuit-protected |
| Voltage range for signal (0) | −3 … +1.5 VDC |
| Voltage range for signal (1) | 2.4 … 30 VDC |
| PWM frequency (typ.) | 20 kHz |
| Data width | 32-bit set/actual value; 16-bit control or status |
| Limit frequency | 50 kHz |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 55 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 12 mA |
| Isolation | 500 V system/field |

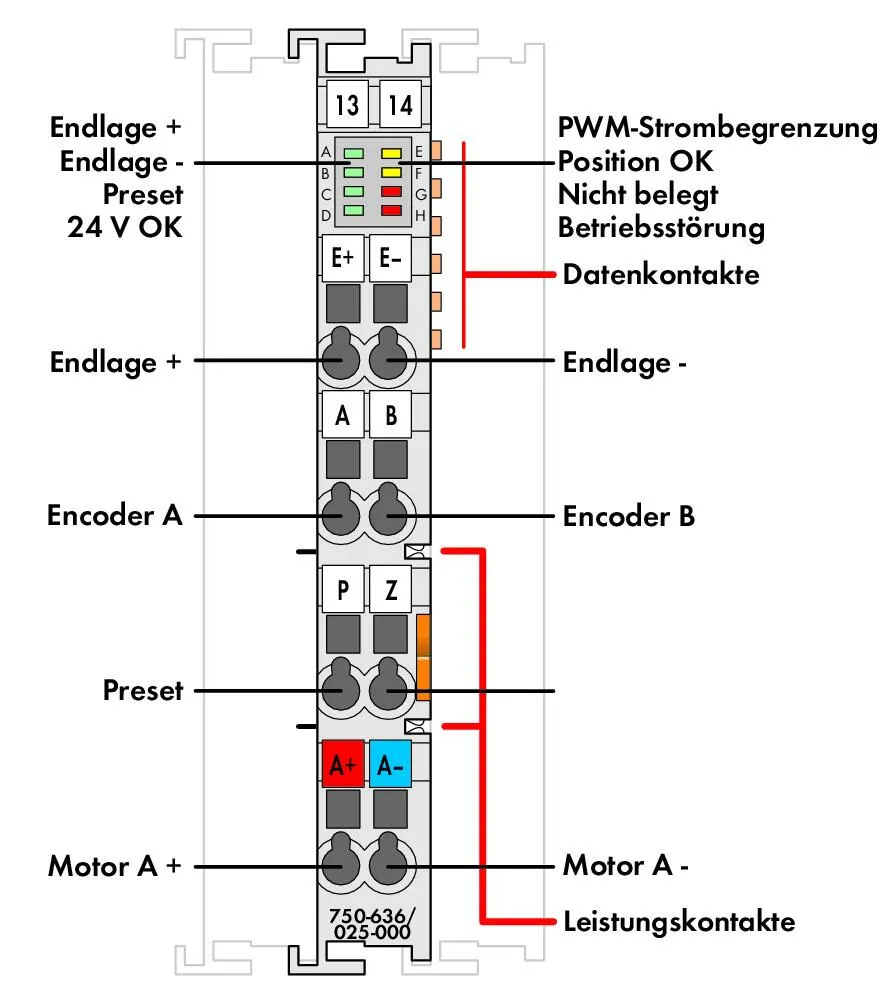

| Indicators | LED (A-D) green: End Position +, End Position -, Preset, 24 V OK; LED (E, F) yellow: PWM Current Limitation, Position OK; LED (G, H) red: Reserved, Operating Fault |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |

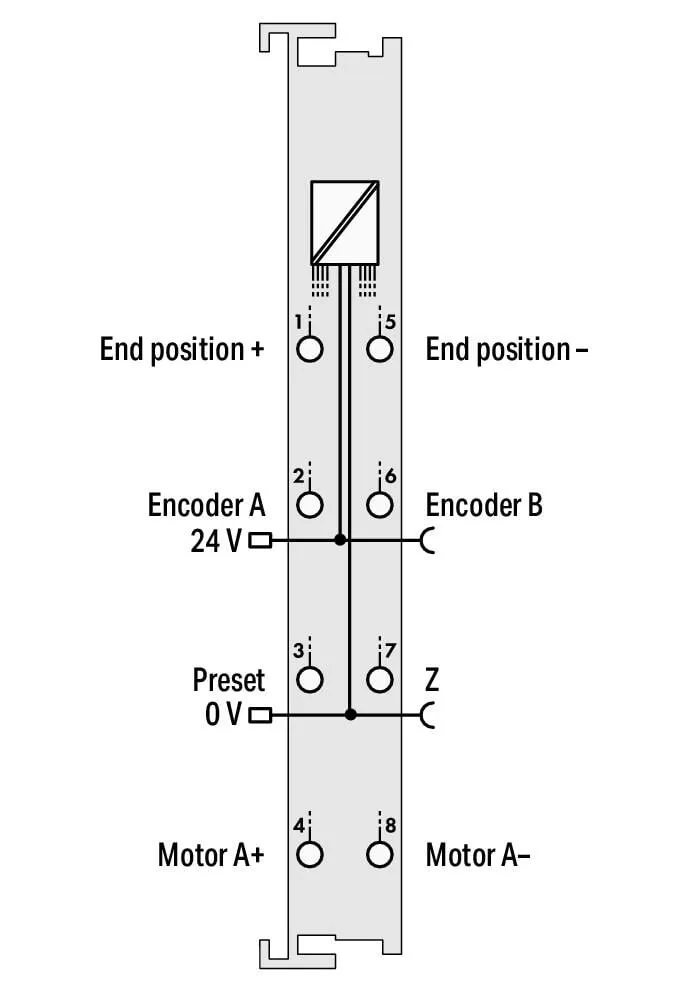

Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.711 MJ |
| Weight | 54.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -20 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454921644 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-05 |
| eCl@ss 9.0 | 27-24-26-05 |
| ETIM 9.0 | EC001601 |
| ETIM 10.0 | EC001601 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | d9d0f28c-a07f-46ad-82ff-a91921975d6c |
| SCIP notification number (Belgium) | 0cc1805e-4d0a-437e-a658-d7f1f42930cf |
| SCIP notification number (Bulgaria) | 90a96031-83ef-46f7-9bf4-e6baddd46d97 |
| SCIP notification number (Czech Republic) | 591cfe8a-9f0a-4eeb-bdcf-69e3156a99f1 |
| SCIP notification number (Denmark) | bd2e49f3-88bb-4852-ad05-a3a38f5e179c |
| SCIP notification number (Finland) | 9453f83d-deb4-43fb-99e1-39e028aa0d42 |
| SCIP notification number (France) | 0f93ffdf-ef1a-4104-9b65-2067c28aa97a |
| SCIP notification number (Germany) | 6f68ab08-dc1d-414e-8c8e-b4c5c2fe911d |
| SCIP notification number (Hungary) | 31d72993-6170-435c-9ab0-fd6bf9a985ed |
| SCIP notification number (Italy) | b8251262-a7f9-47af-b625-6fd145a02bc8 |
| SCIP notification number (Netherlands) | f684a2d4-3c6a-4067-a3ef-9597f9ca0207 |
| SCIP notification number (Poland) | a8d3eb5c-51c6-48b6-bb2a-71847e4a6092 |
| SCIP notification number (Romania) | fbbbc043-a7b9-4fbd-a577-7fb2ca6236a4 |
| SCIP notification number (Sweden) | 9b913afd-77b9-45b0-b052-619322d34efe |
