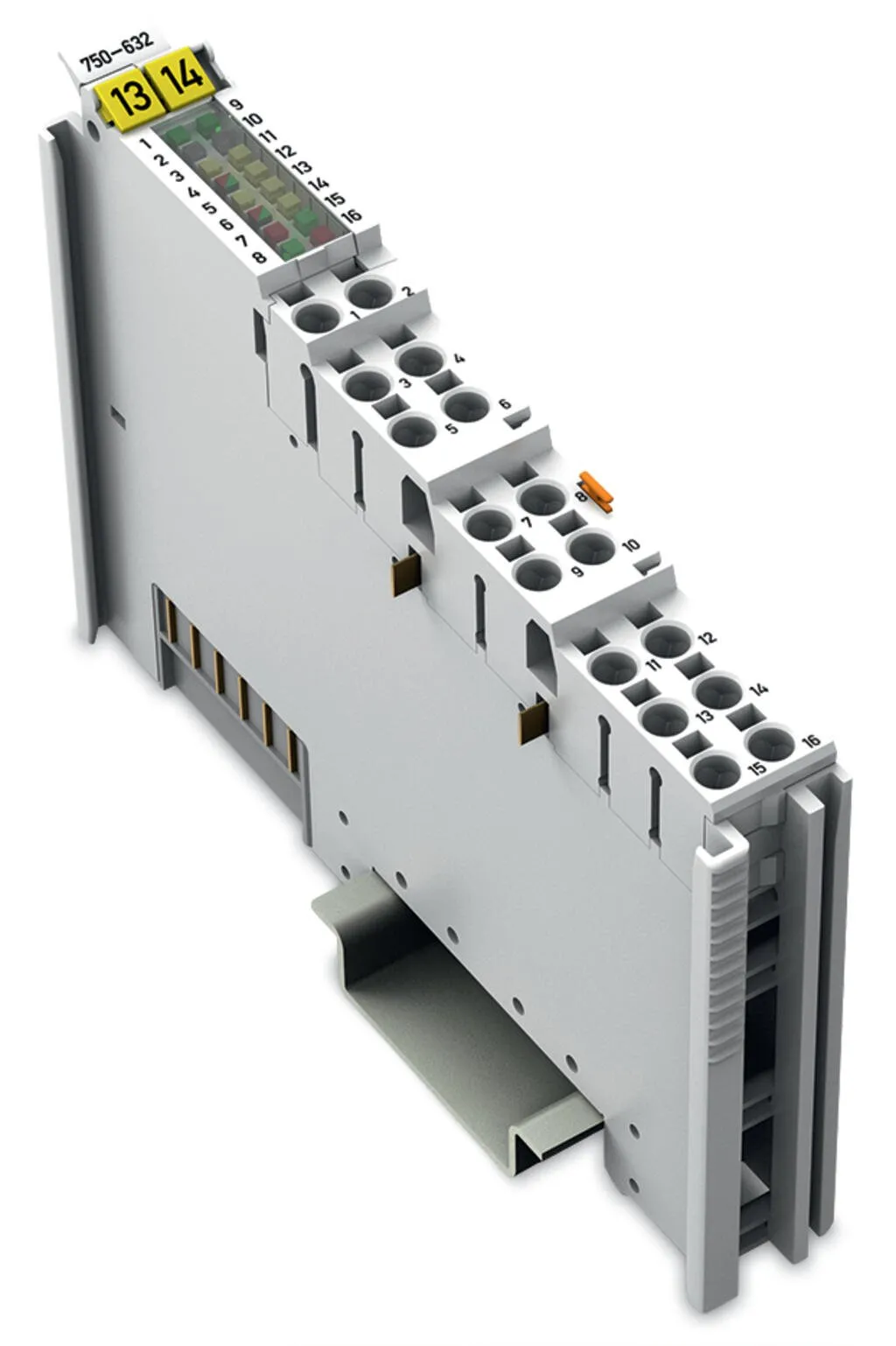

Wago 750-632/000-100
The 750-632/000-100 Proportional Valve Module controls two single-coil valves with up to 24 V/1.6 A or one valve with up to 24 V/2 A. The module features two current-controlled PWM* outputs with adjus…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The 750-632/000-100 Proportional Valve Module controls two single-coil valves with up to 24 V/1.6 A or one valve with up to 24 V/2 A. The module features two current-controlled PWM* outputs with adjustable dithering. Both unipolar and bipolar valve control are possible. Additionally, operation of a valve with two unipolar coils is also provided. A two-channel module may also be used for simple applications. Characteristic curve adaptations, such as zero offset, dual gain compensation or range limitations, can be adjusted via parameters. Scaling and configurable up/down ramps permit set point adjustment to the application. For example, monitoring threshold value switches is performed via two additional digital inputs. Start-up and valve parameters adjustment are performed via WAGO-I/O-CHECK software or the controller.*PWM = Pulse width modulation
Specification
Technical data

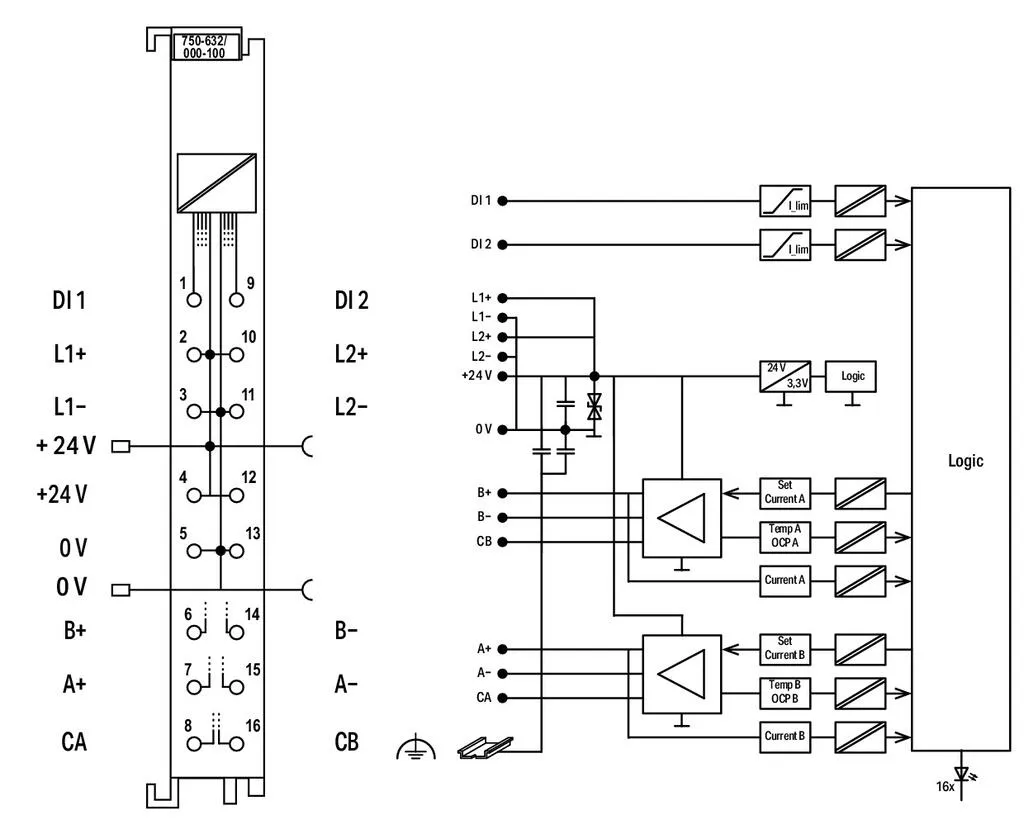

| Number of digital inputs | 2 |
|---|---|
| Number of outputs | 2 bipolar outputs (A+, A- and B+, B-) |
| Type of output | H-bridge output with current-regulated PWM output (short-circuit-proof and thermal overload-proof for each channel) |
| Input current (typ.) | 2.7 mA at 24 V |
| Output current | 1-channel operation: 2 A (derating must be observed); 2-channel operation: 1.6 A per channel (derating must be observed) |
| Load type | Operating range: inductive (1 mH … 600 mH); Internal load resistance (> 8 Ohm) |
| PWM frequency (typ.) | 50 kHz |
| Data width | 6 bytes: single-channel operating mode; 12 bytes: dual-channel operating mode |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 125 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 20 mA |
| Isolation | 500 V system/field |

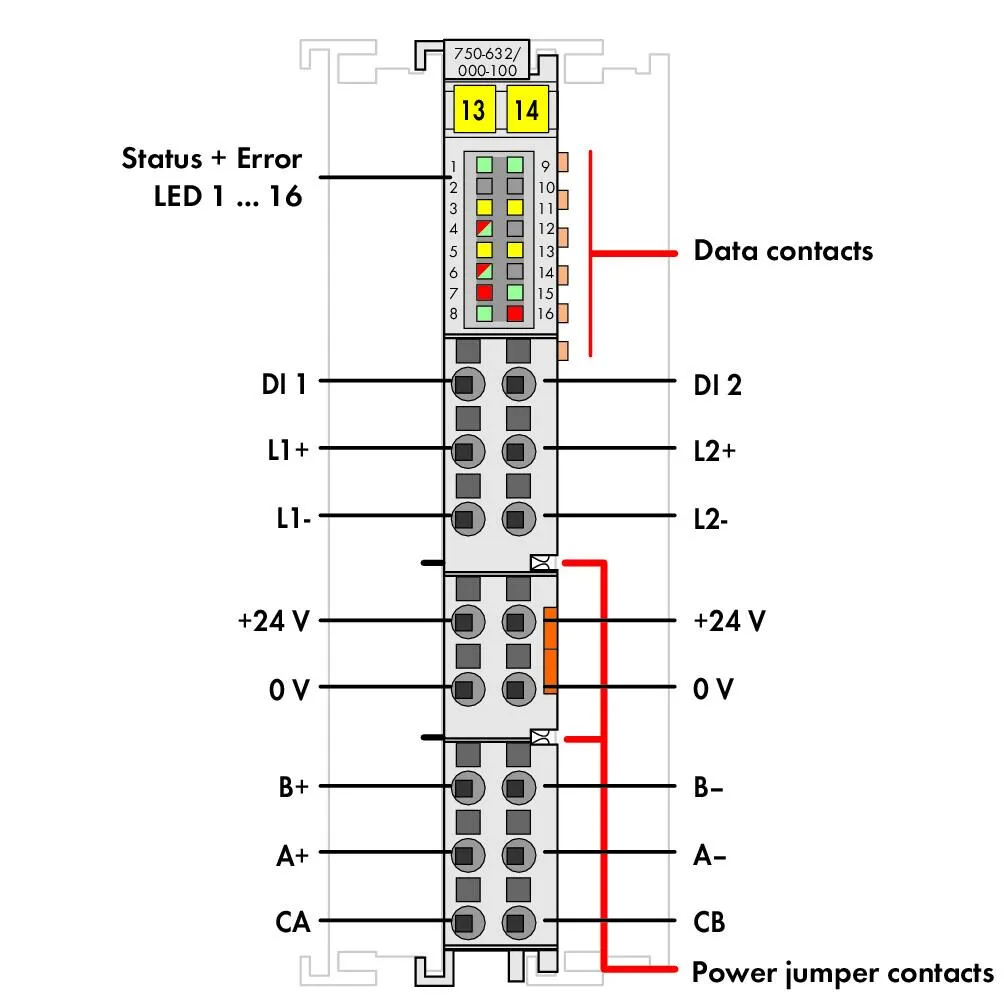

| Indicators | LED (1, 8, 9, 15) green: Signal Status DI 1, Undervoltage, Signal Status DI 2, Parameterization Status; LED (3, 5, 11, 13) yellow: Setpoint, Dithering Channel A, B; LED (4, 6) red/green: Status Channel A, B; LED (7, 16) red: Initialization, Error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Note (conductor cross-section) | Coil connections A+/A-/B+/B-: 1.5 mm²/16 AWG; For use according to UL 508: 16 AWG for all connections |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.623 MJ |
| Weight | 52.1 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143501095 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-05 |
| eCl@ss 9.0 | 27-24-26-05 |
| ETIM 9.0 | EC001601 |
| ETIM 10.0 | EC001601 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 80-43-3 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Peroxide, bis(1-methyl-1-phenylethyl) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | ad2b2047-d20b-45ae-a0ef-21dde3900c0c |
| SCIP notification number (Belgium) | 32862d2f-3f70-4d83-9d44-f40be1153cdc |
| SCIP notification number (Bulgaria) | e083248f-6bea-45e3-8e0b-ca99118f642a |
| SCIP notification number (Czech Republic) | cc398920-b796-4620-8b5e-331a7a96c029 |
| SCIP notification number (Denmark) | 261c97f8-2a08-4c0a-84d1-08ed343dc353 |
| SCIP notification number (Finland) | de8a10aa-9686-4ecd-9eda-8ed6ec01bb25 |
| SCIP notification number (France) | 018ca48f-c504-47ab-a78e-fabf359e5baf |
| SCIP notification number (Germany) | 623a5f4d-36ed-4419-a6b7-d7190b895bda |
| SCIP notification number (Hungary) | 7f19ab57-7e21-47b6-aa39-2a2b646cb3c9 |
| SCIP notification number (Italy) | cb600360-b6cd-438a-9dc6-858d287aab09 |
| SCIP notification number (Netherlands) | 858617ec-053c-400d-8c5e-929577ed0683 |
| SCIP notification number (Poland) | 862d77cd-89e7-4428-b88a-3c30c7626778 |
| SCIP notification number (Romania) | 23246137-dc5e-46d0-9ac4-b75e30566eb5 |
| SCIP notification number (Sweden) | 2516b492-4231-4ddb-816c-0971fe042579 |
