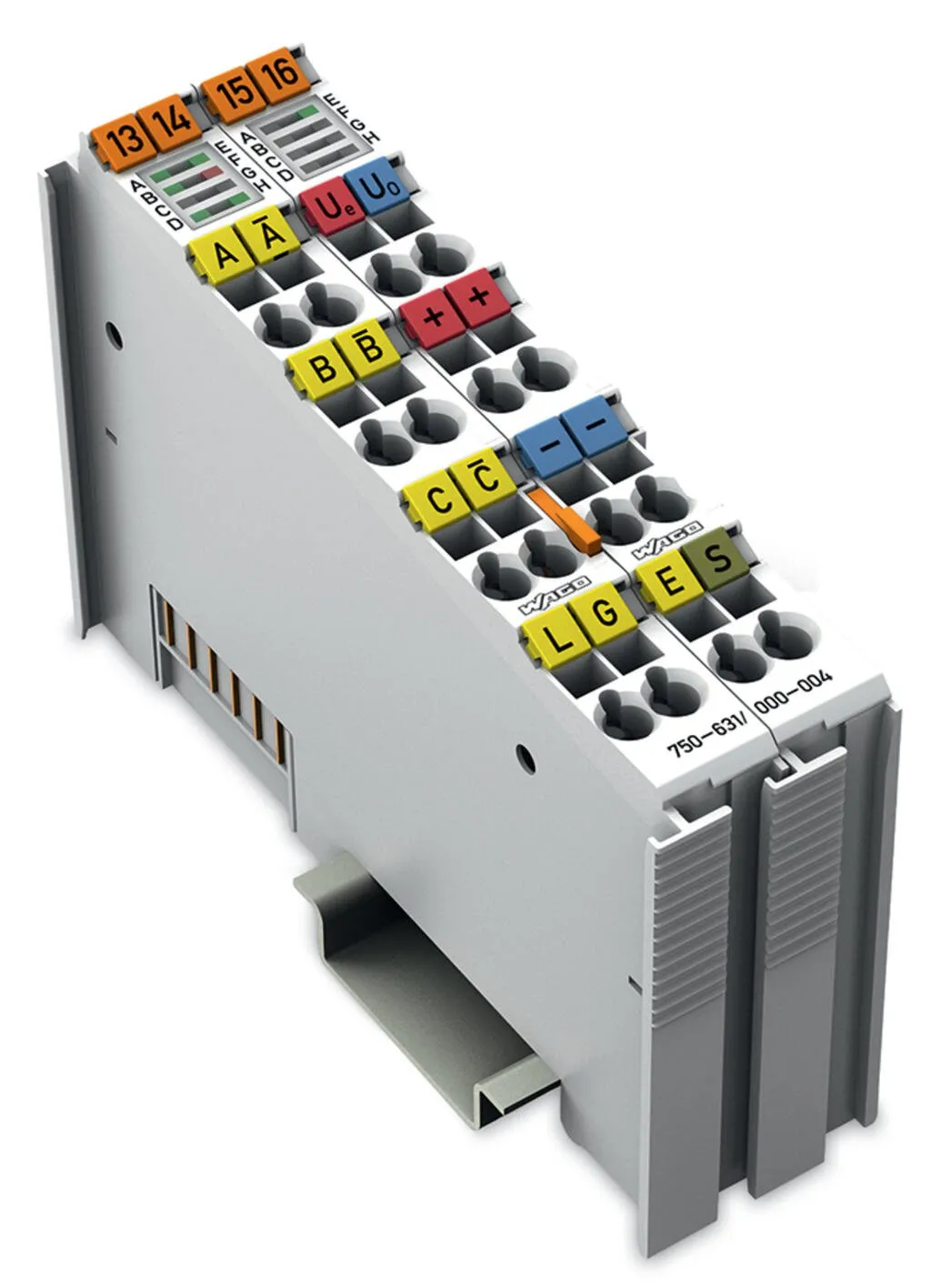

Wago 750-631/000-004
This module is an interface for the connection of any incremental encoder.A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

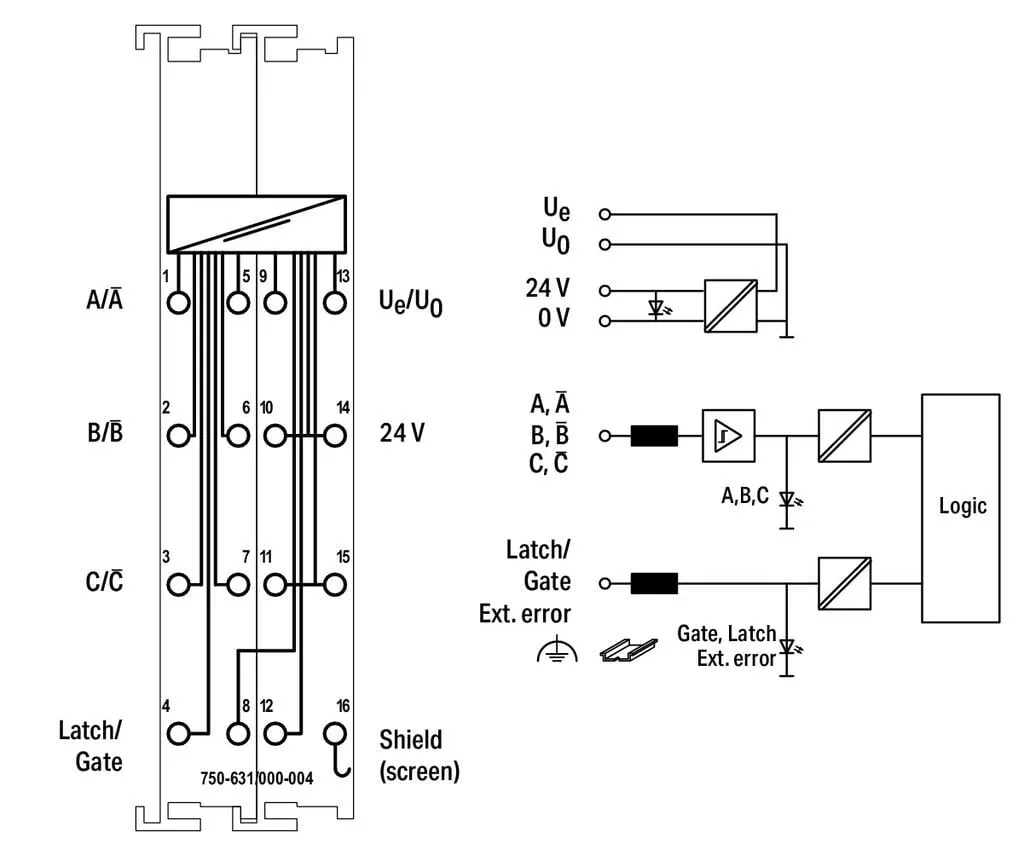

This module is an interface for the connection of any incremental encoder.A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC.A counter lock-out is possible using the “Gate” input.The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0.The shield directly connects to the DIN-rail.
Specification
Technical data
| Counter depth | 16 Bit |
|---|---|
| Encoder connection | A; /A; B; /B; C; /C (RS-422 inputs) |
| Supply current (encoder) max. | 200 mA |
| Zero impulse (latch) | 16 Bit |
| Quadrature decoder | 4x evaluation |
| Voltage range for signal (0) | UABC = 0 V, UABC/ = 5 V; Latch, gate ≤ 5.0 V; External error U ≥ 5.0 V or open input |
| Voltage range for signal (1) | UABC = 5 V, UABC/ = 0 V; Latch, gate ≥ 15.0 V; External error U < 0.5 V |
| Data width | 2-byte output; 5-byte input; 2x 8-bit control/status (optional); 3 additional output bytes (reserved) |
| Limit frequency | 1000 kHz |
| Commands | Reading, setting, activating |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 50 mA |
| Current consumption, field supply (module with no external load) | 10 mA |
| Isolation | 500 V system/field |

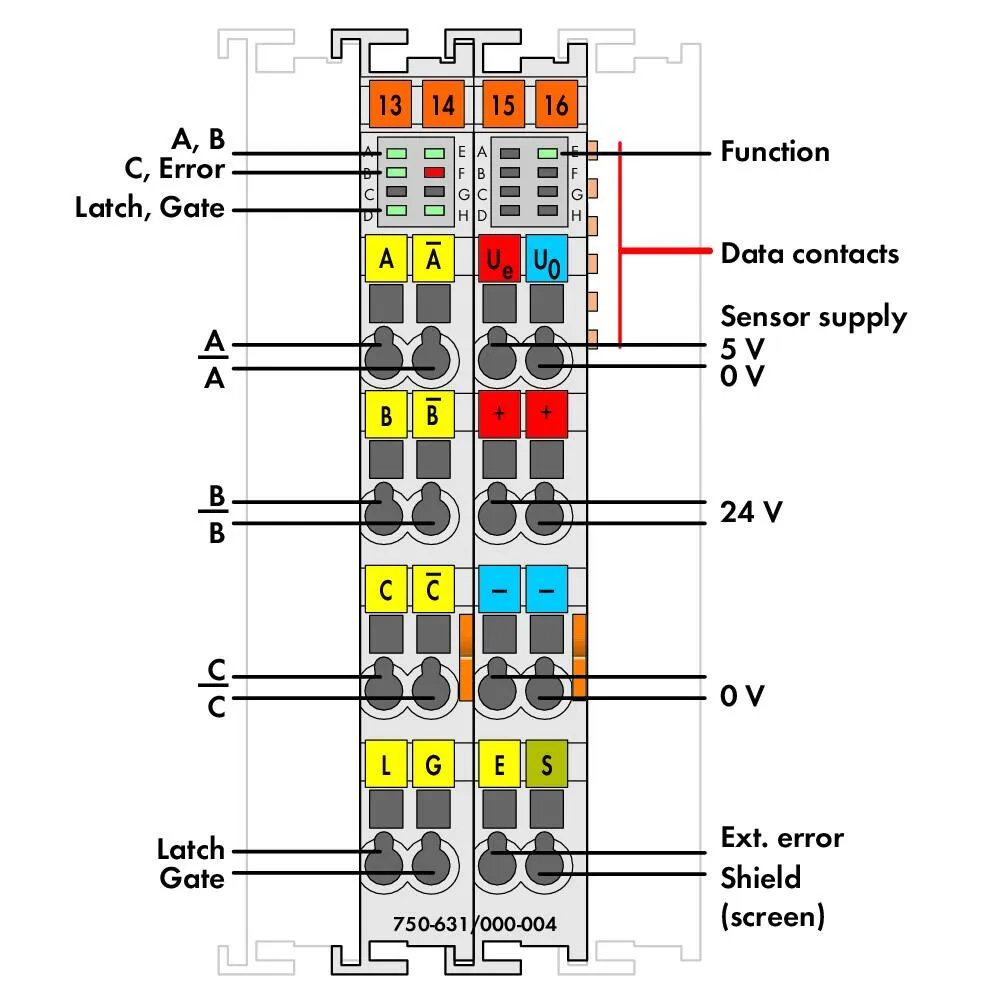

| Indicators | LED (A, B, D, E/E, H) green: A, C, Latch, B/Function, Gate; LED (F) red: Error |
Connection data

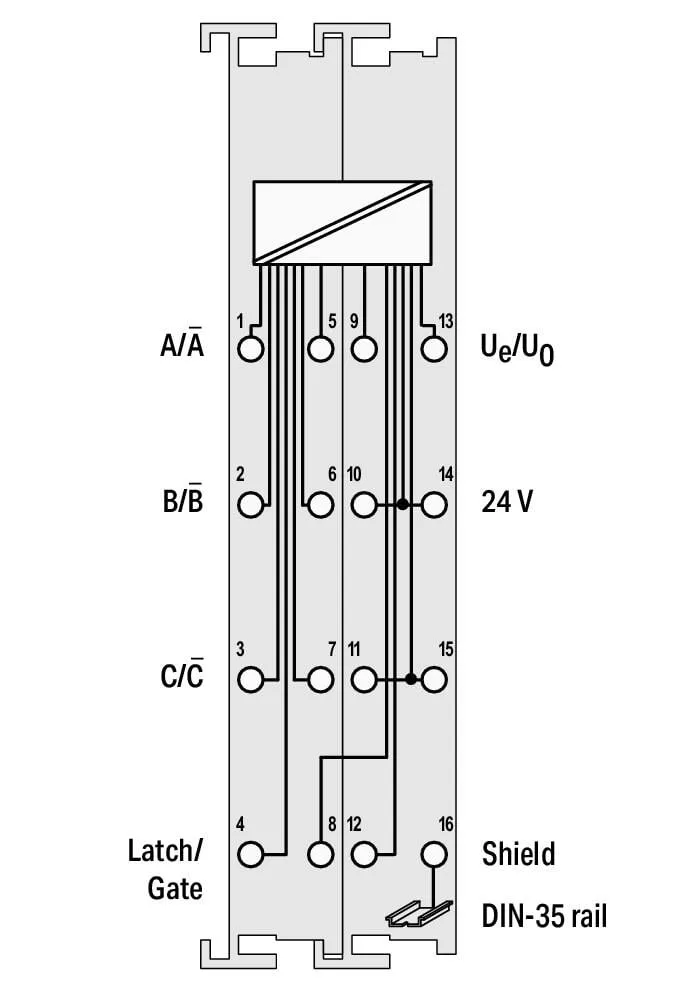

| Connection technology: I/O | 16 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 24 mm / 0.945 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.17 MJ |
| Weight | 92.1 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821248309 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-05 |
| eCl@ss 9.0 | 27-24-26-05 |
| ETIM 9.0 | EC001601 |
| ETIM 10.0 | EC001601 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | fea078d9-b220-4917-9ca7-c9b9accf9dd3 |
| SCIP notification number (Belgium) | 17dc706f-fe9b-4e4b-ab0e-8b22fb4f9ea2 |
| SCIP notification number (Bulgaria) | 64c38c1f-4fd7-4414-ad0e-6e74eb6121f1 |
| SCIP notification number (Czech Republic) | eada6547-89f4-4ccf-9b07-cc7cc16a0b08 |
| SCIP notification number (Denmark) | 087267d8-20d0-453e-b8d2-596f45ba29d8 |
| SCIP notification number (Finland) | 15eadba7-ffb5-4b96-8d2f-210be8a44cdc |
| SCIP notification number (France) | c1ce9943-649a-4b1b-8179-17484af159b4 |
| SCIP notification number (Germany) | 31f84bca-52b4-4416-90f1-3532a29af73c |
| SCIP notification number (Hungary) | 0e0cdbbe-545e-48c6-a9ad-44bbfd63edba |
| SCIP notification number (Italy) | 7027983b-8361-4c3b-a904-db9dc7e7f052 |
| SCIP notification number (Netherlands) | adb132a3-2cd8-43de-8d43-11bc1907ed04 |
| SCIP notification number (Poland) | 950ab44a-e69d-4d76-9866-5b547434672e |
| SCIP notification number (Romania) | 4c62a02f-b6bb-4a93-b3eb-2ee234bf2529 |
| SCIP notification number (Sweden) | 87c40bd3-3991-4857-af75-24858f8077ea |
