Wago 750-622
This binary spacer module reserves bit addresses in the process image of a fieldbus node.Both operating mode and bit width can be adjusted via DIP switches on the side of the module. The operating mod…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

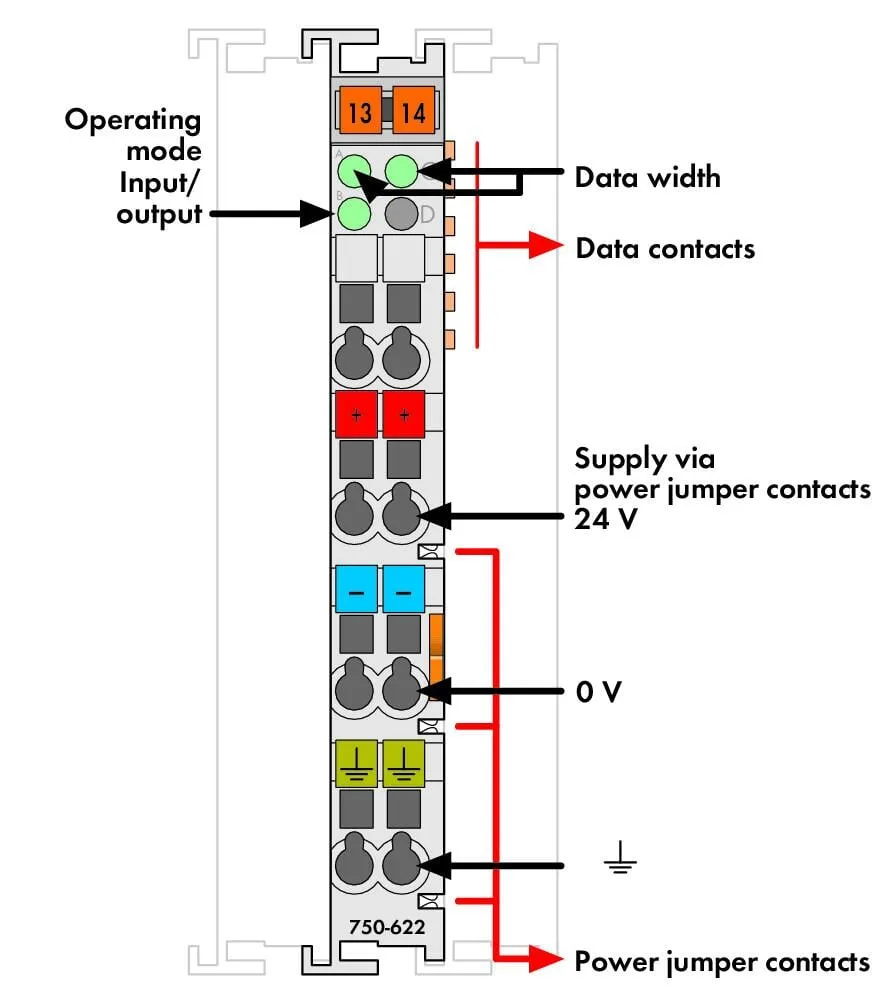

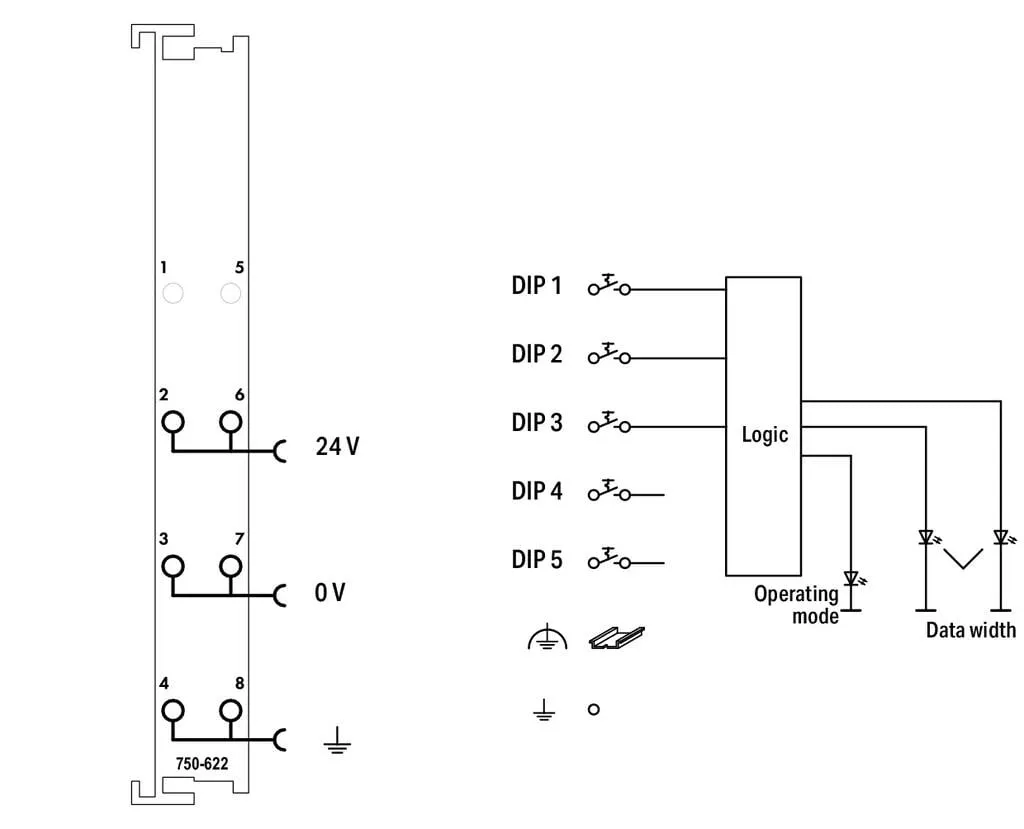

This binary spacer module reserves bit addresses in the process image of a fieldbus node.Both operating mode and bit width can be adjusted via DIP switches on the side of the module. The operating mode (inputs/outputs) can be selected via one DIP switch, the number of inputs or outputs (2, 4, 6 or 8) can be selected via two DIP switches.The configuration is indicated via three LEDs.The binary spacer module also acts as a supply module. It provides the 24 V field-side voltage for the downstream I/O modules via power jumper contacts.
Specification
Technical data
| Supply voltage (system) | 5 VDC; via data contacts |
|---|---|
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact |
| Current consumption (5 V system supply) | 10 mA |
| Current carrying capacity (power jumper contacts) | 10 A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |
| Data width | 2, 4, 6 or 8 bits (adjustable via DIP switches) |
| Operating mode | Inputs DIP 3: OFF; Outputs DIP 3: ON |
| Indicators | LED (A, C); (B) green: data width; input/output operating mode |
Connection data
| Connectable conductor materials | Copper |
|---|---|
| Connection type | Field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: field supply | 6 x CAGE CLAMP® |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.075 MJ |
| Weight | 44.9 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454721749 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-10 |
| eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I |
| SCIP notification number (Austria) | a783e786-6cc9-4c97-ba5a-cfaa6e1f0952 |
| SCIP notification number (Belgium) | 6fcd2973-8df1-43fa-9243-c2df44e198fc |
| SCIP notification number (Bulgaria) | df499c3f-8321-47c2-80d8-3fffadb8d3e6 |
| SCIP notification number (Czech Republic) | 052843e5-9a00-4008-ac82-e0620aaae1f4 |
| SCIP notification number (Denmark) | 894f6b14-458a-4ae3-b7e1-be8dd753493c |
| SCIP notification number (Finland) | 28d97981-97bd-4cd9-ac02-d1e4755fb0db |
| SCIP notification number (France) | 2fe03a3a-d8ea-4052-ac81-aff622a187f4 |
| SCIP notification number (Germany) | 16aa058d-ff58-4585-af87-325921be9148 |
| SCIP notification number (Hungary) | 6e51330f-8cfd-449e-b078-84a9fa29c56b |
| SCIP notification number (Italy) | 6f7e3d0b-c985-4319-9996-e27bbaaf152f |
| SCIP notification number (Netherlands) | 02f93804-8641-4eac-827b-b171fb354412 |
| SCIP notification number (Poland) | 972e7d12-ba5c-4b50-b277-d30cb509f2d4 |
| SCIP notification number (Romania) | 9c898b61-c111-4bd4-a412-ae810488a382 |
| SCIP notification number (Sweden) | 68b1348a-4926-4871-94c4-cbcb1bd00602 |
