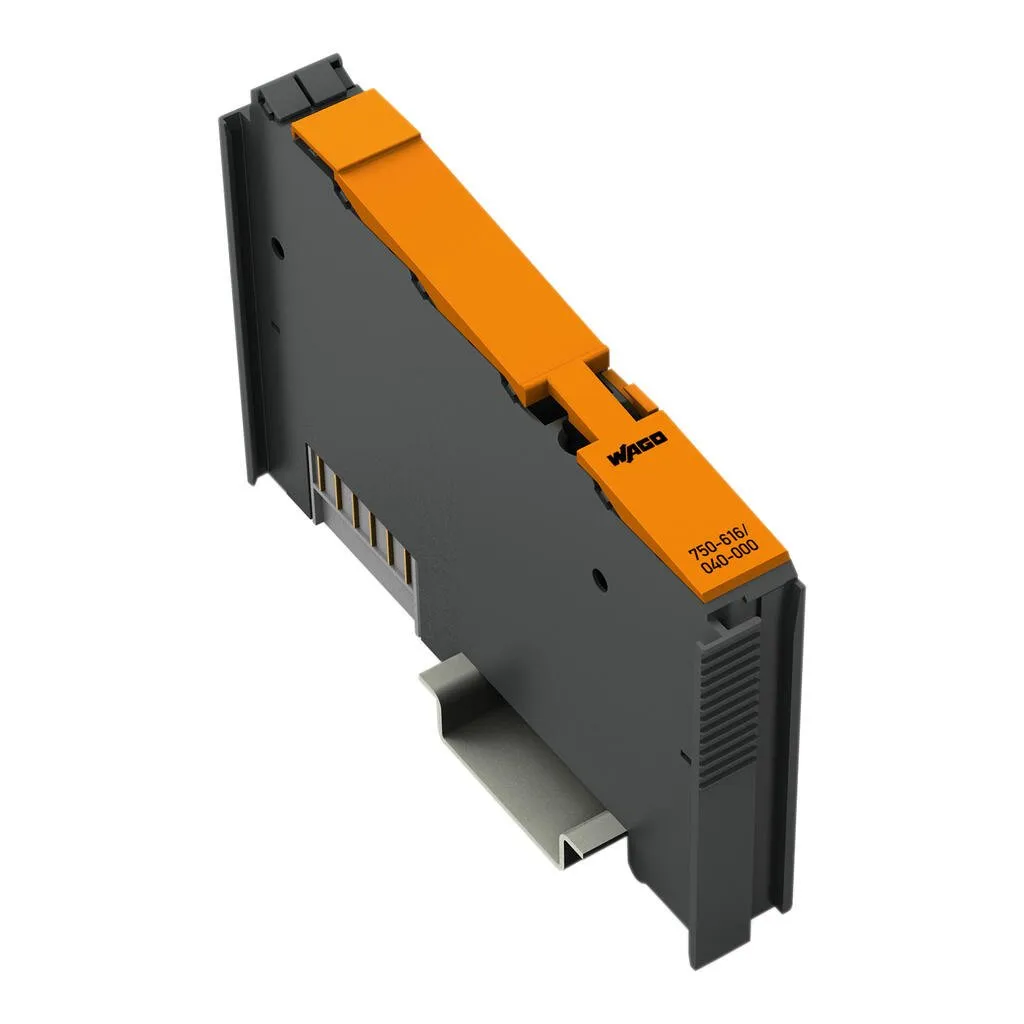

Wago 750-616/040-000
This distance module visually divides a fieldbus node into sections.The 750-616/040-000 Distance Module has no power jumper contacts.The device is ideal for operation in extreme environments thanks to…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This distance module visually divides a fieldbus node into sections.The 750-616/040-000 Distance Module has no power jumper contacts.The device is ideal for operation in extreme environments thanks to:An extended temperature rangeGreater immunity to impulse voltages and electromagnetic interferenceHigher vibration and shock resistance
Specification
Technical data
| Supply voltage (system) | 5 VDC; via data contacts |
|---|
Connection data
| Connectable conductor materials | Copper |
|---|
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | dark gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.019 MJ |
| Weight | 34.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143315685 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-10 |
| eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
|---|---|
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 200b38e6-9c66-4a4d-a8a9-2d077bcc2899 |
| SCIP notification number (Belgium) | bfb03bc1-bf23-4b57-9b60-f712fb4d4234 |
| SCIP notification number (Bulgaria) | 122a46b2-da4f-4d81-b53c-3dd2d4cba048 |
| SCIP notification number (Czech Republic) | b928f438-03c5-4e1c-af52-072ad7e0f7ee |
| SCIP notification number (Denmark) | 809a669f-3364-44bf-9e68-fffe3c7f0b1c |
| SCIP notification number (Finland) | 6310e701-5c5a-4a92-a555-8ab306846eb7 |
| SCIP notification number (France) | ce227ee1-19af-4020-a3db-c4512e70eecb |
| SCIP notification number (Germany) | 2d7239df-8a1b-4f8a-a93c-10211b02f0d8 |
| SCIP notification number (Hungary) | 73aa4312-7ee5-4d24-a2cd-3092c739e4a0 |
| SCIP notification number (Italy) | be7f515f-5042-48a9-b9dc-98f8f0a03da1 |
| SCIP notification number (Netherlands) | 13c230ec-a570-499c-91f1-4cf61c2147d5 |
| SCIP notification number (Poland) | 02d68f15-dd6c-4a59-ab92-1626cf4cba0c |
| SCIP notification number (Romania) | f9ac9f97-2a44-412a-a775-b70b948f313f |
| SCIP notification number (Sweden) | b0004e2a-9aa4-46d9-987d-4a646415696a |
