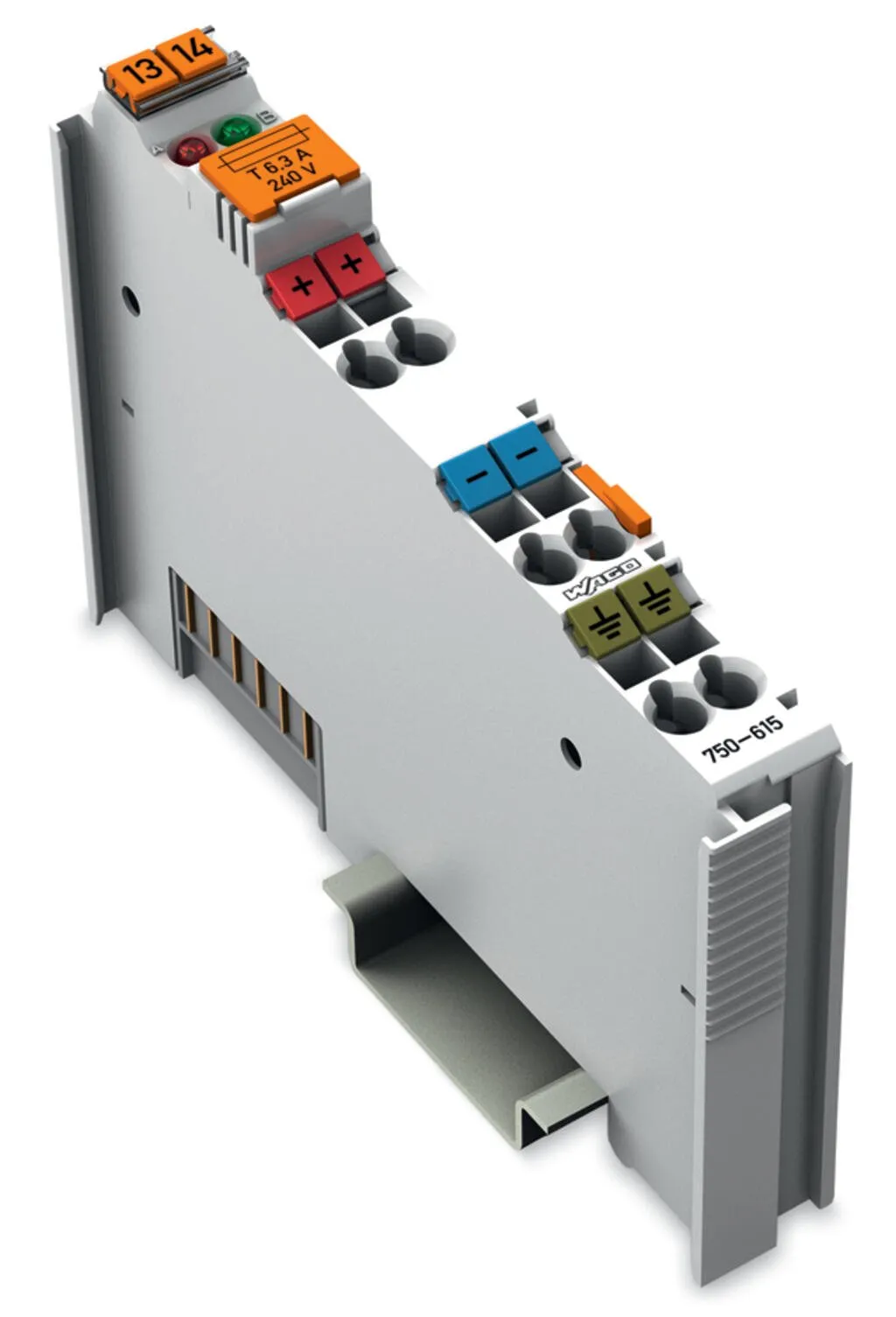

Wago 750-615
This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

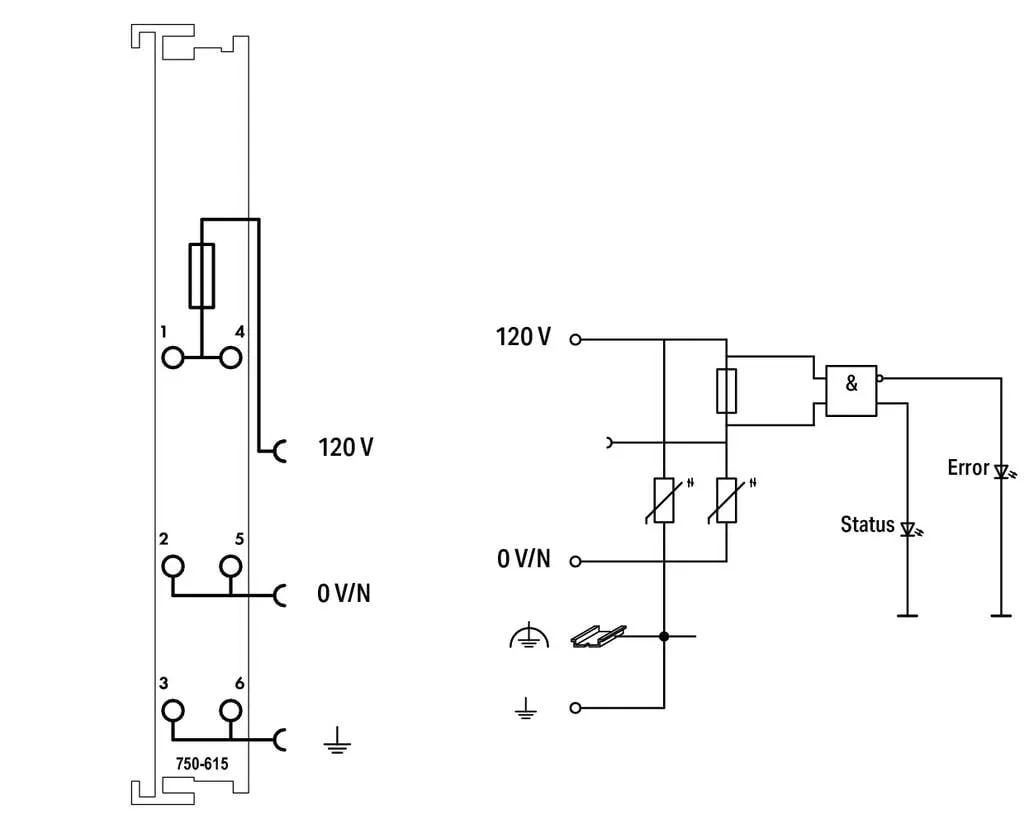

This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly. This module is fuse-protected (5 x 20 mm). The fuse can be changed quickly and easily from the retractable fuse holder. A blown fuse and the status of the supply voltage are indicated via LEDs.
Specification
Technical data
| Signal type | Voltage |
|---|---|
| Signal type (voltage) | 120 VAC |
| Fuse | 5 x 20; T 6.3 A (not included) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Supply voltage (field) | 120 VAC; via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact |

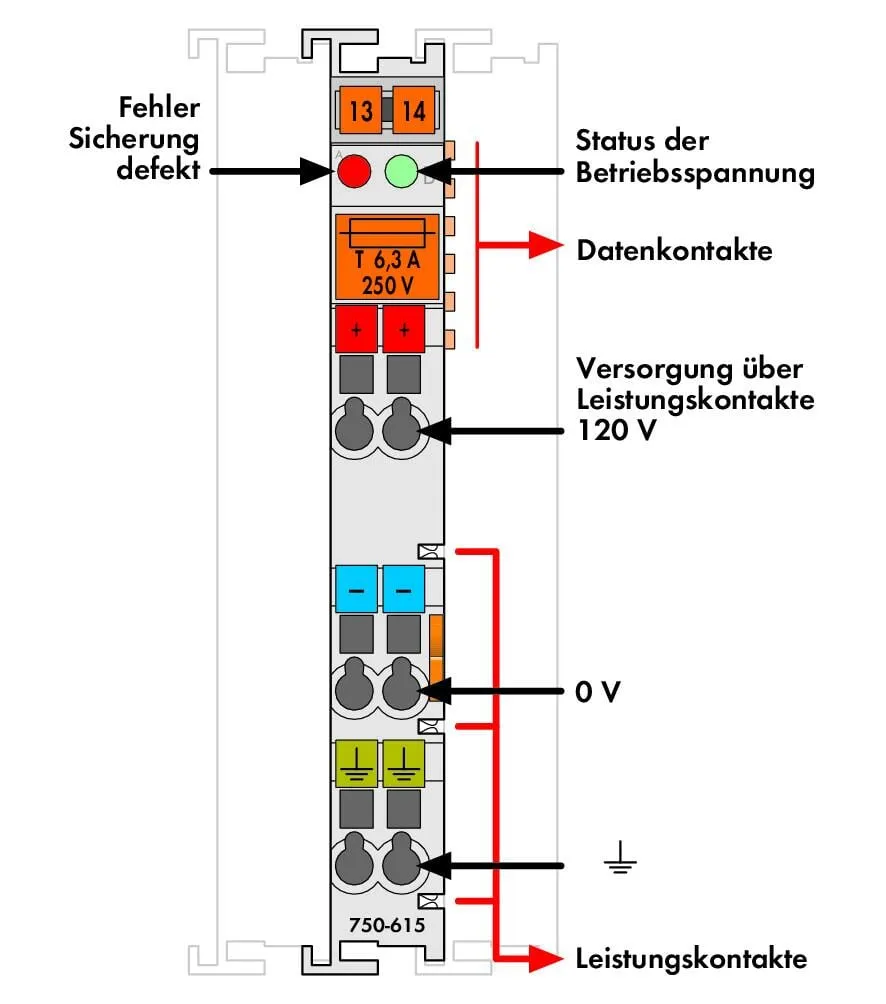

| Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 6.3 A |
Safety and protection
| Protection type | IP20 |
|---|---|
| Pollution degree | 2 per IEC 61131-2 |
Connection data
| Connection technology: field supply | 6 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.133 MJ |
| Weight | 50 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454605896 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-24-26-10 |
| eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 12060-00-3, 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide, Lead titanium oxide (PbTiO3) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | d6914797-0053-40a3-81d9-7a71cb0ab134 |
| SCIP notification number (Belgium) | 4a33429b-726f-49d1-9563-af5dcbbc1fa3 |
| SCIP notification number (Bulgaria) | 297c1f5f-b1ef-4fab-82ce-751592d1689d |
| SCIP notification number (Czech Republic) | 5c2e3a99-4fa7-4c52-9abe-711d344fe414 |
| SCIP notification number (Denmark) | 8daa69ba-51e6-4d54-a743-a9727182b636 |
| SCIP notification number (Finland) | a4635ee2-4d63-4213-9b1b-ef05210d1dbb |
| SCIP notification number (France) | b444bd52-3ee1-4736-ab96-8c1ca68d467b |
| SCIP notification number (Germany) | ab755dfb-f2c4-49c1-81b8-5af9a5cdece3 |
| SCIP notification number (Hungary) | 301b7ad7-835c-48f4-8e4b-e8ae35806a08 |
| SCIP notification number (Italy) | 0bc34c51-0dc1-44e9-81bd-e347cbc086a0 |
| SCIP notification number (Netherlands) | db3ceb24-86e0-4011-87ab-530b4aef20ff |
| SCIP notification number (Poland) | d30986fd-66b2-49a9-95b7-2793ab4b616f |
| SCIP notification number (Romania) | 143213d6-3cb6-4fe3-b1d1-ace2c7d9501c |
| SCIP notification number (Sweden) | eef35038-0189-4df1-b084-b2289681899e |
