Wago 750-613
This internal system supply module increases the capacity of the system supply by 2 A for fieldbus nodes with high current requirements (sum of the internal current consumption of the I/O modules).If…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

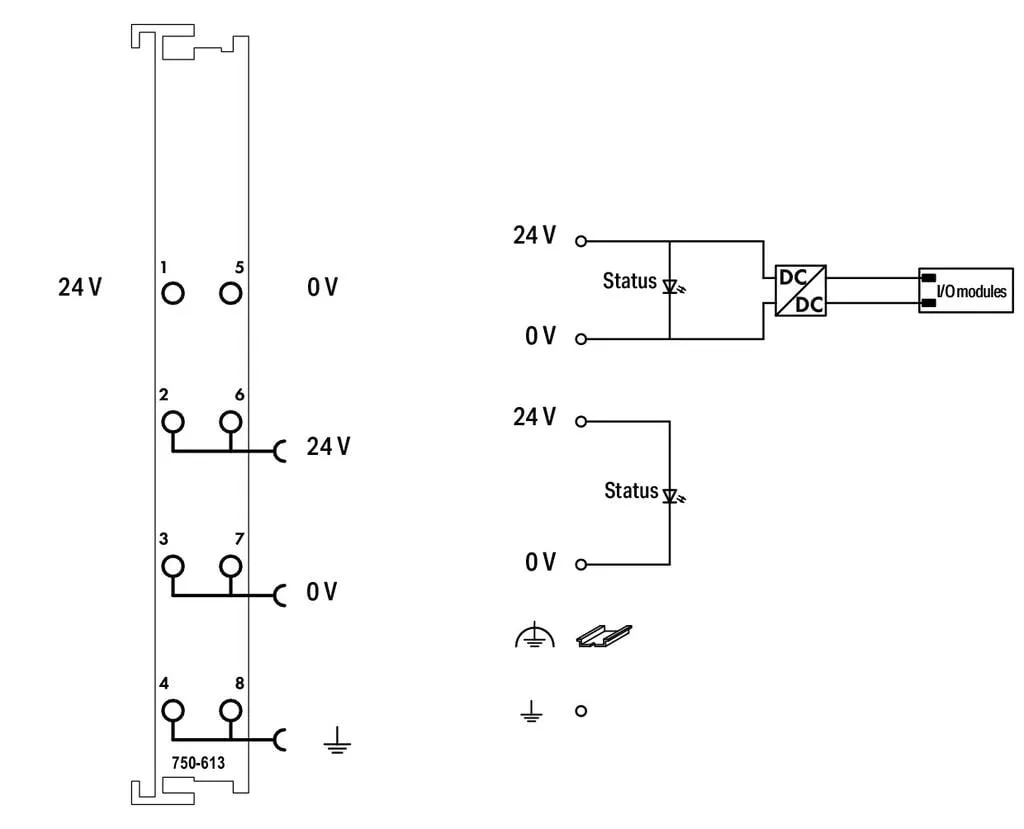

This internal system supply module increases the capacity of the system supply by 2 A for fieldbus nodes with high current requirements (sum of the internal current consumption of the I/O modules).If required, additional system supply modules with bus power supply can be used.The module also supplies field-side power to the adjacent modules via the power jumper contacts.
Specification
Technical data
| Signal type | Voltage |
|---|---|
| Signal type (voltage) | 24 VDC |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Input current (typ.) at nominal load (24 V) | 500 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact |
| Total current (system supply) | 2,000 mA |
| Current carrying capacity (power jumper contacts) | 10 A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |

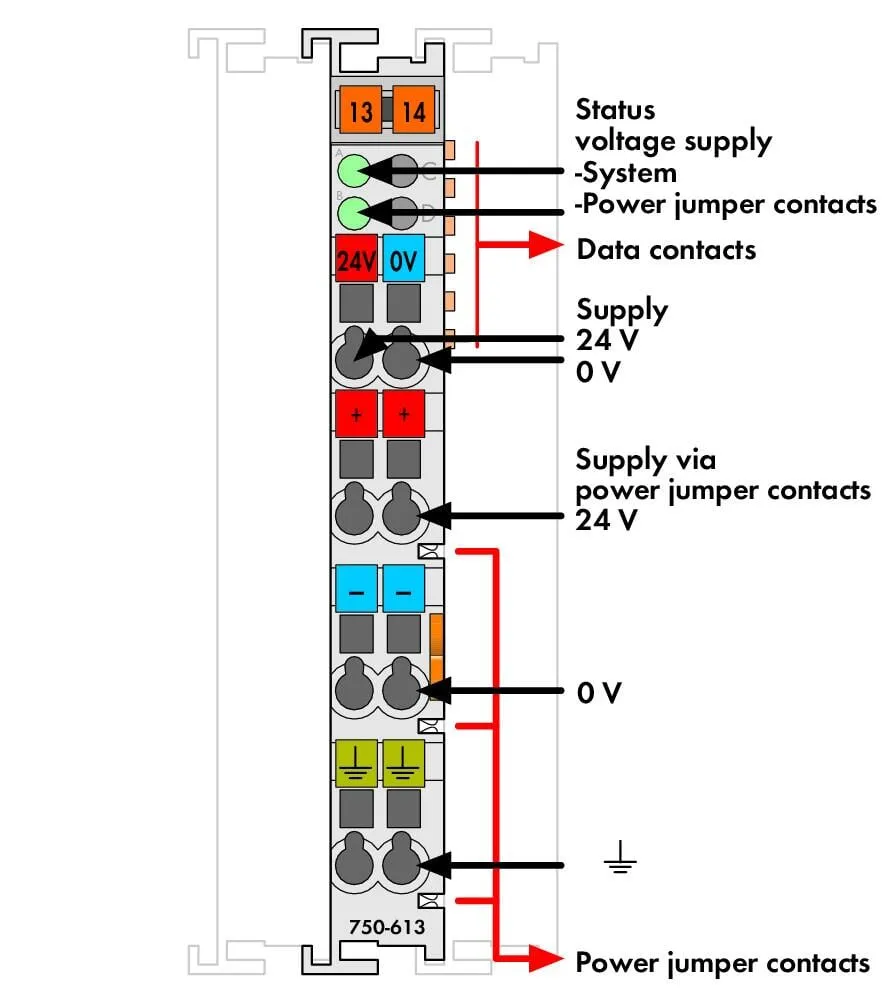

| Indicators | LED (A, B) green: operating voltage status: system, power jumper contacts |
Connection data
| Connectable conductor materials | Copper |
|---|---|
| Connection type | System/field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connection technology: system supply | 2 x CAGE CLAMP® |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.298 MJ |
| Weight | 55 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454393823 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| eCl@ss 10.0 | 27-24-26-10 |
| eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 12060-00-3, 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Lead titanium oxide (PbTiO3) |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 4b470f9f-363b-47f8-bcb5-d064fad8d40d |
| SCIP notification number (Belgium) | d551d1d7-2779-4755-93c5-f5272ebd9689 |
| SCIP notification number (Bulgaria) | c9b90f48-c283-4324-a809-ea1ecafa6ad6 |
| SCIP notification number (Czech Republic) | e5545aeb-852b-44da-9986-f236e0e87b01 |
| SCIP notification number (Denmark) | dfd32358-4d98-4075-bdc1-3e9d9741770f |
| SCIP notification number (Finland) | 40a53a1a-9ff0-49b9-be34-99fd421b1f56 |
| SCIP notification number (France) | 8bc67325-86e8-444c-a176-604b438398a4 |
| SCIP notification number (Germany) | da4fb7a6-5a13-412c-be57-3bcc74fe98a7 |
| SCIP notification number (Hungary) | 752dce07-e549-4ea5-8944-c2c6f8f3cac3 |
| SCIP notification number (Italy) | 94951cab-363c-448e-b442-b7f70df5c9b8 |
| SCIP notification number (Netherlands) | dfcd5a2e-7f70-4479-bed4-c4d8d20f44fa |
| SCIP notification number (Poland) | 1835a69a-a0f9-43df-b696-6a1b45fe5690 |
| SCIP notification number (Romania) | ed10644a-822a-4837-904d-2f714f9239d2 |
| SCIP notification number (Sweden) | 90842d3b-d570-4d2b-82e7-187d29460397 |
