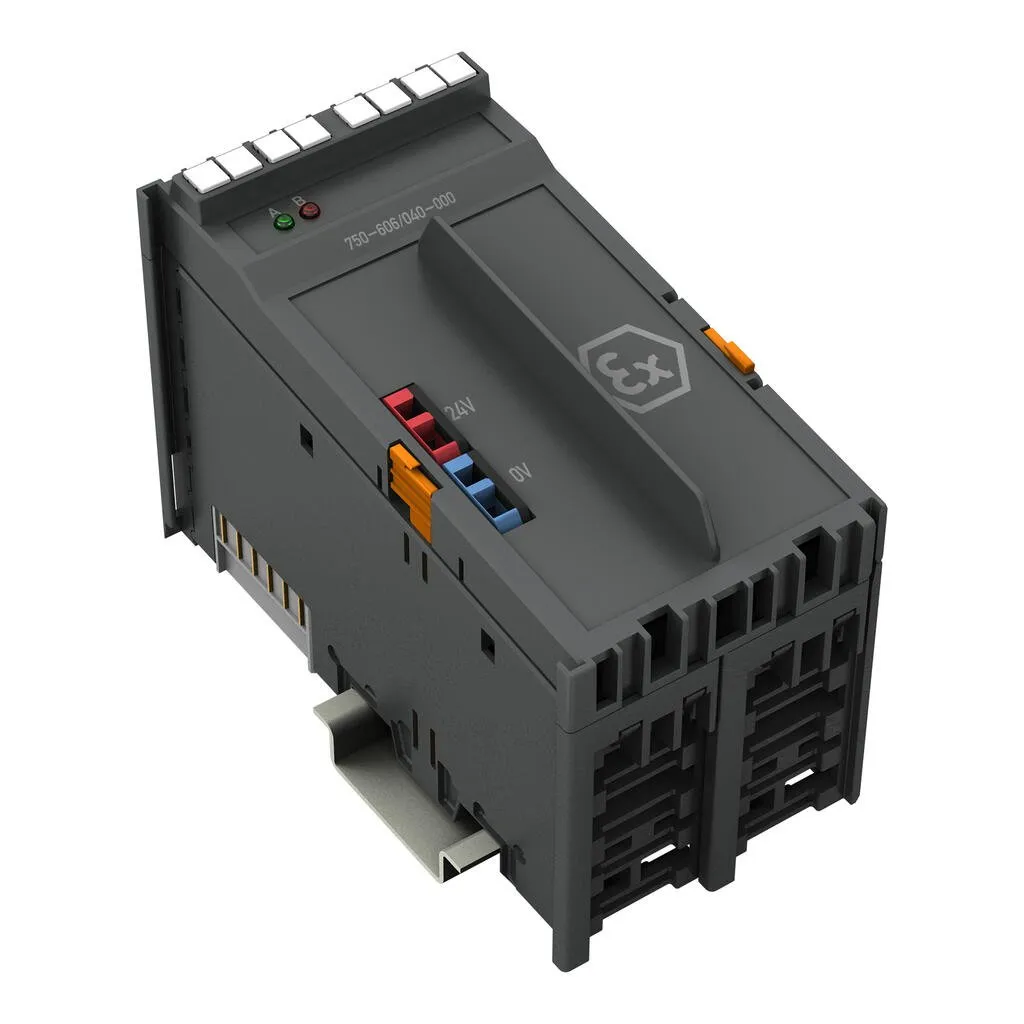

Wago 750-606/040-000
This supply module powers all intrinsically safe 750 Series Ex i Modules. It monitors the power supply to the downstream Ex i segment and separates the intrinsically safe from the non-intrinsically sa…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This supply module powers all intrinsically safe 750 Series Ex i Modules. It monitors the power supply to the downstream Ex i segment and separates the intrinsically safe from the non-intrinsically safe part of the WAGO I/O System 750 XTR. The input and output sides are electrically isolated from each other.The maximum output current provided by the supply module is 1.0 A. When configuring the Ex i segment, the total current must not be exceeded.In the event of a short circuit or overload, electronic monitoring automatically disables the output voltage. Once the fault has been cleared, the output voltage is reactivated after approximately 10 seconds.Note:If more than one supply module is required per station due to load conditions, four spacer modules (750-616/040-000) must be used to ensure proper separation between the intrinsically safe Ex i segments.Indicators:Green LED (input voltage)Green/red LED (output voltage available/not available)The device is ideal for operation in extreme environments thanks to:An extended temperature rangeGreater immunity to impulse voltages and electromagnetic interferenceHigher vibration and shock resistance
Specification
Notes
| Note | General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750 XTR manuals! |
|---|
Technical data
| Item description | Power Supply; 24 VDC; Diagnostics; Intrinsically safe |
|---|---|
| Supply voltage | 24 VDC; (−25 % … +30 %); input voltage |
| Fuse | electronic |
| Intrinsically safe Ex i | Yes |
| Data width | 2-bit diagnostics |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 7.5 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact); Derating must be observed! |
| Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (-25 … +30 %);for -40 … +55 °C: 24 V (-25 … +20 %);for +55 … +70 °C: 24 V (-25 … +10 %);Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple) |
| Power consumption P<sub>max.</sub> | 29 W |
| Power loss P<sub>l</sub> | < 5 W |
| Rated impulse withstand voltage | 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11) |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 1 A |

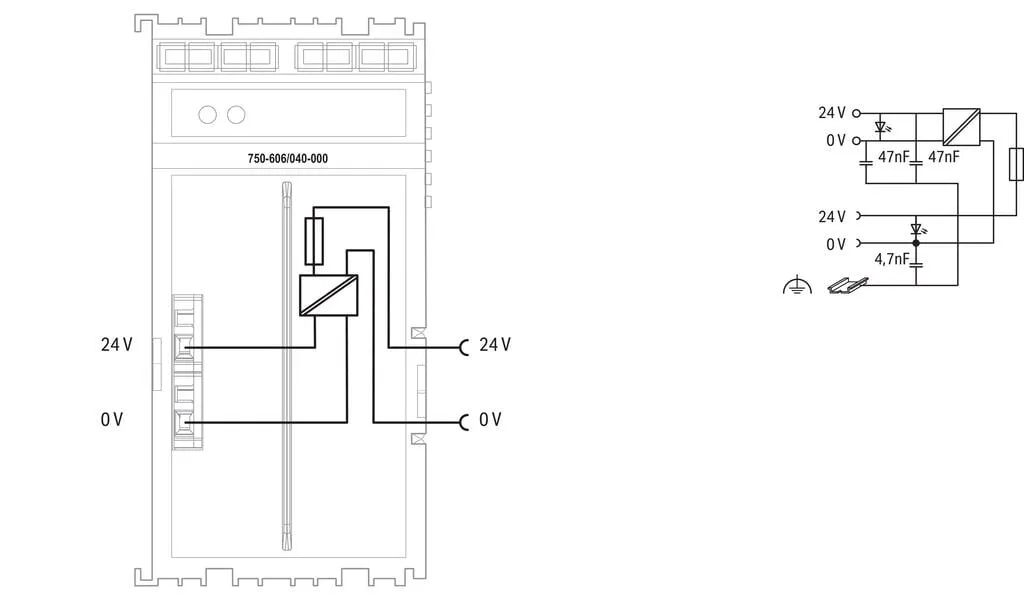

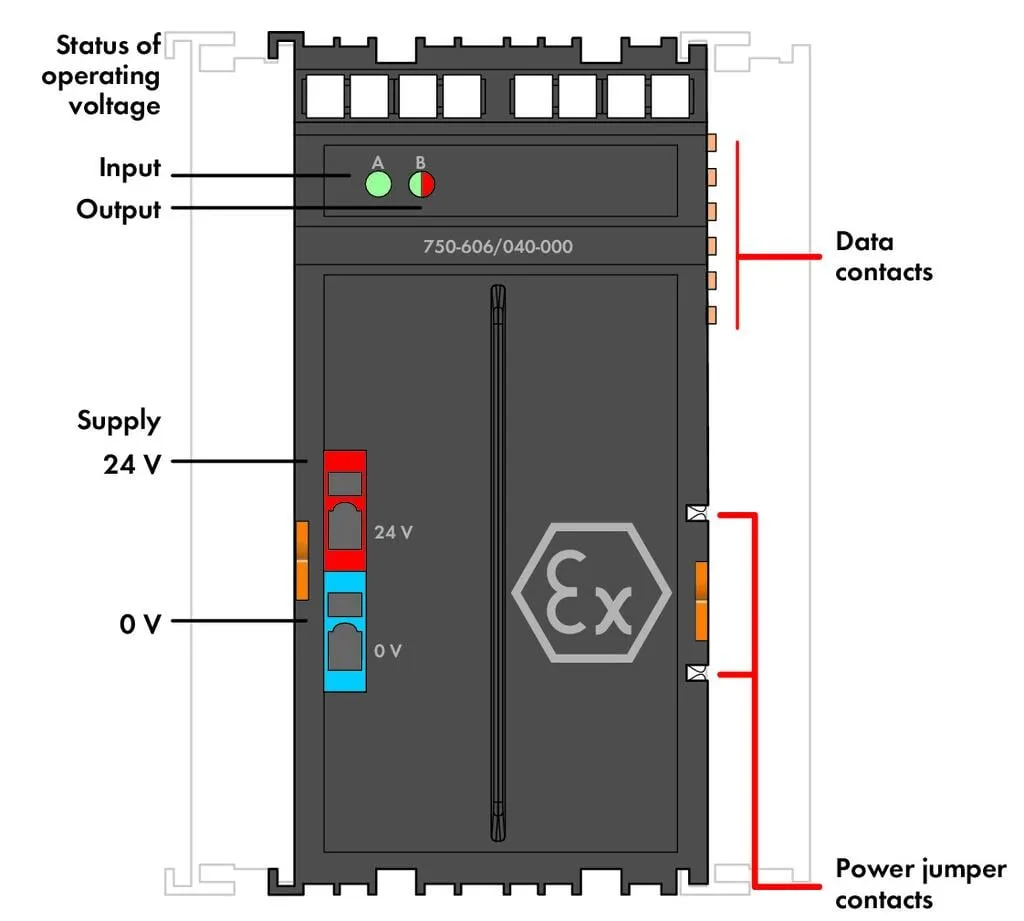

| Indicators | LED (A) green: operating voltage status: input; LED (B) green/red: operating voltage status: output |
Explosion protection
| Identification | ATEX: II 3 G Ex ec IIC T4 Gc, IECEx/INMETRO: Ex ec IIC T4 Gc, cULus (Devision classified): Class I, Div. 2, Group A B C D, T4 |
|---|---|
| Ex standard | EN/IEC 60079-0, -7, -11 |
| Power supply (output) | Uo = 26.8 V (intrinsically safe output voltage per protection level ia); In = 1 A |
| Power supply (input) | Un = 24 VDC; Pmax = 29 W; Um = 253 VAC |
Connection data
| Connectable conductor materials | Copper |
|---|---|
| Connection type | Field supply |
| Solid conductor | 0.25 … 1.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 24 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Connection technology: field supply | 2 x CAGE CLAMP® |
Physical data
| Width | 48 mm / 1.89 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 70.9 mm / 2.791 inches |
| Depth from upper-edge of DIN-rail | 63.7 mm / 2.508 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | dark gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 2.467 MJ |
| Weight | 168.3 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3 |
| Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143649575 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| eCl@ss 10.0 | 27-24-26-10 |
| eCl@ss 9.0 | 27-24-26-10 |
| ETIM 9.0 | EC001600 |
| ETIM 10.0 | EC001600 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 4fe17c26-3e48-4c6a-8405-01c7463c2a8c |
| SCIP notification number (Belgium) | f162755d-825d-4026-9ea8-ab288594dc6a |
| SCIP notification number (Bulgaria) | 646d72f5-7f22-49b8-95cc-b93b60e3f0c0 |
| SCIP notification number (Czech Republic) | 5b380fba-e486-4276-a5dd-822714e91fc4 |
| SCIP notification number (Denmark) | b26250f5-4af5-4aad-9582-c0d89a934520 |
| SCIP notification number (Finland) | 660f5834-f12f-4bf8-b296-a04fc275fd14 |
| SCIP notification number (France) | bcd493c6-3df0-44d4-badd-eba5afd20434 |
| SCIP notification number (Germany) | c01000a4-4223-4dde-94fa-6f7db1620dd8 |
| SCIP notification number (Hungary) | f142bb98-7eff-4442-beea-e3867c6963d7 |
| SCIP notification number (Italy) | ab7ba289-4f42-4cc8-a91c-0d6d91d1cd87 |
| SCIP notification number (Netherlands) | 32814c55-3aac-4565-b952-30f0e3d4fa44 |
| SCIP notification number (Poland) | 40eb8935-549b-4b60-a0d8-bf7b4f0e9efe |
| SCIP notification number (Romania) | a49e1082-9d5b-471b-a0d8-97863037a64d |
| SCIP notification number (Sweden) | a8b4f724-1558-4a50-8246-ba63c388b382 |
