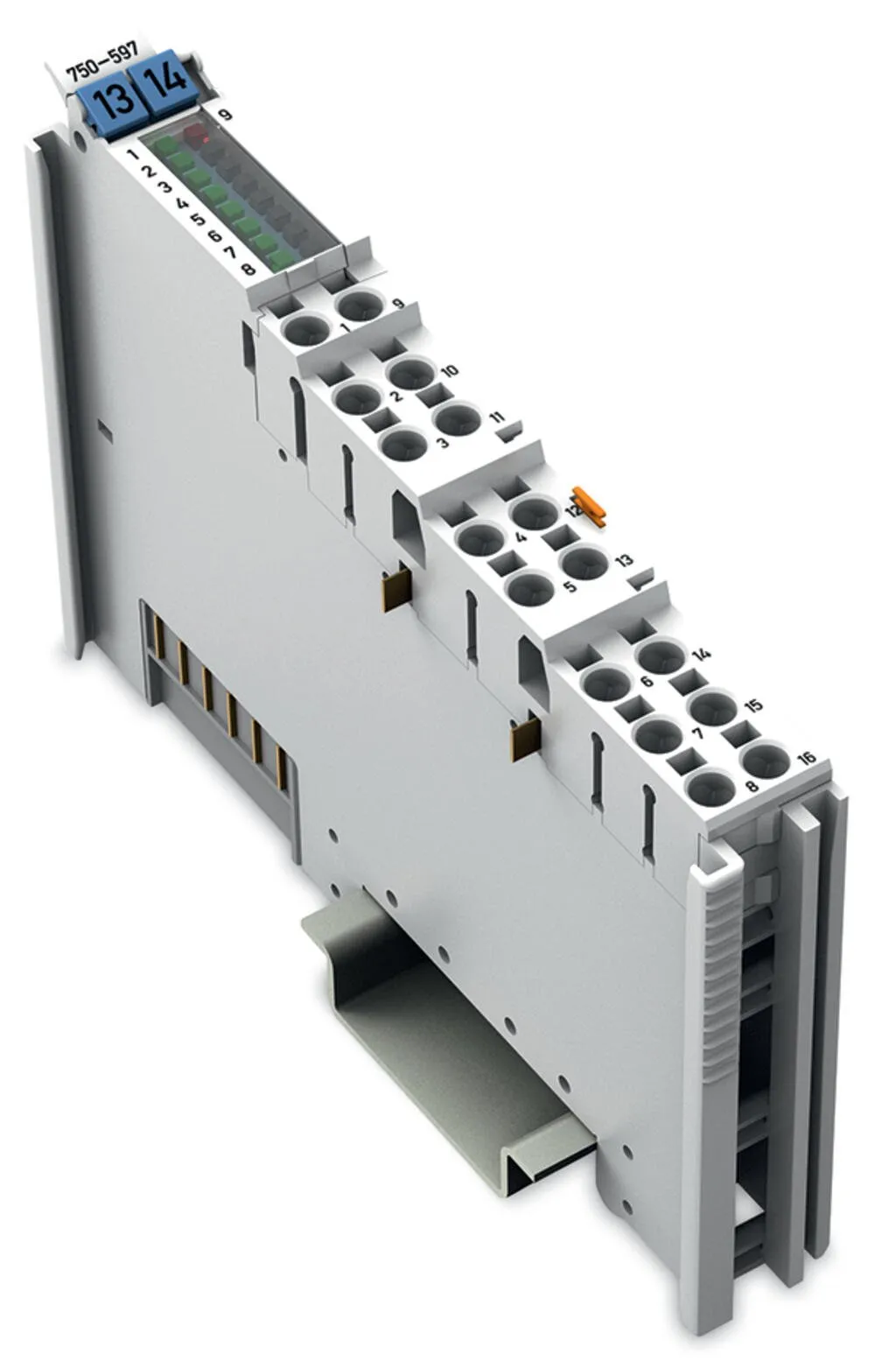

Wago 750-597
This analog output module generates signals of standard magnitudes 0-10 V and ±10 V. The output signal is electrically isolated and transmitted with a resolution of 12 bits.Both the internal system an…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

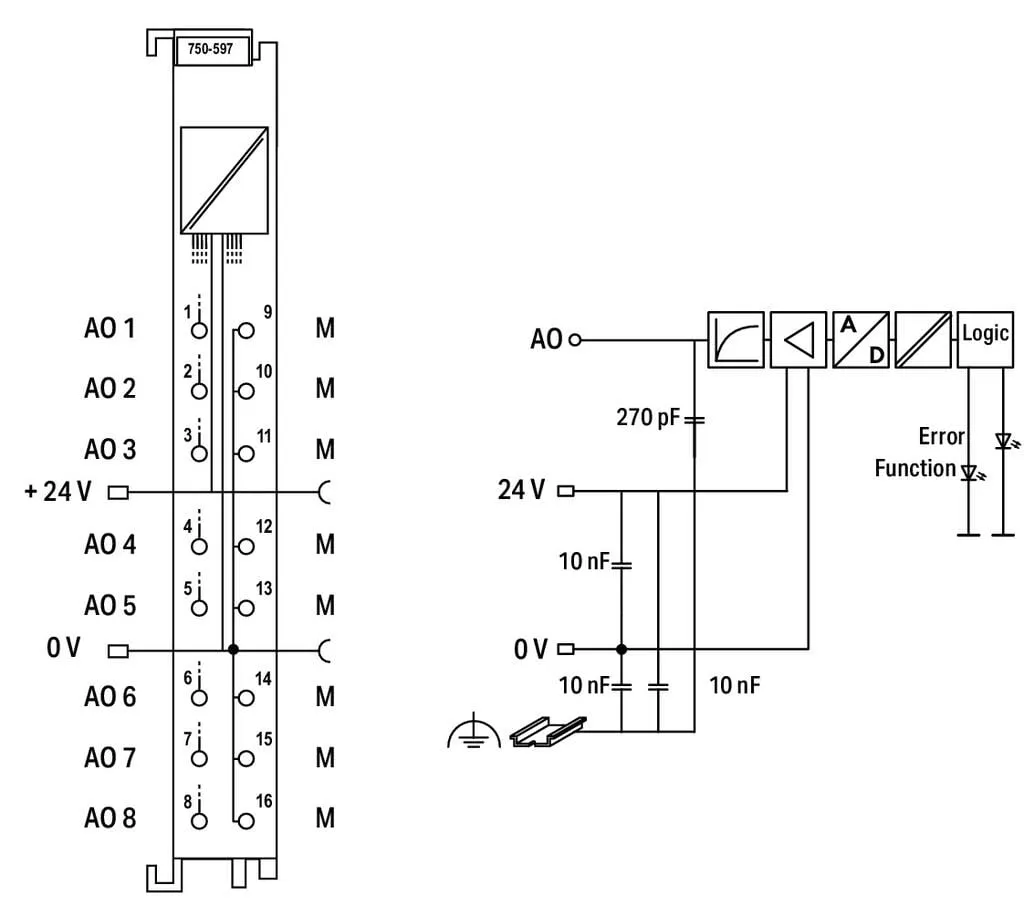

This analog output module generates signals of standard magnitudes 0-10 V and ±10 V. The output signal is electrically isolated and transmitted with a resolution of 12 bits.Both the internal system and 24 V field side supply power the module.The module’s output channels have a common ground potential.The module detects a 24 V field supply failure. The status is transmitted to the fieldbus coupler and indicated by an LED.The module can be configured via WAGO‐I/O‐CHECK or GSD files.
Specification
Technical data
| Number of analog outputs | 8 |
|---|---|
| Total number of channels (module) | 8 |
| Signal type | Voltage |
| Signal type (voltage) | 0 … 10 VDC |

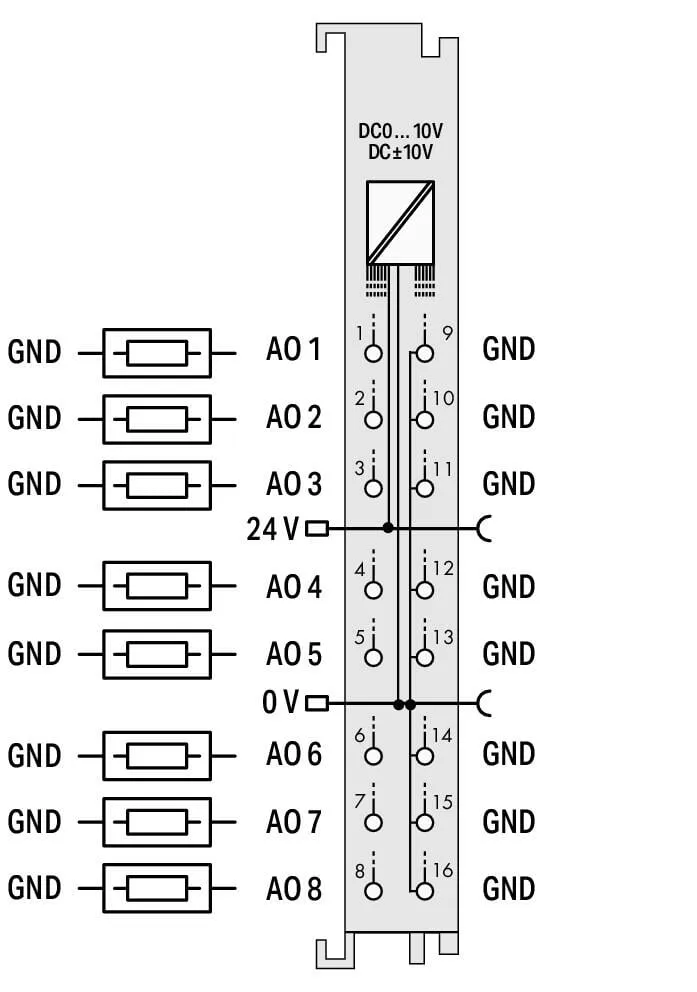

| Actuator connection | 8 x (2-wire) |
| Resolution [bit] | 12 Bit |
| Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) |
| Load impedance (voltage output) | ≥ 2 kΩ |
| Conversion time (typ.) | 13 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Output error, deviation (max.) of the upper-range value | 0.1 % |
| Temperature coefficient | ≤ ±10 ppm/K of the largest output area |
| Configuration options | WAGO-I/O-CHECK, CODESYS Library |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 61 mA |
| Supply voltage (field) | 24 VDC (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

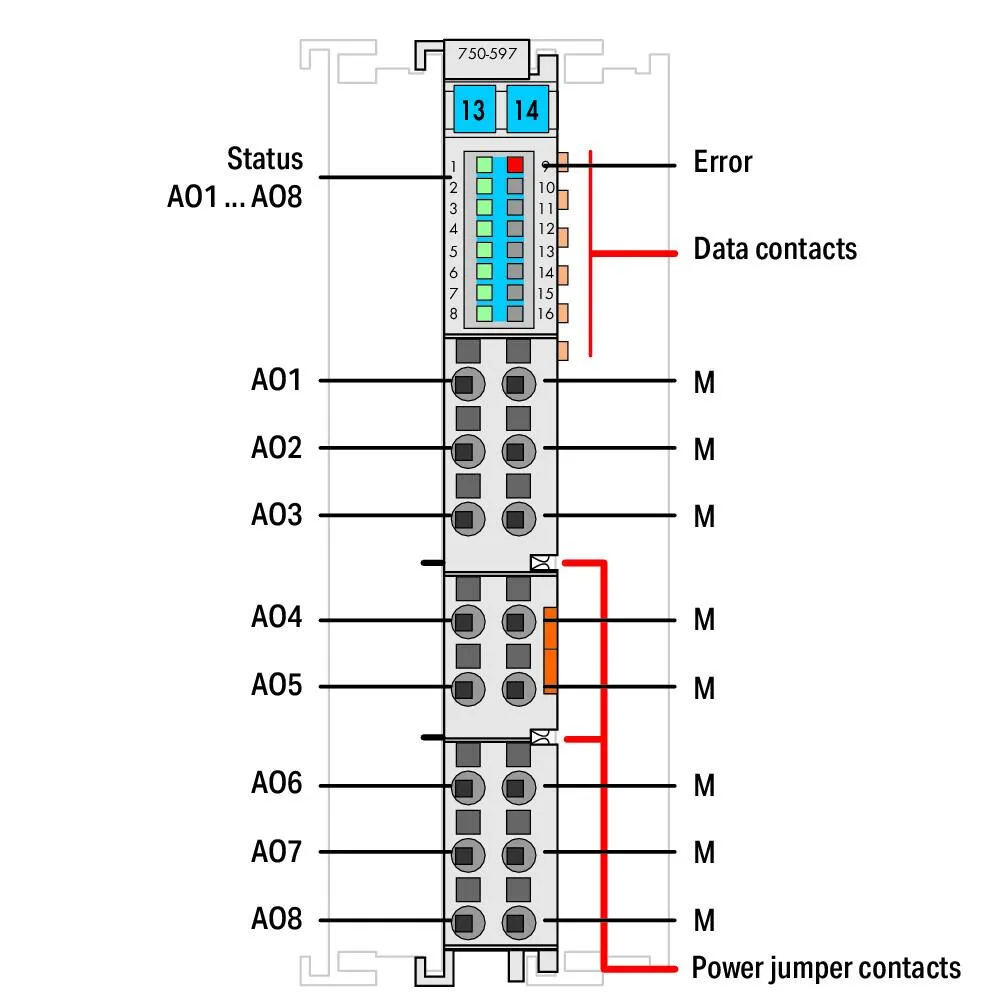

| Indicators | LED (1-8) green: Status AO 1 … AO 8; LED (9) red: Error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.63 MJ |
| Weight | 48 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143432146 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32101505 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | aa2065b7-0a5a-43f4-aa10-a820968ad6e7 |
| SCIP notification number (Belgium) | 67e5abd3-1a8f-4a50-a8a3-1753d8fe67b6 |
| SCIP notification number (Bulgaria) | af64fb6b-3e6d-4af2-8198-e2db1db7845d |
| SCIP notification number (Czech Republic) | d3904cce-e3bf-49cc-a3bf-50dbf39b39fd |
| SCIP notification number (Denmark) | 6ce3c3a3-9ef6-4a54-9be4-c17f7ea3f0d0 |
| SCIP notification number (Finland) | aa7950fb-20f1-450e-845e-4dc98c34fdde |
| SCIP notification number (France) | 99c6c3b1-abd5-4b64-ad99-d1bd5a146612 |
| SCIP notification number (Germany) | 90ea1d0d-7741-4cf5-93c4-8ef00368d285 |
| SCIP notification number (Hungary) | 388a5d82-84cf-4133-8dc2-429b8394dca7 |
| SCIP notification number (Italy) | e151c495-20a9-4b56-a2db-0f57dd7c08d5 |
| SCIP notification number (Netherlands) | 0a3d8e91-bcc0-4949-b6f6-ea69e38f1785 |
| SCIP notification number (Poland) | 6c5a69c4-9955-4b06-97a8-376fe7336355 |
| SCIP notification number (Romania) | 498c66ea-d66d-4c58-8d70-264d3fb3ce9b |
| SCIP notification number (Sweden) | 525ccb7a-8f2d-4fcb-859a-fae4fe914f65 |
