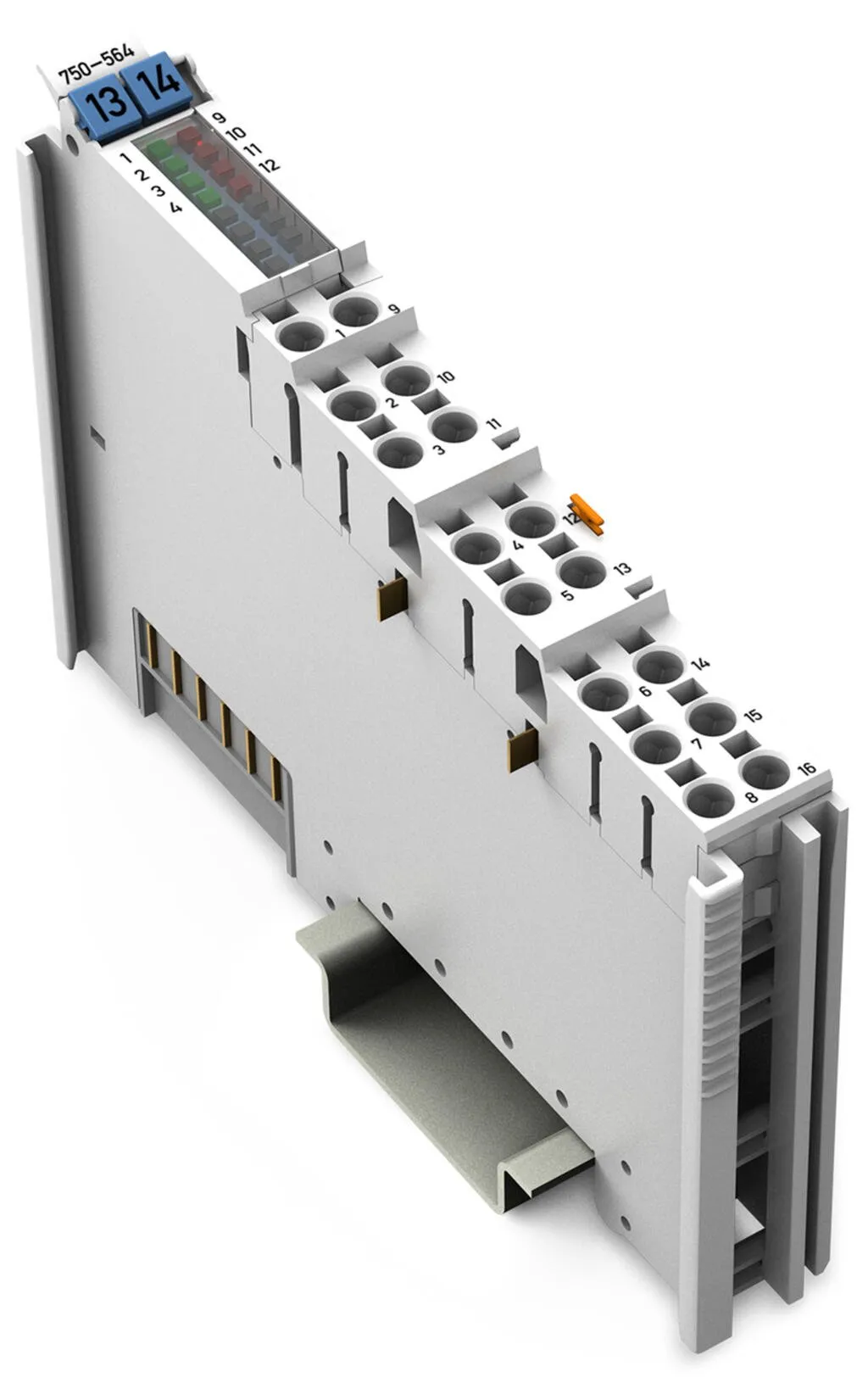

Wago 750-564
The analog output module provides a variety of standardized signals for voltage and current.The output signal can be parameterized channel by channel.The output signal is electrically isolated and tra…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

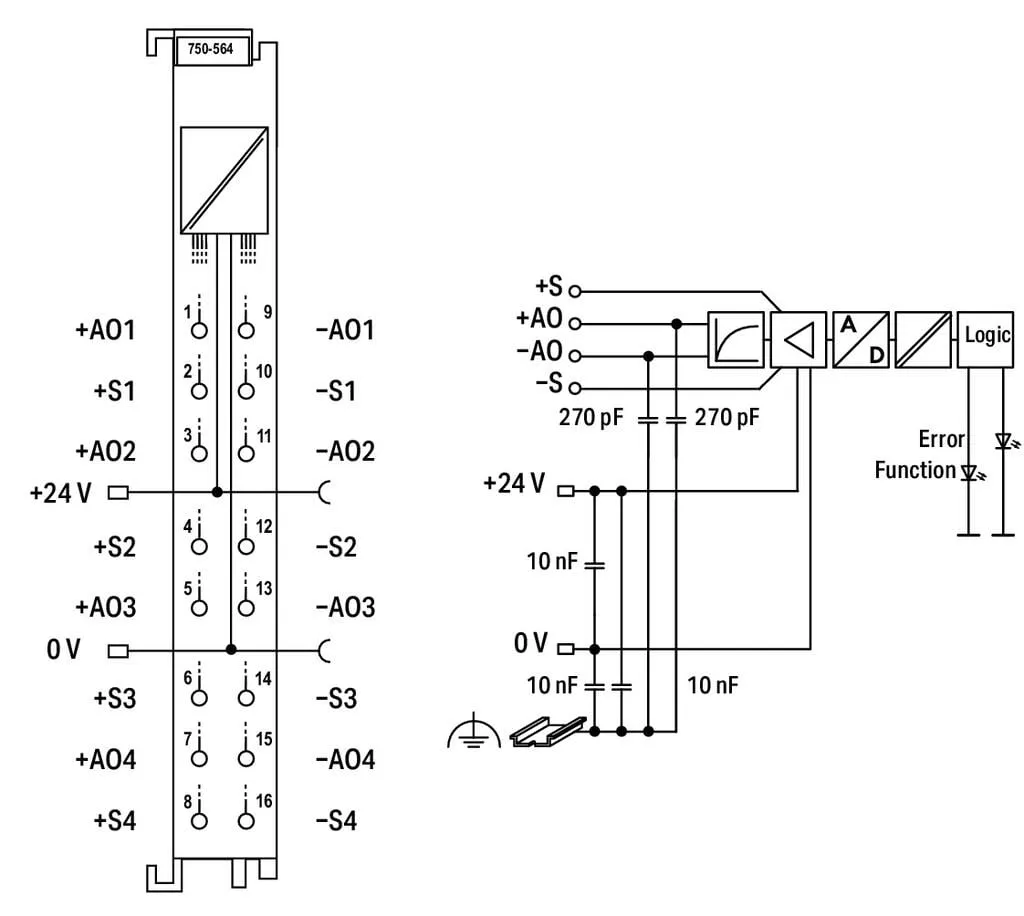

The analog output module provides a variety of standardized signals for voltage and current.The output signal can be parameterized channel by channel.The output signal is electrically isolated and transmitted with a resolution of 16 bits.Both the internal system and field side supply power the module.Wire break, overload and insufficient field supply, are diagnosed and displayed.The module is protected against wrong wiring (feedback).Voltage outputs can optionally be connected in 4-wire technology via the sense lines.The module can be configured via GSD file, e!COCKPIT and WAGO-I/O-CHECK.
Specification
Technical data
| Number of analog outputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Voltage, Current |
| Signal type (current) | 0 … 10 mA; 2 … 10 mA; -10 … +10 mA; 0 … 20 mA; 4 … 20 mA; -20 … +20 mA; 0 … 22 mA; -22 … +22 mA; 0 … 12 mA; -12 … +12 mA |
| Signal type (voltage) | 0 … 5 V; 1 … 5 V; -5 … +5 V; 0 … 10 V; 2 … 10 V; -10 … +10 V; 0 … 12 V; -12 … +12 V |

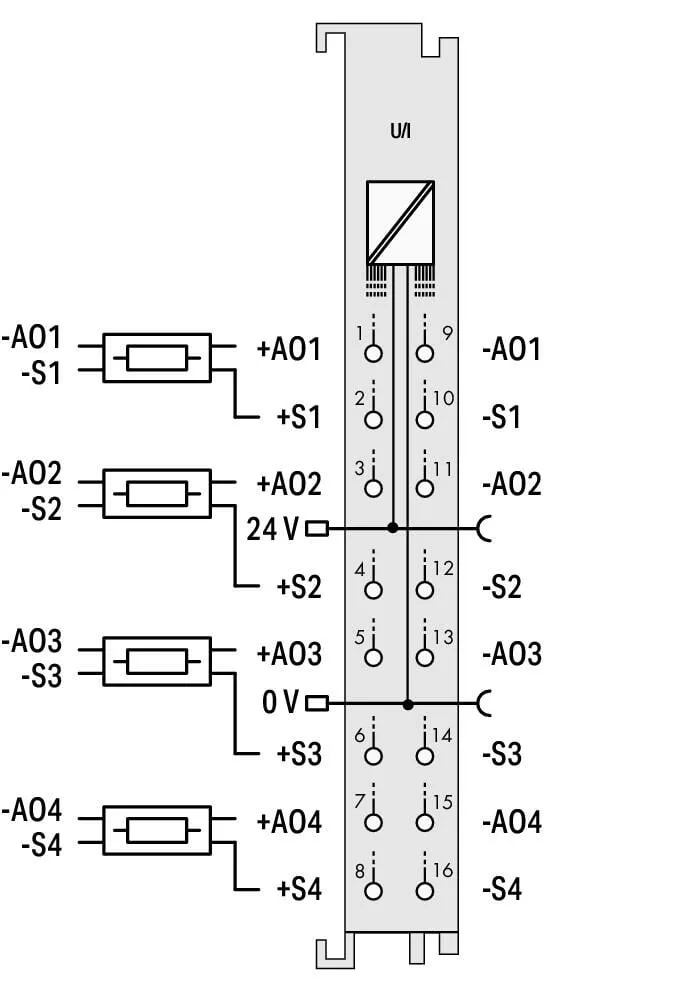

| Actuator connection | 4 x (2-wire); Voltage outputs can optionally be connected in 4-wire technology via the sense lines. |
| Resolution [bit] | 16 Bit |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Load impedance (voltage output) | ≥ 1 kΩ |
| Load impedance (current output) | ≤ 600 Ω |
| Conversion time (typ.) | 3 ms |
| Reference for measurement error | Voltage/Current |
| Output error, reference temperature | 25. °C |
| Output error, deviation (max.) of the upper-range value | 0.05 % |
| Temperature coefficient | U: ±25 ppm/K of the upper-range value; I: ±50 ppm/K of the upper-range value |
| Configuration options | WAGO-I/O-CHECK, CODESYS Library, e!COCKPIT |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 55 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

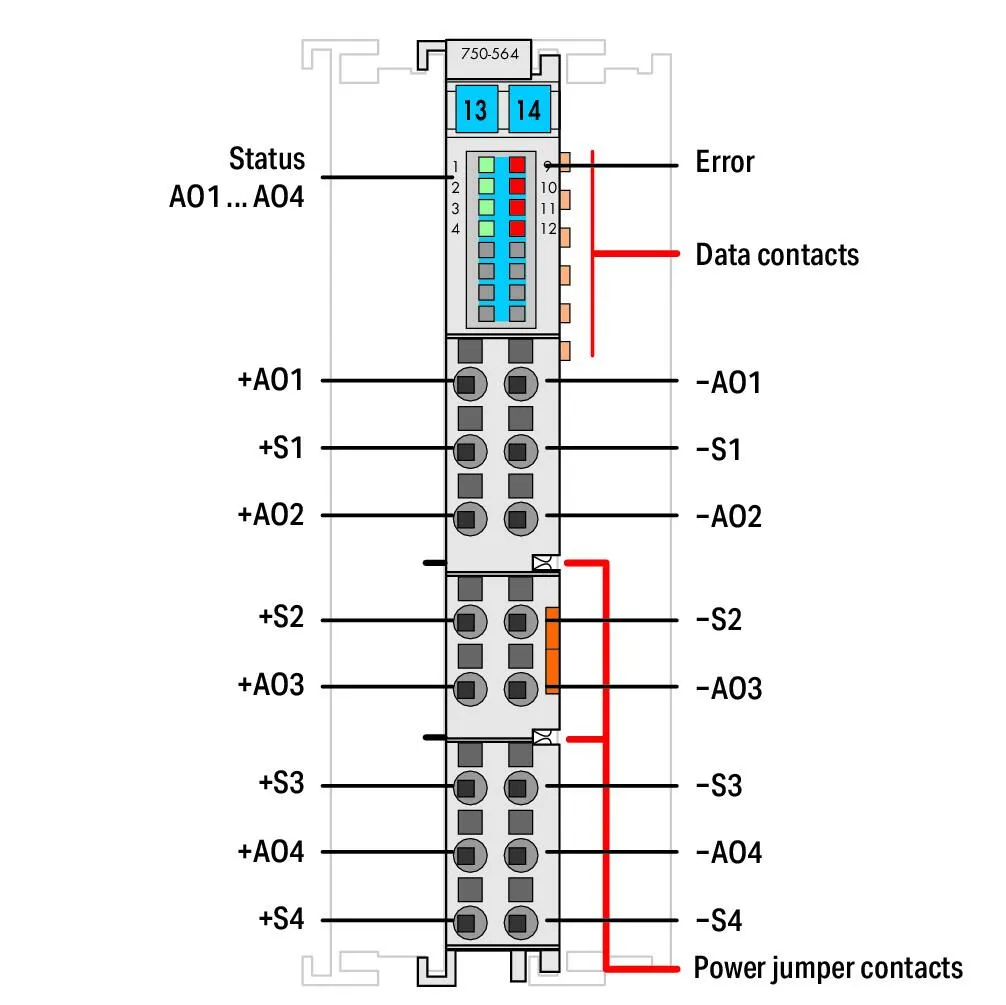

| Indicators | LED (1-4) green: Status AO 1 … AO 4; LED (9-12) red: Error AO 1 … AO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.63 MJ |
| Weight | 51 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143933223 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | ff605b72-1492-4eea-9540-1b10a4e14799 |
| SCIP notification number (Belgium) | 6a38898c-c23c-4020-892c-9d000e0e599d |
| SCIP notification number (Bulgaria) | 76060568-a696-456c-8df1-15068ddae193 |
| SCIP notification number (Czech Republic) | ef4e81d6-7c41-48d8-85eb-cbf0c1342f1e |
| SCIP notification number (Denmark) | 439e8787-5feb-4a13-8c47-0f47a5c15fe3 |
| SCIP notification number (Finland) | 3b28c00f-c0c3-42e2-9c8a-5aaadb1d3175 |
| SCIP notification number (France) | eb5c9baa-4301-427c-a15f-be6b86254555 |
| SCIP notification number (Germany) | 752bd75f-a999-4db8-a314-d67481047d66 |
| SCIP notification number (Hungary) | 4808eb04-de68-43cb-9240-bfde84ecb644 |
| SCIP notification number (Italy) | e4d68597-2633-42ac-9cd6-838d61cebad8 |
| SCIP notification number (Netherlands) | 298d87f9-e91b-4799-bce6-dfda9d0e0c0b |
| SCIP notification number (Poland) | 4fe1d60a-ced7-4c3c-b0cd-8f8b9a7f5631 |
| SCIP notification number (Romania) | 19c7ac7f-1b97-4342-b605-787060b72971 |
| SCIP notification number (Sweden) | bf2e9e26-969f-427b-9740-ce4e3fda6797 |
