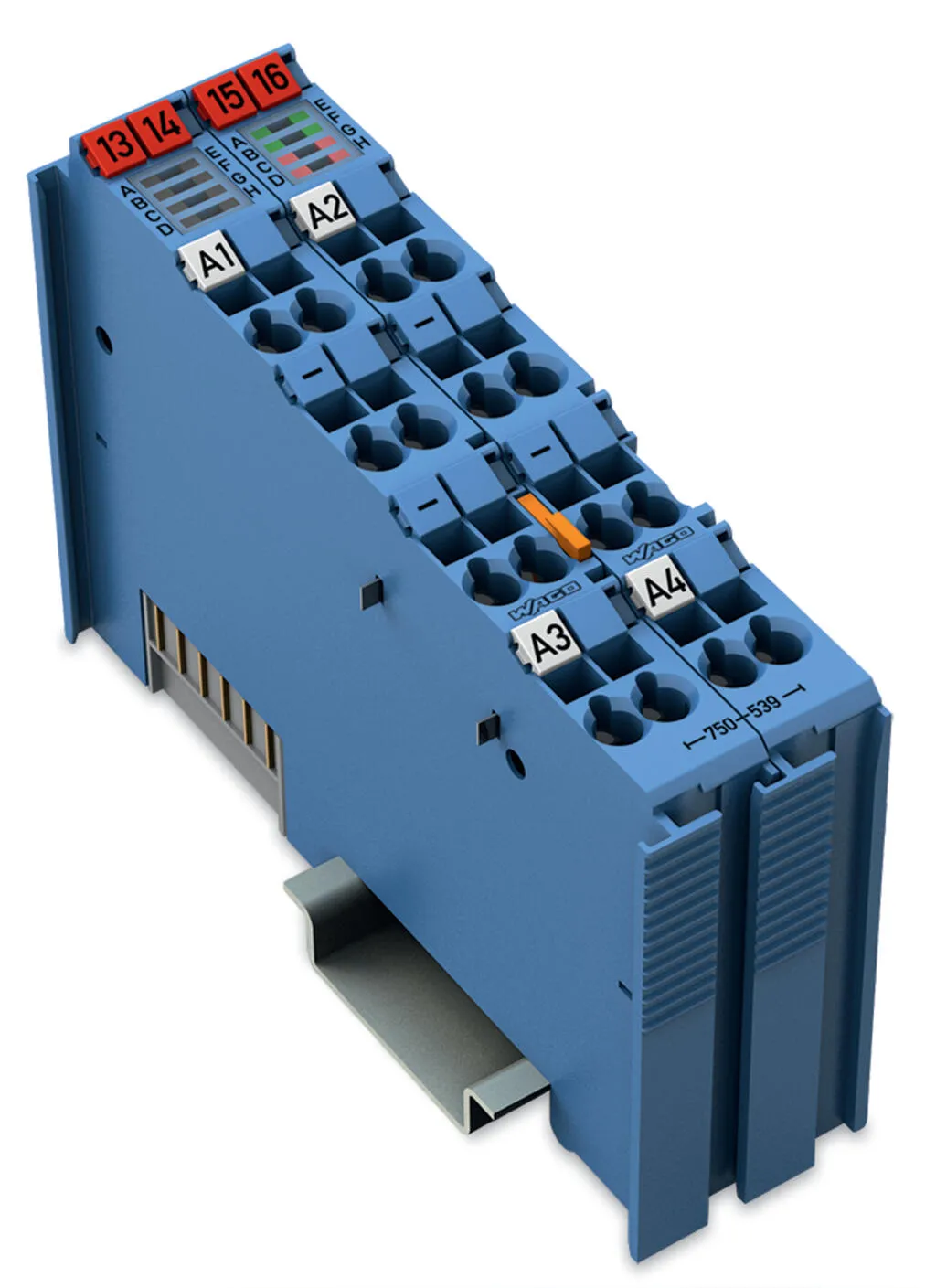

Wago 750-539
This digital output module controls actuators operating in Zone 0+1 hazardous areas.Intrinsically safe valves can be directly controlled.The WAGO I/O System 750/753 must be installed either in Zone 2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This digital output module controls actuators operating in Zone 0+1 hazardous areas.Intrinsically safe valves can be directly controlled.The WAGO I/O System 750/753 must be installed either in Zone 2 or in a non-hazardous area.All outputs are electronically short-circuit-protected.Indicators:Green LED (output status)Red LED (wire breakage, short circuit)Field and system levels are electrically isolated.
Specification
Notes
| Note | The digital output module must only be operated via 24 VDC Ex i!General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750/753 manuals! |
|---|
Technical data
| Item description | 4-Channel Digital Output; 24 VDC; Valve |
|---|---|
| Number of digital outputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

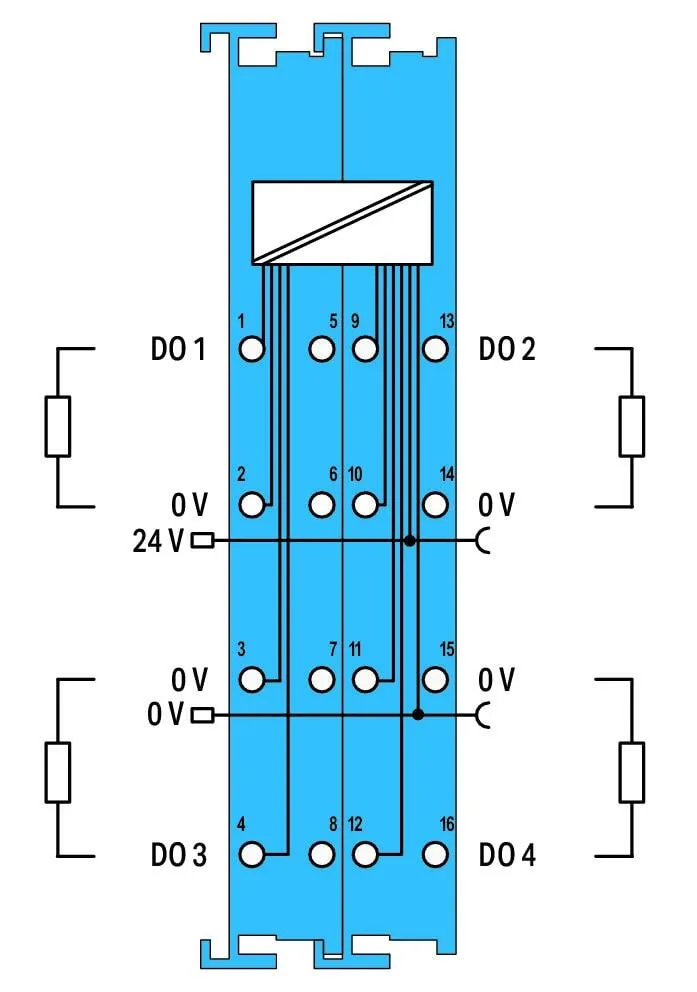

| Actuator connection | 4 x (2-wire) |
| Output current per channel | 0.047 A |
| Output characteristic | high-side switching |
| Switching frequency (max.) | 100 Hz |
| Load type | Resistive, inductive, lamp load |

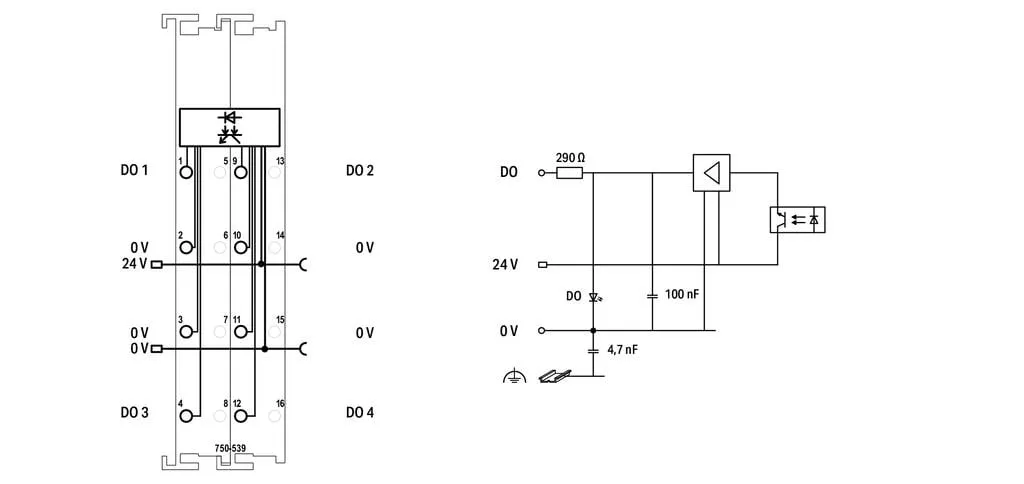

| Internal resistance R<sub>i</sub> | 290 Ω |
| Intrinsically safe Ex i | Yes |
| Input data width (internal) max. | 4 Bit |
| Output data width (internal) max. | 4 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 20 mA |
| Supply voltage (field) | 24 VDC; (Ex i power supply: Uo = max. 26.8 V); via power jumper contacts (supply via blade contact; distribution via spring contact) |
| Current consumption, field supply (module with no external load) | 10 mA |
| Power consumption P<sub>max.</sub> | 4.86 W (at 47 mA output current) |
| Power loss P<sub>l</sub> | 2.86 W (at 47 mA output current) |
| Isolation | UM = 375 V system/supply |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 1 A |

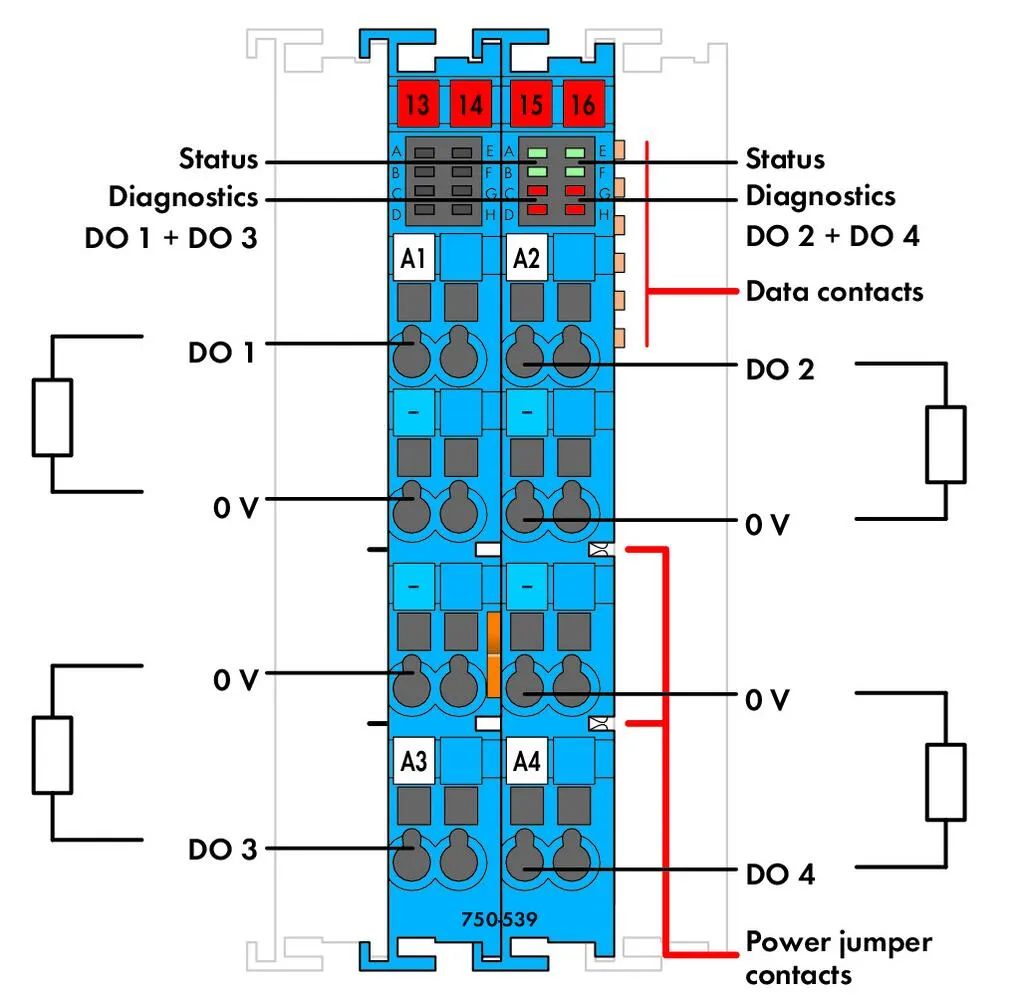

| Indicators | LED (A, B, E, F) green: Status DO 1 … DO 4; LED (C, D, G, H) red: Diagnostics DO 1 … DO 4 |
