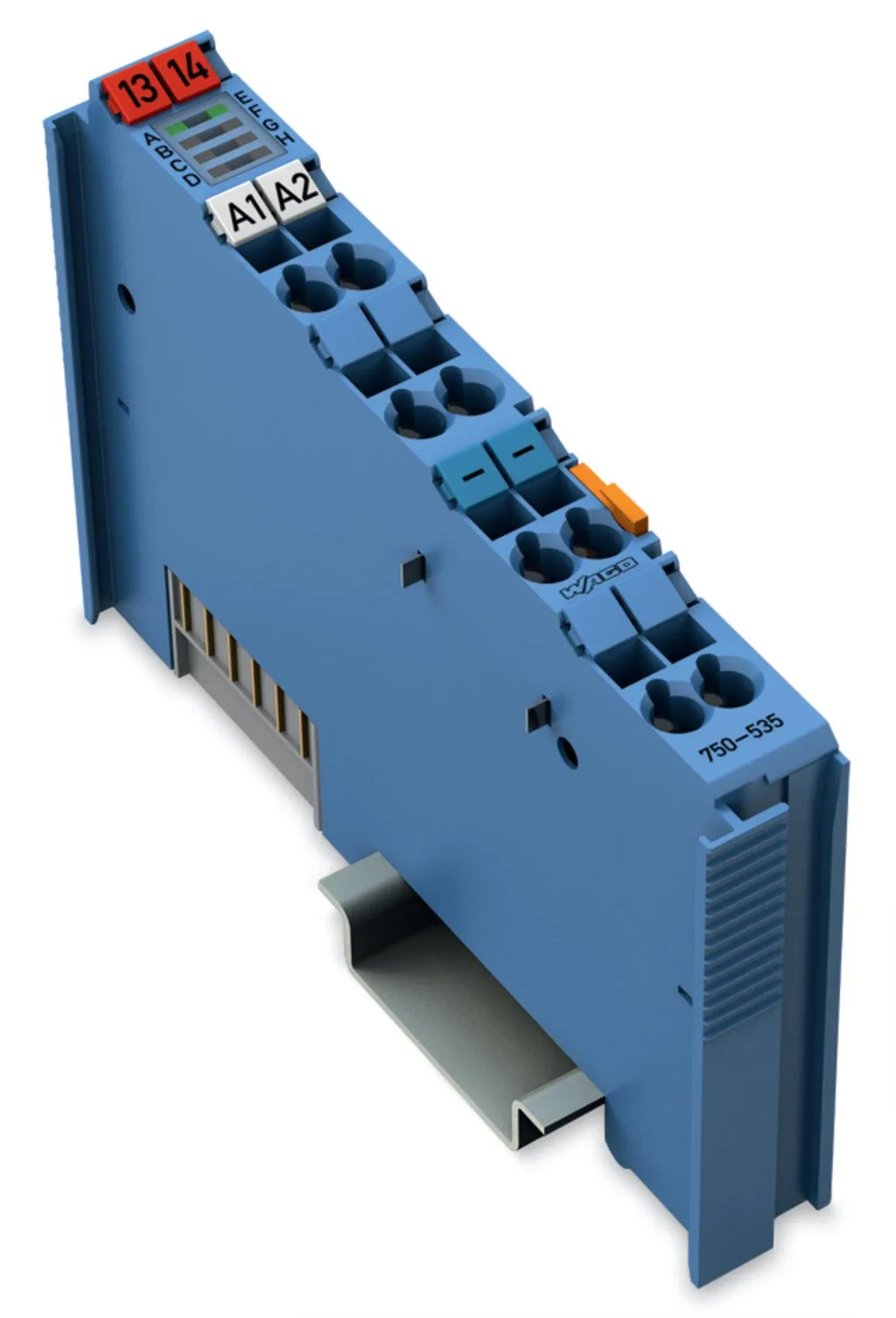

Wago 750-535
This digital output module controls actuators operating in Zone 0+1 hazardous areas.Intrinsically safe magnetic valves can be directly controlled.The WAGO I/O System 750/753 must be installed either i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This digital output module controls actuators operating in Zone 0+1 hazardous areas.Intrinsically safe magnetic valves can be directly controlled.The WAGO I/O System 750/753 must be installed either in Zone 2 or in a non-hazardous area.All outputs are electronically short-circuit-protected.Indicators:Green LED (output status)Field and system levels are electrically isolated.
Specification
Notes
| Note | The digital output module must only be operated via 24 VDC Ex i!General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750/753 manuals! |
|---|
Technical data
| Item description | 2-Channel Digital Output; 24 VDC |
|---|---|
| Number of digital outputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

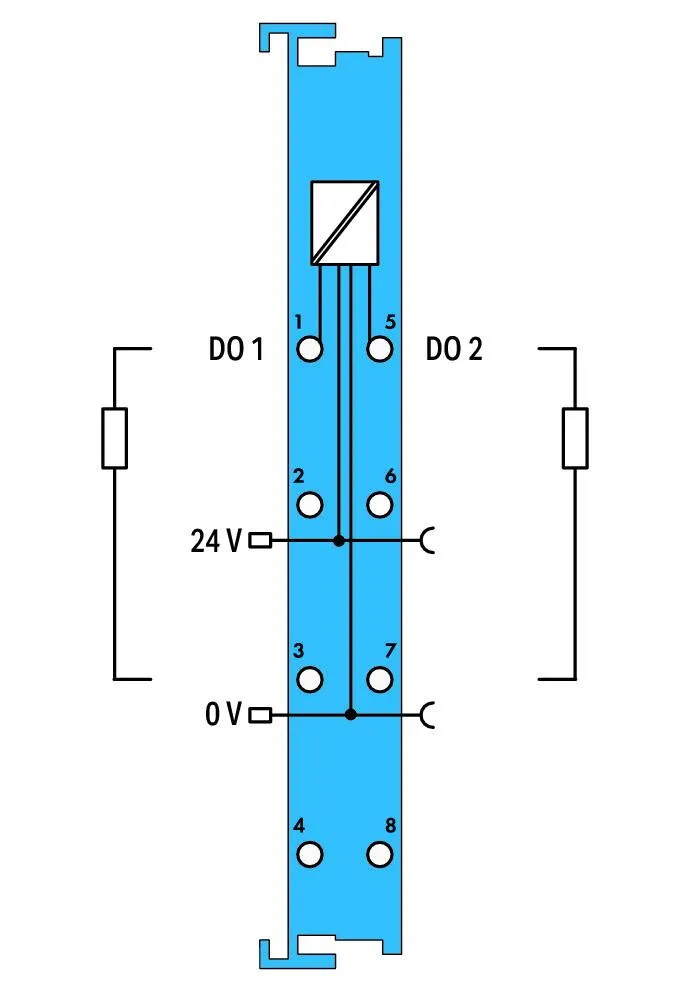

| Actuator connection | 2 x (2-wire) |
| Output characteristic | high-side switching |
| Switching frequency (max.) | 1 kHz |
| Load type | Resistive, inductive, lamp load |
| Internal resistance R<sub>i</sub> | 285 Ω |
| Intrinsically safe Ex i | Yes |
| Output data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 7 mA |
| Supply voltage (field) | 24 VDC; (Ex i power supply: Uo = max. 26.8 V); via power jumper contacts (supply via blade contact; distribution via spring contact) |
| Current consumption, field supply (module with no external load) | 8.5 mA |
| Power consumption P<sub>max.</sub> | 2.1 W (at 40 mA output current) |
| Power loss P<sub>l</sub> | 1.1 W (at 40 mA output current) |
| Isolation | 300 VAC system/supply |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 1 A |

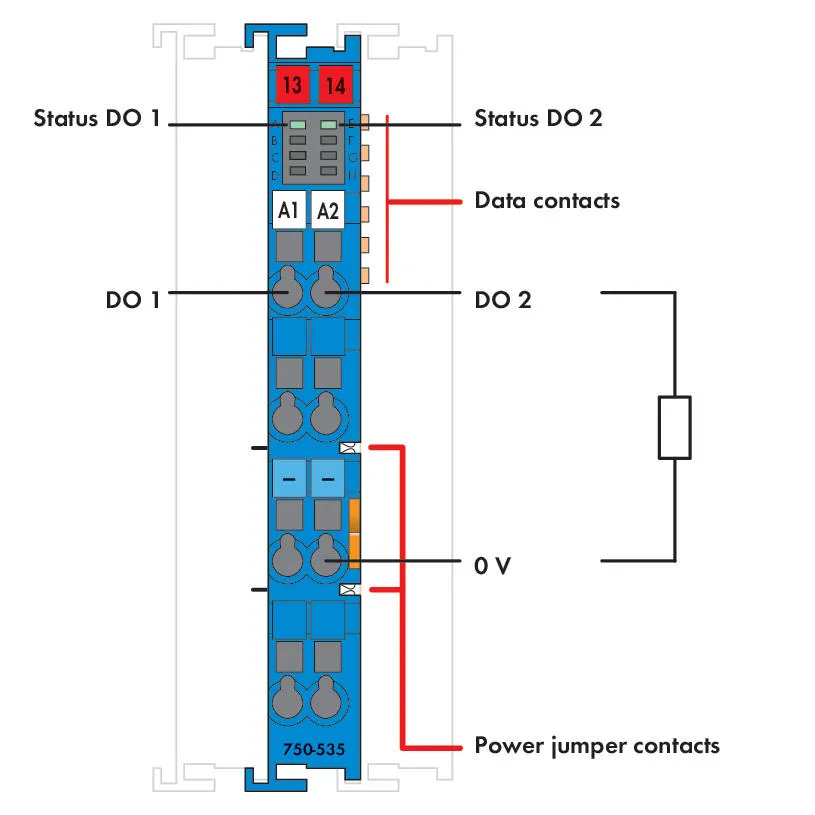

| Indicators | LED (A, E) green: Status DO 1, DO 2 |
Explosion protection
| Identification | ATEX: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I, IECEx/INMETRO: Ex ec [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC; [Ex ia Ma] I, cULus (Zone classified): Cl I Zn 2 AEx nA [ia Ga] IIC T4 Gc; Cl I Zn 2 AEx nA [ia IIIC] IIC T4 Gc; Ex nA [ia Ga] IIC T4 Gc X; Ex nA [ia IIIC] IIC T4 Gc X, cULus (Devision classified): Class I, Div. 2, Group A B C D, T4 |
|---|---|
| Ex standard | EN IEC 60079-0, -7, -11 |
| Safety-relevant data (circuit) | Uo = 26.8 V; Io = 99.91 mA; Po = 669.43 mW; linear characteristic curve |
| Reactances Ex ia IIC | Lo = 3.56 mH; Co = 92 nF |
| Reactances Ex ia IIB | Lo = 14.24 mH; Co = 720 nF |
| Reactances Ex ia IIA | Lo = 28.49 mH; Co = 2.37 μF |
| Reactances Ex ia I | Lo = 46.75 mH; Co = 4.2 µF |
| Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection data
| Connection technology: I/O | 4 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | blue |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.021 MJ |
| Weight | 50.6 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454725563 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 3e8a7c97-7b4c-474f-8496-a74b87b60f3a |
| SCIP notification number (Belgium) | c678f146-be73-484d-b0de-61357b04328e |
| SCIP notification number (Bulgaria) | d76645dc-92f6-42bf-b85b-a6283a5e8cf9 |
| SCIP notification number (Czech Republic) | 9115435c-3460-47a9-8ceb-24f4edf25ec4 |
| SCIP notification number (Denmark) | 0a6e1a82-33d4-4c0e-a321-1e09a38cffc6 |
| SCIP notification number (Finland) | e55ceb70-edb6-41e8-b9f6-7c5c0cc1a8a8 |
| SCIP notification number (France) | 196b02a7-97b4-46ba-b4ef-72e1e9851dc1 |
| SCIP notification number (Germany) | 0d000e2e-b07c-48cd-a924-0b87e6f27ed3 |
| SCIP notification number (Hungary) | ec63c6e2-00bf-453b-8860-e9ea2efc8b98 |
| SCIP notification number (Italy) | e2235fe7-3bf1-4430-98f5-9d59c75f8261 |
| SCIP notification number (Netherlands) | 63345460-c84a-4e9c-8209-e8fbab45e814 |
| SCIP notification number (Poland) | eb32fd0f-3adb-470f-83b8-915ff70fca7c |
| SCIP notification number (Romania) | 7c292429-f237-4f30-8bdd-96319a6914b5 |
| SCIP notification number (Sweden) | b2dae171-c90d-4037-8b49-57d02324377b |
