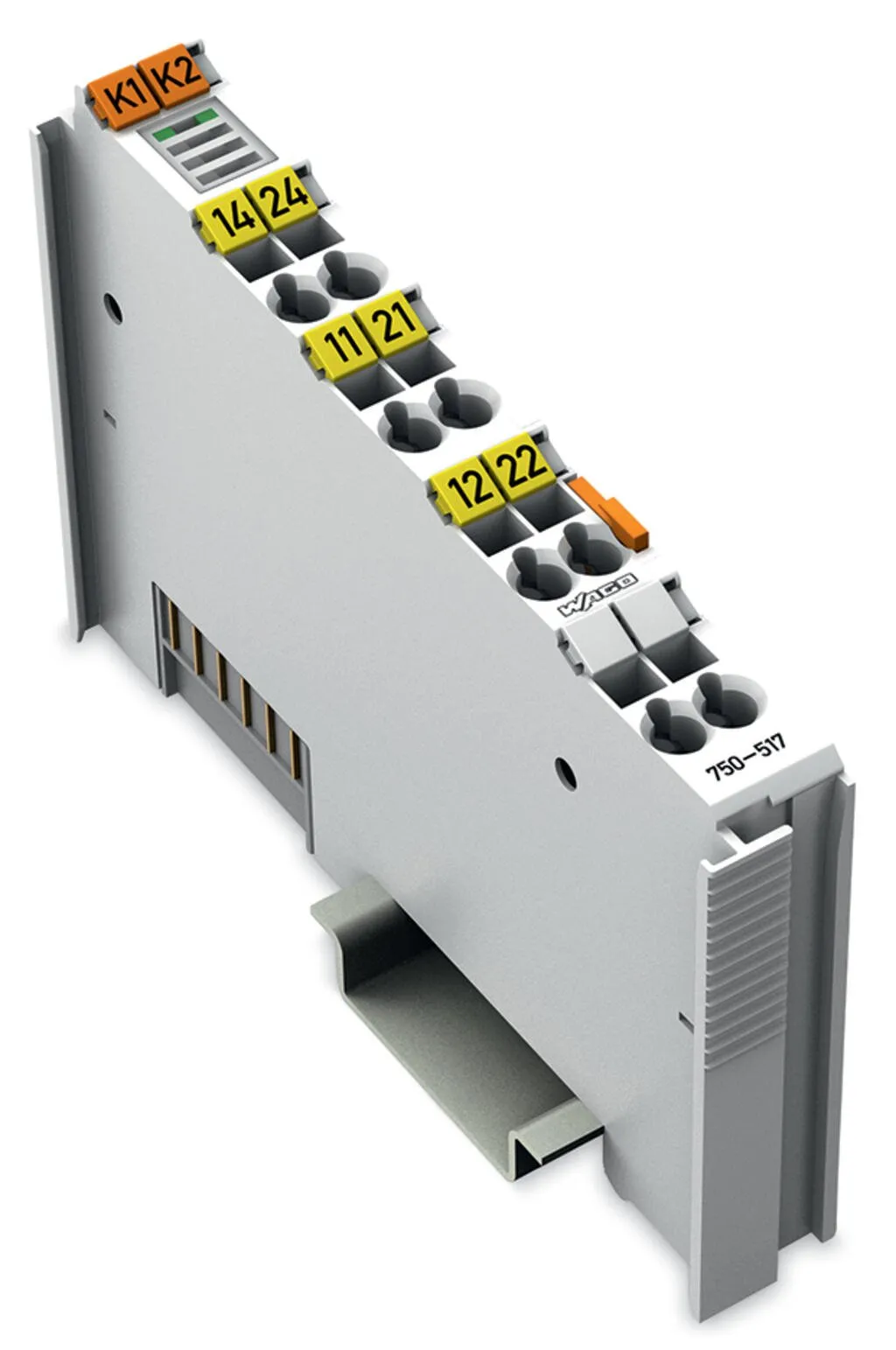

Wago 750-517
This digital output module transmits control signals from the automation device to the connected actuators.The internal system voltage triggers the relay.The NO contacts are electrically isolated.The…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

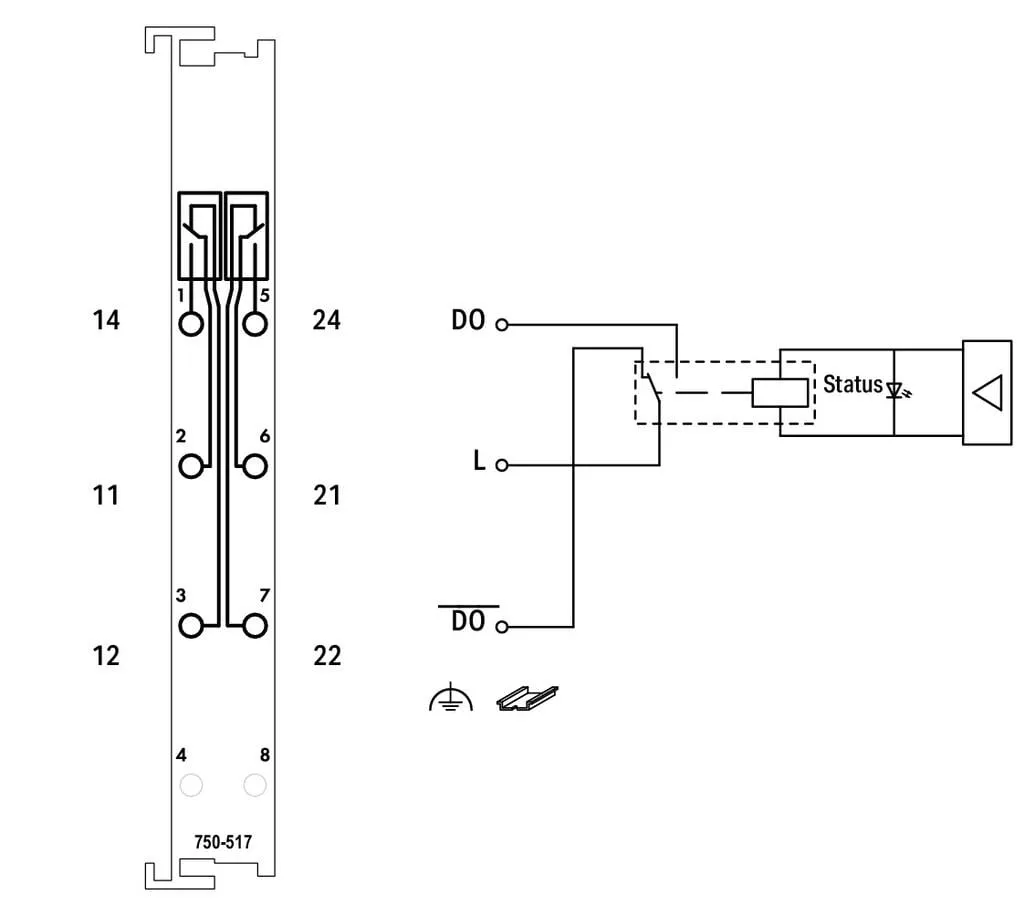

This digital output module transmits control signals from the automation device to the connected actuators.The internal system voltage triggers the relay.The NO contacts are electrically isolated.The state of the relay is indicated by a LED.
Specification
Technical data
| Number of digital outputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Actuator connection | 2 x (1-wire) |
| Output circuit design | 2 changeover contacts, Relay |
| Output characteristic | potential-free |
| Pull-in time (max.) | 8 ms |
| Drop-out time (max.) | 4 ms |
| Switching frequency (max.) | 0.1 Hz; Nominal load |
| Switching voltage (max.) | 250 VAC, 300 VDC |
| Switching current (max.) | 1 A |
| Switching current (note) | 1 A at 250 VAC and 40 VDC; 0.15 A at 300 VDC |
| Switching voltage (min.) | 12 V |
| Switching current (min.) | 100 mA |
| Electrical switching operations (min.) (at max. resistive load) | 1 x 10⁶ switching operations |
| Mechanical switching operations (min.) (at max. resistive load) | 5 x 10⁶ switching operations |
| Output data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 90 mA |
| Isolation | 1500 V (system/field) |

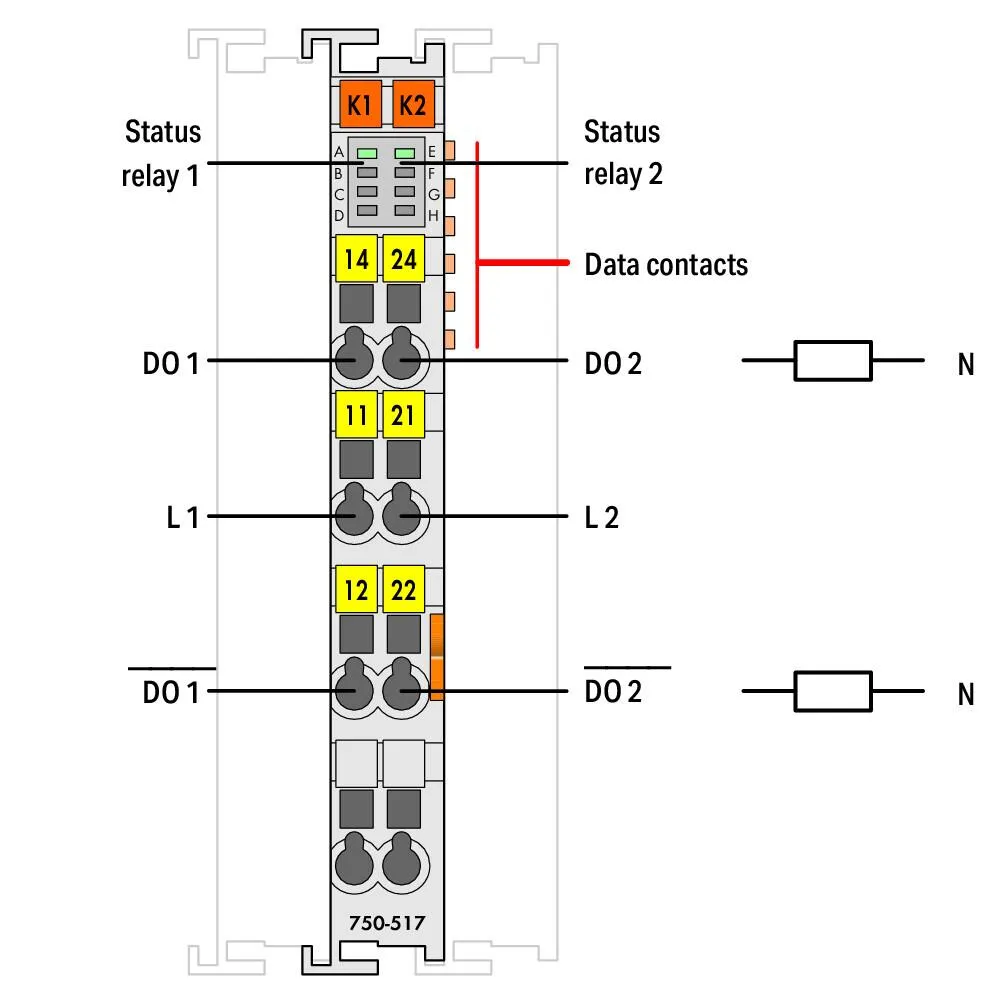

| Indicators | LED (A, E) green: Status relay 1, relay 2 |
Connection data
| Connection technology: I/O | 6 x CAGE CLAMP® (outputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Output |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.75 MJ |
| Weight | 52.4 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454393519 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32101517 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | d23da91f-e01d-4b3f-abff-91644fc7d390 |
| SCIP notification number (Belgium) | d2d28e1d-d3b8-483f-9dbf-81e42675a7a2 |
| SCIP notification number (Bulgaria) | c537b2f5-782d-44f4-9345-e26377f4023c |
| SCIP notification number (Czech Republic) | a23ff96e-8fa8-4b83-9bad-ef3b40c053d9 |
| SCIP notification number (Denmark) | f9ed76c2-b698-47ca-9b32-2a4d23d7cf89 |
| SCIP notification number (Finland) | 48f4b362-689d-4783-8fa7-fb8281f4de6d |
| SCIP notification number (France) | f70e38a4-f476-445f-95f0-c1ca99d972b7 |
| SCIP notification number (Germany) | 0f5e785a-f589-4f78-adf2-fee2907ef8d7 |
| SCIP notification number (Hungary) | 347d8628-50d3-4efc-8acf-d1eb35e1e395 |
| SCIP notification number (Italy) | fbb04aab-c065-480e-b1b2-6dc7d281c23d |
| SCIP notification number (Netherlands) | 66ebf648-b44c-4c7b-ac65-eee24ed5c534 |
| SCIP notification number (Poland) | 293c0675-8870-4f73-8eba-0cc7735c4a25 |
| SCIP notification number (Romania) | cdd0b075-ce3a-4c3f-9c2c-1d4260d9f848 |
| SCIP notification number (Sweden) | 06a0fa84-2cff-4b77-b24c-dc99f1acd233 |
