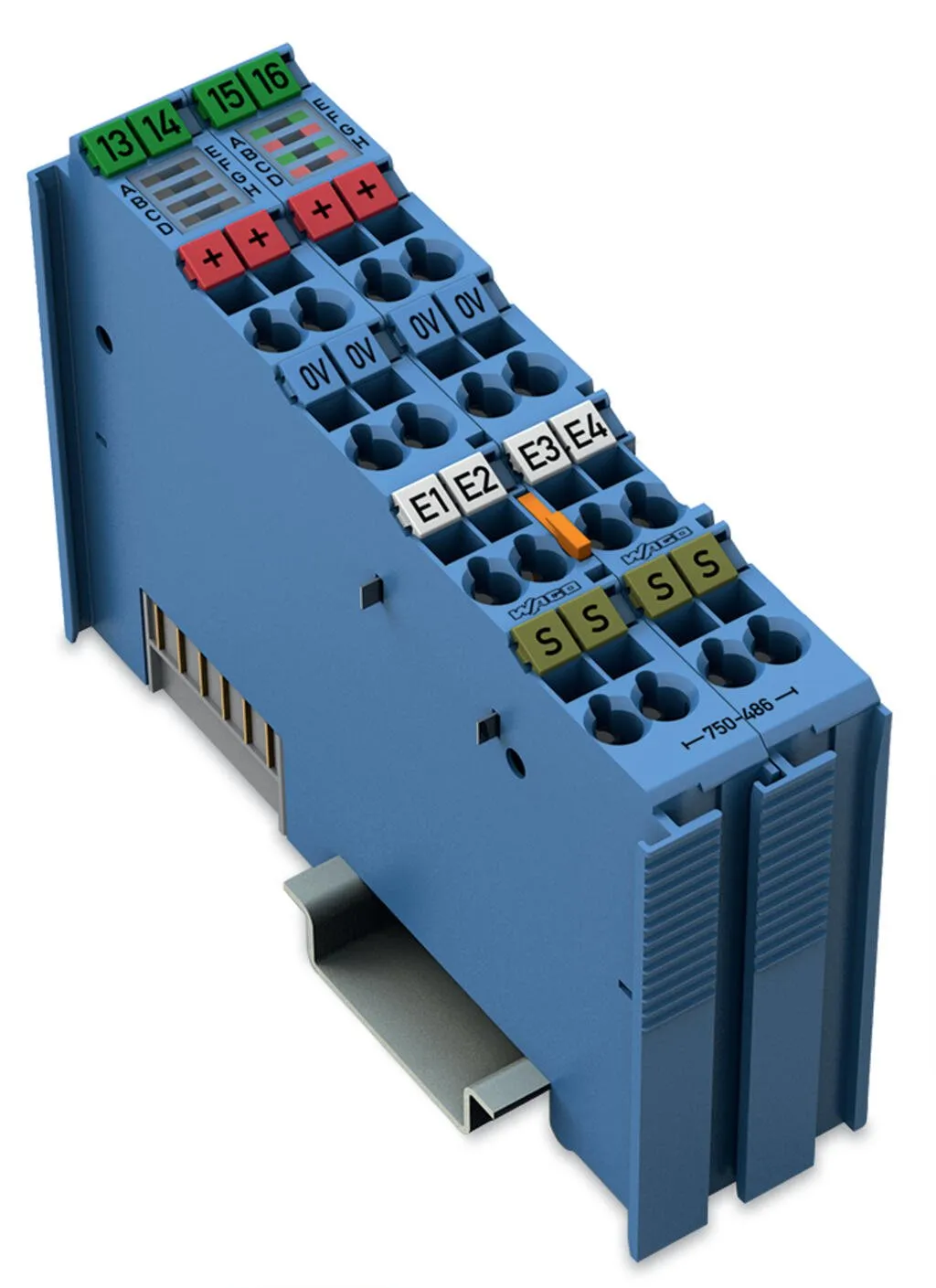

Wago 750-486
This analog input module supplies intrinsically safe signal conditioners in hazardous areas classified as Zone 0 and Zone 1, and processes their analog measurement signals.The WAGO I/O System 750/753…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

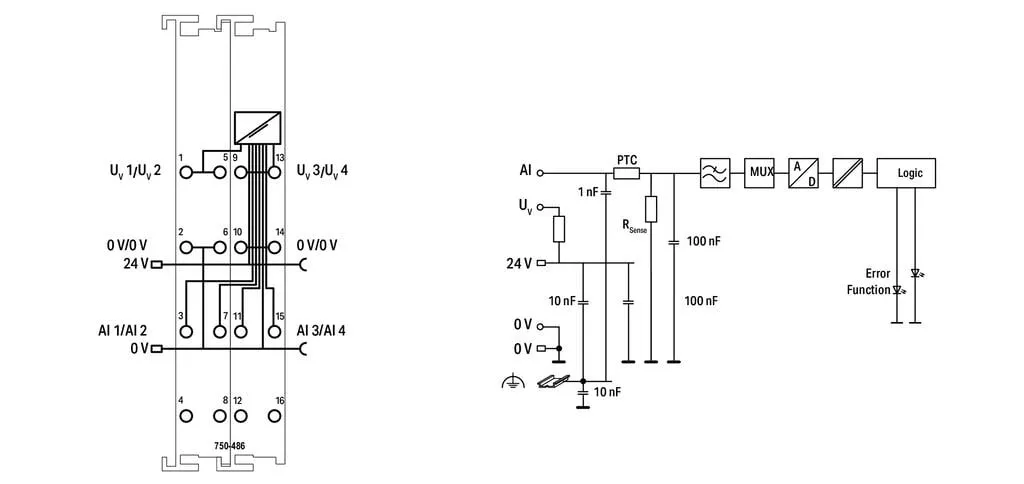

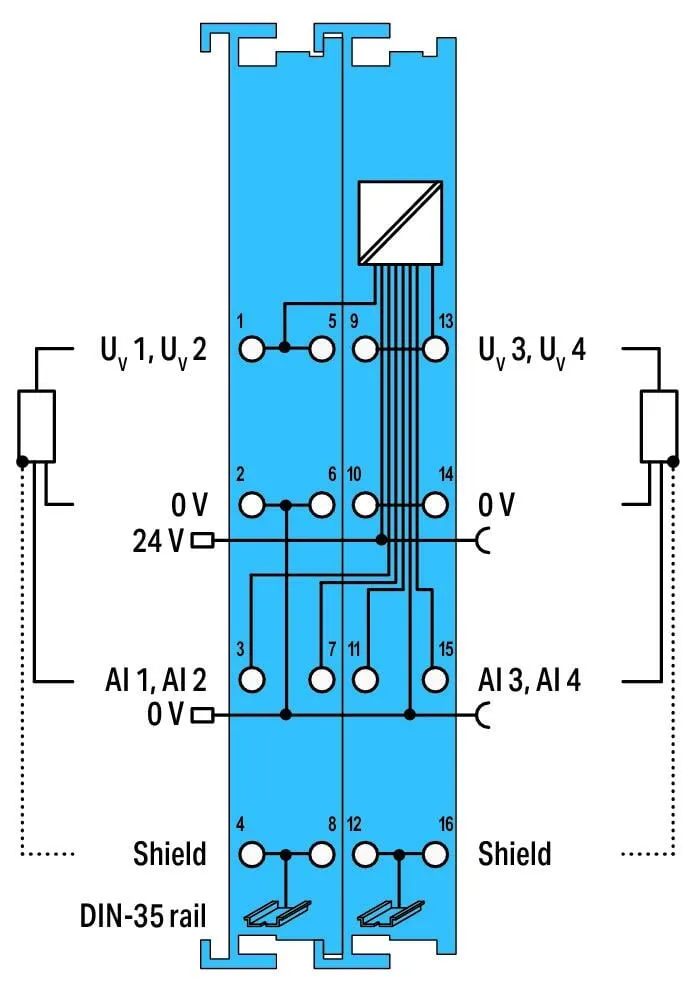

This analog input module supplies intrinsically safe signal conditioners in hazardous areas classified as Zone 0 and Zone 1, and processes their analog measurement signals.The WAGO I/O System 750/753 must be installed either in Zone 2 or in a non-hazardous area.The 24 V supply voltage is fed in via the power jumper contacts.The transmitter power supply is conditionally short-circuit protected.The shield connection directly connects to the DIN-rail.Indicators:Green LED (availability ON/OFF)Red LED (measurement range overflow/underflow, wire breakage, short circuit)Field and system levels are electrically isolated.
Specification
Notes
| Note | The analog output module must only be operated with a 24 VDC Ex i power supply!General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750/753 manuals! |
|---|
Technical data
| Item description | 4-Channel Analog Input; 0/4 … 20 mA; NAMUR NE43 |
|---|---|
| Number of analog inputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Current |
| Signal type (current) | 0 … 20 mADC; 4 … 20 mADC; 3.6 … 21 mADC |
| Sensor connection | 2 x (3-wire) |
| Signal characteristics | Single-ended |
| Sensor supply | 15 VDC |
| Resolution [bit] | 12 Bit |
| Conversion time (typ.) | 10 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | ±0.1 % |
| Temperature error (max.) of the upper-range value | ±0.01 %/K |
| Input resistance (max.) | 200 Ω |
| Intrinsically safe Ex i | Yes |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 45 mA |
| Supply voltage (field) | 24 VDC; (Ex i power supply: Uo = max. 26.8 V); via power jumper contacts (supply via blade contact; distribution via spring contact) |
| Current consumption, field supply (module with no external load) | 19 mA |
| Power consumption P<sub>max.</sub> | 2.7 W (at 4 x 21 mA signal current) |
| Power loss P<sub>l</sub> | 1.5 W (at 4 x 21 mA signal current) |
| Isolation | UM = 375 V system/supply |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 1 A |

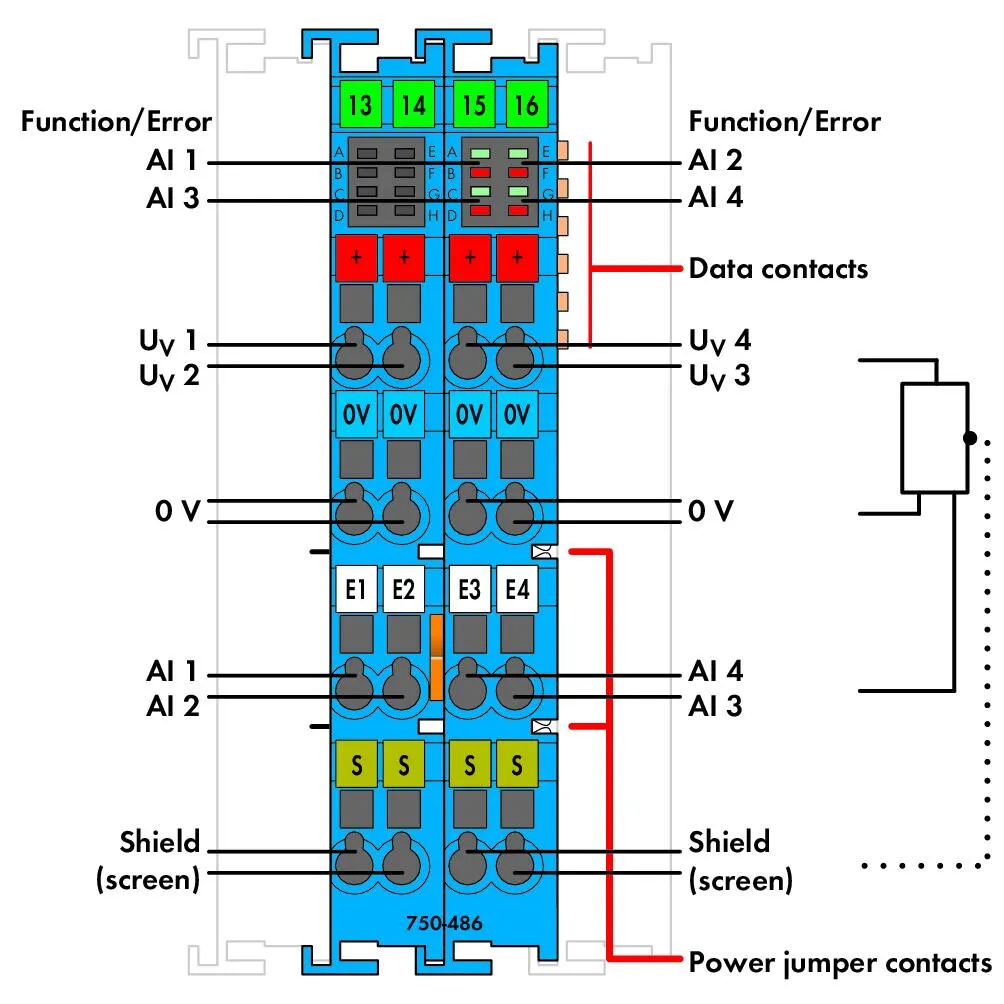

| Indicators | LED (A, E, C, G) green: Function AI 1 … AI 4; LED (B, F, D, H) red: Error AI 1 … AI 4 |
Explosion protection
| Identification | ATEX: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I, IECEx/INMETRO: Ex ec [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC; [Ex ia Ma] I |
|---|---|
| Ex standard | EN IEC 60079-0, -7, -11 |
| Safety-relevant data (circuit) | Uo = 26.8 V; Io = 96.6 mA; Po = 615 mW; linear characteristic curve |
| Reactances Ex ia IIC | Lo = 3.81 mH; Co = 92 nF |
| Reactances Ex ia IIB | Lo = 15.24 mH; Co = 720 nF |
| Reactances Ex ia IIA | Lo = 30.48 mH; Co = 2.37 μF |
| Reactances Ex ia I | Lo = 50 mH; Co = 4.2 µF |
| Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection data
| Connection technology: I/O | 16 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 24 mm / 0.945 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | blue |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.979 MJ |
| Weight | 116 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143516044 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 549055d6-6f9f-4c9d-b855-7486a1d6cb3a |
| SCIP notification number (Belgium) | 7c5e0ec5-4b5c-495e-85ab-8c4b17d0b137 |
| SCIP notification number (Bulgaria) | 485c2c34-1cda-4cc4-a49f-bdbe01d8d580 |
| SCIP notification number (Czech Republic) | 474cd881-197a-4e7f-9d9d-56ae52483311 |
| SCIP notification number (Denmark) | 7f8cc8a2-4c17-4246-901a-f36a098de931 |
| SCIP notification number (Finland) | 7602d62b-94b5-44a6-8da6-ccfea8ef5ecf |
| SCIP notification number (France) | 60a2160b-b980-4efb-ba16-b12cd1cabb0d |
| SCIP notification number (Germany) | 9e11c3b8-9702-4919-a91b-bda35f90810c |
| SCIP notification number (Hungary) | 8119bf7f-3b21-48b7-ab84-a594bf80a530 |
| SCIP notification number (Italy) | 40b21ee0-9bc8-486f-9958-c6e22e9afb1b |
| SCIP notification number (Netherlands) | 97e4e9f6-cc3f-4289-9a68-d071c0e6fa99 |
| SCIP notification number (Poland) | f0ea8734-9828-4e42-86bd-3c858df8aa95 |
| SCIP notification number (Romania) | 8d08dea9-f978-4ce4-9dc1-dcf3e759b55f |
| SCIP notification number (Sweden) | c378fdab-274a-422c-a91c-1e8be031c67d |
