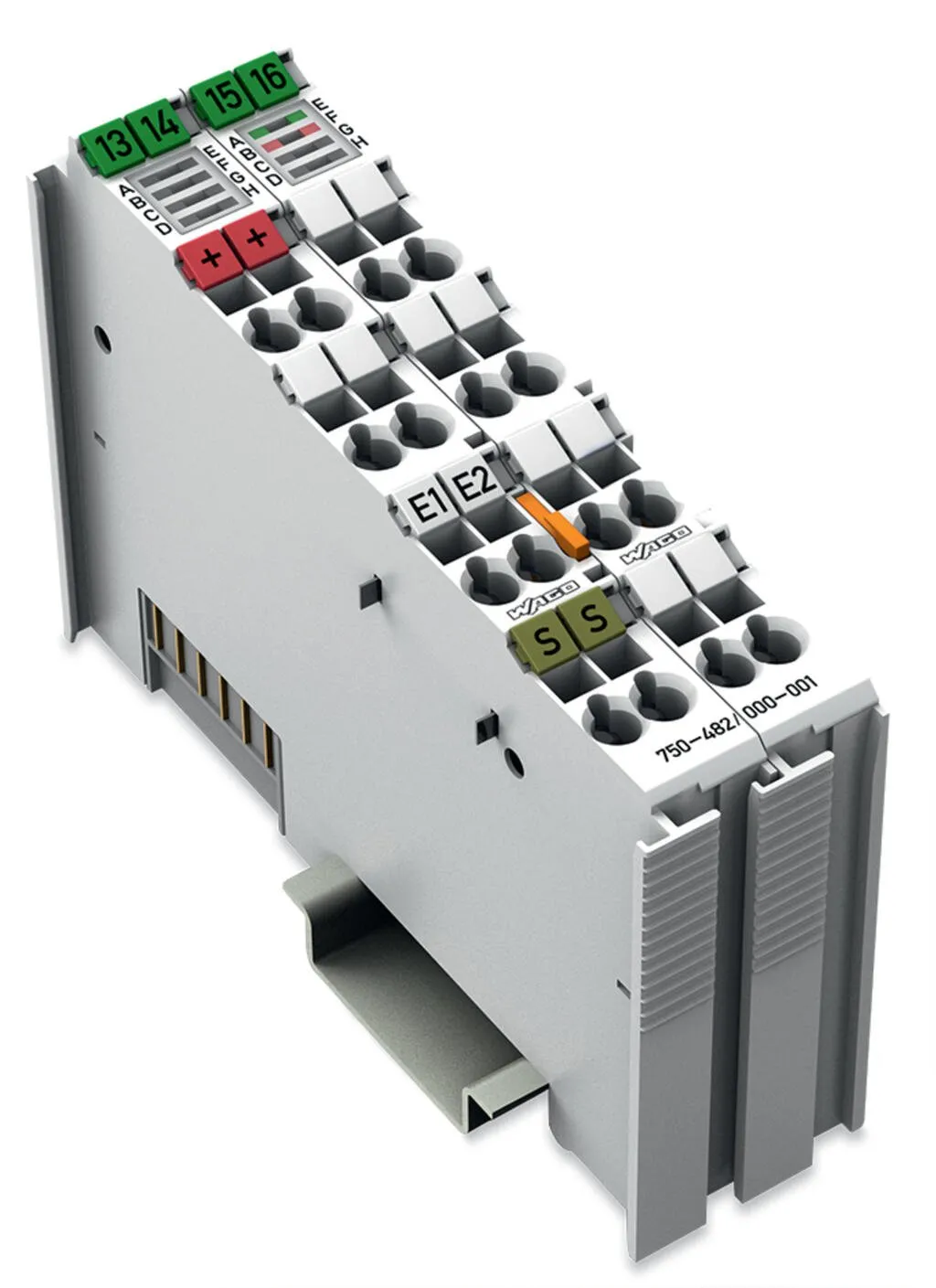

Wago 750-482/000-001
This analog input module powers field-side signal conditioners and transmits electrically isolated analog signals to the bus system.The 24 V field supply is derived from the module’s power jumper cont…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

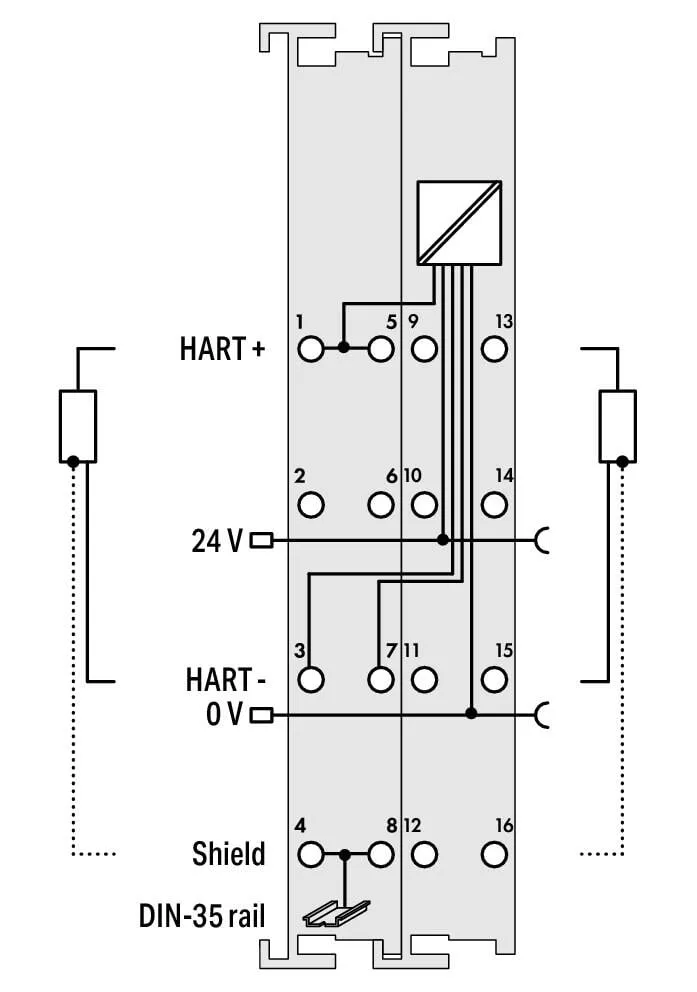

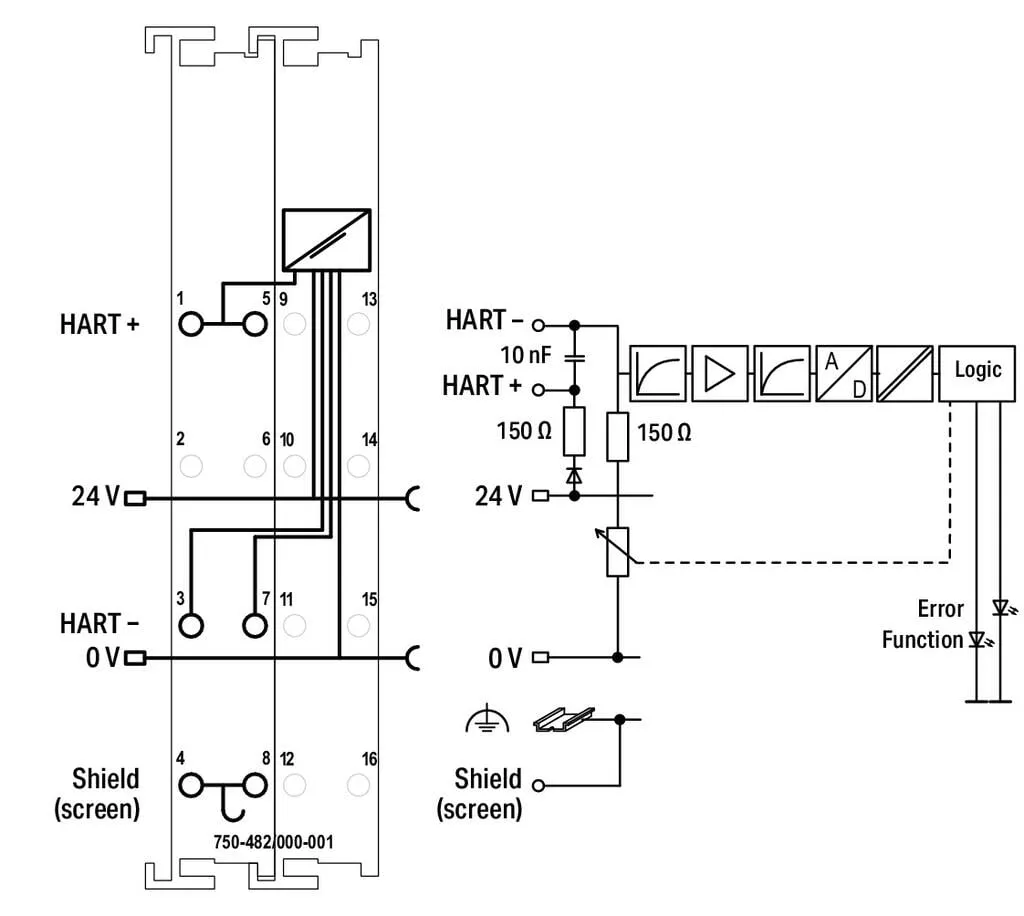

This analog input module powers field-side signal conditioners and transmits electrically isolated analog signals to the bus system.The 24 V field supply is derived from the module’s power jumper contacts. The shield directly connects to the DIN-rail. At approximately 25 mA, overload protection switches the measurement input to a high-resistance state. Once normal operating conditions resume, the measurement input will automatically switch back. This module powers 2-wire signal conditioners without dedicated power supply.Up to 4 HART dynamic variables (PV, SV, TV, QV) per channel can be mapped in the cyclic process image of the coupler or controller (parameterizable). For HART communication with connected intelligent HART field devices, the HART protocol can be mapped in the cyclic process image of the coupler or controller (parameterizable).FDT/DTM device drivers are available for select (programmable) fieldbus couplers, allowing HART tool routing to the connected HART device.Note:The analog output module must only be operated with a field-side power supply filter equipped with overvoltage (surge) protection (Item No. 750-624/020-001)!
Specification
Technical data
| Number of analog inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Current |
| Signal type (current) | 3.6 … 21 mADC |
| Sensor connection | 2 x (2-wire) |
| Input filter | parameterizable |
| Input filter: parametrizable (channel by channel) | yes |
| Input voltage (max.) | 24 V |
| Input voltage drop | (I meas < 28 mA): non-linear, overload protected U = 1.0 V + 300 Ω x I meas |
| Signal characteristics | Single-ended |
| Diagnostics | Wire break, short circuit, measurement range overflow/underflow |
| Resolution [bit] | 12 Bit |
| Data width | 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of dynamic variables); 2 x 2-byte data + 6-byte mailbox |
| Overvoltage protection | 30 V, reverse polarity protected |
| Conversion time (typ.) | 315 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.2 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Line break detection | I meas < 1.0 mA |
| Short-circuit detection | I meas > 23 mA |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 25 mA |
| Supply voltage (field) | 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| HART devices per channel | 1 device (single-drop, no multi-drop) |
| HART modems per channel | 1 modem (no multiplex) |
| Isolation | 300 VAC system/supply |

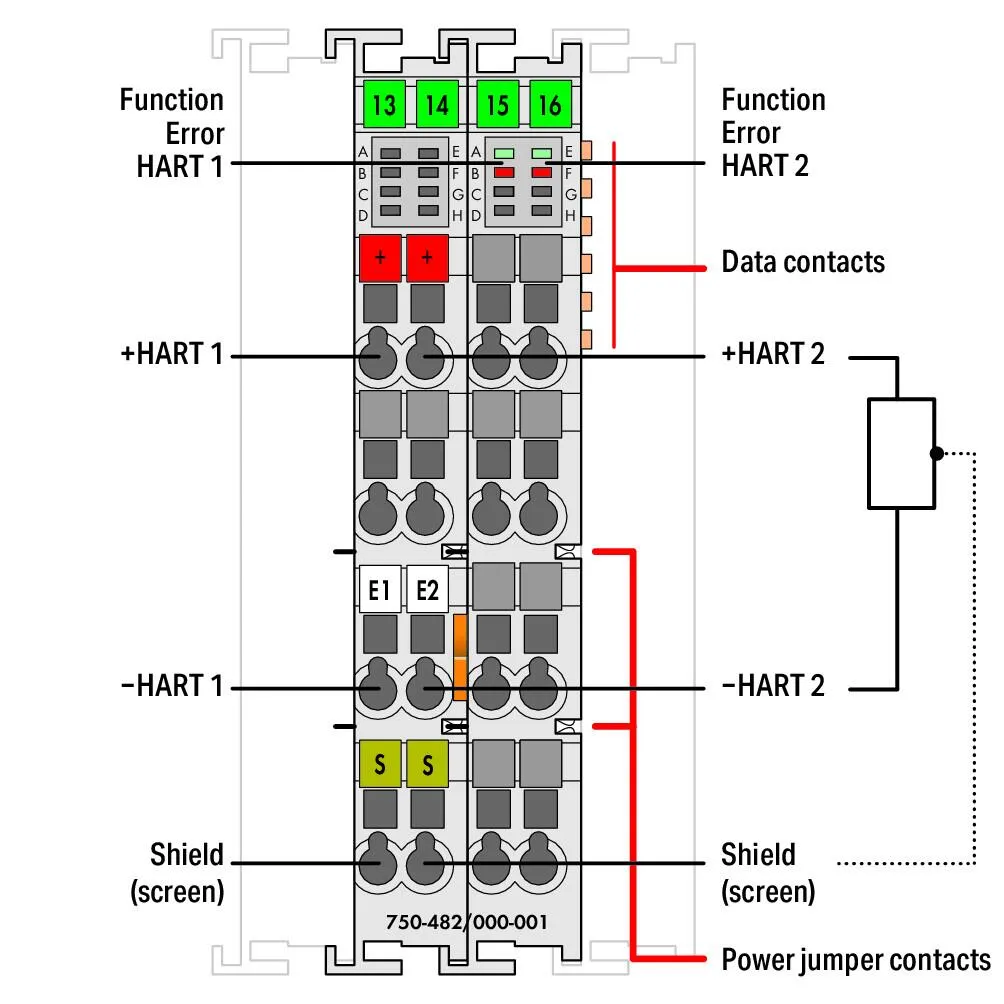

| Indicators | LED (A, E) green: Function HART 1, HART 2; LED (B, F) red: Error HART 1, HART 2 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 6 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 24 mm / 0.945 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 1.463 MJ |
| Weight | 94.2 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143686327 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 11120-22-2, 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7, 872-50-4 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide, Lead silicate, N-Methylpyrrolidone |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
