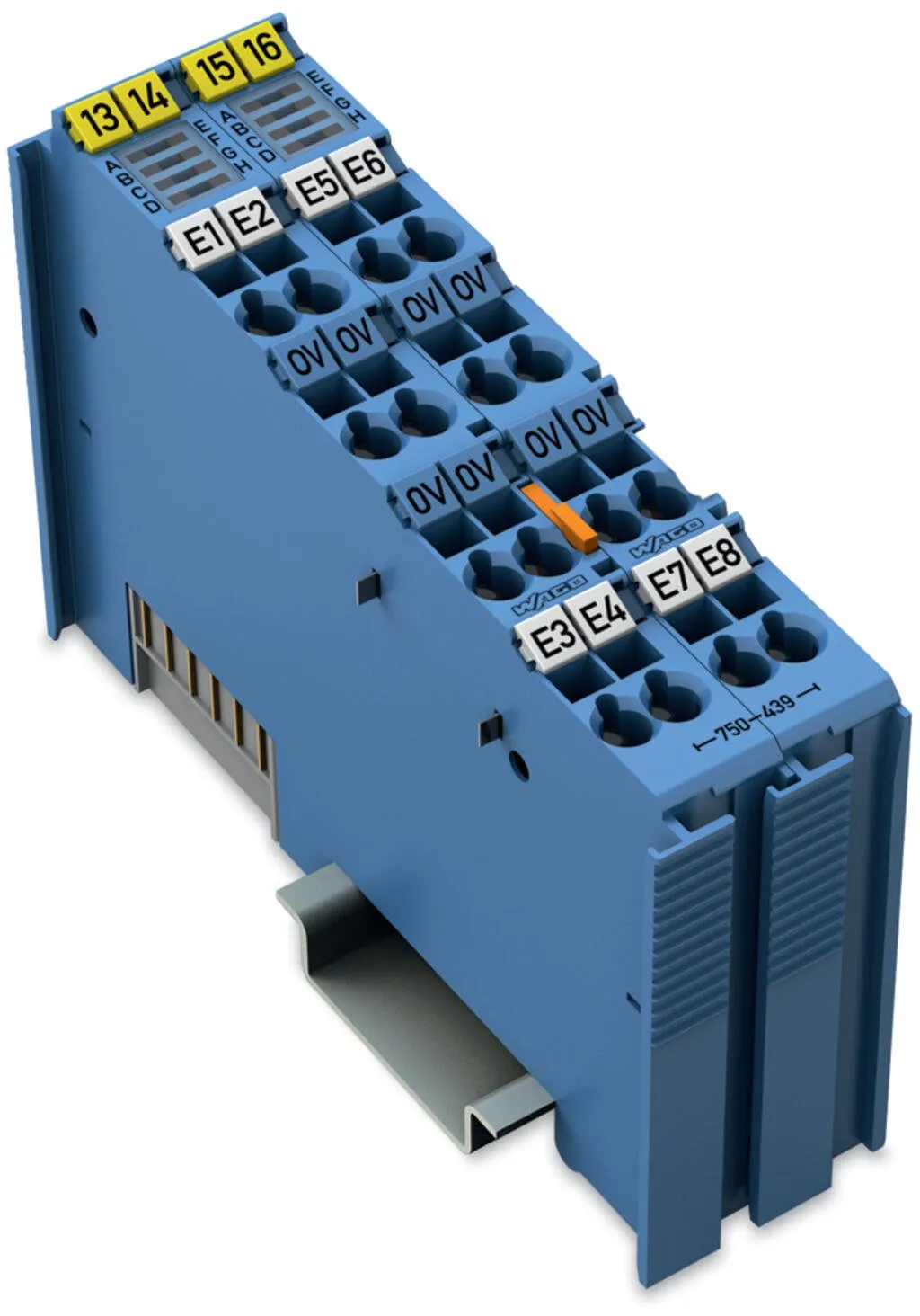

Wago 750-439
This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas, permitting channel-by-channel short circuit and wire-break diagnostics. NAMUR sensors, optocouplers…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

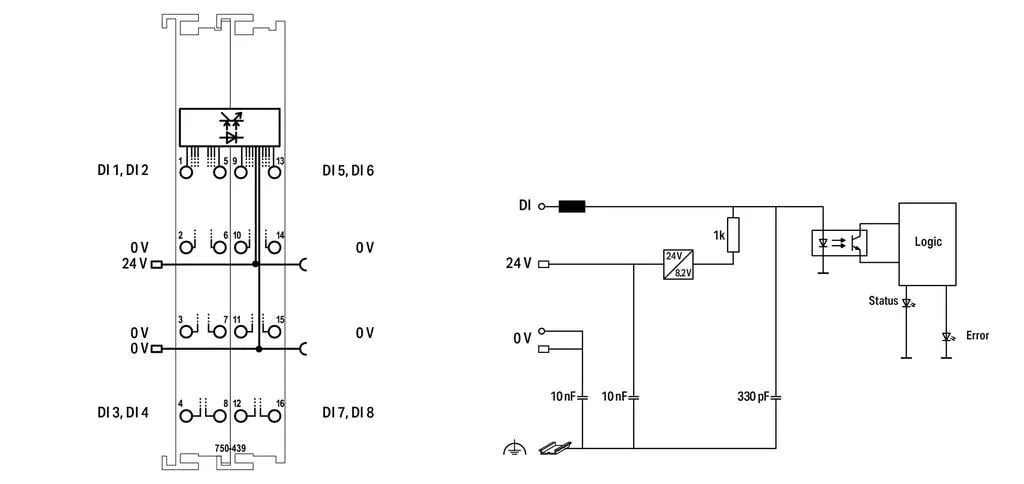

This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas, permitting channel-by-channel short circuit and wire-break diagnostics. NAMUR sensors, optocouplers, mechanical contacts or other actuating elements can also be connected via intrinsically safe devices. The process image can be used to define the sensor type (break or make contact) as well as to switch off the diagnostics (e.g., if contact monitoring in order to suppress the LED diagnostics). The WAGO I/O System 750/753 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V. Indicators:Green LED (signal ON)Red LED (short circuit)Red flashing LED (wire-break) Field and system levels are electrically isolated.
Specification
Notes
| Note | The digital input module must only be operated with a 24 VDC Ex i power supply!General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750/753 manuals! |
|---|
Technical data
| Item description | 8-Channel Digital Input; NAMUR |
|---|---|
| Number of digital inputs | 8 |
| Total number of channels (module) | 8 |
| Signal type | NAMUR |
| Signal current (0) NAMUR | ≤1.2 mA |
| Signal current (1) NAMUR | ≥2.1 mA |

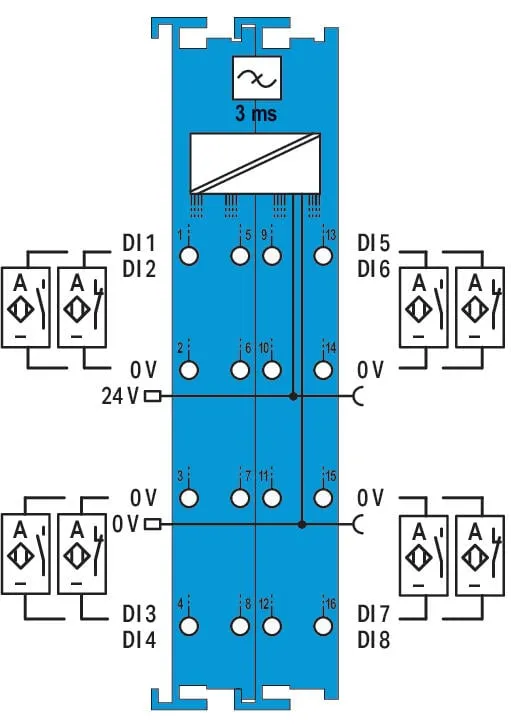

| Sensor connection | 8 x (2-wire) |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Sensor supply | 8.2 VDC |
| Input pulse separation | ≥3 ms |
| Protection against incorrect wiring | Short circuit monitoring: > 6.4 mA, Wire break monitoring: < 0.3 mA |
| Open-circuit voltage | 8.2 V |
| Short-circuit current | ≤ 8.2 mA (± 0.2 mA) |
| Switching hysteresis | 0.2 mA |
| Input resistance | 1,000 Ω |
| Intrinsically safe Ex i | Yes |
| Diagnostics | Short circuit; wire break (can be switched off) |
| Input data width (internal) max. | 16 Bit |
| Output data width (internal) max. | 16 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 56 mA |
| Supply voltage (field) | 24 VDC; (Ex i power supply: Uo = max. 26.8 V); via power jumper contacts (supply via blade contact; distribution via spring contact) |
| Current consumption, field supply (module with no external load) | 11 mA |
| Power consumption P<sub>max.</sub> | 1.2 W |
| Power loss P<sub>l</sub> | 0.54 W |
| Isolation | 300 VAC system/supply |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 1 A |

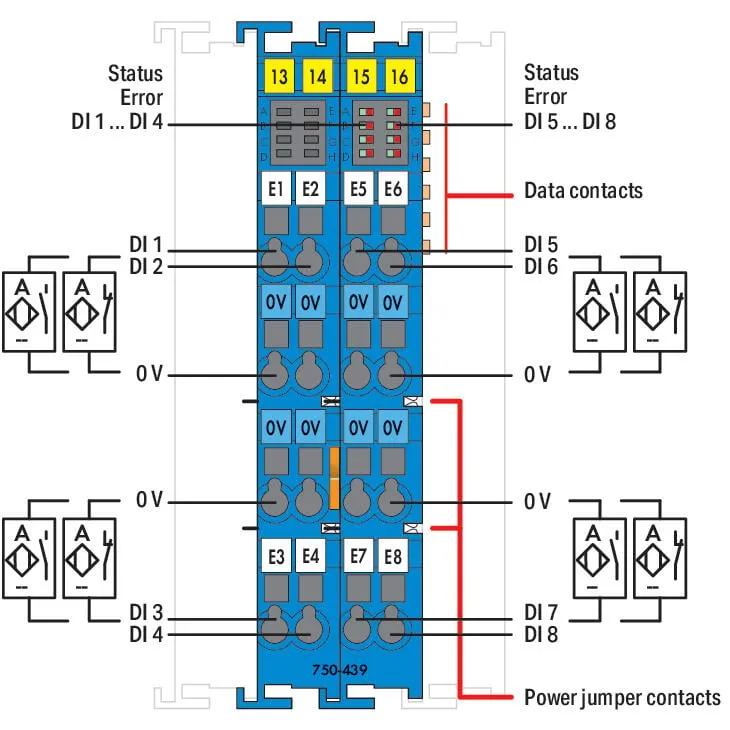

| Indicators | LED (A-H) green/red: Status/error DI 1 … DI 8 |
Explosion protection
| Identification | ATEX: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I, IECEx/INMETRO: Ex ec [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC; [Ex ia Ma] I, cULus (Zone classified): Cl I Zn 2 AEx nA [ia Ga] IIC T4 Gc; Cl I Zn 2 AEx nA [ia IIIC] IIC T4 Gc; Ex nA [ia Ga] IIC T4 Gc X; Ex nA [ia IIIC] IIC T4 Gc X, cULus (Devision classified): Class I, Div. 2, Group A B C D, T4 |
|---|---|
| Ex standard | EN IEC 60079-0, -7, -11 |
| Safety-relevant data (circuit) | Uo = 11.76 V; Io = 12.4 mA; Po = 36.67 mW; linear characteristic curve |
| Reactances Ex ia IIC | Lo = 100 mH; Co = 1 µF |
| Reactances Ex ia IIB | Lo = 100 mH; Co = 9.9 µF |
| Reactances Ex ia IIA | Lo = 100 mH; Co = 39 µF |
| Reactances Ex ia I | Lo = 100 mH; Co = 30 µF |
| Reactances (note) | Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo) |
Connection data
| Connection technology: I/O | 16 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 24 mm / 0.945 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | blue |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.971 MJ |
| Weight | 92.7 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821623366 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | ab2b0b13-bb95-4c15-8394-82c4c9d52749 |
| SCIP notification number (Belgium) | c6ee6b5f-6f1a-471d-8c44-1f6d6389d951 |
| SCIP notification number (Bulgaria) | 891c072a-a3e2-4eb6-8107-16c3e92cacf2 |
| SCIP notification number (Czech Republic) | 5bf03aac-ebfb-43ce-88a4-240cf142f532 |
| SCIP notification number (Denmark) | a03e9e8e-795d-4e0b-b425-01d5f0683a7c |
| SCIP notification number (Finland) | 1758daaa-6689-4e30-887e-2cda3c834e90 |
| SCIP notification number (France) | 56b0f838-dc81-4307-8f78-bd3bec62180f |
| SCIP notification number (Germany) | f7ef89ec-ea5f-4bb7-924a-2c3007fb12ec |
| SCIP notification number (Hungary) | d9edf110-7a3d-4f12-ae42-db22248b10f5 |
| SCIP notification number (Italy) | 713a564a-6988-4f06-8add-5f6267f159a4 |
| SCIP notification number (Netherlands) | 55c285c4-aca9-47a9-9d76-6c974645c1f6 |
| SCIP notification number (Poland) | d1cc851c-a1f8-4e6c-be16-f432d7894d28 |
| SCIP notification number (Romania) | b075eeed-eeb3-4cb5-959f-0a476fb1531b |
| SCIP notification number (Sweden) | bbcf69d5-e8d2-4110-9130-751ea0742175 |
