Wago 750-427
This digital input module receives control signals from field devices (e.g., sensors).The module features two channels. Each channel can be used as a high-side or low-side switching input.Field and sy…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

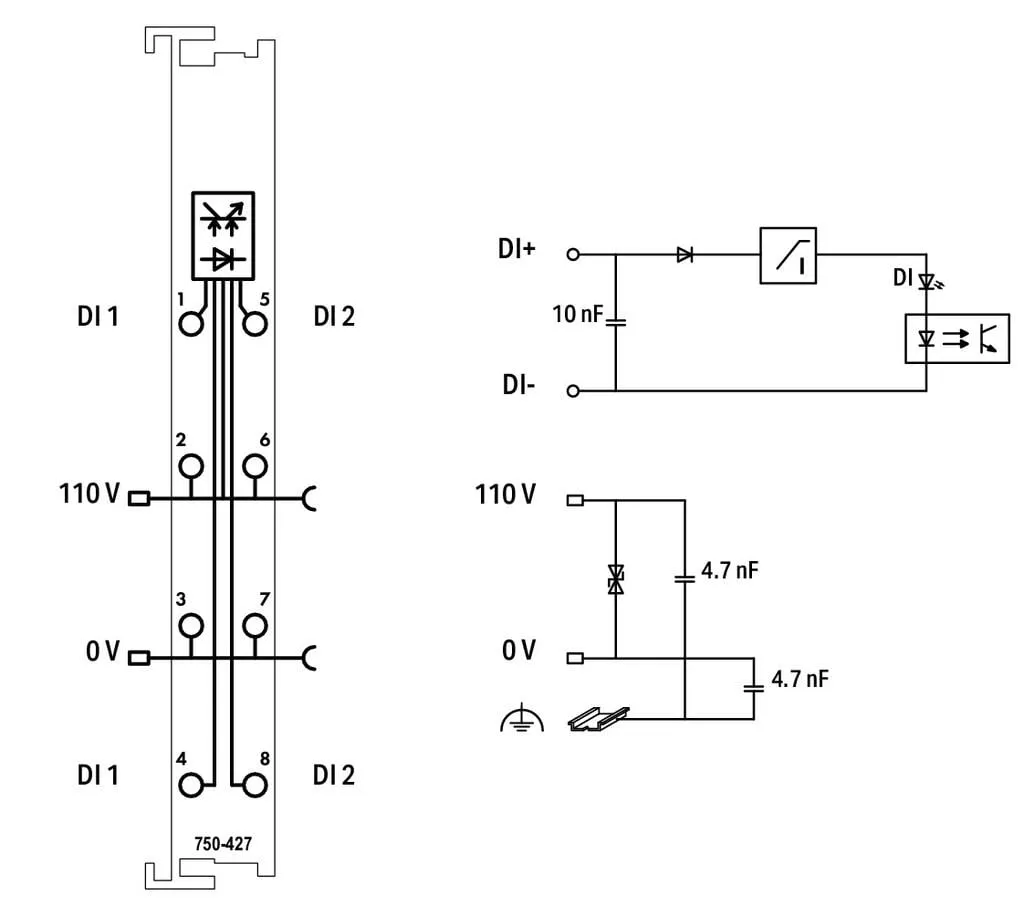

This digital input module receives control signals from field devices (e.g., sensors).The module features two channels. Each channel can be used as a high-side or low-side switching input.Field and system levels are electrically isolated.Notice: An additional supply module must be added for 110 VDC supply!
Specification
Technical data
| Number of digital inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 110 VDC |
| Sensor connection | 2 x (2-wire) |

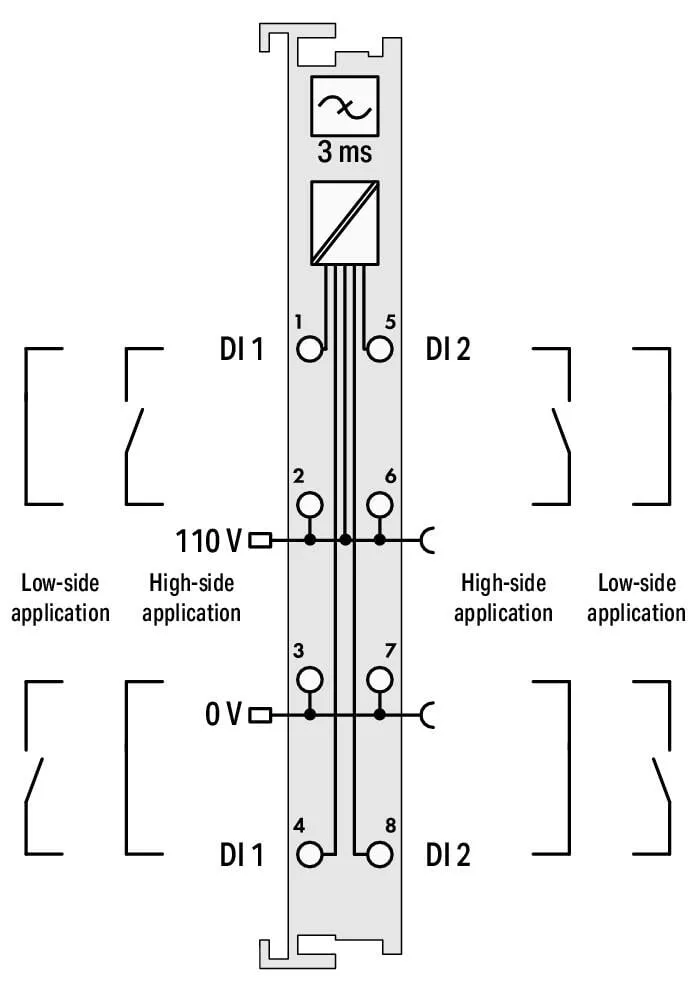

| Input characteristic | high-side/low-side switching, configurable |
| Input filter | 3 ms |
| Input current per channel for signal (1) typ. | 2.5 mA |
| Voltage range for signal (0) | −14 … +50 VDC |
| Voltage range for signal (1) | 70 … 143 VDC |
| Sensor supply | 110 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 2.5 mA |
| Supply voltage (field) | 110 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 1500 V (system/field) |

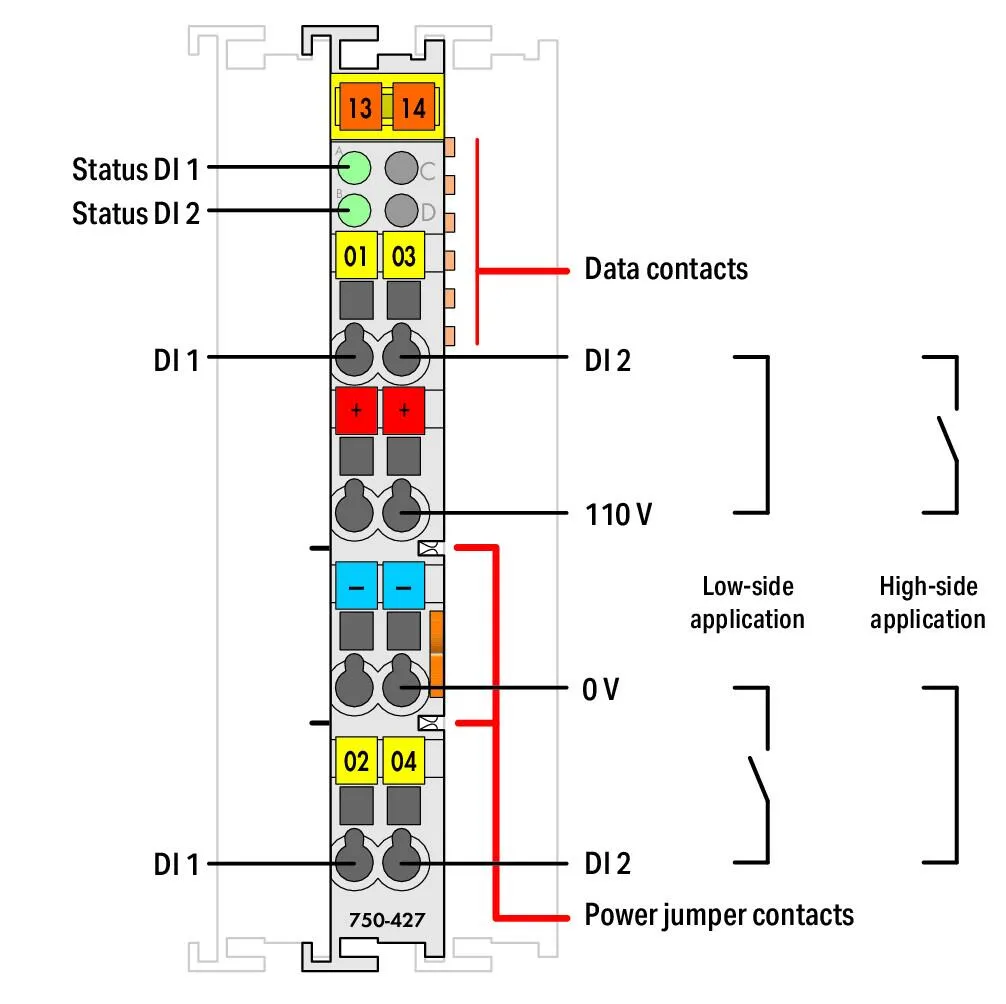

| Indicators | LED (A, B) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.744 MJ |
| Weight | 47.4 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454540180 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1317-36-8, 7439-92-1, 79-94-7, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | Lead monoxide, Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a), 7(c)-I |
| SCIP notification number (Austria) | cf1aa558-52fe-4131-bb0f-5b7e854caae7 |
| SCIP notification number (Belgium) | 351890c6-81a1-4982-9495-8d068138e1f7 |
| SCIP notification number (Bulgaria) | 621a3245-5613-4e84-a98c-e5fe76d8da31 |
| SCIP notification number (Czech Republic) | 17f70fa7-b851-460b-bad6-1a1c2f95222f |
| SCIP notification number (Denmark) | c56468b7-d25e-42a3-b680-3d40c9d50af6 |
| SCIP notification number (Finland) | cfb5f3d7-ba33-476c-91de-b9de79e96819 |
| SCIP notification number (France) | f0989ef2-e262-4b4b-8aea-e4c914ecbdae |
| SCIP notification number (Germany) | cab925c4-9c24-49c7-ac73-030b9fad111f |
| SCIP notification number (Hungary) | 11d05b7a-6d31-4340-b8e3-9b0c05873ee6 |
| SCIP notification number (Italy) | 306c58e4-21c1-4299-9eba-c81689f19261 |
| SCIP notification number (Netherlands) | 961810cc-470c-483a-bf4b-87920b095b00 |
| SCIP notification number (Poland) | 8094b10e-6252-423a-bde0-024d514c70e3 |
| SCIP notification number (Romania) | ce7052f8-cbe2-4b0a-a5e2-c7eb7f498646 |
| SCIP notification number (Sweden) | b8817650-f051-4582-983b-113487fd7e0c |
