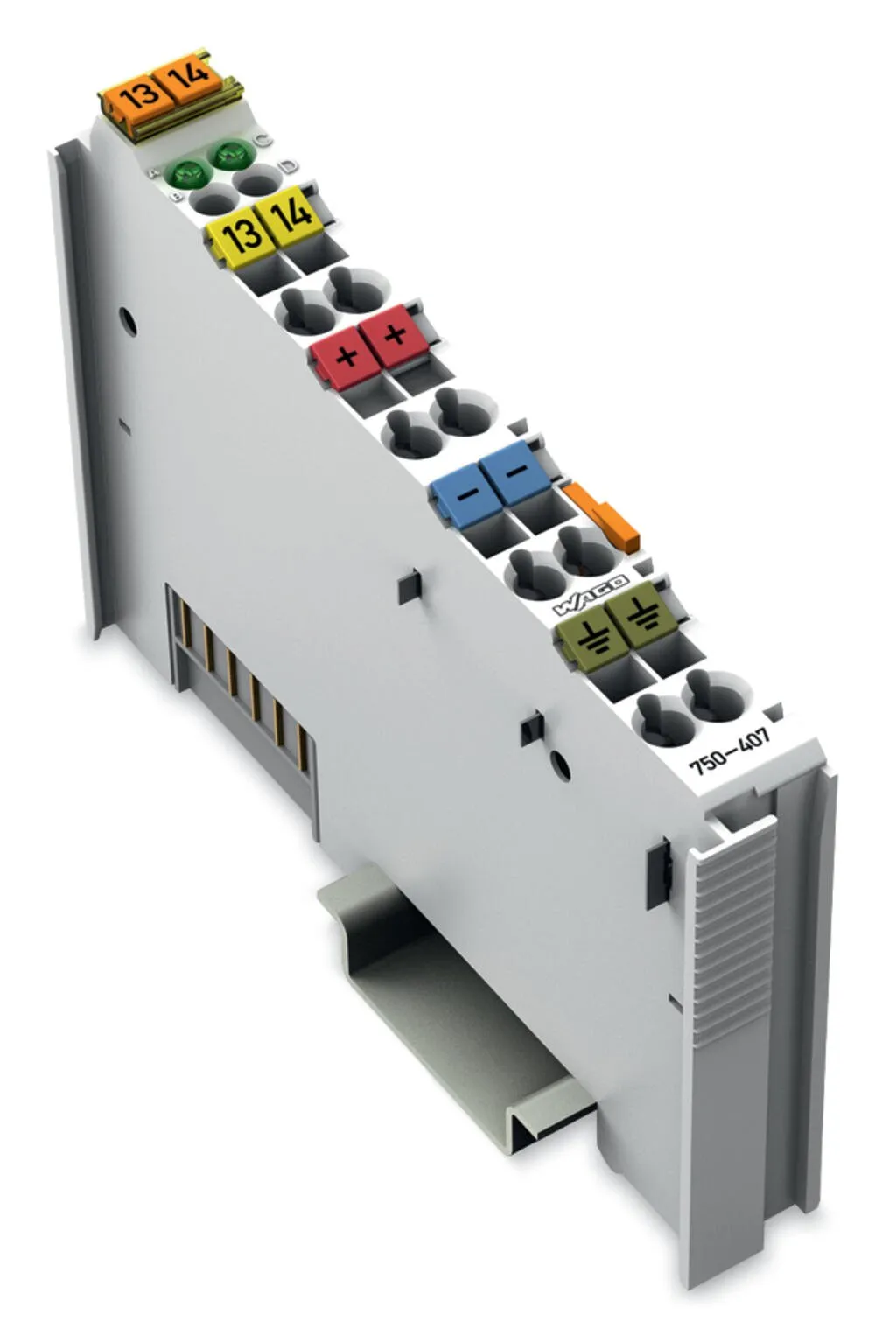

Wago 750-407
This digital input module receives control signals from field devices (e.g., sensors).Each input module has a 3.0 ms noise-rejection filter.Field and system levels are electrically isolated.Notice:An…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This digital input module receives control signals from field devices (e.g., sensors).Each input module has a 3.0 ms noise-rejection filter.Field and system levels are electrically isolated.Notice:An additional supply module must be added for 220 VDC supply!
Specification
Technical data
| Number of digital inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 220 VDC |
| Sensor supply | 220 VDC |

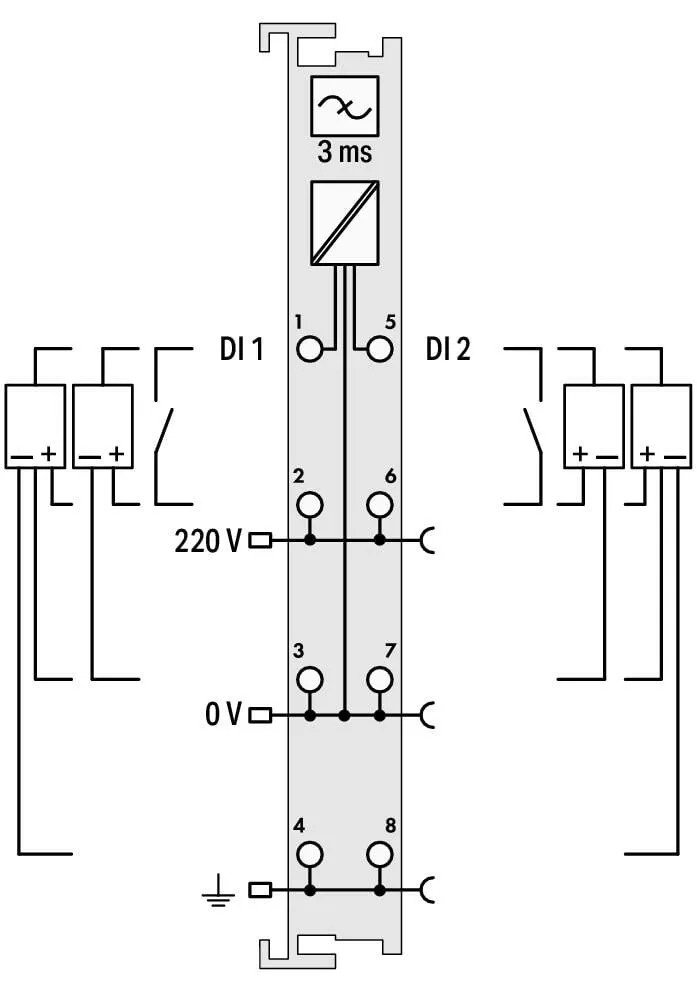

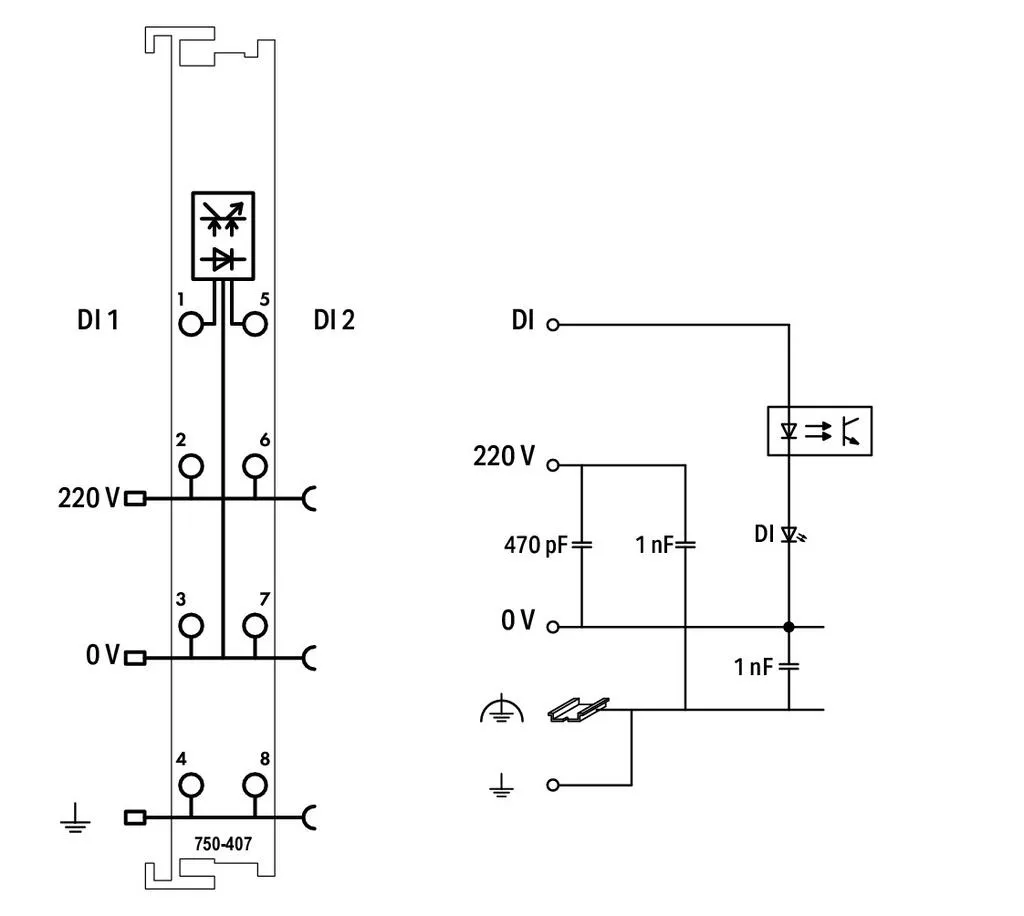

| Sensor connection | 2 x (2-wire, 3-wire, 4-wire) |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (1) typ. | 1.2 mA |
| Voltage range for signal (0) | −3 … +100 VDC |
| Voltage range for signal (1) | 160 … 286 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 5 mA |
| Supply voltage (field) | 220 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |

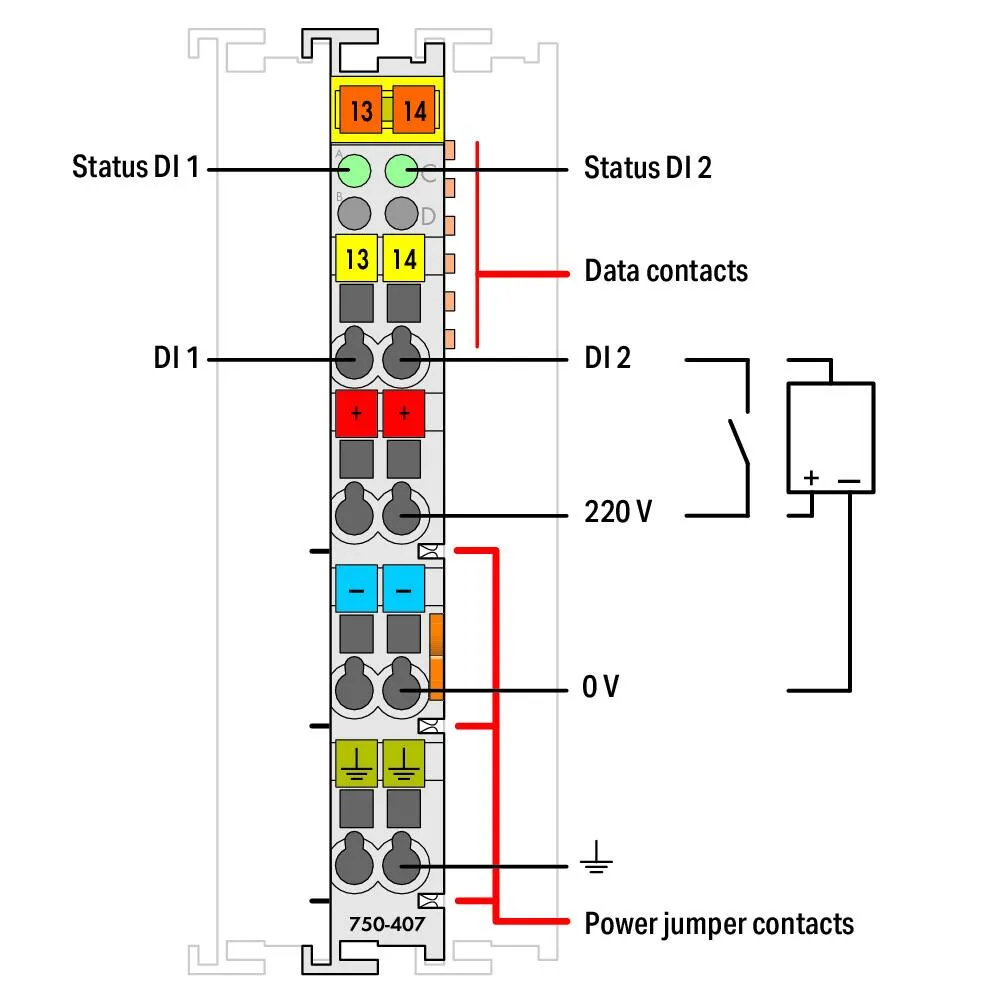

| Indicators | LED (A, C) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
