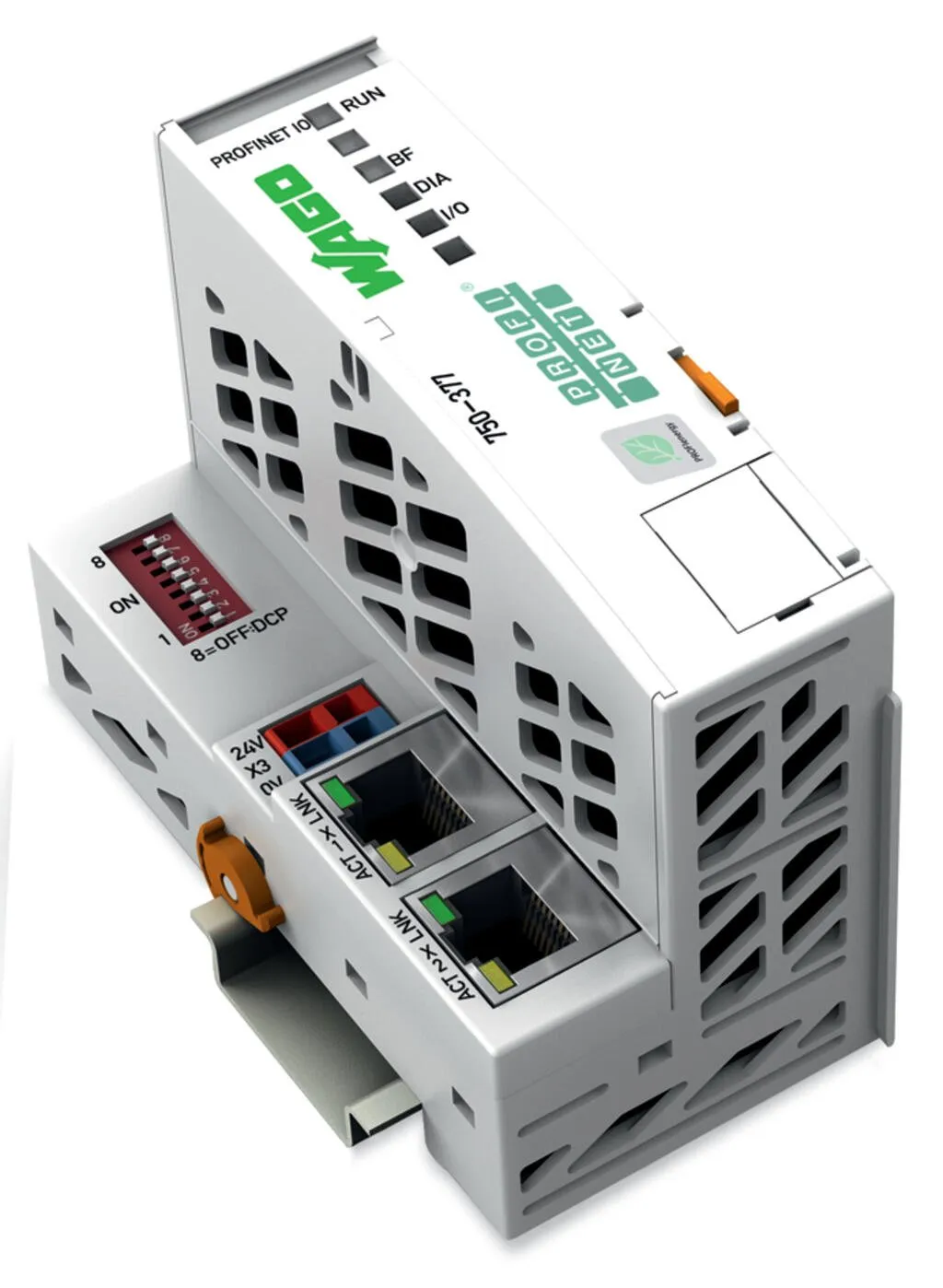

Wago 750-377/025-000
This fieldbus coupler connects the WAGO I/O System 750 to PROFINET IO (open, real-time Industrial ETHERNET automation standard). The coupler identifies the connected I/O modules and creates local proc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This fieldbus coupler connects the WAGO I/O System 750 to PROFINET IO (open, real-time Industrial ETHERNET automation standard). The coupler identifies the connected I/O modules and creates local process images for one I/O controller and one I/O supervisor according to preset configurations. This process image may include a mixed arrangement of analog (word-by-word data transfer) or complex modules and digital (bit-by-bit data transfer) modules. The fieldbus coupler operates as an I/O device in the network. It features an integrated 2-port switch, simplifying the creation of a line structure without additional network components.The device name can be assigned via DCP protocol or a default name can be instantiated via DIP switch.
Specification
Technical data
| Communications | PROFINET IO |
|---|---|
| Device-specific | Supported profiles: PROFIsafe V2, PROFIenergy V1.0; ID code: Vendor ID: 0x011D; Device ID: 0x02EE; Module ID: 0x01000177 (firmware version 01, 02), 0x02000177 (from firmware version 03) |
| PROFINET IO features | Integrierter 2-Port-Switch; Autonegotiation; Auto-MDIX; isochrone Echtzeitkommunikation; Sendetakt: 1 ms (RT); 1, 2, 4 ms (IRT); Gerätetausch ohne Programmiergerät |
| Transmission rate | 10/100 Mbit/s (10 Mbit/s (ETHERNET protocols), 100 Mbit/s full duplex (PROFINET IO)) |
| Bus segment length (max.) | 100 m |
| Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5 |
| Number of modules per node (max.) | 64 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 256 bytes/256 bytes |

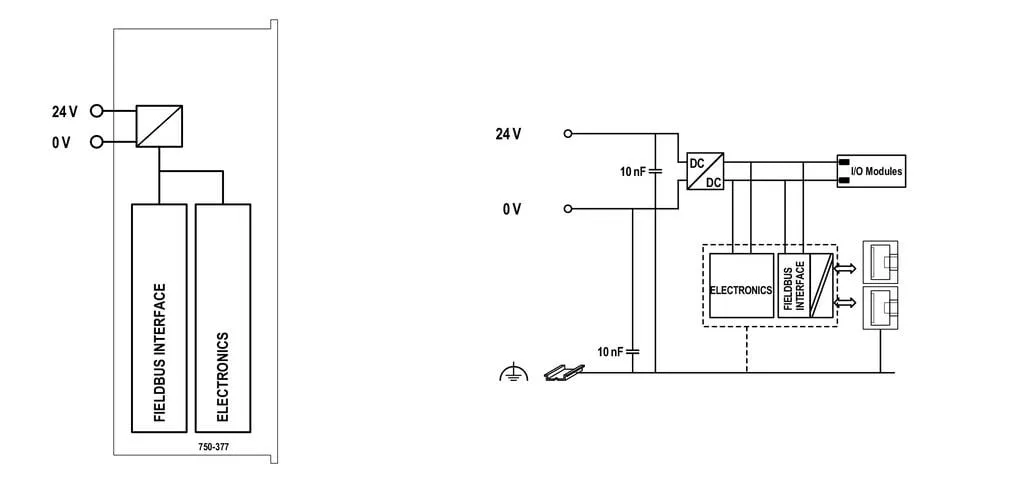

| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector |
| Current consumption (5 V system supply) | 450 mA |
| Total current (system supply) | 700 mA |
| Input current (typ.) at nominal load (24 V) | 280 mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
| Isolation | 500 V system/field |
Connection data

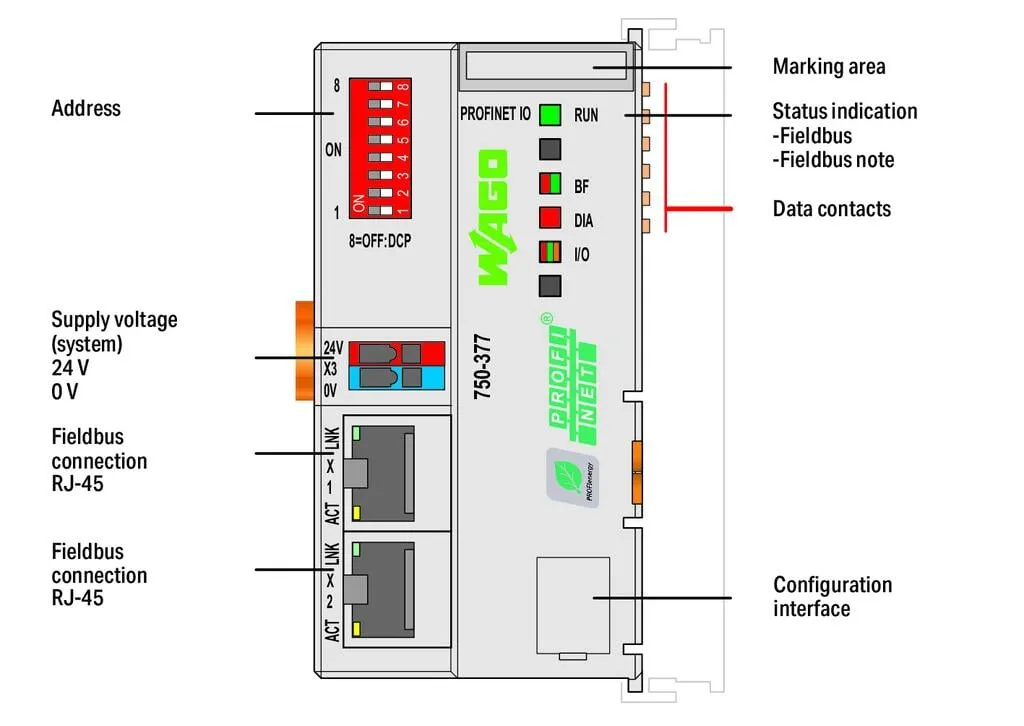

| Connection technology: communication/fieldbus | PROFINET IO: 2 x RJ-45 |
|---|---|
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | System supply |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
Physical data
| Width | 49.5 mm / 1.949 inches |
|---|---|
| Height | 96.8 mm / 3.811 inches |
| Depth | 71.9 mm / 2.831 inches |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.043 MJ |
| Weight | 79.9 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -20 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143039369 |
| Customs tariff number | 85176200000 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 |
| ETIM 9.0 | EC001603 |
| ETIM 10.0 | EC001603 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 693-98-1, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 2-methylimidazole, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 2b3c31ee-153f-4ae4-aabf-9afd3e1c51e3 |
| SCIP notification number (Belgium) | 0f341bd2-c1aa-459c-a12a-65132929e1f3 |
| SCIP notification number (Bulgaria) | e8be251a-df80-4ccb-984e-5b50811c91f8 |
| SCIP notification number (Czech Republic) | f61fa6e1-c21f-497c-b1ff-61575b15c102 |
| SCIP notification number (Denmark) | 4ca5da0e-57f8-40d9-ba49-f855539eaf12 |
| SCIP notification number (Finland) | c9e003b0-f162-444c-9a80-e31fdf51eb0e |
| SCIP notification number (France) | 3ed0fc6d-82bf-4871-99ec-4f64eba3ee75 |
| SCIP notification number (Germany) | 6b9fecea-b750-4dfb-938f-bc1aa055021d |
| SCIP notification number (Italy) | 956d0147-5a94-4f2c-90c1-cc24cd3a51ab |
| SCIP notification number (Netherlands) | 39f12ac7-e7fc-4121-bd2b-b0f27b112071 |
| SCIP notification number (Poland) | 27048b93-5fe4-4dcf-b7a8-c2062fb9ae6e |
| SCIP notification number (Romania) | b3ae85ed-b95f-43b8-b12d-4db847f23ce3 |
| SCIP notification number (Sweden) | b016dcfc-4512-49b6-b75b-892ffe25d074 |
