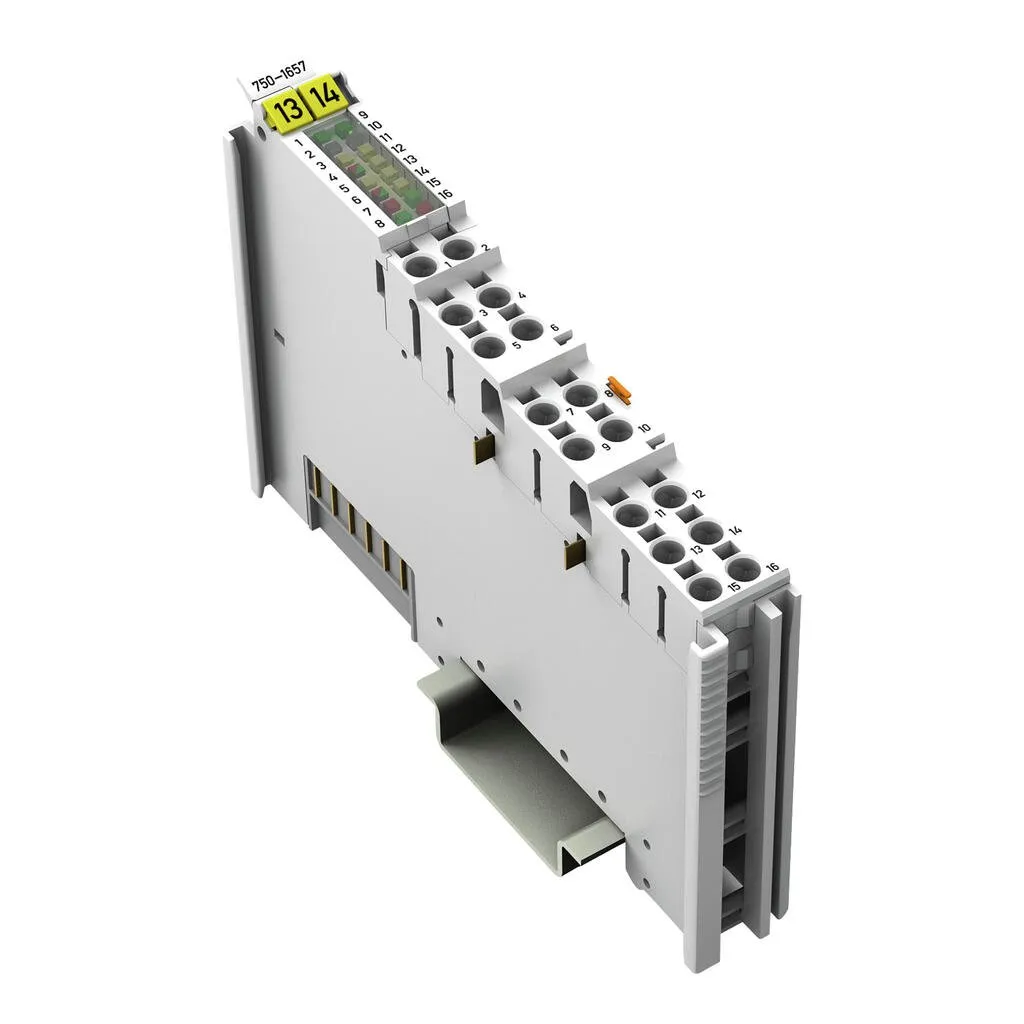

Wago 750-1657
Increasingly complex products, manufacturing flexibility and high demands on quality assurance require intelligent, configurable and programmable sensors. To fulfill these demands, IO-Link streamlines…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

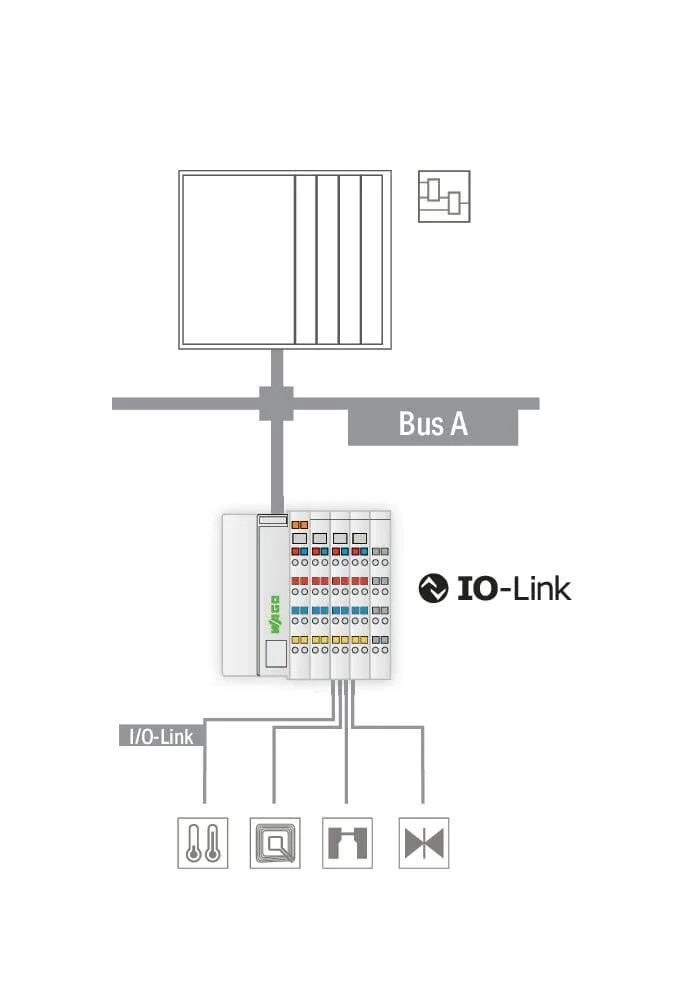

Increasingly complex products, manufacturing flexibility and high demands on quality assurance require intelligent, configurable and programmable sensors. To fulfill these demands, IO-Link streamlines the varying interfaces required to connect to a control system and tooling.A 3-wire connection can communicate process data (as single bits, bytes and data blocks for input and output data). It also communicates acyclic data (for identification, configuration, parameterization and diagnostics) with up to 230.4 kBaud to both sensors and actuators.The functions and performance data are defined via device description files for the IO-Link devices and can be easily customized via WAGO-I/O-CHECK or the WAGO IO-Link Configurator. If a device must be replaced, the configuration and parameterization can be automatically restored without maintenance personnel. This makes project design, installation and operation considerably simpler! The module meets the IO-Link test specification V1.1.3 from January 2021. Four different IO-Link devices, or even digital standard sensors/actuators, can connect to the WAGO 750-1657 IO-Link Master simultaneously.At just 12 mm (0.47 inch) wide, the module has three connections for each of the four channels.
Specification
Technical data

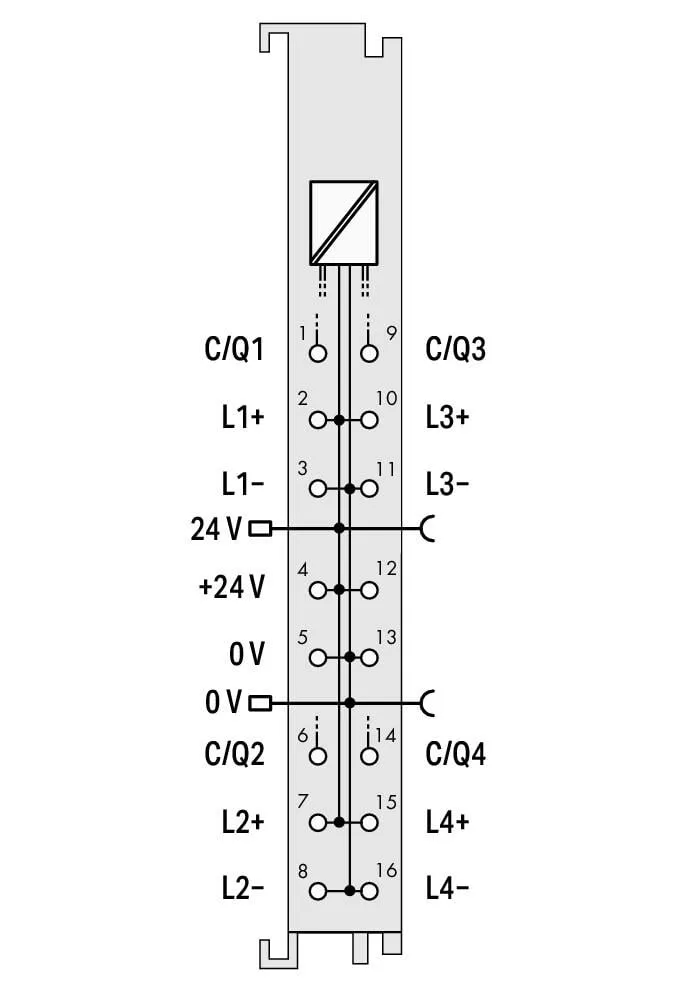

| Topology | 4 IO-Link ports (point-to-point) |
|---|---|
| Supply current per port | Max. 0.3 A (max. 1 port up to 1 A) |
| Transmission modes | 4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3) |
| Data width | 4–48 bytes, configurable |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 52 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 11 mA |
| Isolation | 500 V system/field |

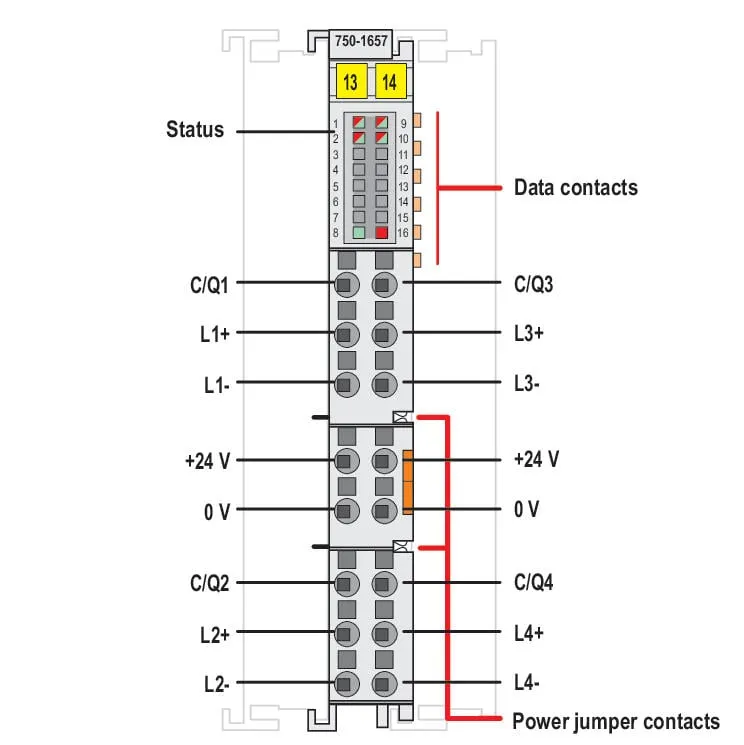

| Indicators | LED (1, 2, 9, 10) red/green: operating status C/Q 1 … C/Q 4; LED (8) green: operating status IO-Link master; LED (16) red: group error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection requirement (permissible cable length) | 20 m |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.625 MJ |
| Weight | 47.9 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, EN 61131-2 |
| EMC emission of interference | per EN 61000-6-4, EN 61131-2 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966426274 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 417e4afb-df33-4fe0-b956-b6feac0973dd |
| SCIP notification number (Belgium) | 019effd5-7801-41ea-a4bf-b1afd4ced148 |
| SCIP notification number (Bulgaria) | 85f5d345-bf7c-46e0-b0ab-f63301f3cbb5 |
| SCIP notification number (Czech Republic) | 6ec46183-7e3e-461f-bee5-f79741fde24a |
| SCIP notification number (Denmark) | 9bee9ae5-7fc8-4331-86c8-b67587ebb4d0 |
| SCIP notification number (Finland) | b676605c-4bb8-41ec-9072-1545874fca71 |
| SCIP notification number (France) | 956001fd-676f-4082-a8c6-d2ff45777eed |
| SCIP notification number (Germany) | ca507305-84aa-4a29-be8f-42d8168ef012 |
| SCIP notification number (Hungary) | d6d5c5dc-b3fe-4717-bd8e-f41e677b9bd2 |
| SCIP notification number (Italy) | 6ca0b994-b062-4f08-8c50-743c8123a061 |
| SCIP notification number (Netherlands) | a6670b2f-7af5-4b1a-86d9-6a094492ac3a |
| SCIP notification number (Poland) | 411abd2f-5a1d-4833-b95b-4ec37fe8030a |
| SCIP notification number (Sweden) | b59b76a1-8efa-479e-b711-9f191f556d3c |
