Wago 750-1502
This digital input/output module features eight inputs and eight outputs in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices and transmits them to the co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

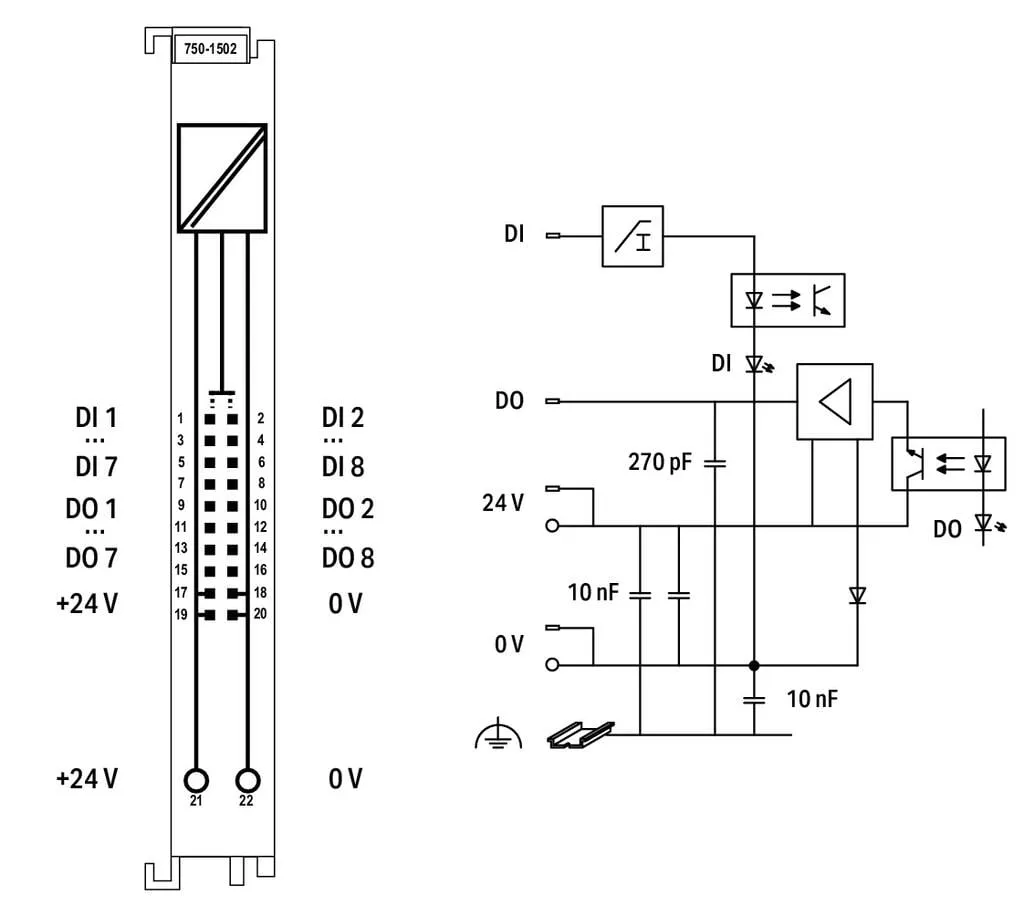

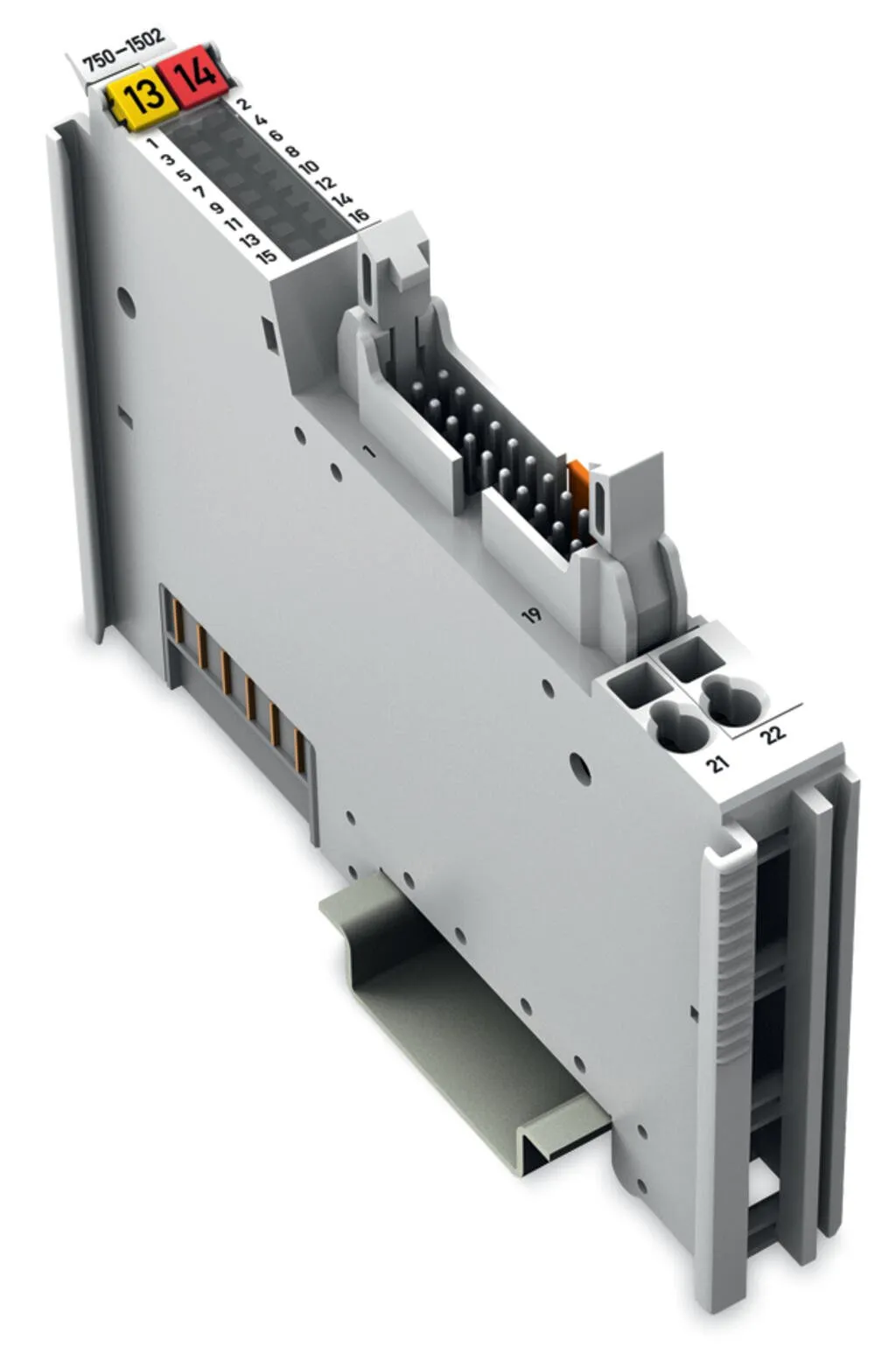

This digital input/output module features eight inputs and eight outputs in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices and transmits them to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads).The module connects to electronic modules via a 20-pole ribbon cable. The 24 V power is fed to the electronic modules via two CAGE CLAMP® connectors.A green LED indicates the signal state of each channel.Field and system levels are electrically isolated.
Specification
Technical data
| Number of digital inputs | 8 |
|---|---|
| Number of digital outputs | 8 |
| Total number of channels (module) | 16 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |
| Sensor connection | 8 x (1-wire) |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (0) typ. | 0.6 mA |
| Input current per channel for signal (1) typ. | 2.4 mA |
| Input current per channel for signal (1) min. | 2.2 mA |
| Input current per channel for signal (1) max. | 2.5 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Actuator connection | 8 x (1-wire) |
| Output characteristic | high-side switching |
| Output current per channel | 0.5 A |
| Output current | short-circuit-protected |
| Load type | Resistive, inductive, lamp load |
| Sensor supply | 24 VDC |
| Switching frequency (max.) | 1 kHz |
| Input data width (internal) max. | 8 Bit |
| Output data width (internal) max. | 8 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 30 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Current consumption, field supply (module with no external load) | 16 mA |
| Isolation | 500 V system/field |

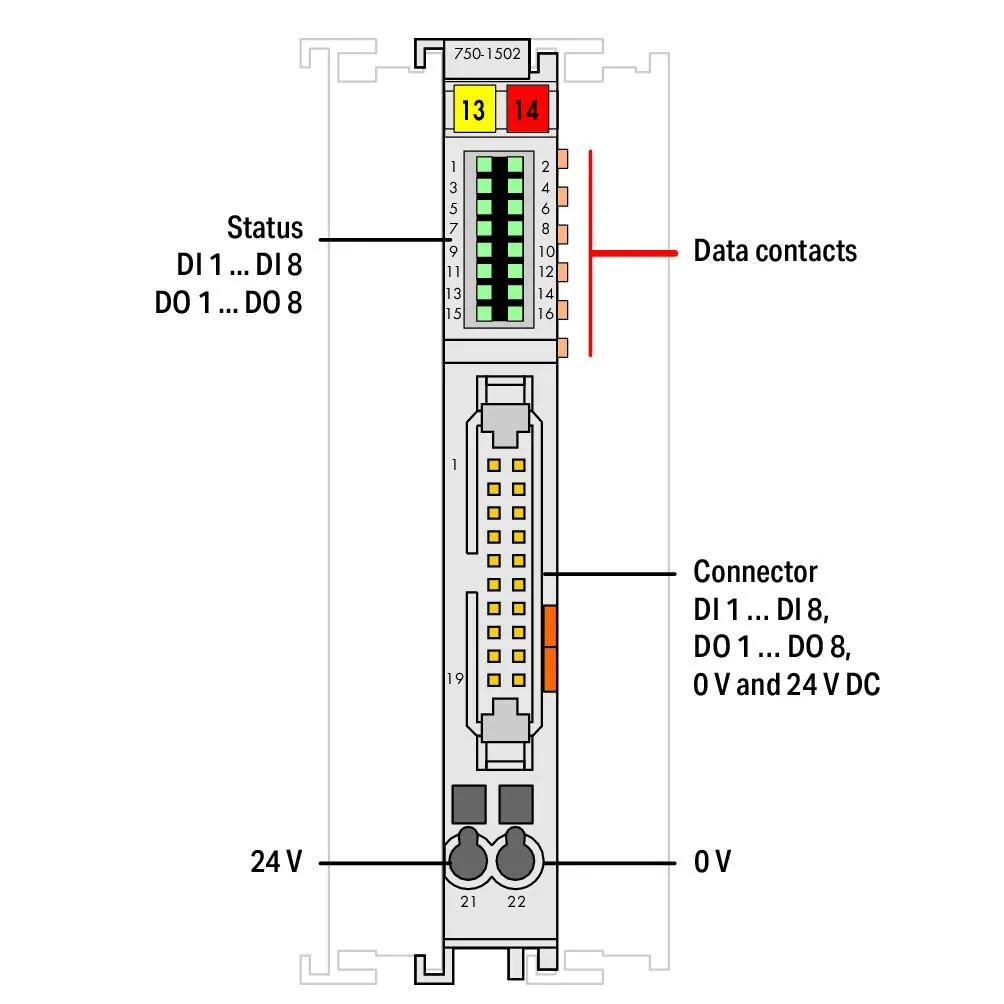

| Indicators | LED (1-8) green: Status DI 1 … DI 8; LED (9-16) green: Status DO 1 … DO 8 |
Connection data

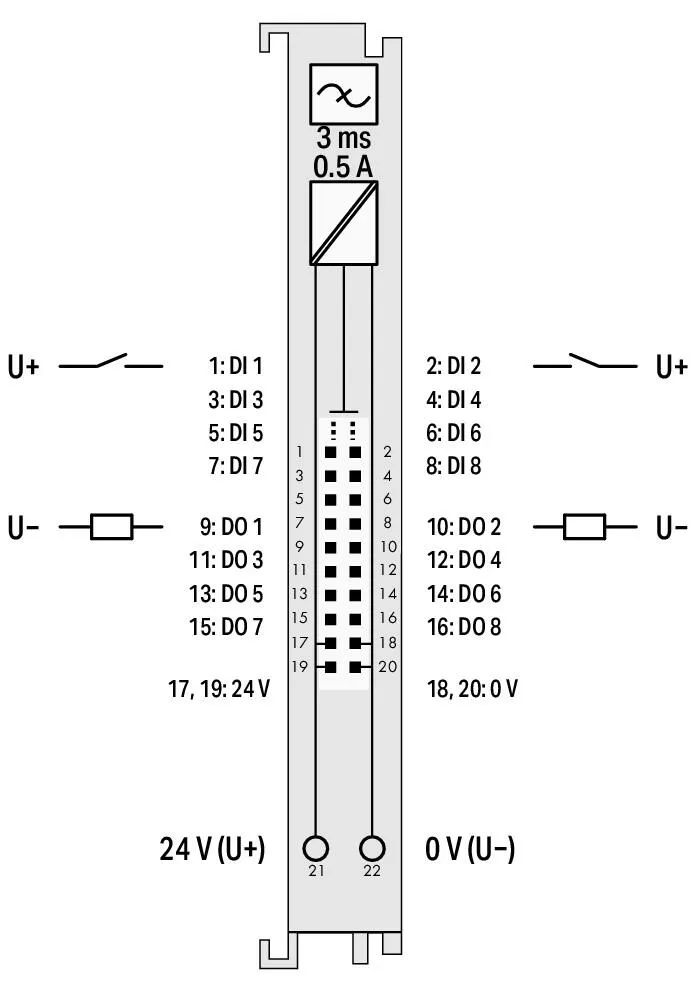

| Connection technology: I/O | 1 x Connector per DIN 41651; Male connector (20-pole) (inputs/outputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Connection technology: field supply | 2 x CAGE CLAMP® |
| Connection type | Field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 74.1 mm / 2.917 inches |
| Depth from upper-edge of DIN-rail | 66.9 mm / 2.634 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.576 MJ |
| Weight | 58 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454898281 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 75980-60-8 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a), 7(c)-I |
| SCIP notification number (Austria) | 4605acb2-450c-4c07-8ece-f4d95742695e |
| SCIP notification number (Belgium) | 3c7585a5-f75a-45d1-aba6-febebe5120f4 |
| SCIP notification number (Bulgaria) | 53992200-e075-49ce-b7af-ca9c455f4bb5 |
| SCIP notification number (Czech Republic) | 2ddaacbe-6f3e-49cb-b2ad-3d6423a9b6c3 |
| SCIP notification number (Denmark) | 67ee0302-f41d-48a2-85e0-cbf9ae0a3652 |
| SCIP notification number (Finland) | 8a6f7606-389c-4073-ba7b-d9353c81c969 |
| SCIP notification number (France) | 7f9022af-6e72-431d-9323-812ab6f6dfcc |
| SCIP notification number (Germany) | 0a3ee4c1-1384-4813-a10c-afd7b7d4dbb4 |
| SCIP notification number (Hungary) | e0df0425-396d-4b87-afd4-cb4a3b720faa |
| SCIP notification number (Italy) | 8f12bc26-61db-4be3-a532-2cd88bbd45af |
| SCIP notification number (Netherlands) | 0469064e-df86-4e9e-8a52-554b951ddf48 |
| SCIP notification number (Poland) | 00e4f2bc-6e4f-4abd-b588-4b0a5b781f1d |
| SCIP notification number (Romania) | c5575f31-dd04-40af-96dd-d6d910fbd19c |
| SCIP notification number (Sweden) | 467f02e4-6dff-4450-8c6d-552fab92a82f |
