Wago 750-1418
This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices (e.g., sensors, encoders, switc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

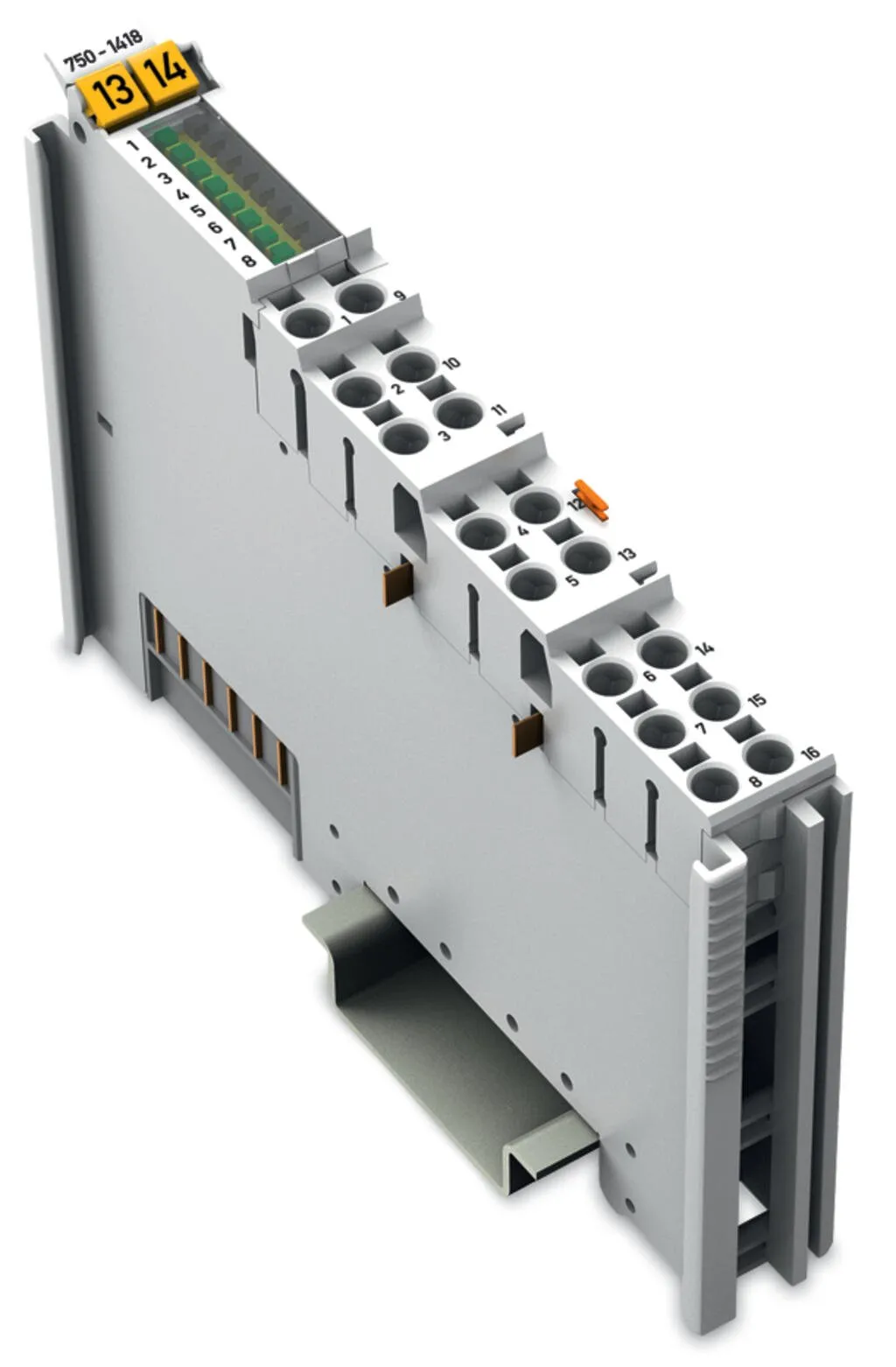

This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors).The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. Each input channel has a noise-rejection RC filter with 0.2 ms time constant.A green LED indicates the signal state of each channel.Field and system levels are electrically isolated.An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
Specification
Technical data
| Number of digital inputs | 8 |
|---|---|
| Total number of channels (module) | 8 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

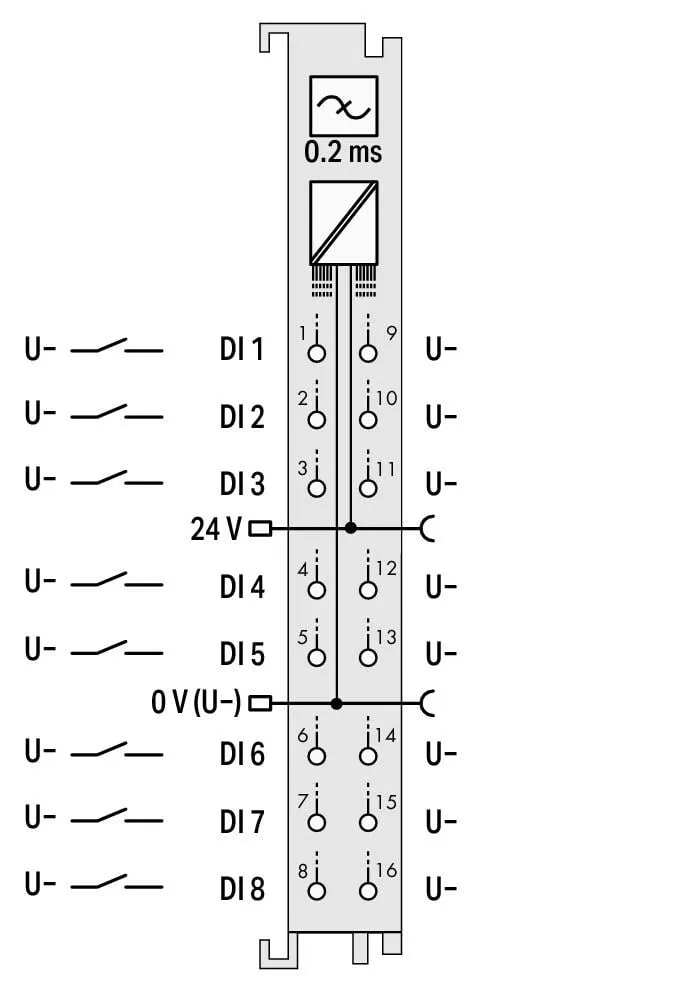

| Sensor connection | 8 x (2-wire) |
| Input characteristic | low-side switching |
| Input filter | 0.2 ms |
| Input current per channel for signal (0) typ. | 2.4 mA |
| Input current per channel for signal (0) min. | -2.1 mA |
| Input current per channel for signal (0) max. | -2.7 mA |
| Input current per channel for signal (1) typ. | -0.6 mA |
| Voltage range for signal (0) | (UV - 5 V) … UV DC |
| Voltage range for signal (1) | −3 VDC … (UV - 15 V) |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 8 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 12 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

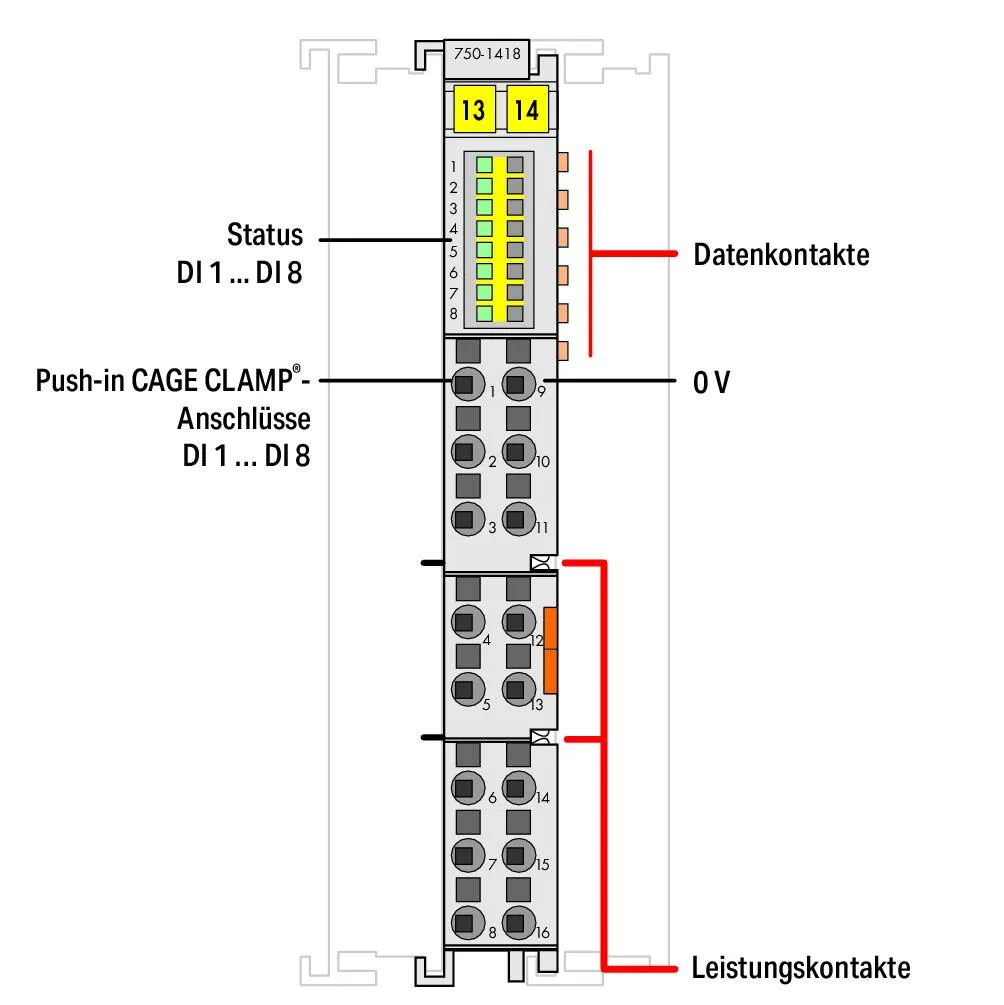

| Indicators | LED (1-8) green: Status DI 1 … DI 8 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data

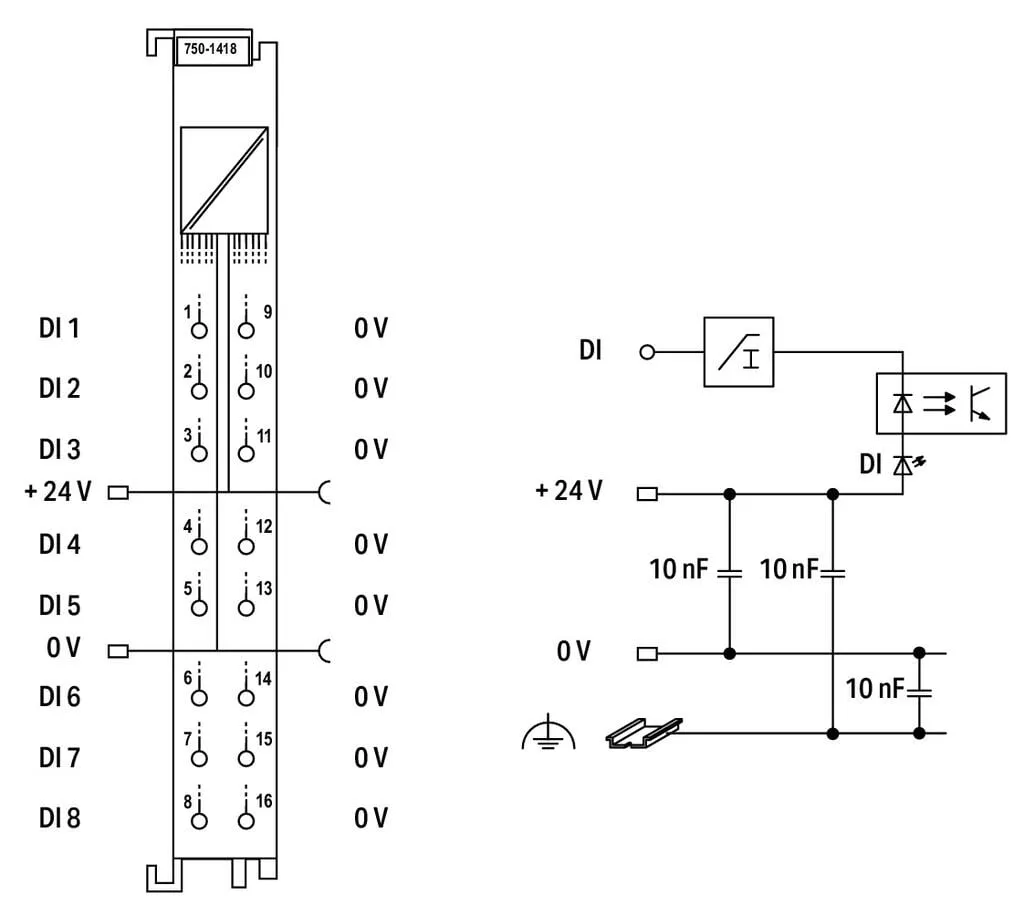

| Connection technology: I/O | 16 x Push-in CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.624 MJ |
| Weight | 44 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821131410 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I |
| SCIP notification number (Austria) | 7eae78b5-a1c7-4404-a6de-c4e227b86c72 |
| SCIP notification number (Belgium) | db51207a-103f-438e-b90d-9b387eeafae9 |
| SCIP notification number (Bulgaria) | 6f6ecfcf-ec78-4698-b172-935846692b65 |
| SCIP notification number (Czech Republic) | c3c88ba5-c4b1-4277-9f80-e19e308b8dcc |
| SCIP notification number (Denmark) | 91098385-0e6e-4f7f-8e30-a2eac6bb0f70 |
| SCIP notification number (Finland) | b24f00f3-a1e6-42f5-8e2c-f9567b4741d9 |
| SCIP notification number (France) | 864a293b-6ba5-4eeb-9d9c-90e60bf483a4 |
| SCIP notification number (Germany) | 300c28b2-f07c-4e88-bd52-fe3ff39ab1a8 |
| SCIP notification number (Hungary) | c6c635f7-7ff4-49eb-8674-055ff986c2dc |
| SCIP notification number (Italy) | 85bd8be7-6a08-40d6-bd64-62ae6e49e4f8 |
| SCIP notification number (Netherlands) | 32cda7f2-a1dd-4647-ab0a-ba98f89f2598 |
| SCIP notification number (Poland) | 397ee65f-cbbf-4f78-ad83-9ecf7596ad92 |
| SCIP notification number (Romania) | 4ade9e9b-1cb1-4690-be99-73d4ab151083 |
| SCIP notification number (Sweden) | bb6ccbcd-bbd5-4f90-8bdd-dd77051467d3 |
