Wago 750-1417/040-000

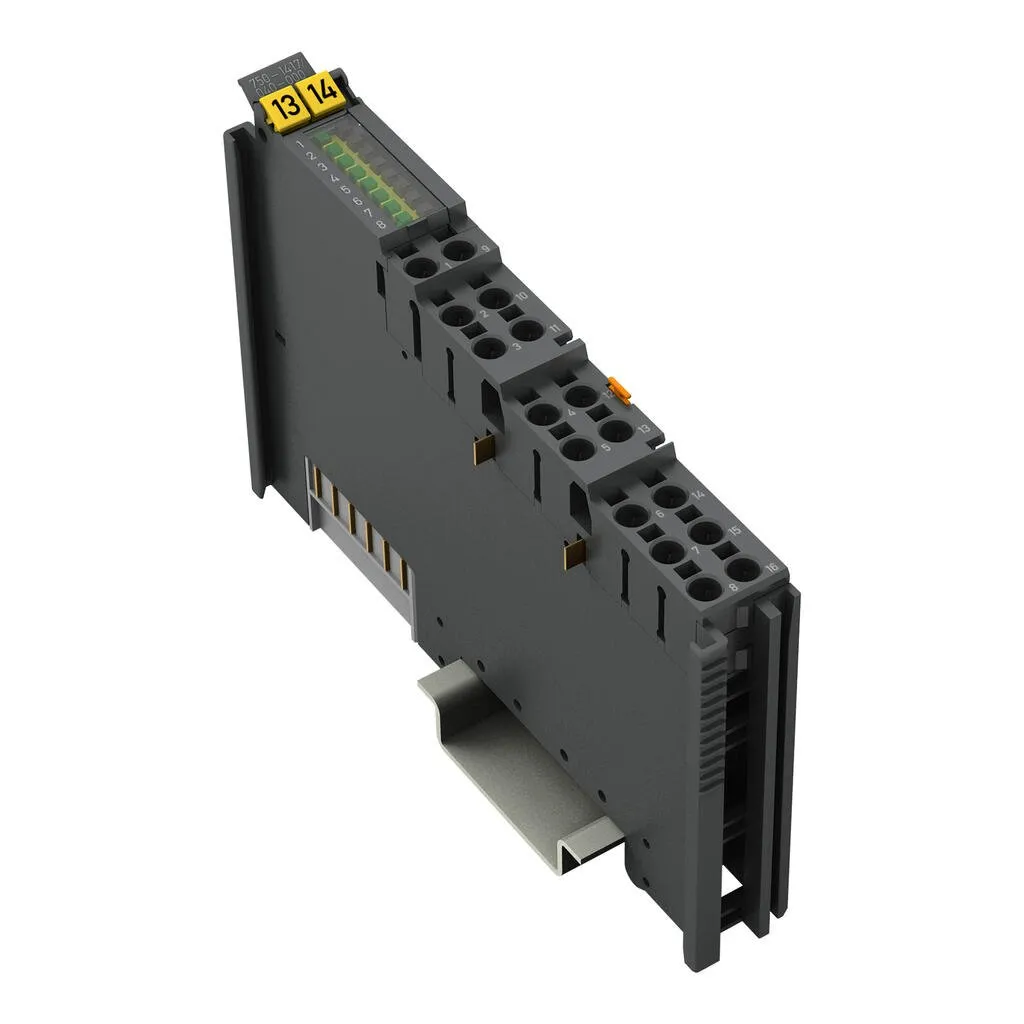

This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices (e.g., sensors, encoders, switc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

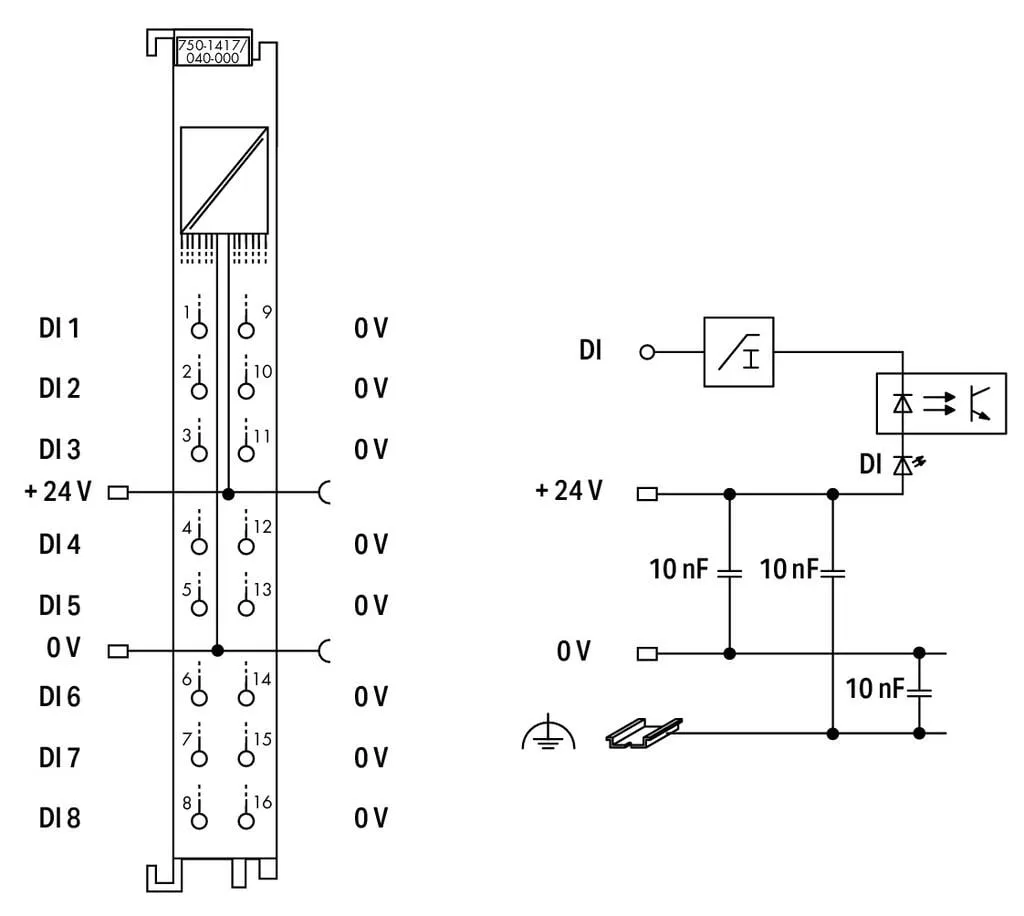

This digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch).It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors).The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. Each input channel has a noise-rejection RC filter with 3.0 ms time constant.A green LED indicates the signal state of each channel.Field and system levels are electrically isolated.An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.The device is ideal for operation in extreme environments thanks to:An extended temperature rangeGreater immunity to impulse voltages and electromagnetic interferenceHigher vibration and shock resistance
Specification
Technical data
| Number of digital inputs | 8 |
|---|---|
| Total number of channels (module) | 8 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

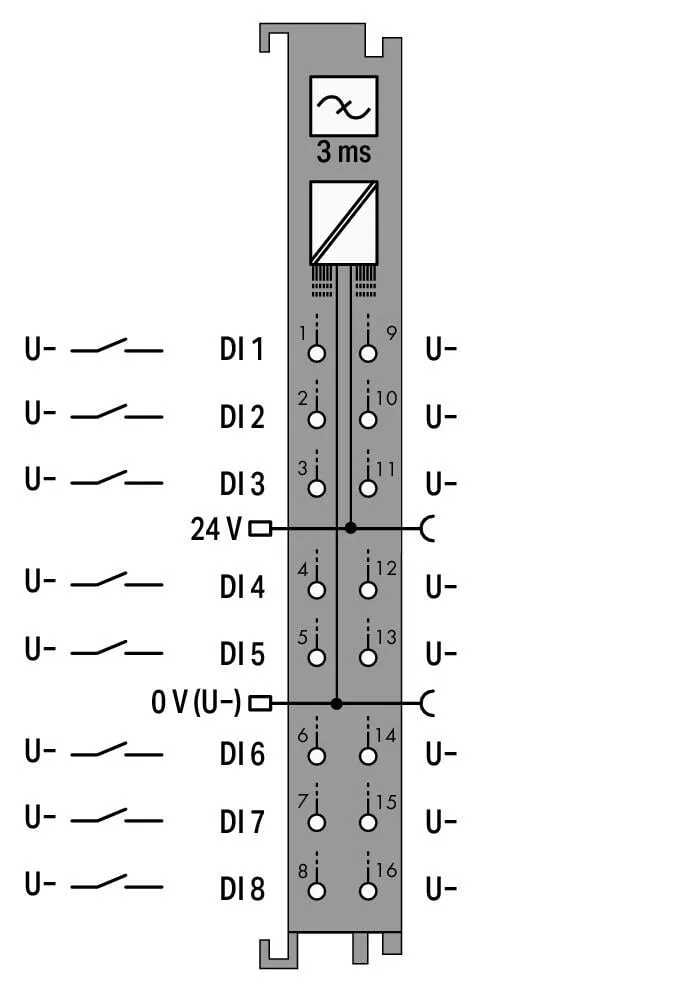

| Sensor connection | 8 x (2-wire) |
| Input characteristic | low-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (0) typ. | -2.4 mA |
| Voltage range for signal (0) | (UV - 5 V) … UV DC |
| Voltage range for signal (1) | −3 VDC … (UV - 15 V) |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 8 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 12 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
| Dielectric strength | 510 VAC / 775 VDC; per EN 60870-2-1 |

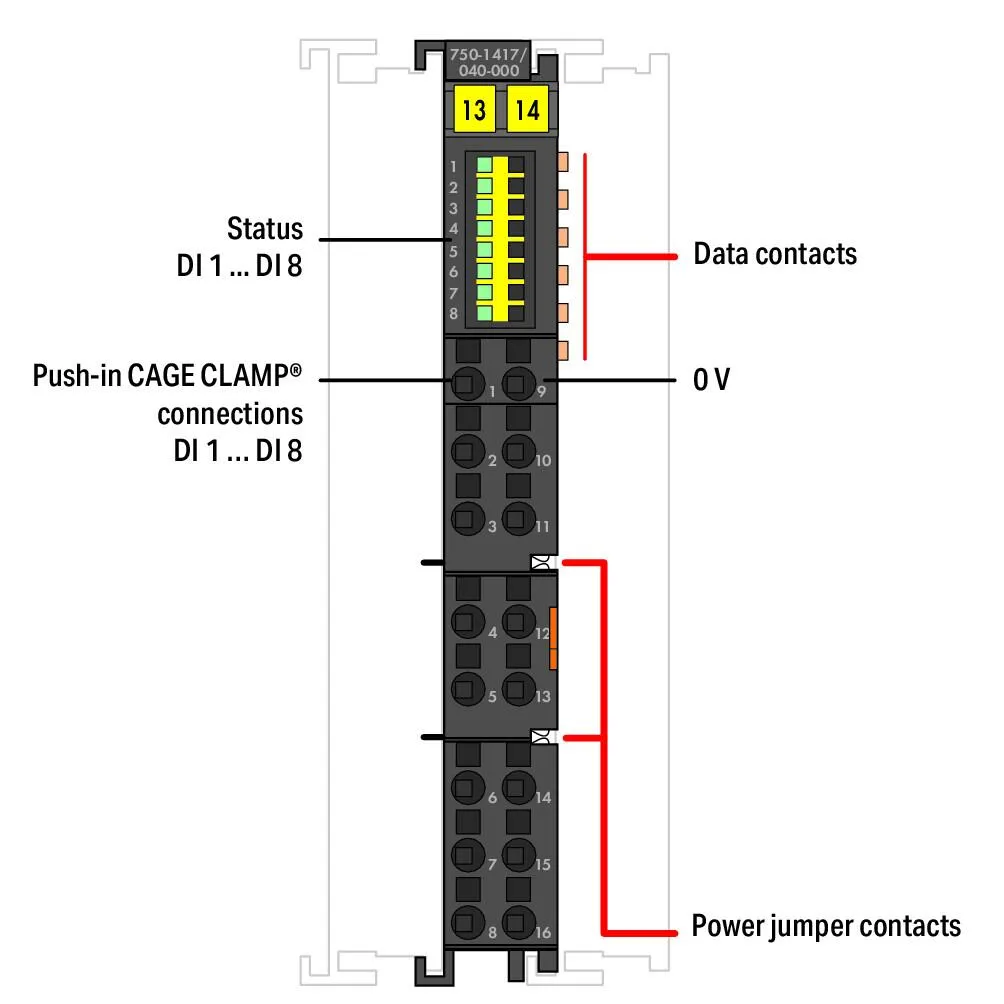

| Indicators | LED (1-8) green: Status DI 1 … DI 8 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
| Rated impulse withstand voltage | 1 kV |
| Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (-25 … +30 %);for -40 … +55 °C: 24 V (-25 … +20 %);for +55 … +70 °C: 24 V (-25 … +10 %);Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple) |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.25 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 24 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | dark gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.822 MJ |
| Weight | 59.8 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Ambient temperature (installation) | -20 … +70 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966207828 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I, 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | b0ae6ed0-d4b5-4e4b-8d76-3d98da63421d |
| SCIP notification number (Belgium) | f2a34a66-3047-4d16-a75a-4b9401713a33 |
| SCIP notification number (Bulgaria) | f48e5a77-b329-4250-8c67-baf4c27dcd38 |
| SCIP notification number (Czech Republic) | 5525db18-b87b-491f-b379-b2de839904a6 |
| SCIP notification number (Denmark) | d39501c5-40bd-4c7f-af83-b0dd509f0476 |
| SCIP notification number (Finland) | 7ecf4078-3270-451a-9d90-80a0f1dfb0b1 |
| SCIP notification number (France) | f71a3313-d6ce-4374-9390-865f54050d58 |
| SCIP notification number (Germany) | 4996d038-eaeb-4c78-8ab0-8bccdcea31f6 |
| SCIP notification number (Hungary) | 2ae11b20-9f20-48cd-89c1-0f97d5ed1cc4 |
| SCIP notification number (Italy) | 8c38cff3-7ee5-43e7-b09d-2e5ab555ac7c |
| SCIP notification number (Netherlands) | becb0d63-5e44-4547-a11a-506c0780f3ad |
| SCIP notification number (Poland) | 380fbb3c-342b-4e26-b39f-77d4aa073563 |
| SCIP notification number (Romania) | 8e2fdcec-6e04-4d1c-b684-2fd38cd41d4a |
| SCIP notification number (Sweden) | 04521598-e27c-4399-ac72-6808f5ac6967 |
