Wago 745-833/999-950

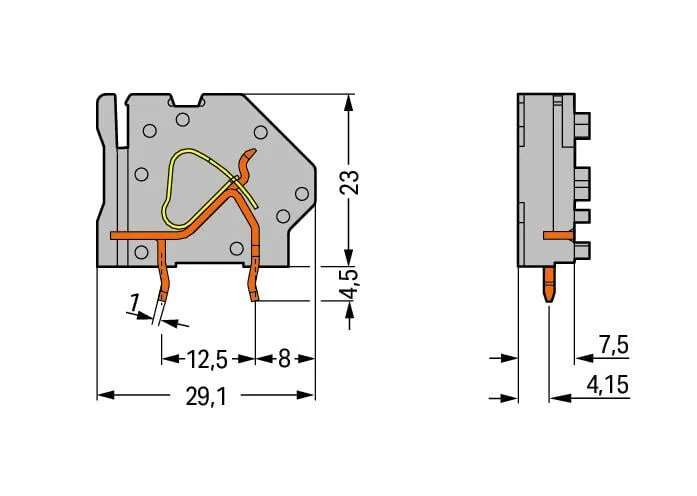

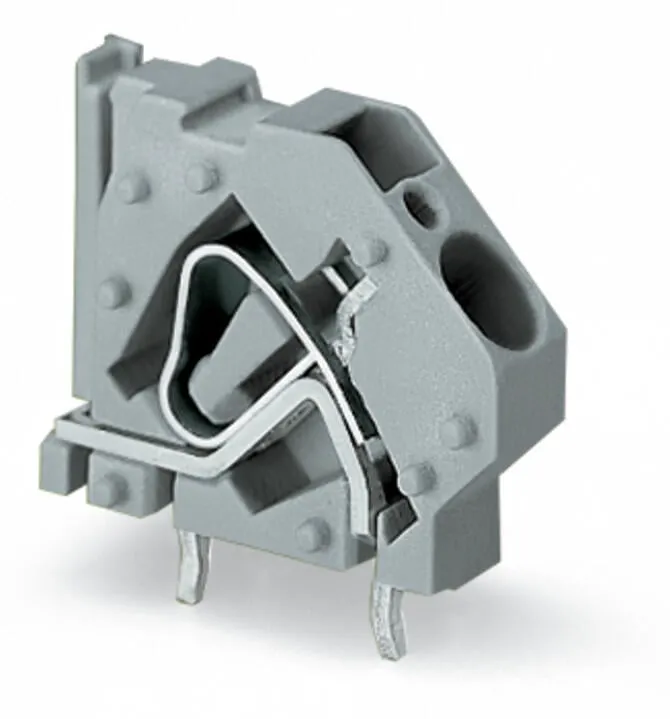

PCB terminal block, 745 Series, CAGE CLAMP®Connecting conductors is quick and easy with this PCB terminal block (item number 745-833/999-950). It offers the flexibility needed for different mounting types. Strip lengths must be between 11 and 12 mm  when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are (9 x 27.5 x 29.1) mm (width x height x depth). Depending on the conductor type, this PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm².Tin is used for coating the contact surfaces. An operating tool is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted at a 45° angle..
